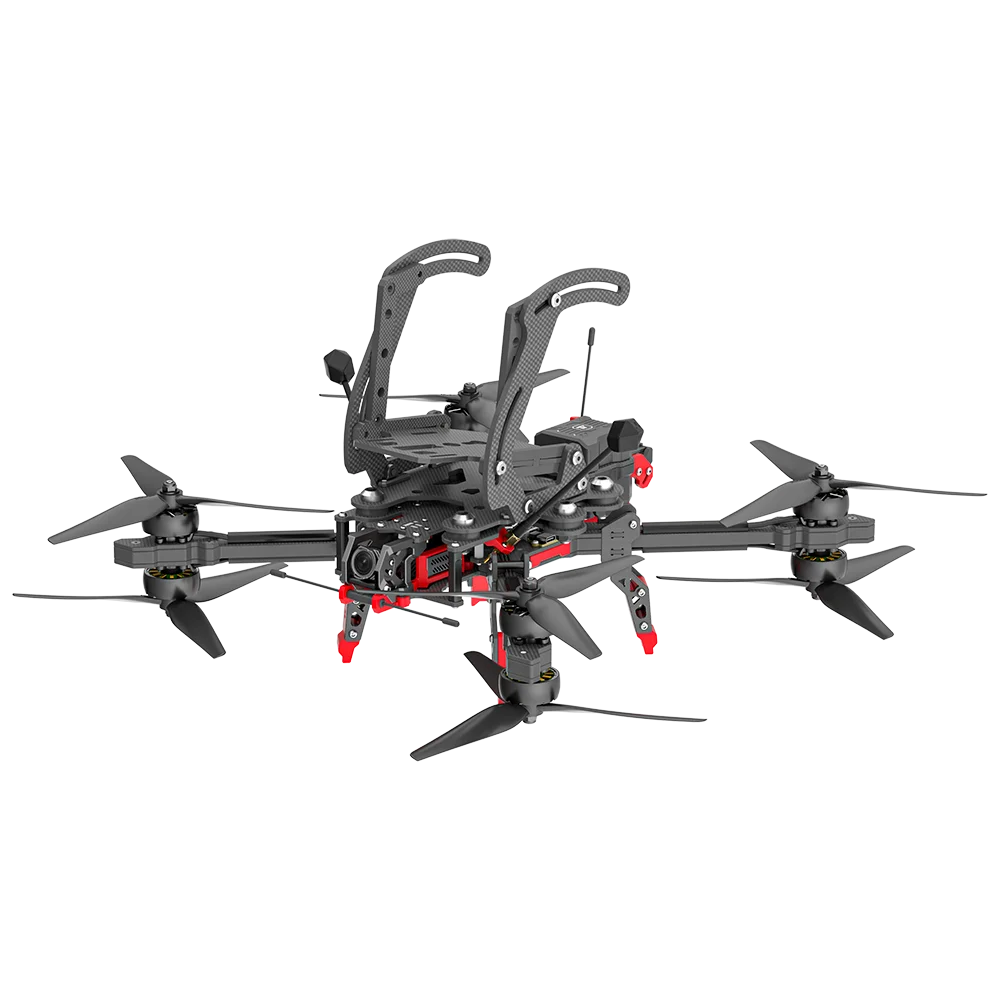

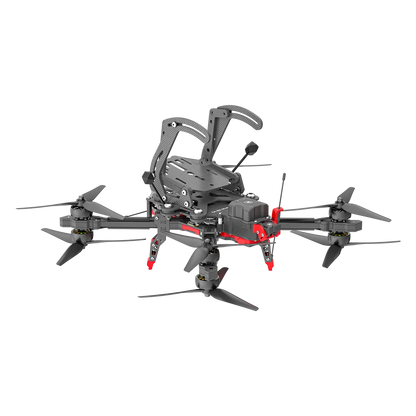

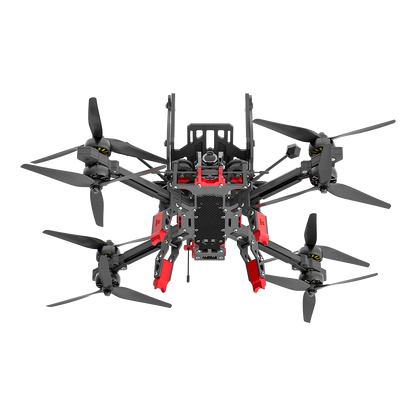

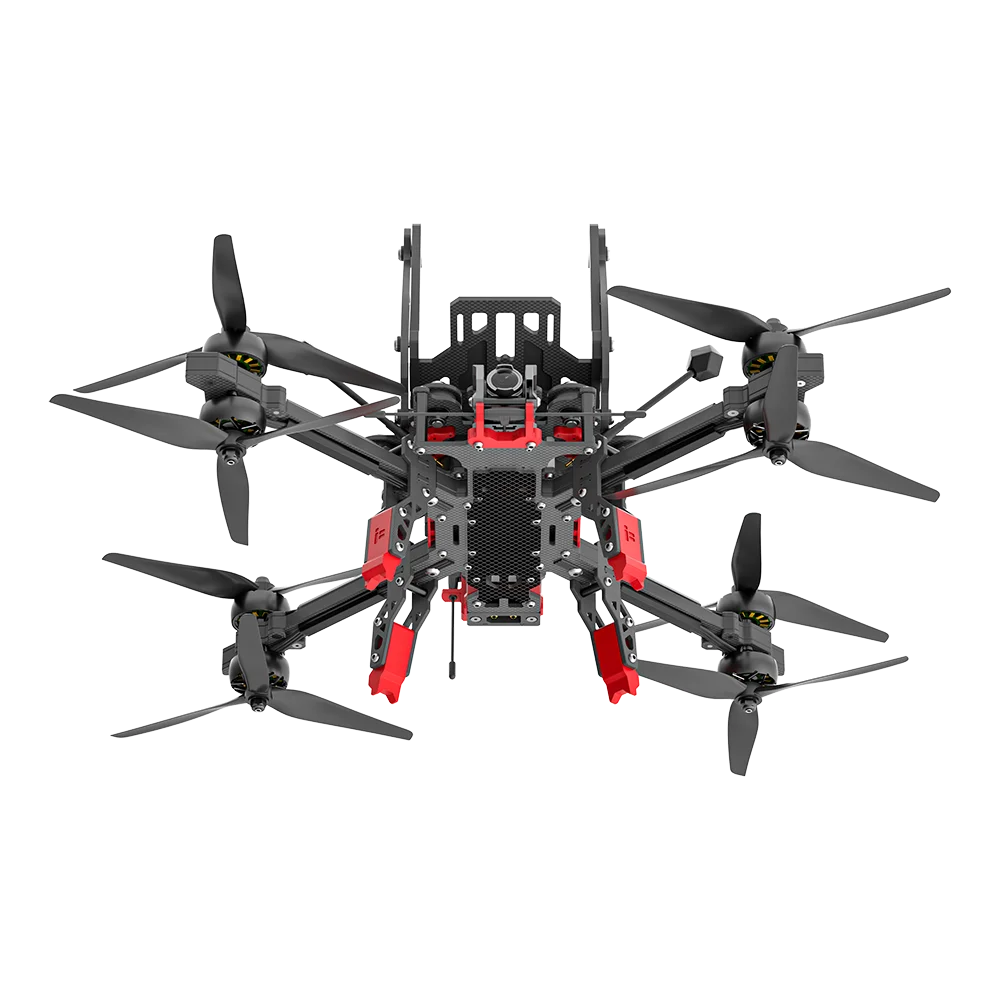

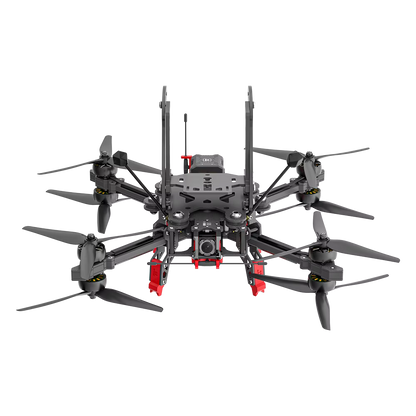

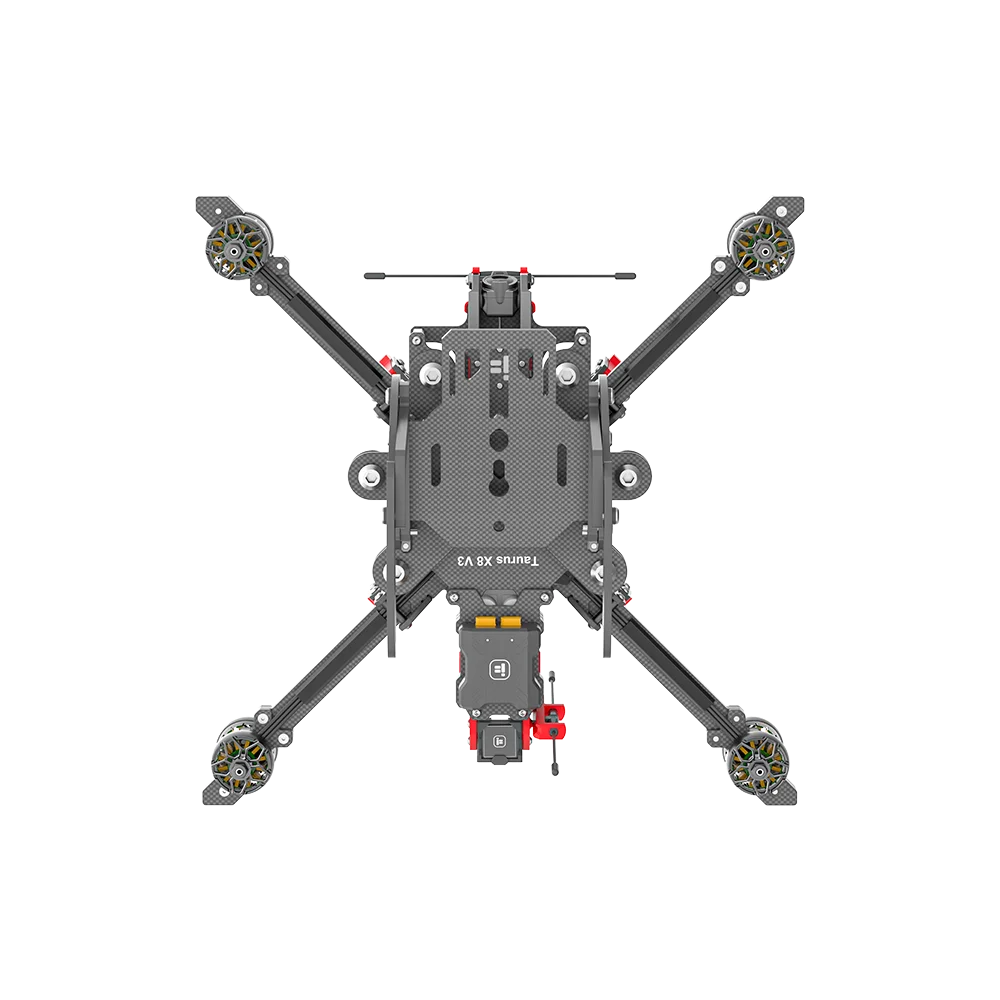

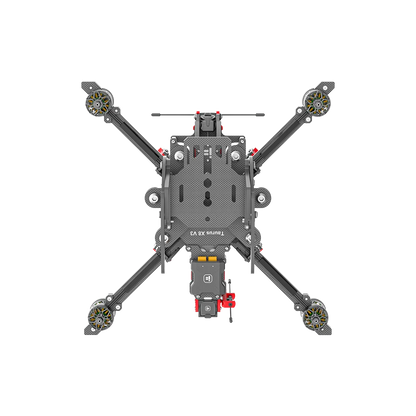

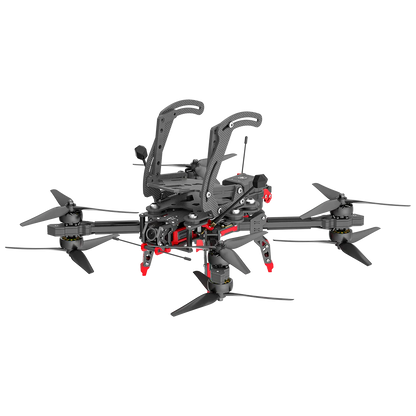

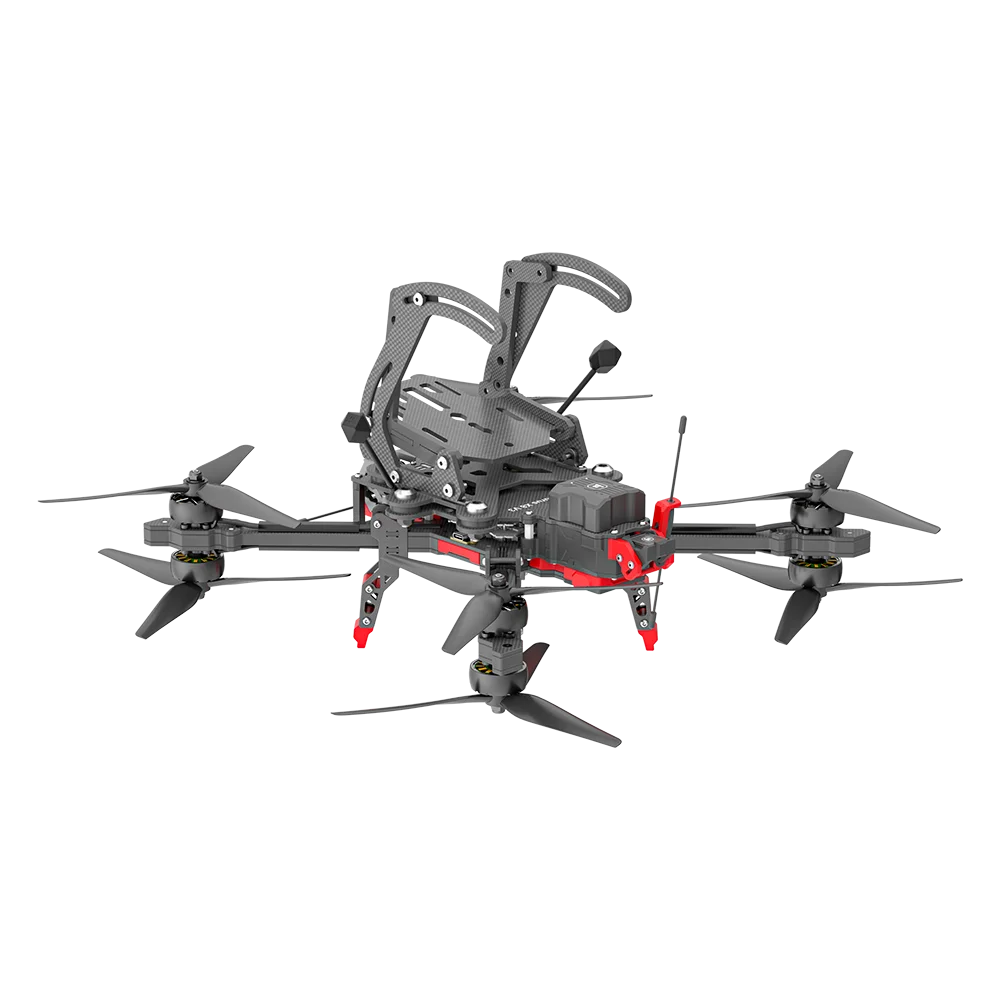

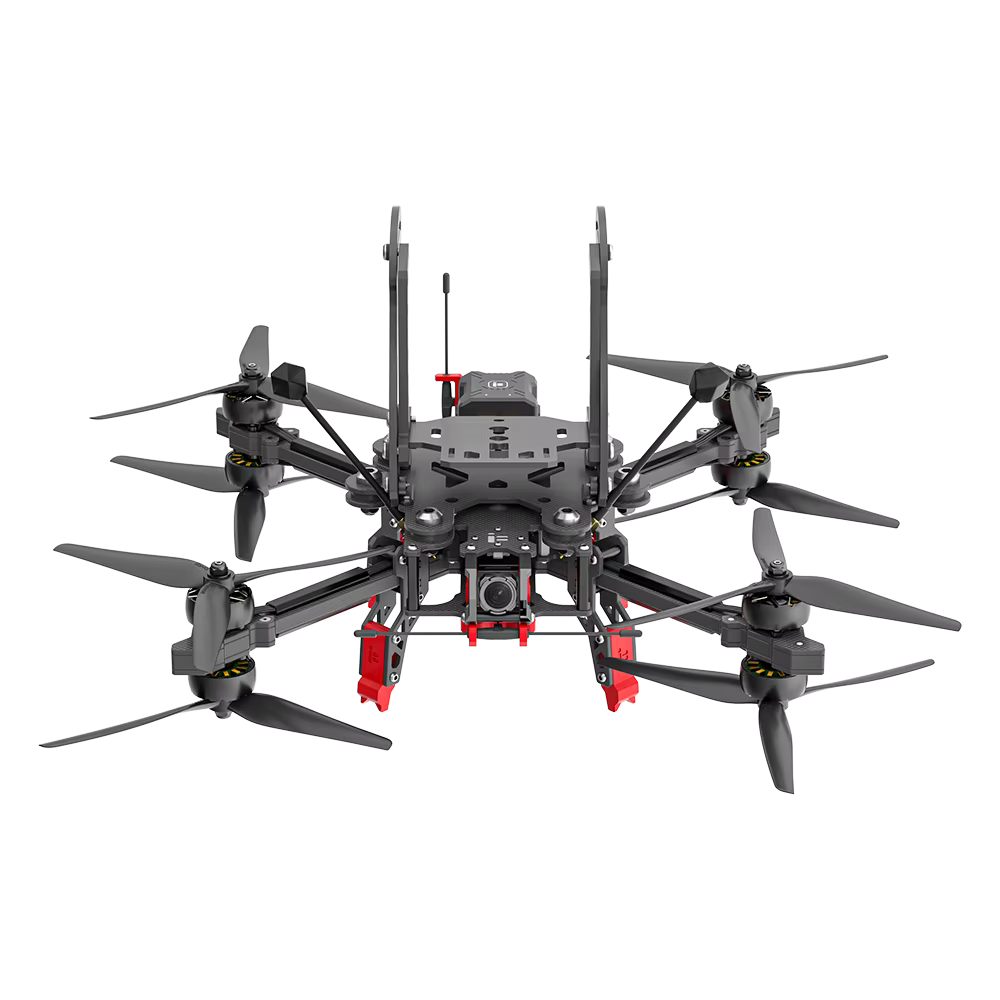

iFlight Taurus X8 V3 6S HD Cinelifter Drone BNF with DJI O4 Pro Air Unit

• Let's introduce our new iFlight Taurus X8 V3 BNF, our heavy-duty gear designed to lift those big cameras!

• Engineered by professionals for professionals, this BNF is aimed at carrying big payloads and offers a soft-damped universal platform for DSLR or cinema cameras (such as Red Komodo, Zcam, BMPCC, etc.) featuring DJI's FPV HD transmission system. It has a redundant ESC and motor setup for maximum performance and safety. Even in the case of an overload or failure, one remaining ESC and four motors will be able to carry your expensive camera back to you. In case you experience signal interference, radio signal loss, or complete FPV transmission failure, the GPS rescue feature will automatically take over control, climb to the maximum flight altitude, and descend towards your liftoff location until the signal transmission is regained (no automated landing). The integrated TPU landing gear provides sufficient height for most terrains and offers some protection during harder landings.

• It has a maximum payload of 2kg for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced CG (Center of Gravity). The underslung battery acts as a power source as well as a counterweight to strategically slide the weight more front or back to counter camera lenses of different weights or lengths. The adjustable CNC aluminum mount offers angles from 5 to 35 degrees and can be safely secured for reproducible outcomes. No jello, no jitter, no problem; Our silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. For the perfect cinematic shot, we recommend additional software stabilization in post-production or a hardware module (such as SteadXP).

Highlights

• Big size XING2 3110 // The power motors with extreme lift and flight performance

• Redundant ESC and motor configuration

• GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

• DJI O4 HD Air Unit Low-Latency Digital Transmission// 4K Stabilized Video with 155° Ultra-Wide Angle

• Universal camera mount and accessories for a wide range of cameras to install

Specificaiton

• Product Name: Taurus X8 V3 O4

• FC: BLITZ F7 Pro Flight Controller

• ESC: BLITZ E80 2-8S 80A 4-IN-1 ESC(without CNC Alum Cover)

• Video Transmission: DJI O4 AIR Unit Pro

• Frame: 400mm wheelbase

• Motor: XING2 3110 1250KV  motors

• Prop: HQ 8043 propellers

• Weight: 1634±10g

• Takeoff Weight: Approx. 2492±20g (With 6S 5600mAh Battery)

• Dimensions (L×W×H): 283×283×112 mm

• Diagonal Distance: 400 mm

• Max Speed: 150 km/h (Manual Mode)

• Maximum Takeoff Altitude: 3200 m

• Max Hover Time: Approx. 5.5 mins with 2KG load and 6S 5600mAh battery

• Max Flight Distance: 5 km

• Max Wind Speed Resistance: Level 8

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Antennas: Dual Antennas

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

• Product Name: DJI O4 Air Unit Pro

• Image Sensor: 1/1.3-inch

• Lens: FOV: 155°

• ISO: 100-25600

• Video Resolution: 1080p/100fps H.265

• Video Format: MP4, Max Video Bitrate: 130Mbps

• Color Mode: Normal Mode/D-Log M

• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

• Live View Quality: 1080P@100fps

• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

• Communication Bandwidth: Max 60 MHz

• Antenna: Dual antennas

• Built-in Storage: 4GB

• Supported SD cards: microSD (up to 512GB)

• Operating Temperature: -10° to 40° C

• Weight: Air Unit (camera module included): Approx. 32 g

• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

• 1 x Taurus X8 V3 BNF

• 8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CCW propeller (Color may vary)

• 2 x Albatross LHCP 5.8GHz SMA FPV Antenna

• 1 x XT90 Male to XT60 Female Adapter Wire

• 2 x iFlight Lipo Strap 20*400mm (Black)

• 2 x iFlight Lipo Strap 20*500mm (Black)

• 1 x CNC Aluminum alloy cam mount

• 1 x XT90 Smart Smoke Stopper

• 1 x Prop Wrench

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
