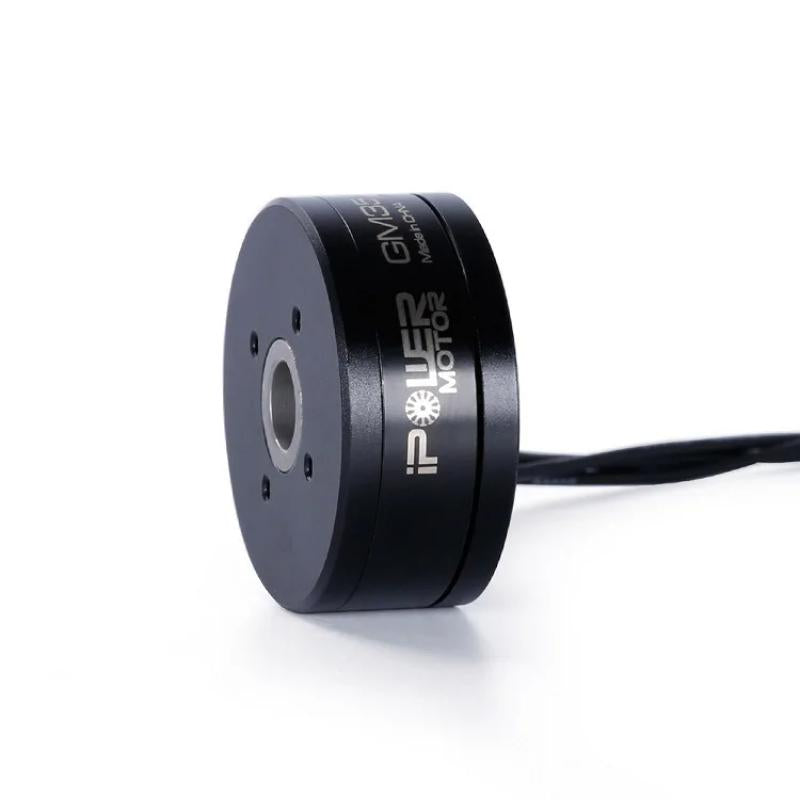

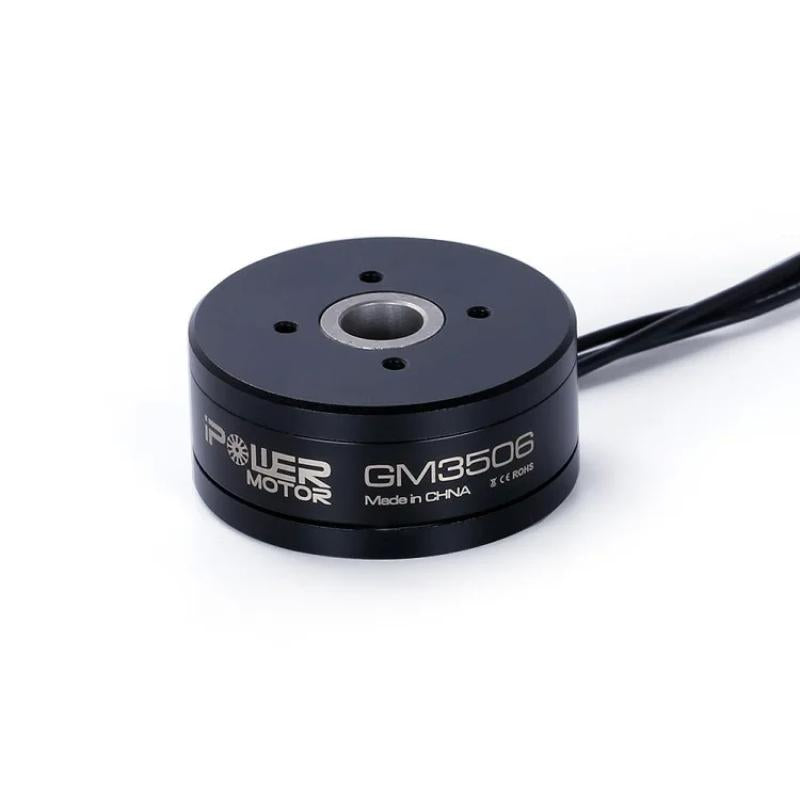

IFlight IPower GM3506 Brushless Gimbal Motor

The GM35 series motor by iPower Motors is the ultimate brushless gimbal motor for SLR and similar weight Cameras. This motor is designed for large-scale multi-rotor platforms looking to lift SLR sized gear – 1.5KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

Model: GM3506

Motor Out Diameter: Ф40±0.05mm

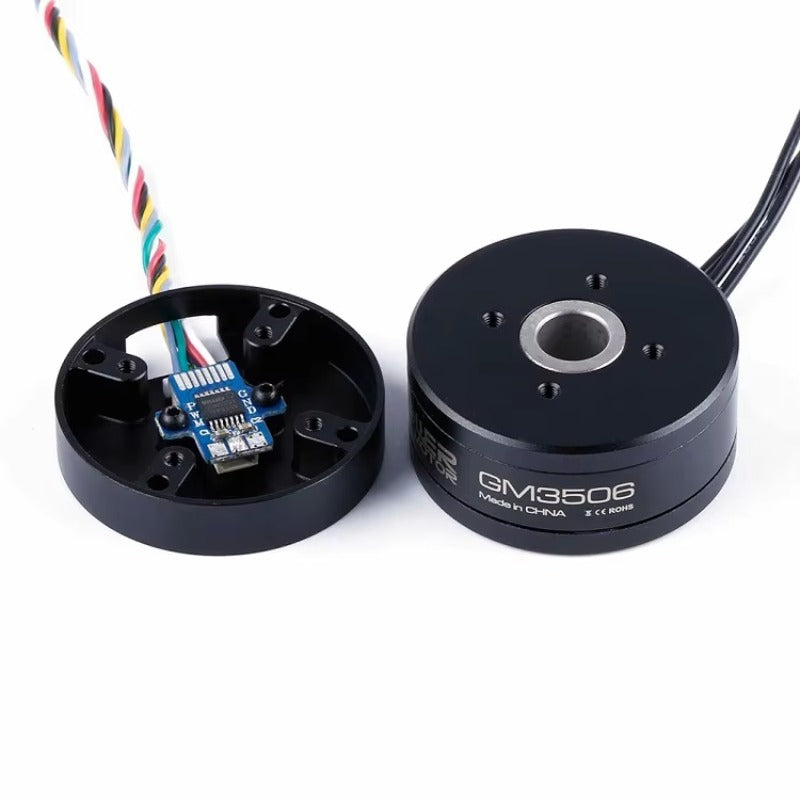

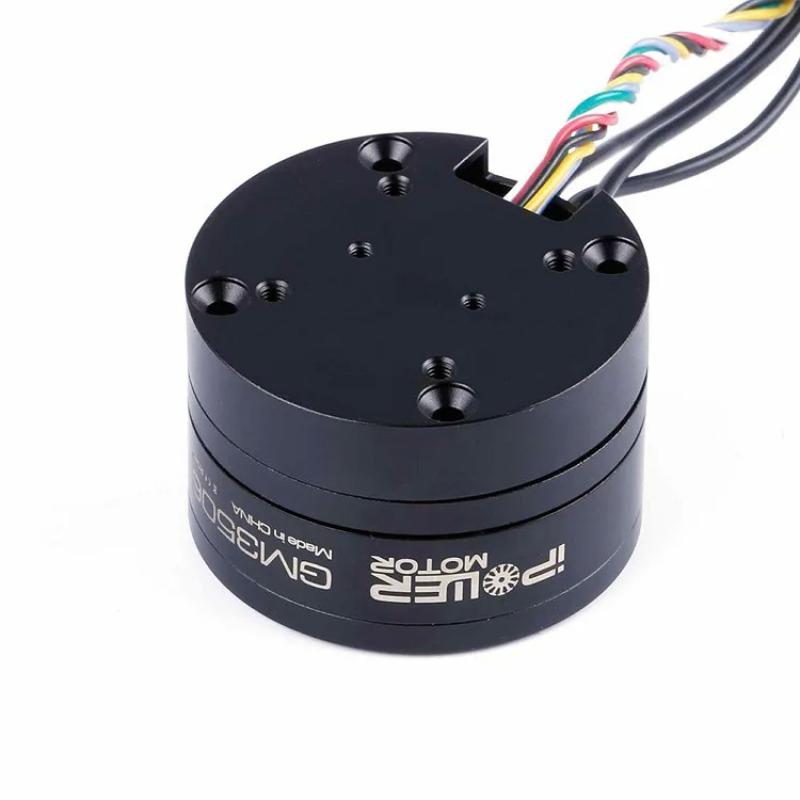

Motor Height: 17.8±0.2mm (Included with Encoder housing)

Hollow Shaft(OD): Ф12-0.008/-0.012 mm

Hollow Shaft(ID): Ф8.6+0.05/0 mm

Wire Length: 610±3mm

Cable AWG: #24

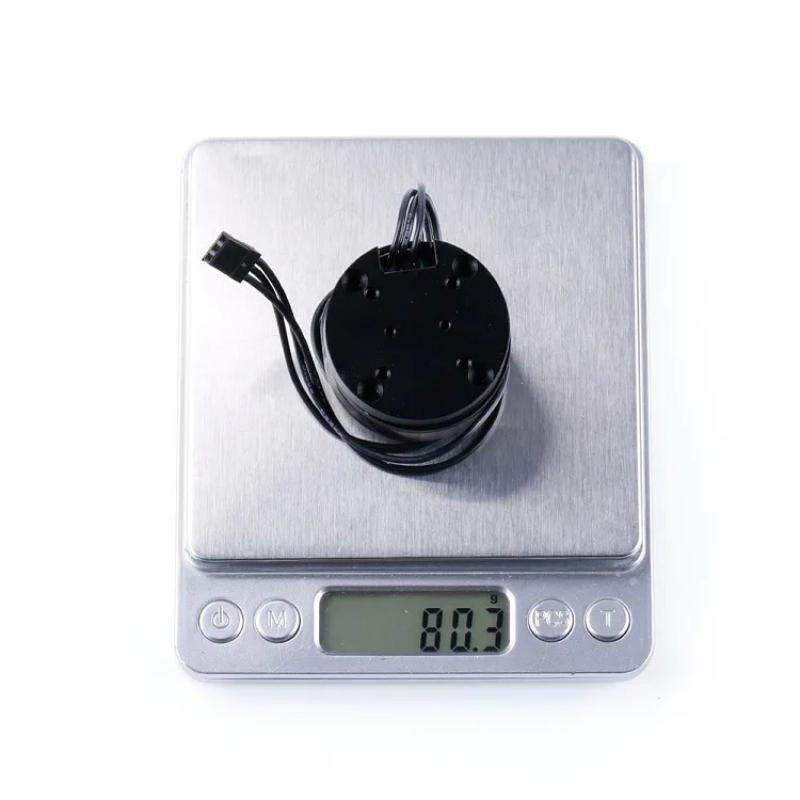

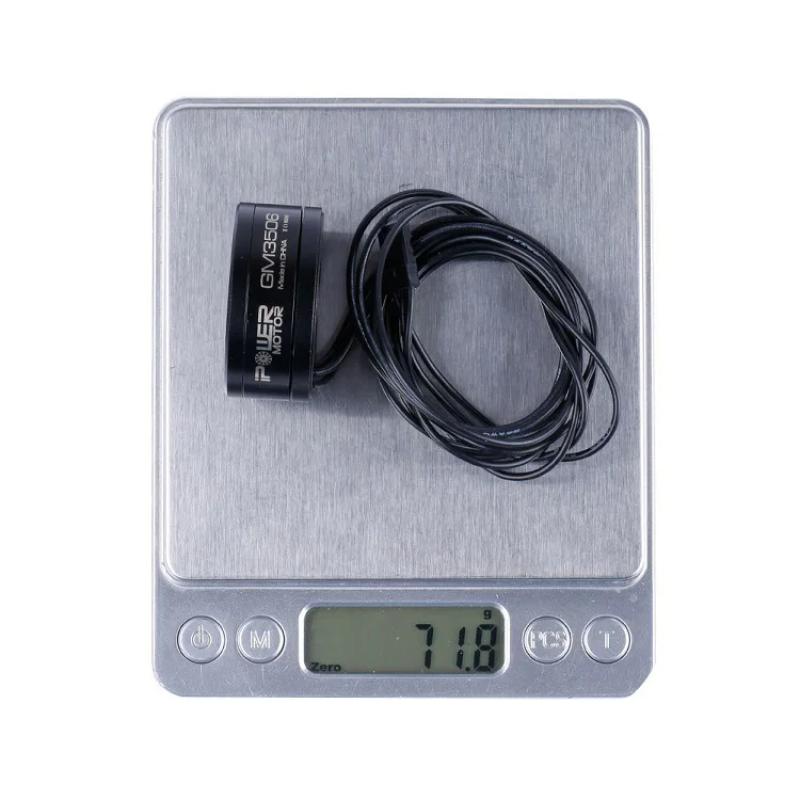

Motor Weight: 64±0.2g

Wire plug: 2.5mm dupont connector

No-load current: 16V

No-load volts: 0.17±0.05 A

No-load Rpm: 2149~2375 RPM

Load current: 12V

Load volts: 1A

Load torque(g): 600-1000

Motor internal resistance: 5.6Ω±5%(Resistance varies with temperature)

High voltage test: DC500V 1mA @2sec

Rotor housing runout: ≤0.1mm

Steering (axle extension): clockwise

High-low temperature test:

High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature

Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature

Maximum power: ≤25W

Working current: 2-3S

Working temperature: -20~60℃;10~90%RH
