iFlight iPower Gimbal Motor GM2804 UAV pod motor

Description：

The GM2804H-100T motor by iPower Motors is the ultimate brushless gimbal motor for GoPro Cameras. This motor is designed for small multi-rotor platforms looking to lift GoPro sized gear – 0.5-1KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

Specifications:

Model: GM2804

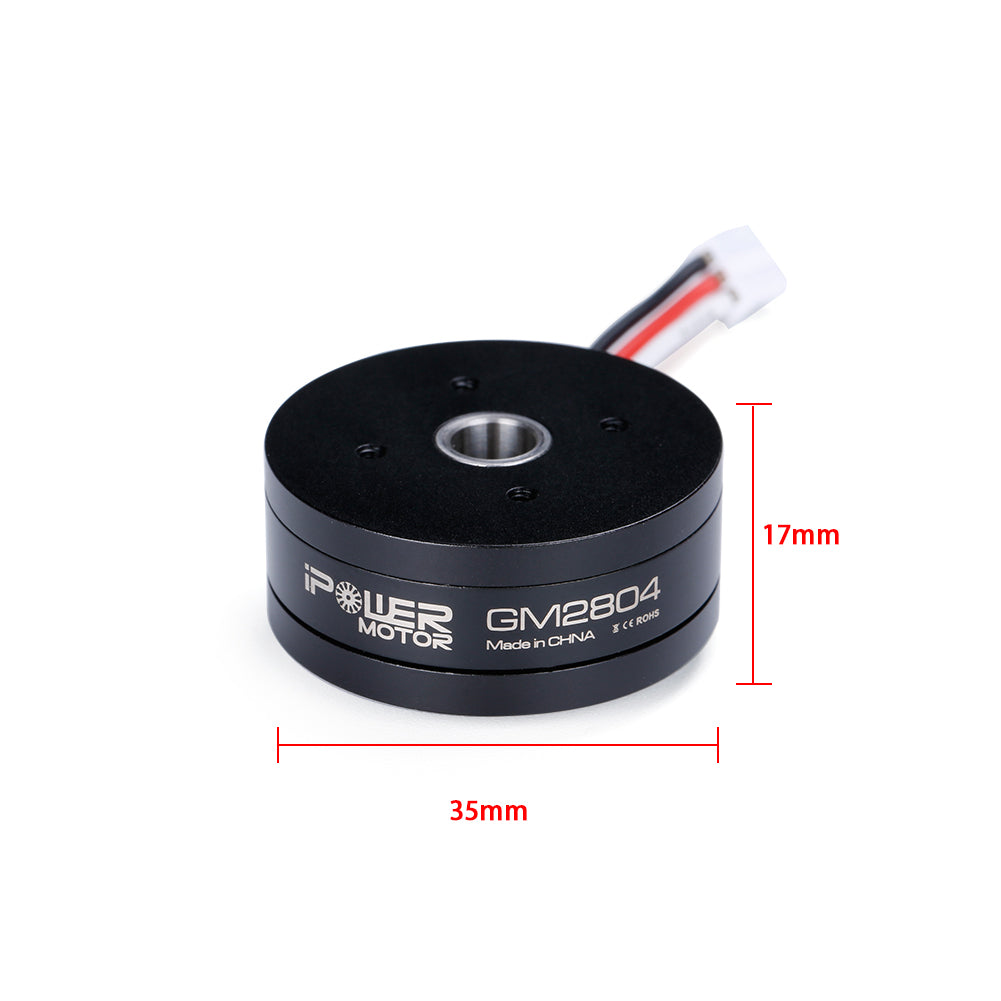

Motor Out Diameter: Ф35±0.05mm

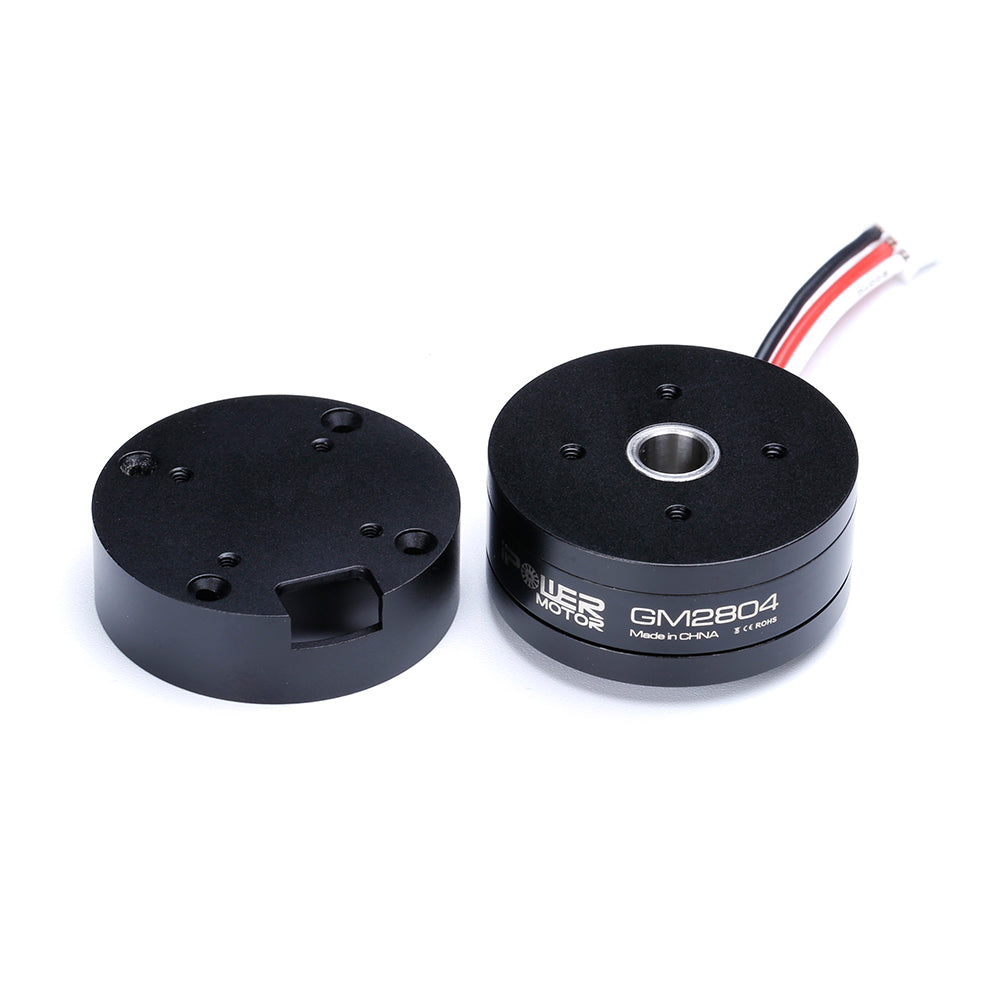

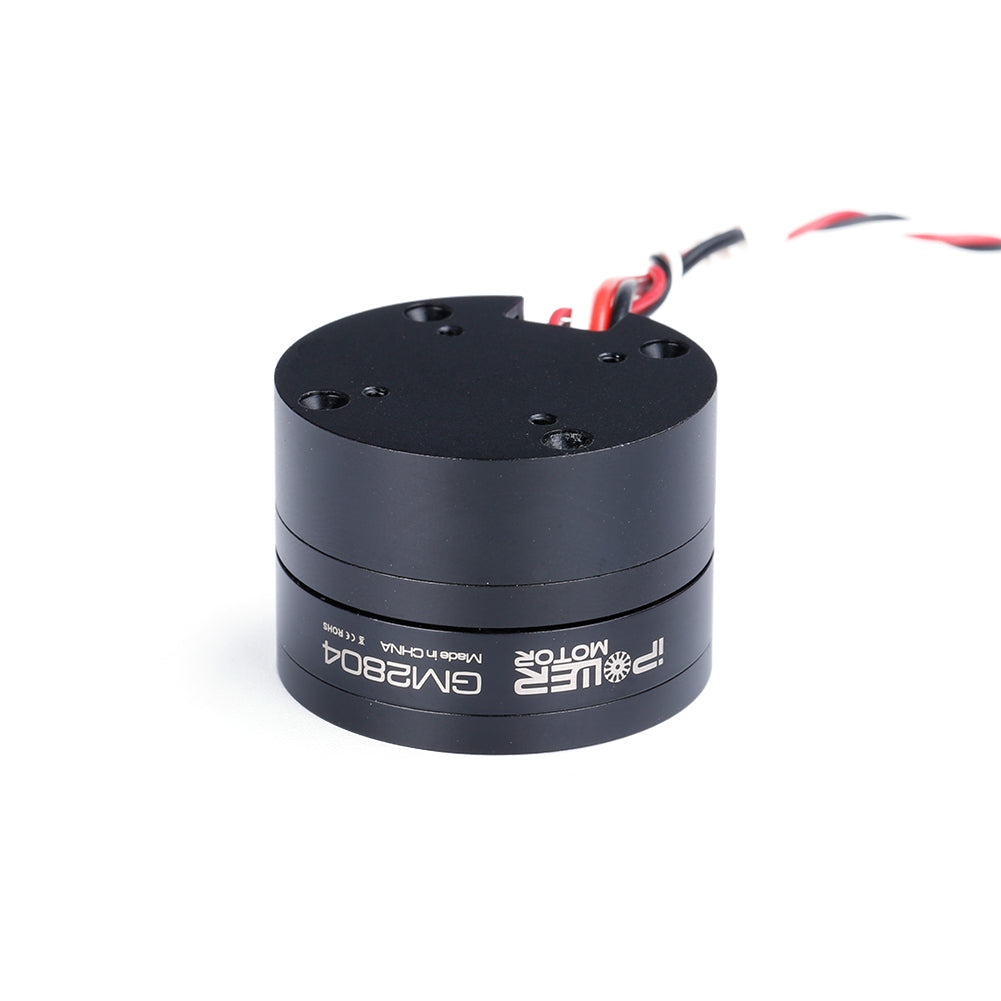

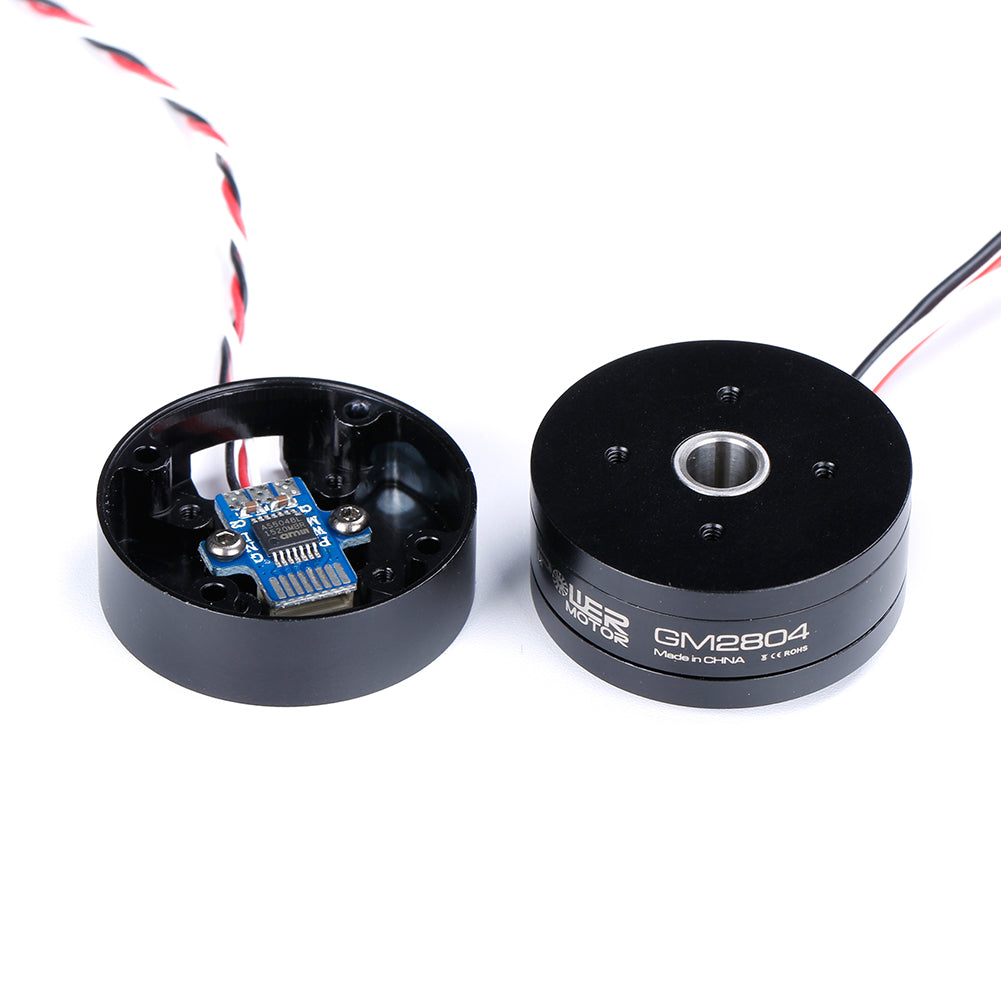

Motor Height: 25±0.2mm (Included with Encoder housing)

Hollow Shaft(OD): Ф8-0.008/-0.012 mm

Hollow Shaft(ID): Ф6.5+0.05/0 mm

Wire Length: 60±3mm

Cable AWG: #24

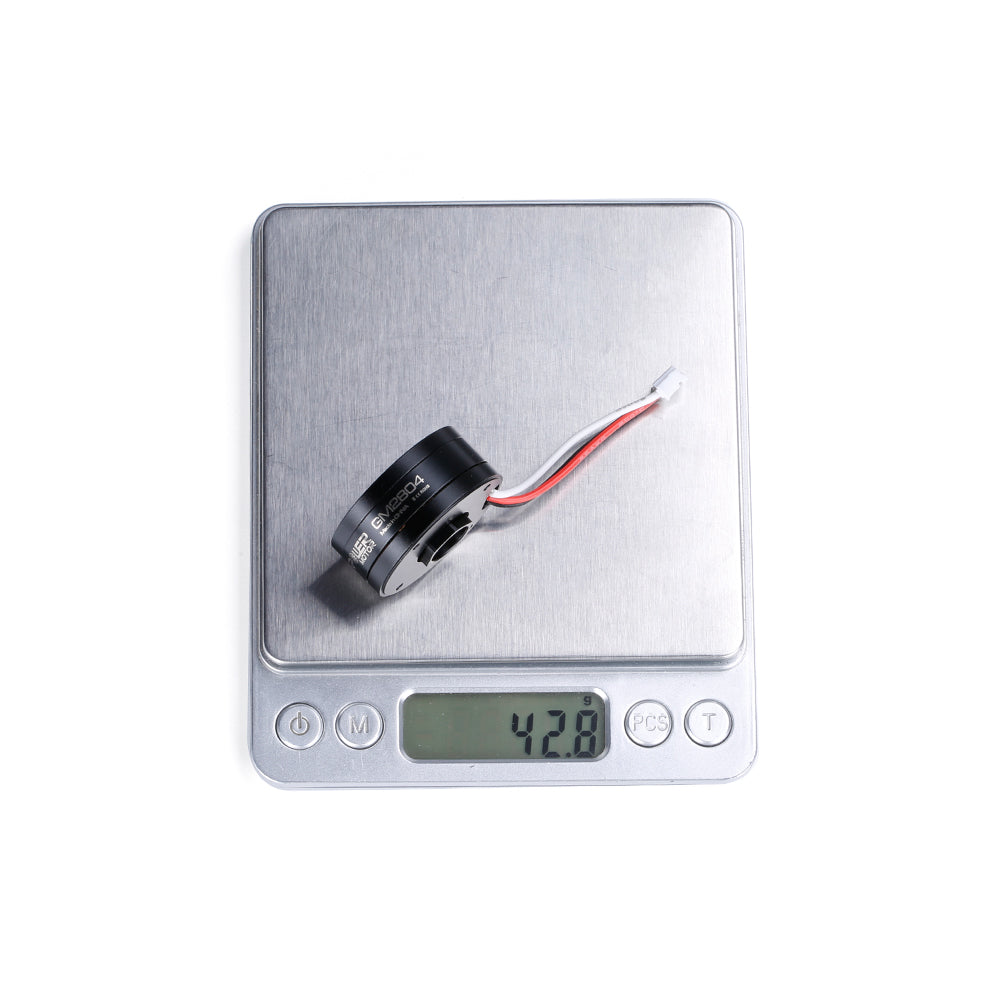

Motor Weight: 51±0.2g

Wire plug: PH3P connector

No-load current: 10V

No-load volts: 0.09±0.05 A

No-load Rpm: 1602~1771 RPM

Load current: 10V

Load volts: 0.8A

Load torque(g): 250-350

Motor internal resistance: 9Ω±5%（Resistance varies with temperature）

High voltage test: DC500V 1mA @2sec

Rotor housing runout: ≤0.1mm

Steering (axle extension): clockwise

High-low temperature test:

High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature

Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature

Maximum power: ≤25W

Working current: 2-3S

Working temperature: -20~60℃;10~90%RH

Package Included:

iPower GM2804H-100T Gimbal Motor x 1pc
