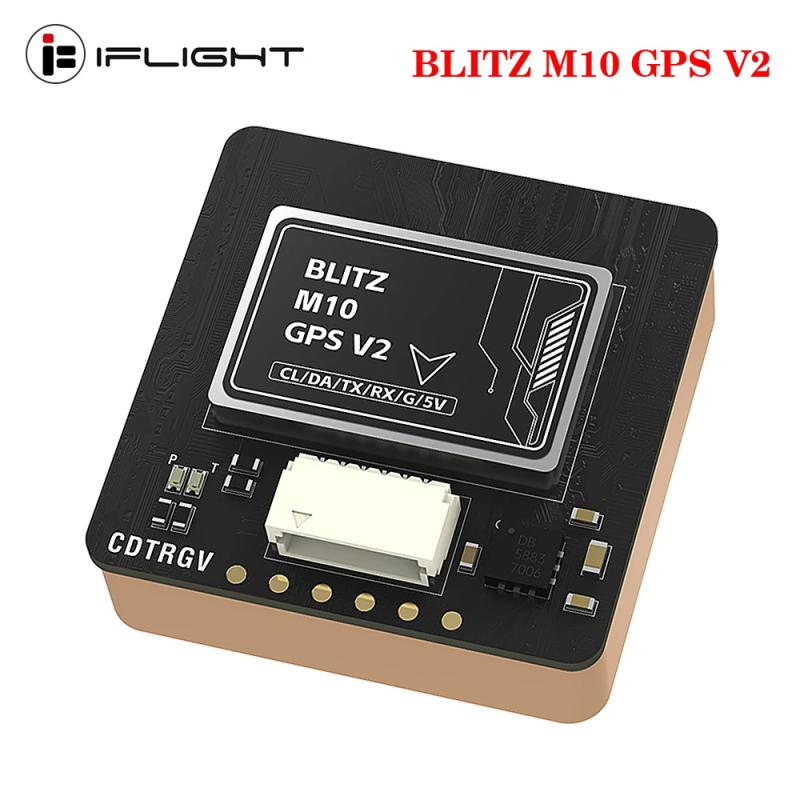

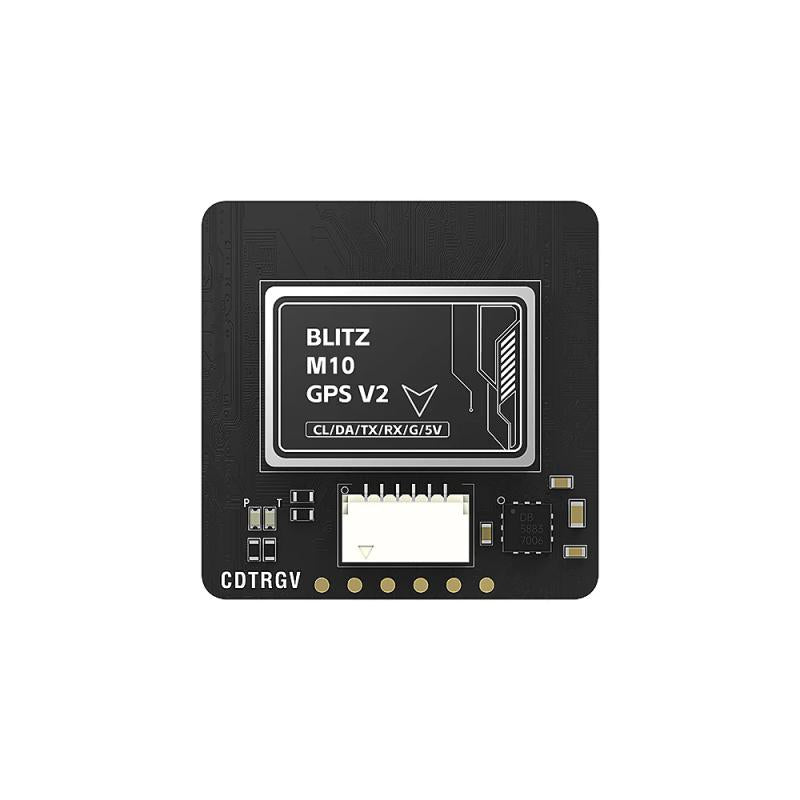

IFlight BLITZ M10 GPS V2 Compass Module

Description

The newly upgraded BLITZ M10 GPS V2 has arrived, offering faster and more stable satellite search. This advancement in technology provides users with a more reliable and efficient GPS experience.
Features

M10 chip, low power consumption, strong signal
Compass module QMC5883L integrated
Built-in farad capacitor for faster hot start
High-precision positioning
Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
10 Hz Refresh rate
Built-in Flash
Specifications

Compass module: QMC5883L
Baud Rate: 9600-460800 / 4800bps-921600bps (Default - 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18.2 x 18.2 x 4 mm / 25 x 25 x 6 mm
Total dimensions: 20 x 21 x 8 mm / 25 x 25 x 11 mm
Weight: 8g / 16 g
Input Voltage: 3.3-5.5 V
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Compatibility

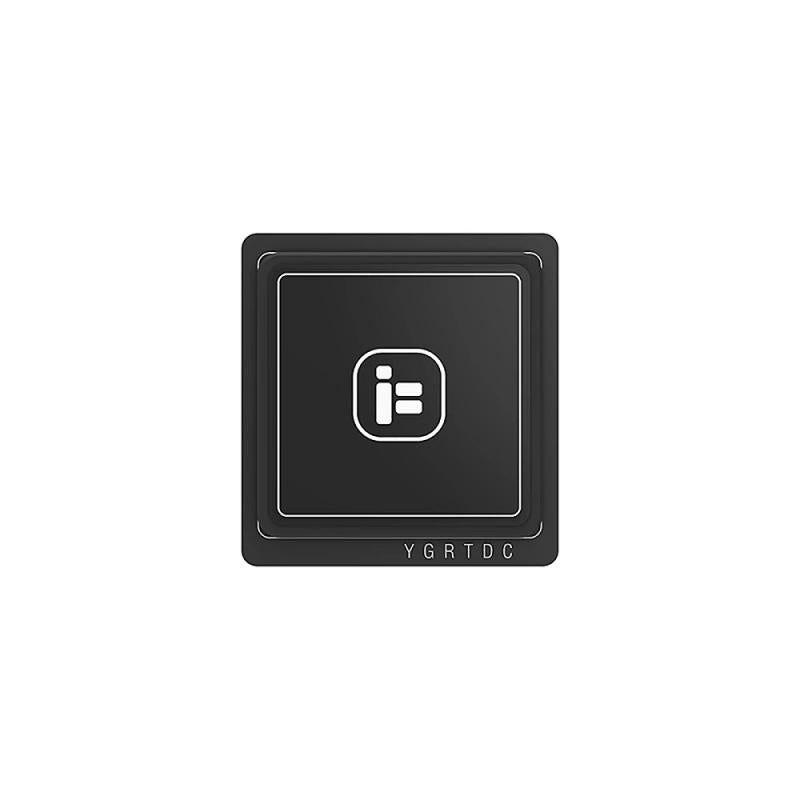

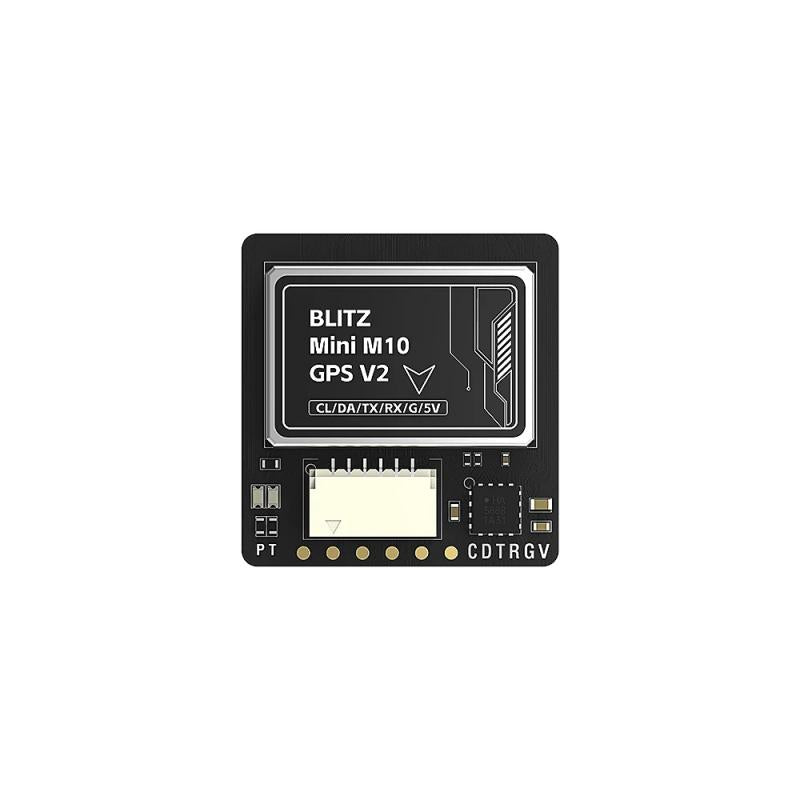

20*21*8(Mini Version) compatibility:  Mini M10 GPS V2
Single-hole TPU mount:
Chimera7 Pro v2
iH3 O3
Nazgul Evoque F4/F5/F6
XL10 v6
BOB57 HD
Nazgul XL5/DC5 ECO V1.1
Dual hole TPU mount:

Nazgul5 V3
Nazgul XL5/DC5 ECO V1
Taurus X8 Pro/V3
ProTek60 Pro
GPS TPU mount is not required:

Helion 10

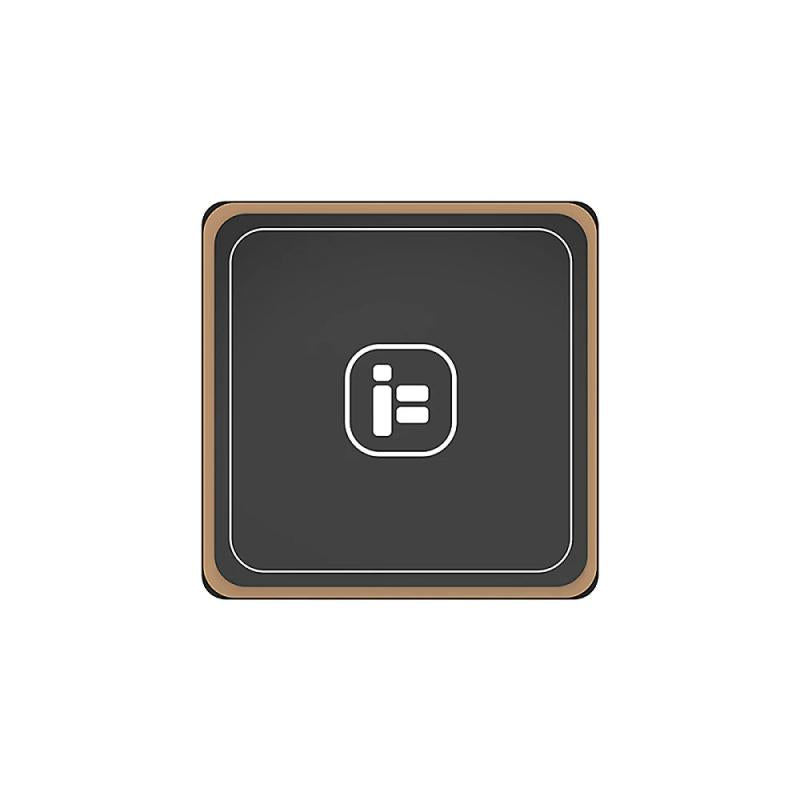

25*25*6 Version compatibility:  M10 GPS V2

Centurion X8 Frame Kit
Taurus X8 Pro Max
Packing List

1 x Mini M10 GPS V2 / BLITZ M10 GPS V2
1 x Cable set
