Happymodel SE0702 Brushless Motor for 1S FPV brushless whoop
Happymodel SE0702 Brushless Motor for 1S FPV brushless whoop
Normaler Preis
$9.99
Normaler Preis
Verkaufspreis
$9.99
Stückpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Happymodel SE0702 KV23000 KV26000 KV28000 Brushless motors for 1S FPV brushless whoop
Features:
The lightest brushless motors all over the world , the weight is only 1.46gram.
You can build an extreme weight tiny whoop with this amazing motors.
Specifications:
Brand Name: Happymodel
Mode: SE0702
KV Option:KV23000 KV26000 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm

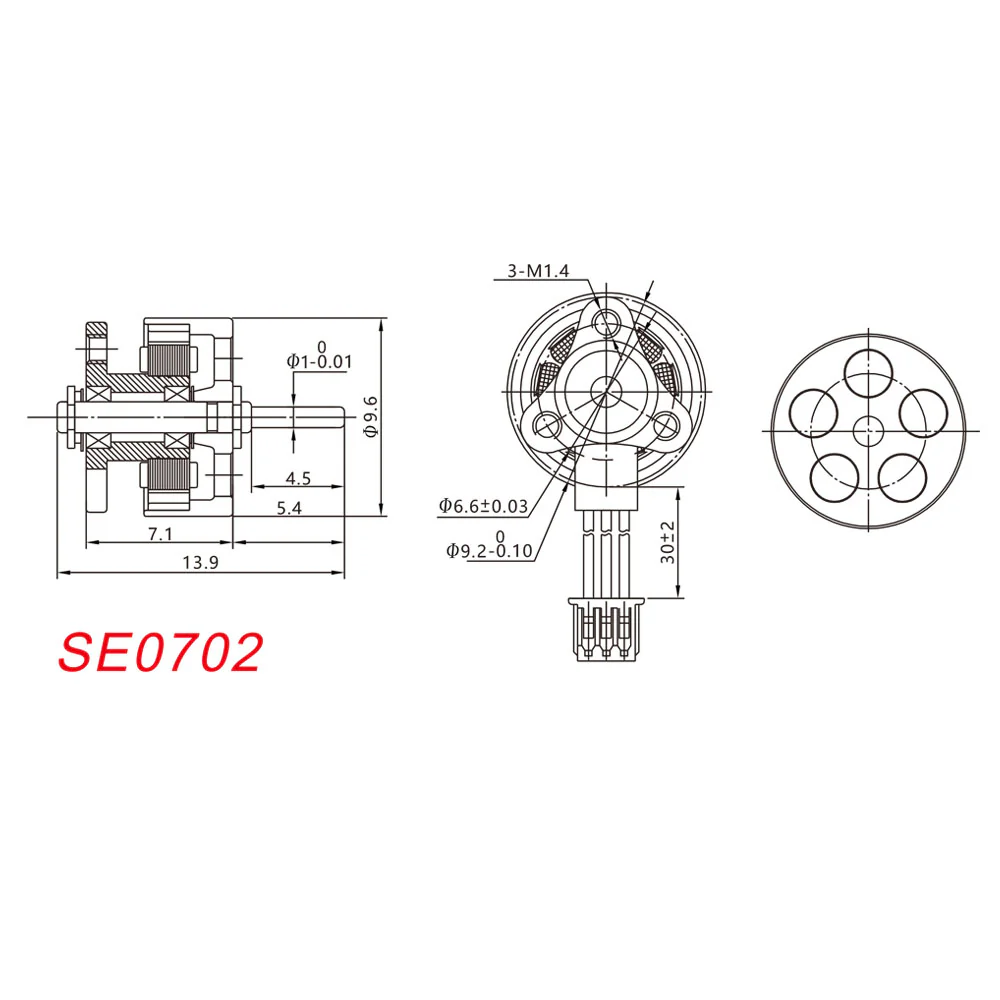

Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.5g
No.of Cells(Lipo):1S only
| Happymodel SE0702 Brushless motor Bench data | ||||||||||
| No-load voltage | No-load current |
No-load Speed | KV | Voltage (v) |
Current (A) |
Thrust (g) |
Efficiency (g/w) |
Power (w) |
Propeller | |
| Happymodel SE0702 KV23000 | ||||||||||
| 2 | 0.41 | 46670 | 23335.0 | 3.7 | 0.52 | 5.1 | 2.651 | 1.924 | Gemfan 31mm Bi-blade propeller | |
| 3.7 | 1 | 8.9 | 2.405 | 3.7 | ||||||
| 3.7 | 1.53 | 13.1 | 2.314 | 5.661 | ||||||
| 3.7 | 1.99 | 16.3 | 2.214 | 7.363 | ||||||
| 3.7 | 2.5 | 19.3 | 2.086 | 9.25 | ||||||
| 3.7 | 2.86 | 21.7 | 2.051 | 10.582 | ||||||
| 2 | 0.43 | 46290 | 23145.0 | 3.7 | 1 | 8.1 | 2.189 | 3.7 | Gemfan 40mm Bi-blade propeller | |
| 3.7 | 1.5 | 11.8 | 2.126 | 5.55 | ||||||
| 3.7 | 2 | 15.6 | 2.108 | 7.4 | ||||||
| 3.7 | 2.5 | 19.6 | 2.119 | 9.25 | ||||||
| 3.7 | 3 | 22.4 | 2.018 | 11.1 | ||||||
| 3.7 | 3.5 | 25.6 | 1.977 | 12.95 | ||||||
| 3.7 | 4 | 27.1 | 1.831 | 14.8 | ||||||
| Happymodel SE0702 KV26000 | ||||||||||
| 2 | 0.35 | 51070 | 25535.0 | 3.7 | 0.98 | 8 | 2.206 | 3.626 | HQPROP 31MM Bi-blade propeller |
|
| 3.7 | 1.49 | 11.9 | 2.159 | 5.513 | ||||||
| 3.7 | 1.99 | 15.6 | 2.119 | 7.363 | ||||||
| 3.7 | 2.5 | 19.6 | 2.119 | 9.25 | ||||||
| 3.7 | 2.8 | 21.7 | 2.095 | 10.36 | ||||||
| 2 | 0.54 | 50540 | 25270.0 | 3.7 | 1 | 8.9 | 2.405 | 3.7 | Gemfan 40mm Bi-blade propeller | |
| 3.7 | 1.5 | 12.9 | 2.324 | 5.55 | ||||||
| 3.7 | 2 | 16.6 | 2.243 | 7.4 | ||||||
| 3.7 | 2.5 | 19.8 | 2.141 | 9.25 | ||||||
| 3.7 | 3 | 23.5 | 2.117 | 11.1 | ||||||
| 3.7 | 3.5 | 26.9 | 2.077 | 12.95 | ||||||
| 3.7 | 4 | 29.2 | 1.973 | 14.8 | ||||||
| 3.7 | 4.38 | 31.4 | 1.938 | 16.206 | ||||||
| Happymodel SE0702 KV28000 | ||||||||||
| 2 | 0.55 | 55960 | 27980.0 | 3.7 | 1.03 | 7.6 | 1.994 | 3.811 | Gemfan 1219 31mm tri-blade propeller | |
| 3.7 | 2.05 | 14 | 1.846 | 7.585 | ||||||
| 3.7 | 3.07 | 19.5 | 1.717 | 11.359 | ||||||
| 3.7 | 4.03 | 23 | 1.542 | 14.911 | ||||||
| 3.7 | 4.74 | 24.6 | 1.403 | 17.538 | ||||||
