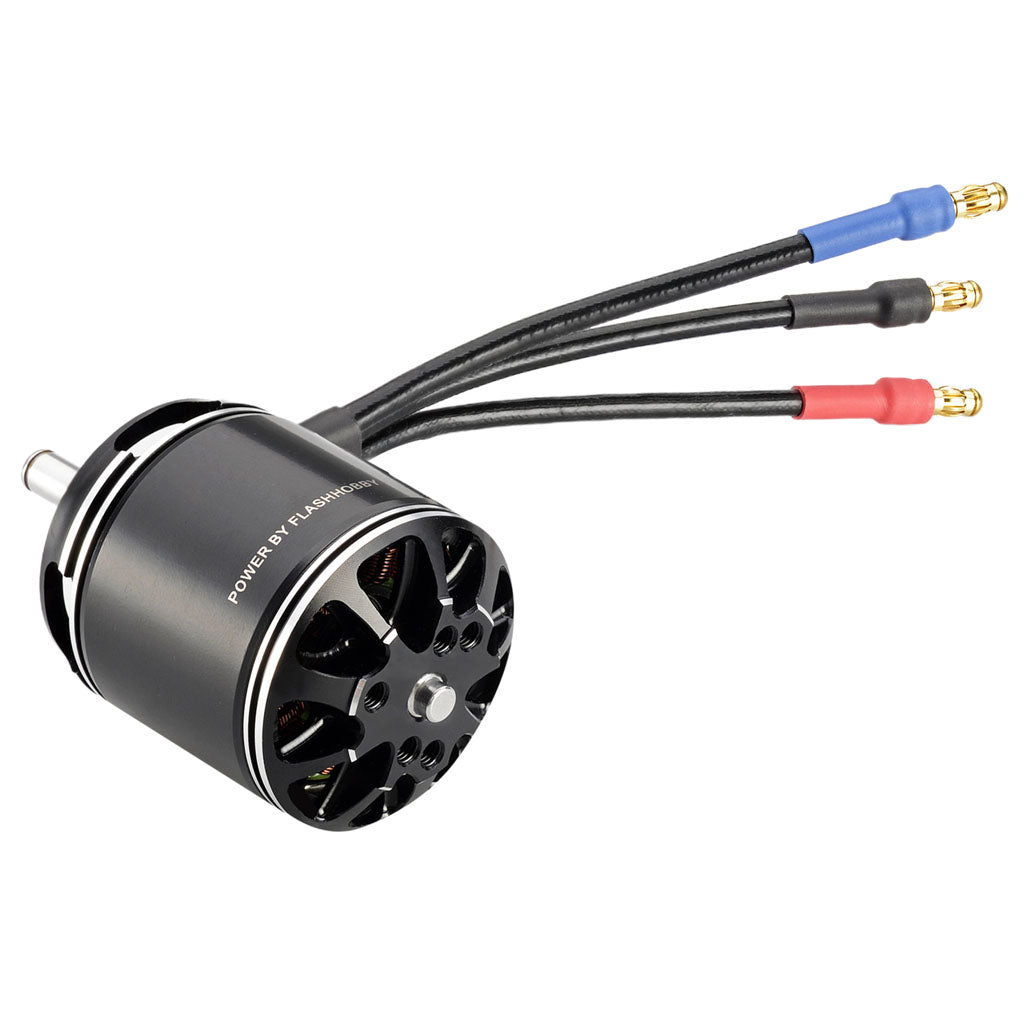

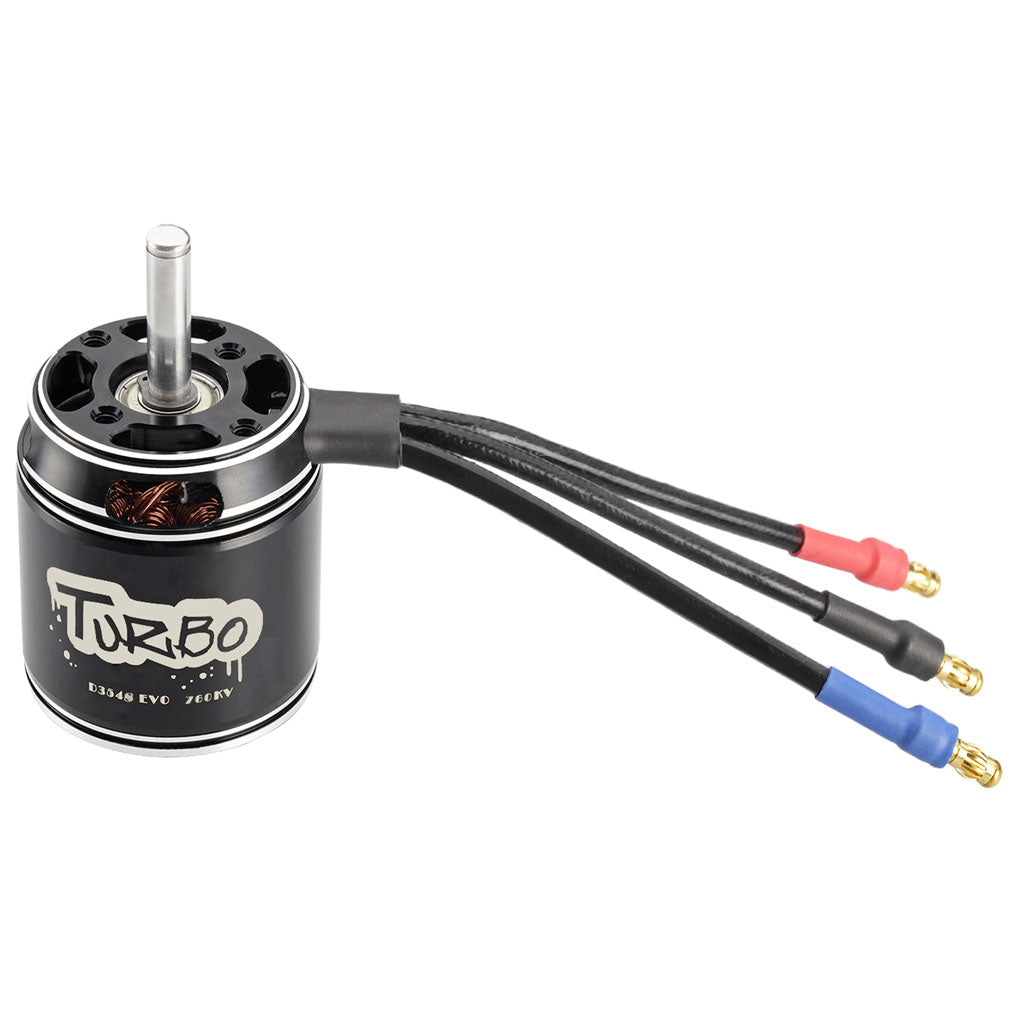

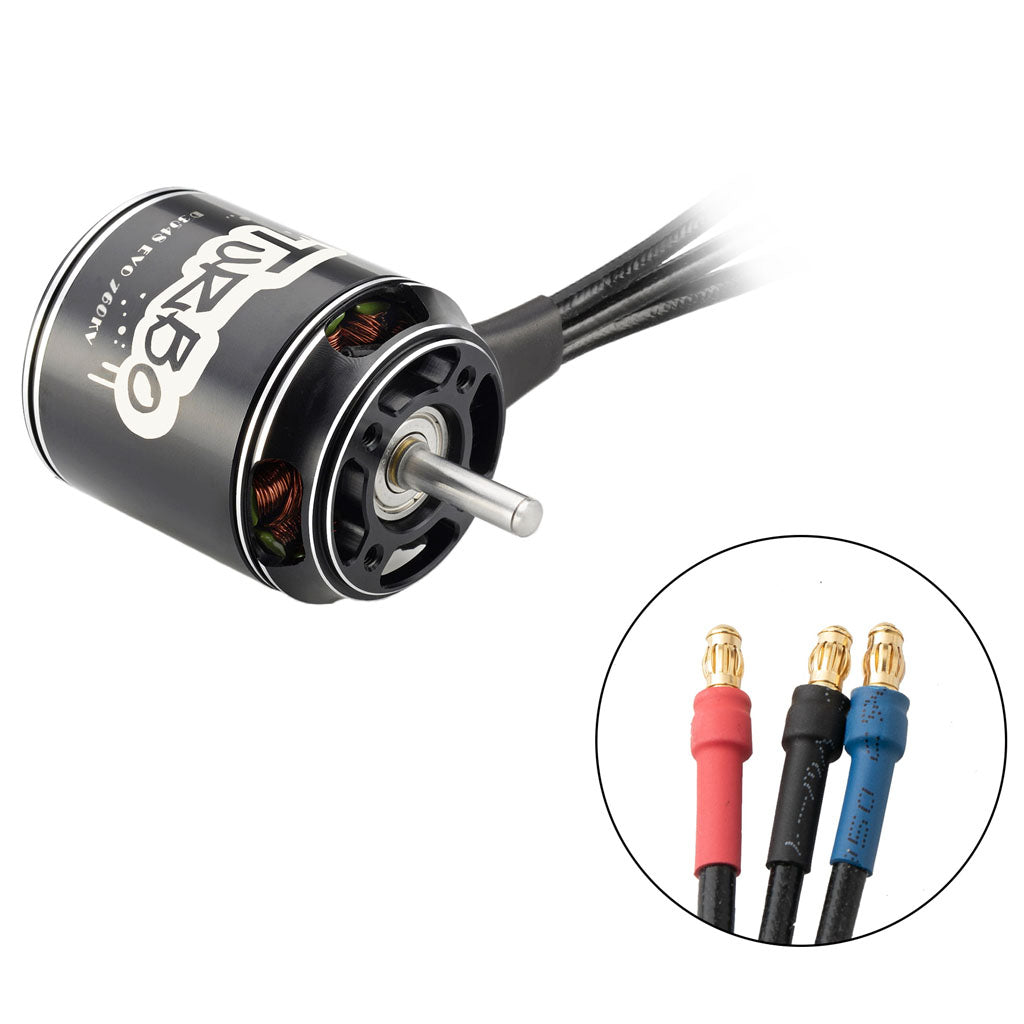

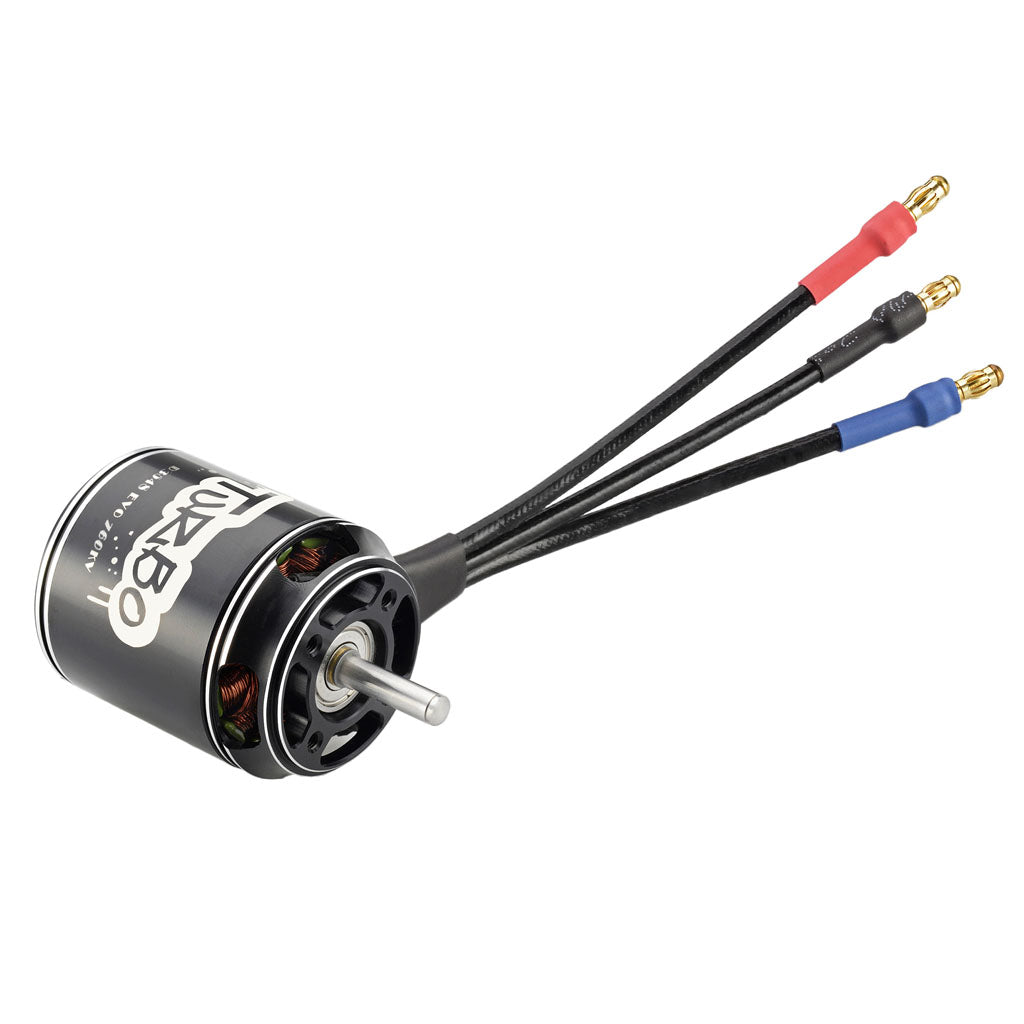

FLASHHOBBY D3548EVO 3548 1150KV 760KV 900KV Brushless Motor

D3548 EVO RC Brushless Motor Application

D3548EVO（2826） RC Outrunner Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter

D3548 EVO RC Brushless Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding

D3548 EVO RC Brushless Motor Specification

Weight: 170g(Including wires)
Motor Size: 35.3 x48mm
Shaft Size: 5.0*65.5mm
Stator Diameter: 28mm
Stator Height: 26mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P

KV Value for Selection:

KV Value: 760KV, 900KV,1150KV or customed KV

KV: 760KV
Max watts: 353.6W
Max Current: 29.44A
No Load current: 1.54A/10V
Resistance: 34.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 13 inch prop

KV: 900KV
Max watts: 1324.1W
Max Current: 55.8A
No Load current: 2.66A/10V
Resistance: 24.0mΩ
Battery: 3-6S Lipo
Suggested Prop: 9 inch prop

KV: 1150KV
Max watts: 623.8W
Max Current: 54.62A
No Load current: 3.34A/10V
Resistance: 19.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

D3548 EVO Motor Drawing:
