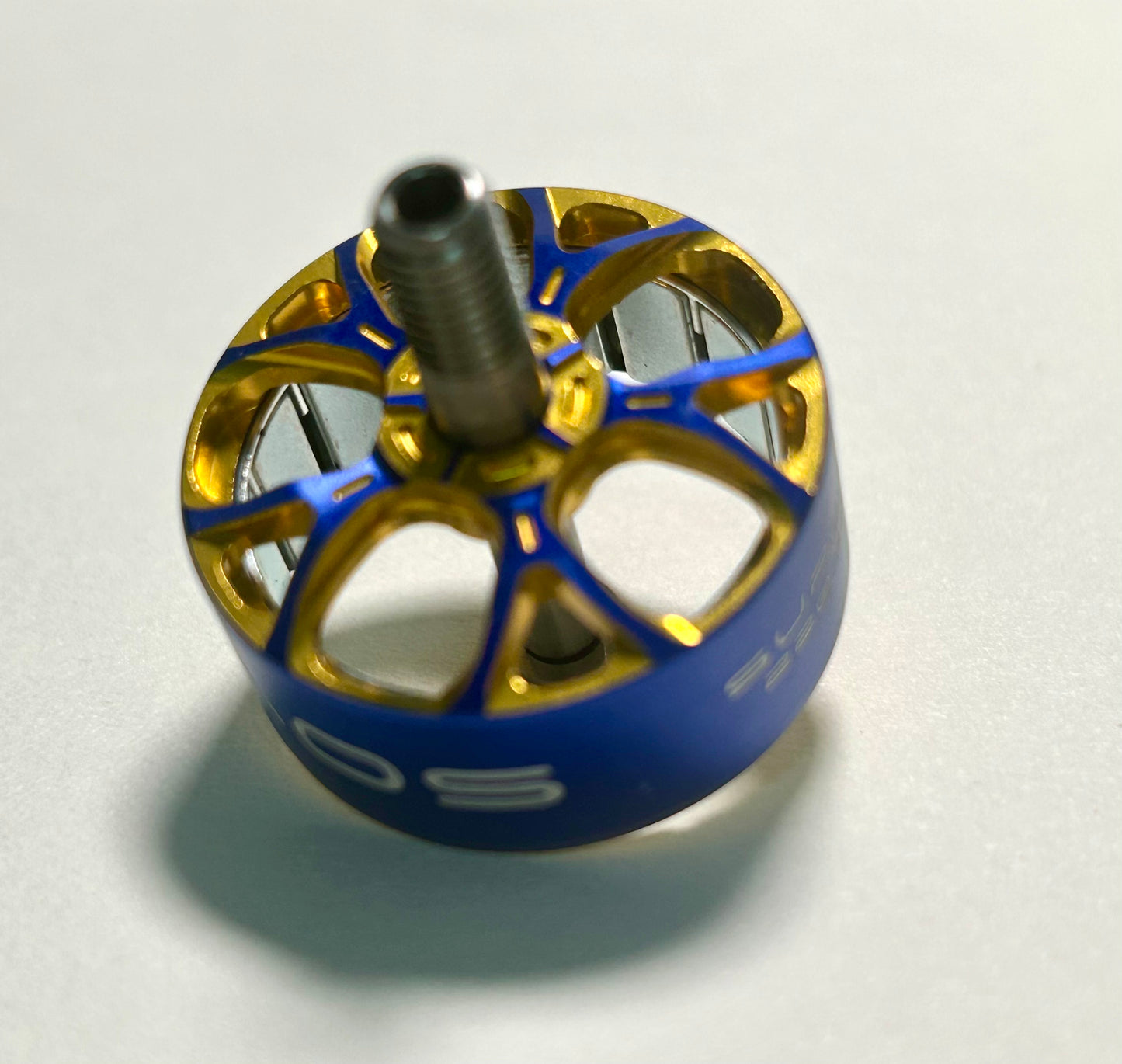

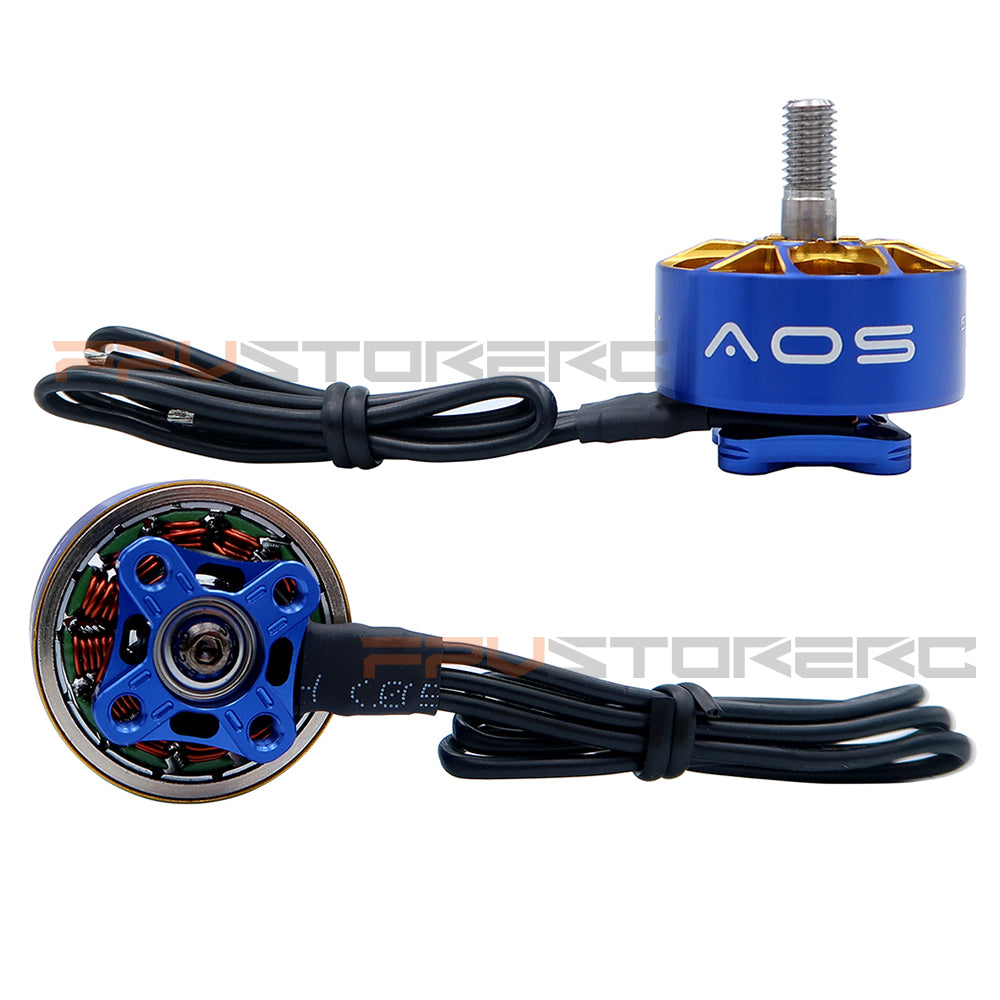

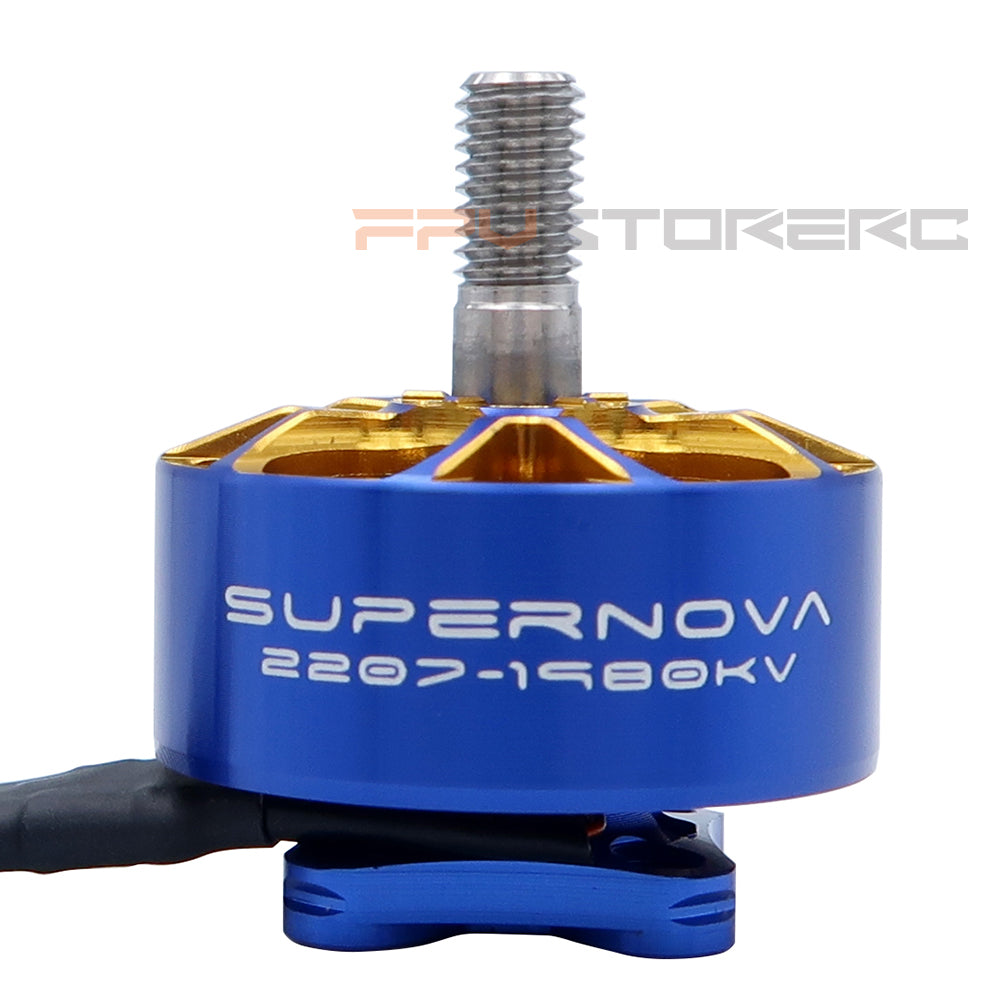

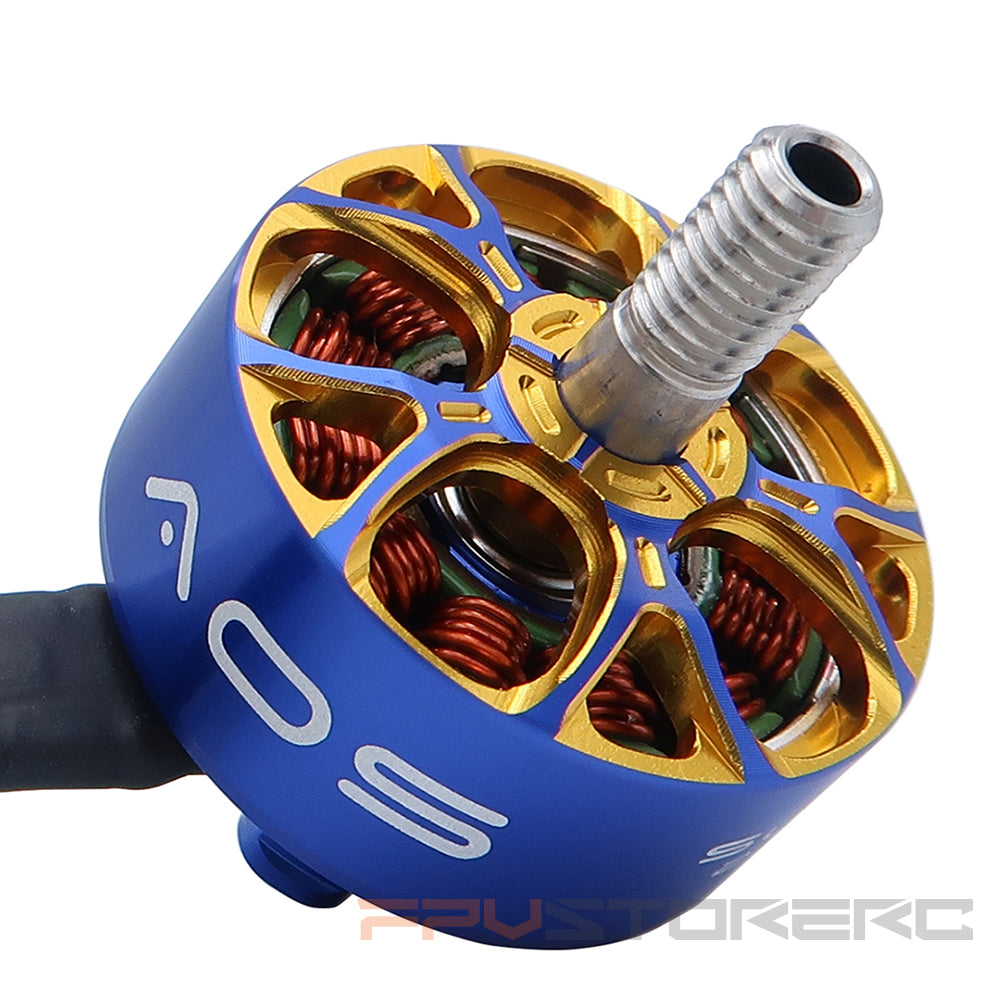

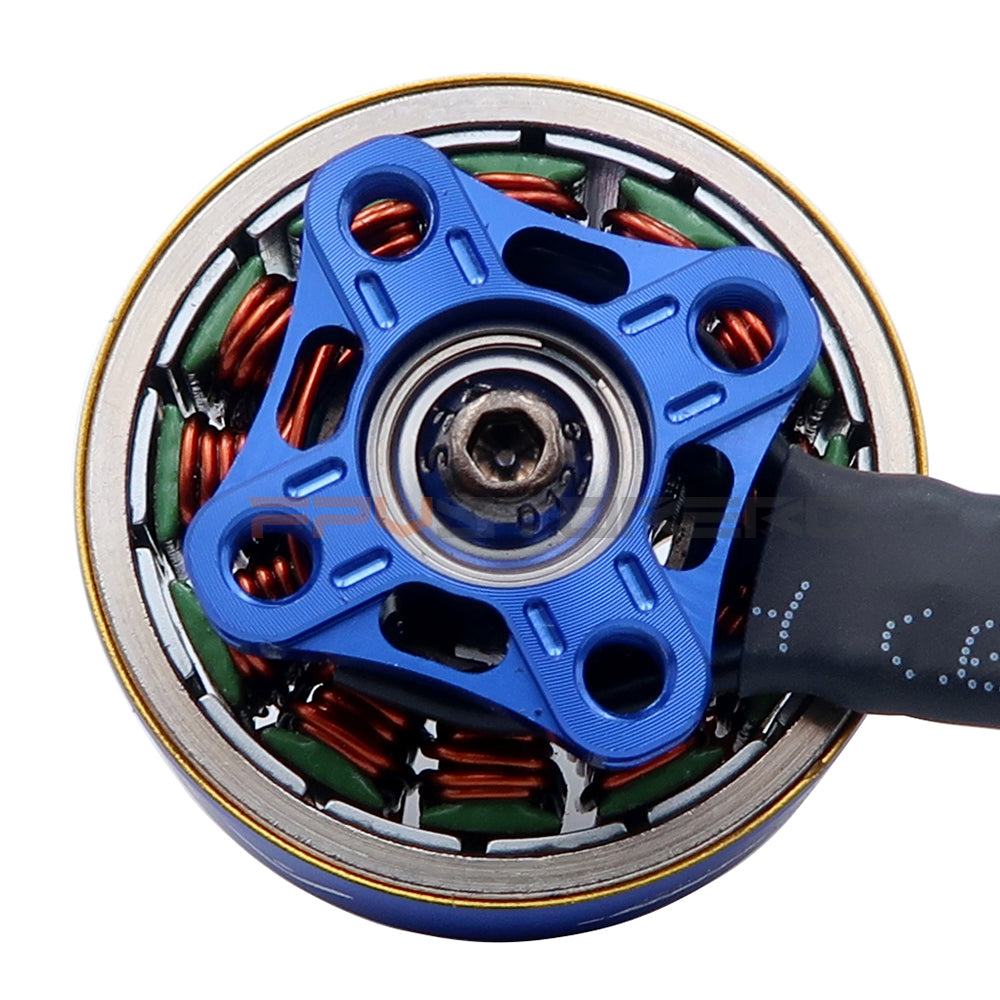

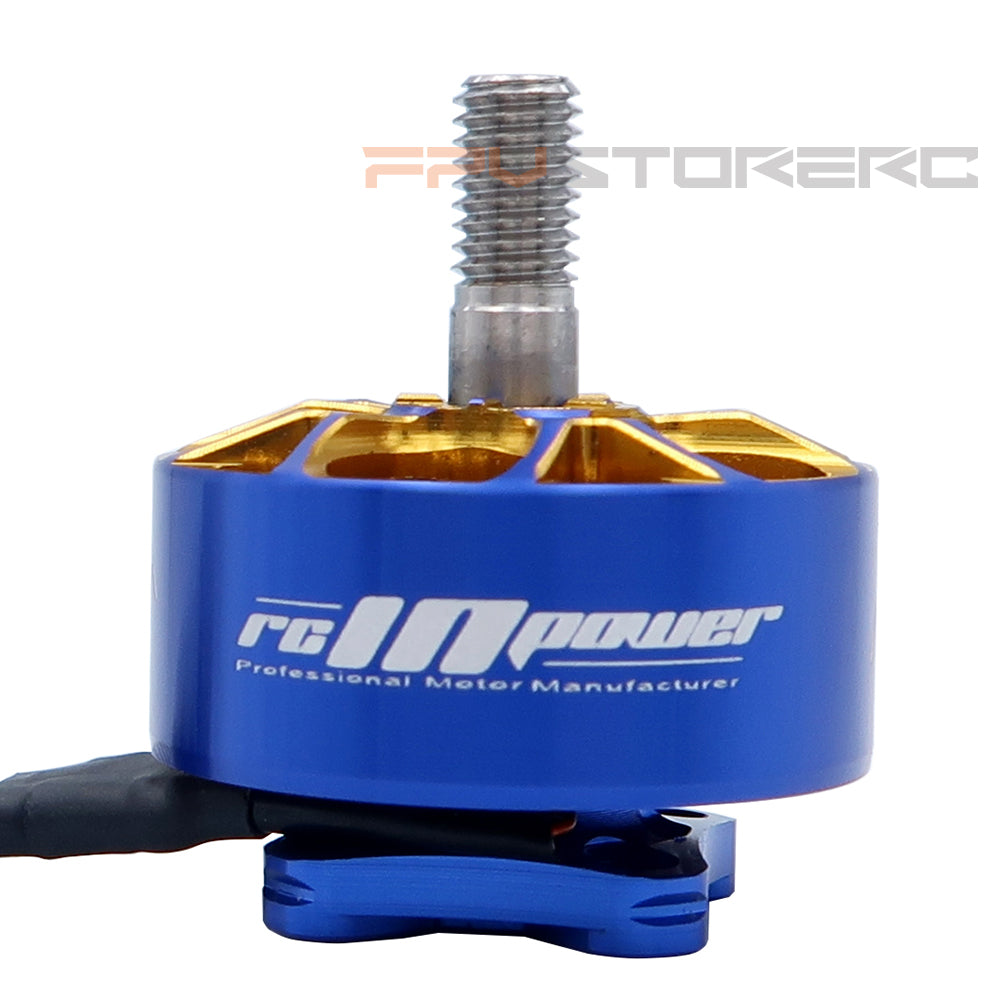

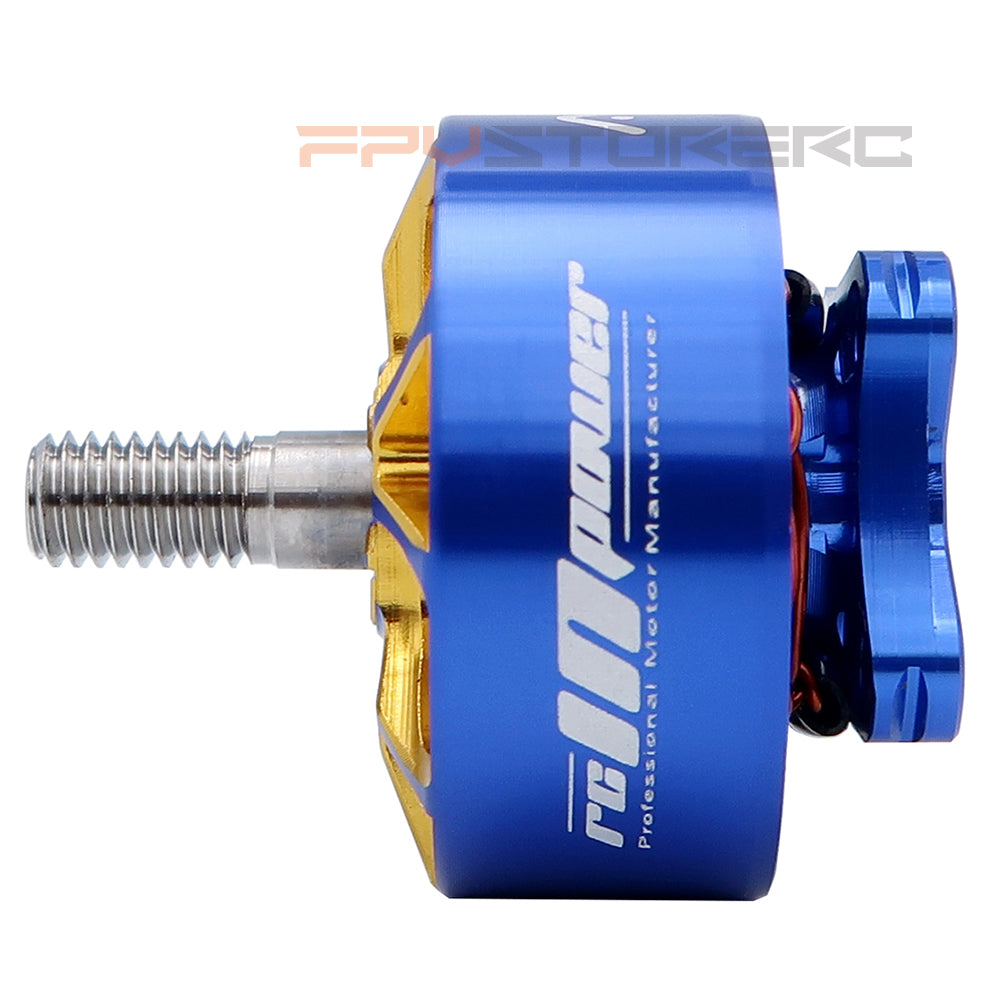

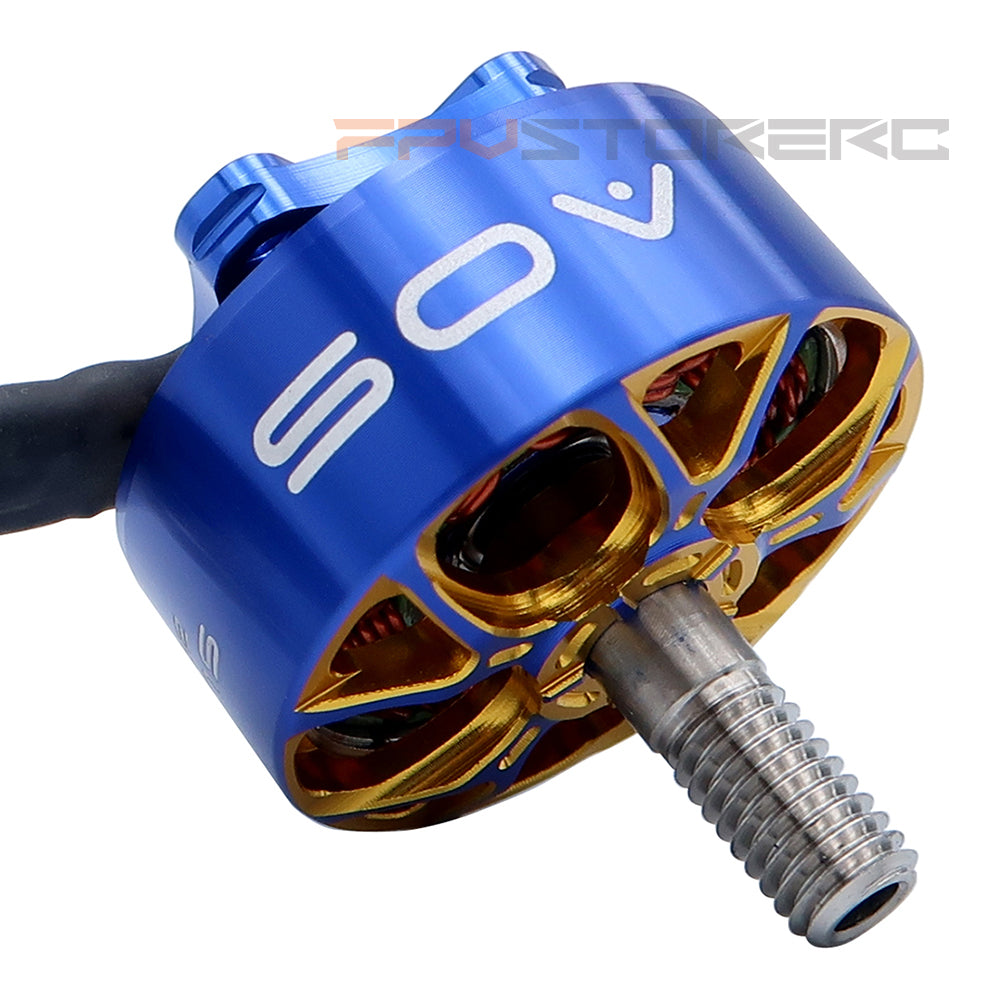

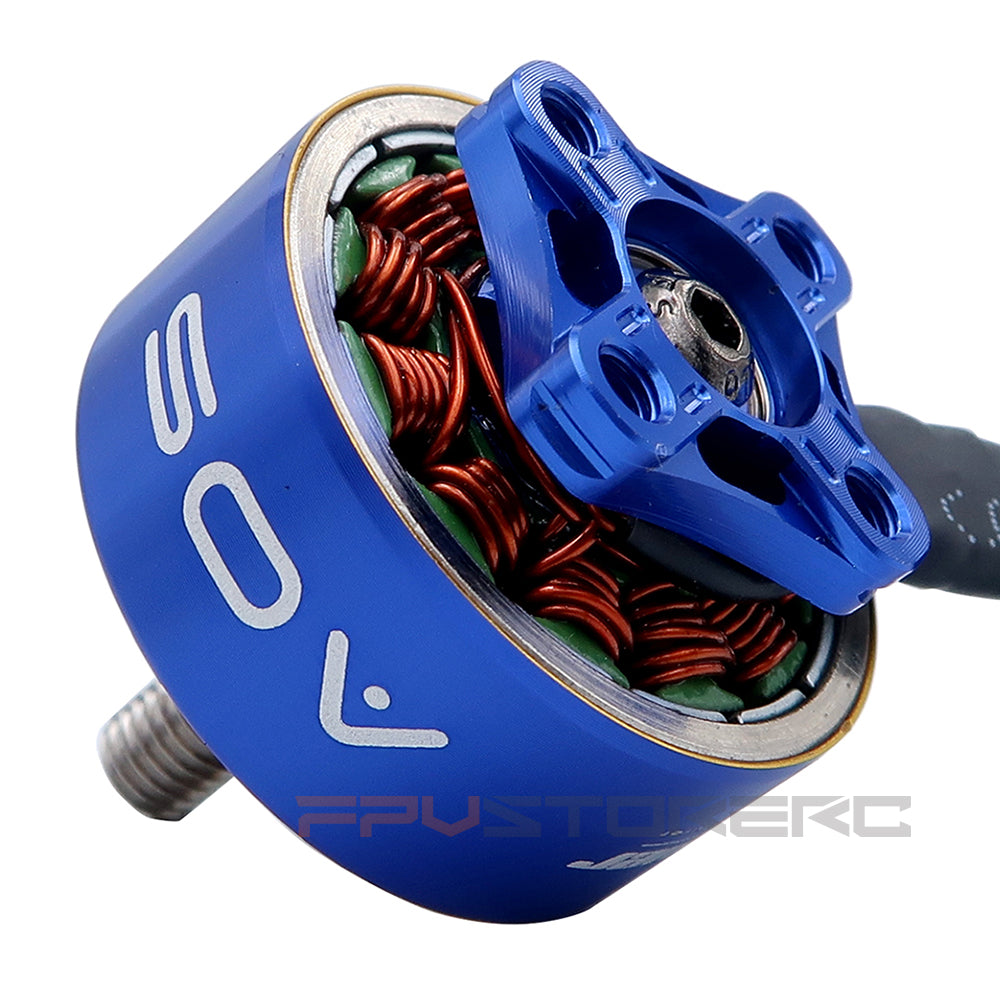

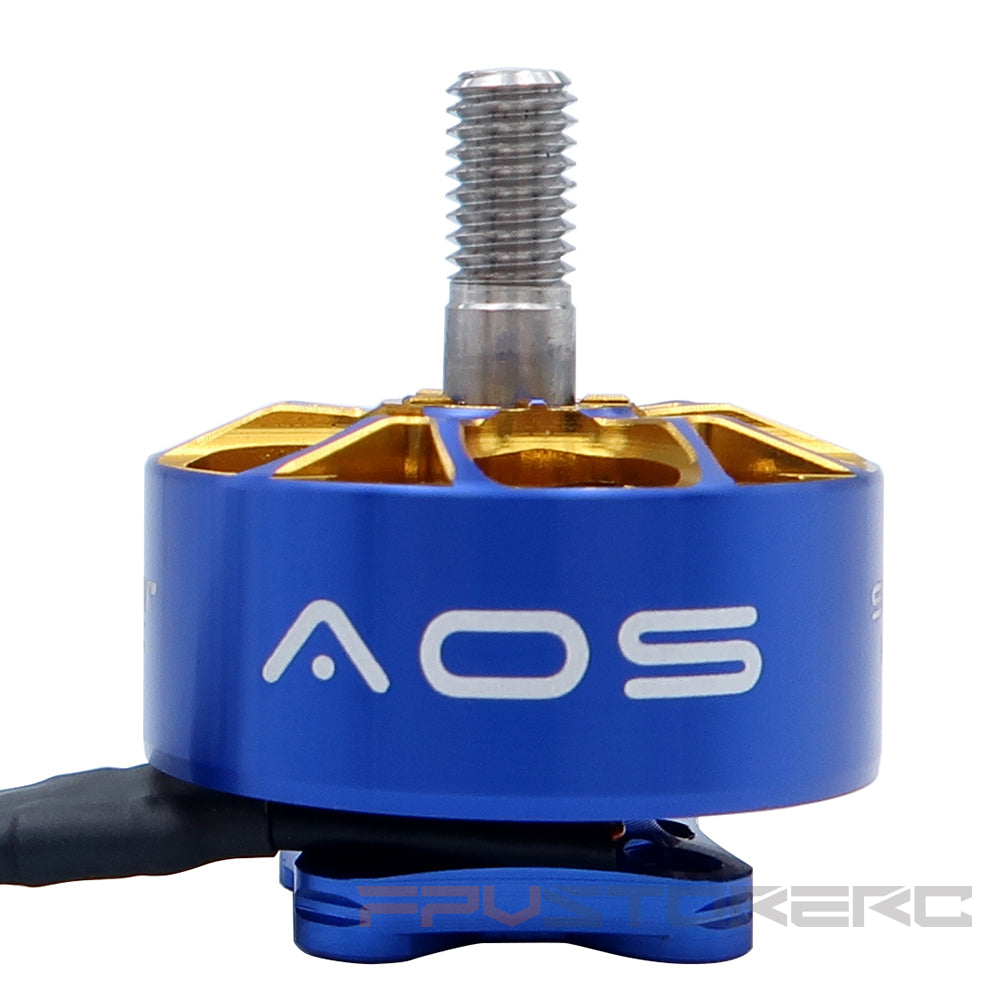

RCINPOWER AOS SUPERNOVA 2207 1980KV BRUSHLESS FPV DRONE MOTOR

Check RCINPOWER 8S AOS 2207 1570KV motors  and the rest of our RCINPOWER Collection!

Features

The AOS Supernova 2207 redefines performance for a 5" FPV motor. It delivers more power, more torque, and better efficiency per gram than any other motor in its class.

The AOS Supernova 2207 redefines performance for a 5" FPV motor. It delivers more power, more torque, and better efficiency per gram than any other motor in its class. And this great motor is made by Rcinpower.

The AOS Supernova 2207 redefines performance for a 5" FPV motor. It delivers more power, more torque, and better efficiency per gram than any other motor in its class. You may know that I've tested over 50 different 5" motors from the biggest and best manufacturers in FPV. What you may not know is that alongside making motor testing videos I've been using all that data to refine a finite element model of FPV motor performance.

This tool can accurately predict the performance of a motor design in just a few minutes making it possible to quickly test many different motor designs. I took this a step further by writing an optimisation script that uses this model to home in on the optimum design. A design that provides the most power, torque, and efficiency at a target motor weight of 31g (not including wires).

There are a lot of design parameters so it took a long time to home in on the optimum (over 20,000 iterations) but I found the ideal design. That was the creation of the Supernova 2207.

A great design is nothing without great manufacturing so I've partnered with RCinPower to produce this motor. Their motors consistently perform at the top of my motor leaderboard and they are flown by arguably the fastest racing pilot in the world, Min Chin Kim.

I think the Supernova is something pretty special. I hope you'll agree...

-Chris Rosser

Check out AOS 2807 Motor and the rest of our RCINPOWER Collection!

• Specifications

  • KV: 1980
  • Configuration: 12N14P
  • Stator Diameter: 22mm
  • Stator Length: 7mm
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimensions: 27.6x19.5mm
  • Weight: 31 grams (2cm Wires)
  • Internal Resistance: 45mΩ
  • Idle Current (10 Seconds)@10V: 1.1A
  • Max Continuous Power (W) 5S: 1456
  • Max Efficiency Current: (5-11A)>86%
  • No. of Cells (LiPo): 5-6S
  • Max Current (3S): 61A

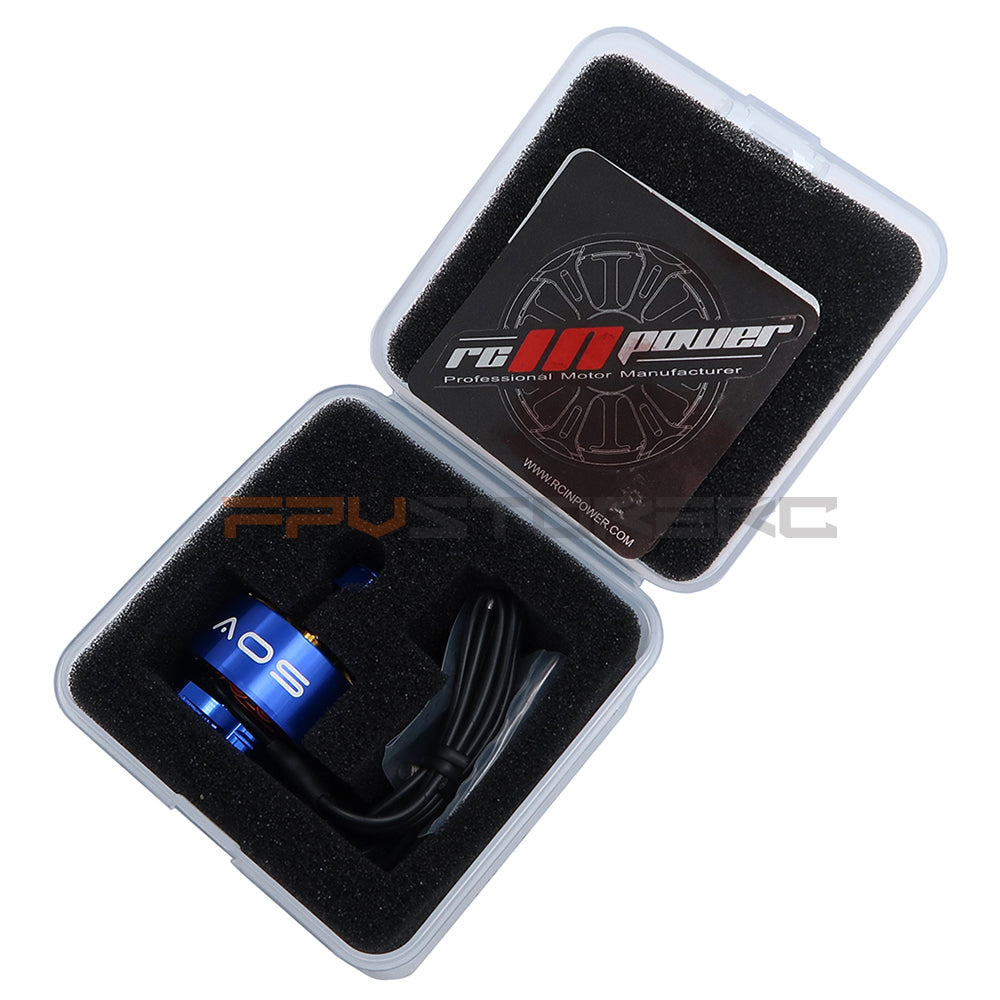

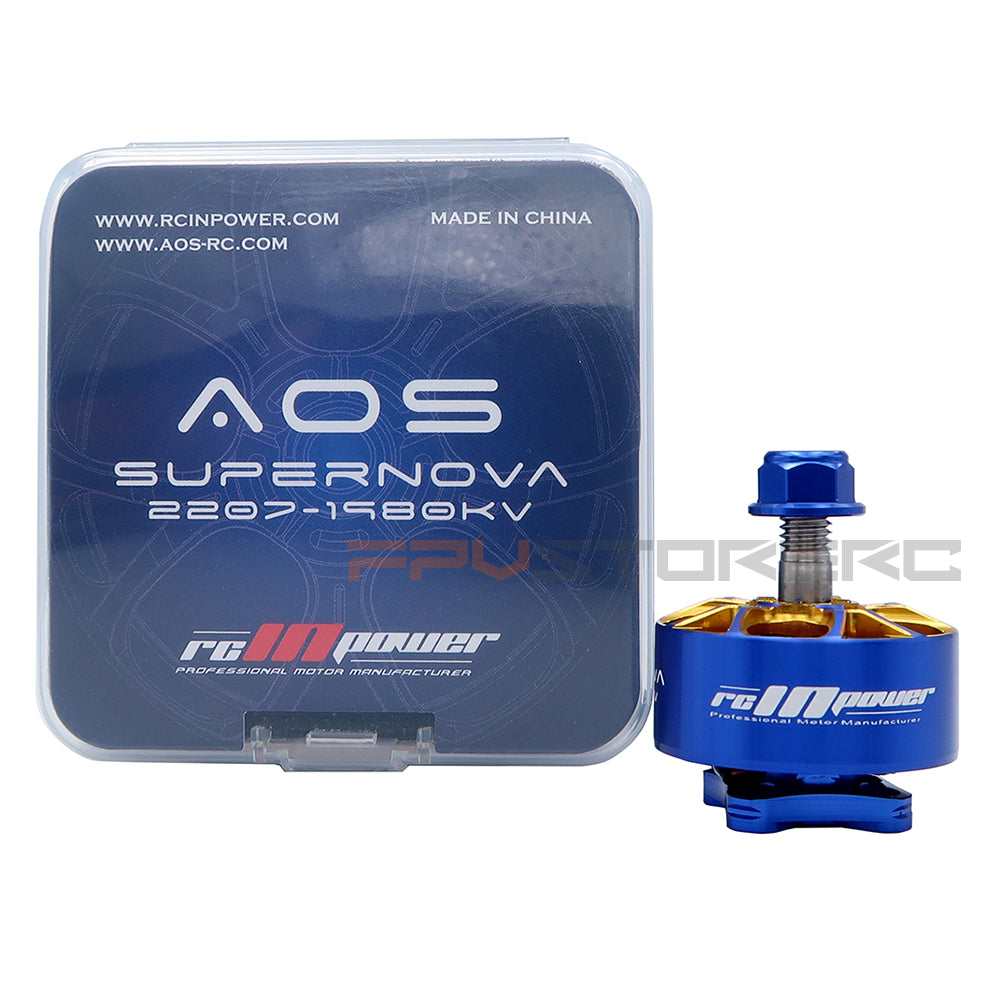

  PACKAGE INCLUDES:

  • 1 x RCINPOWER AOS SUPERNOVA 2207 1980KV BRUSHLESS FPV DRONE MOTOR
  •
