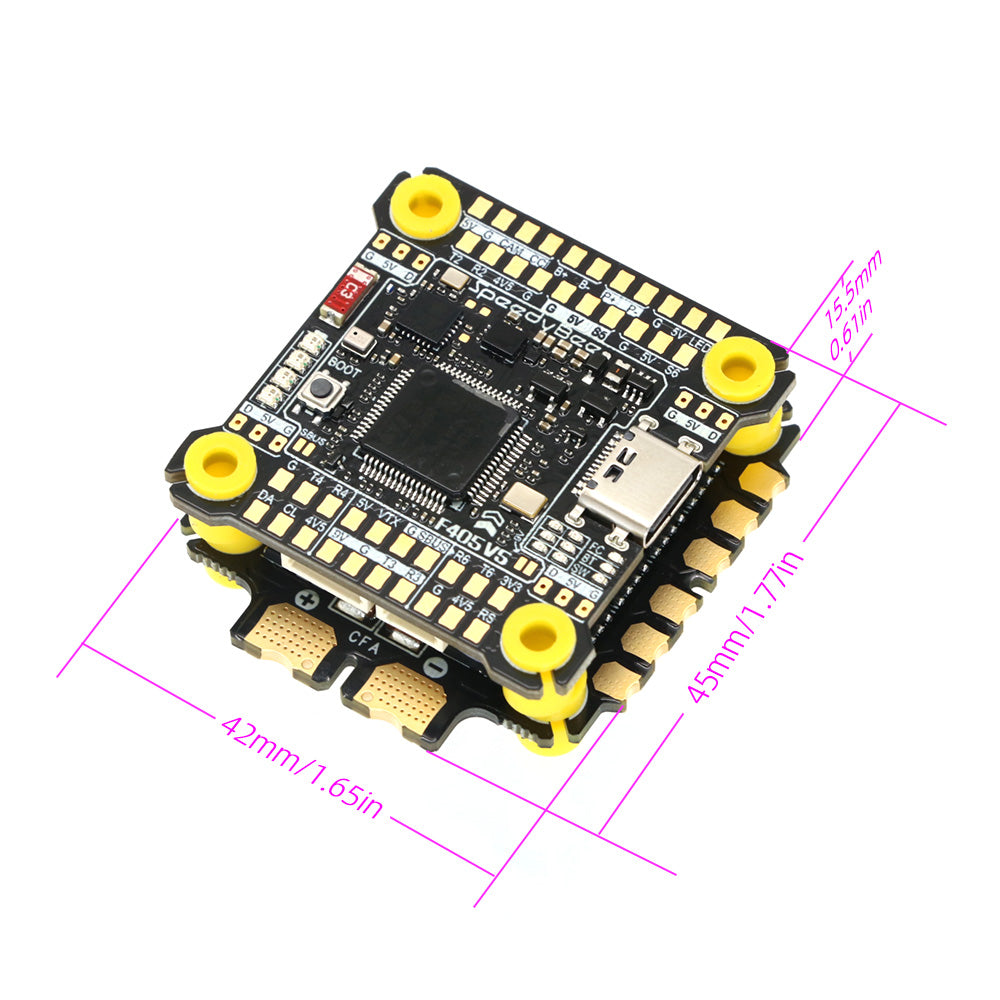

SpeedyBee F405 V5 55A FC&ESC Stack F405 V5 Flight Controller

$74.99

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

color F405 V5 55A Stack Standard F405 V5 55A Stack Deluxe F405 V5 FC OX32 55A ESC

SpeedyBee F405 V5 FC&ESC Stack (55A 32-bit) - Ultimate FPV Drone Controller with Wireless Tuning

Features:

1. Onboard lCM-42688 Gyroscope,Featuring Upgraded Noise Reduction,Independent high-PSRR LDO effectively isolates power noise.

2. STM32F405 Main Controller Stable performance with multi-platform system support.

3. Onboard FLASH chip128 Mbit capacity (16 MB) for higher compatibility, eliminates SD card compatibility issues.

4. Main frequency up to 168MHz and 1MB of built-in flash storage.

5. 16MB built-in Blackbox storage with multi-platform;firmware support,Ready to use with no compatibility issues.

6. Wireless Tuning 2.0,Supports X4 MeteorLED Strips(Controllable via Betaflight)

7. Equipped with oX32 Firmware,Compatible with small-pitch propellers, enhancing flight stabilityand cornering performance

8. The high-performance DC-DC design handles peaks up to 42V,9V Output for VTX,10-Pin Design,design with dual-battery input for enhanced safety redundancy.

9. Diverse Features: X4 colorful meteor-style arm LEDs,multicolor battery LEDs, wirelesstuning, firmware updates, and wireless unbricking.

10. Optional Smart Voltage Tester +Short-Circuit Protection ToolAlso includes soldering practice board,USB extension, pad extension, buzzer,and other useful tools(*Deluxe version only)

11. Support Betaflight,INAV, Ardupilot.

12. Wireless Tuning 2.0 Next-generation Bluetoothsolution with rich featuresand improved transmissionper formance

Description:

F405 V5 Flight Stack,onboard lCM-42688 Gyroscope,Featuring Upgraded Noise Reduction, Main frequency up to 168MHz and 1MB of built-in flash storage.Wireless Tuning 2.0 Next-generation Bluetoothsolution with rich featuresand improved transmissionper formance,Support Betaflight,INAV, Ardupilot.

F405 V5 FC Specifications:

Product Name: F405 V5 Flight Controller

MCU: STM32F405

IMU (Gyro): ICM42688P

USB Port Type: Type-C

Barometer: SPA06-003

OSD Chip: AT7456E

Full-featured Bluetooth Tuning: Supported. Connect va SpeedyBee App for FC firmware tlashing and parameter tuning

Wireless FC Firmware Upgrade: Supported

D.l Air Unit Connection: Supports 6-pin direct plug-in or solder connection

Blackbox: built-in

16MB storage chip

Input Voltage: 3-6S LiPo battery

Independent 5V BEC Output: 9 groups (4x +5V pads on front, 1x BZ+ buzzer pad, and 4x +5V pads at the cornersfor external LEDs). Total output current: 1.5A.

Independent 9V BEC Output: 2 groups (1x 9V pad on front, 1x 9V output in a connector on the back). Total outputcurrent:3A.Supports PlNlO remote on/off control.

MCU & Gyro Power: Independent LDO

3.3V Output: 1 group (1x 3.3V pad on front)

4.5V Output: 3 groups

ESC Signal: M1-M4 pads and 10-pin connector on the back

Servo Signal: S5-S6 pads on the front

ESC Telemetry input: Supported (UART5)

Betafight Camera Tuning Pad: Supported (CC pad on front)

I2C: Supported (GPS connector + pads)

RSSl Pads: Supported

SmartPort: Not supported

Supported FC Firmware: Betafight, INAV, Ardupilot

Firmware Target Name: SPEEDYBEEF405V5
