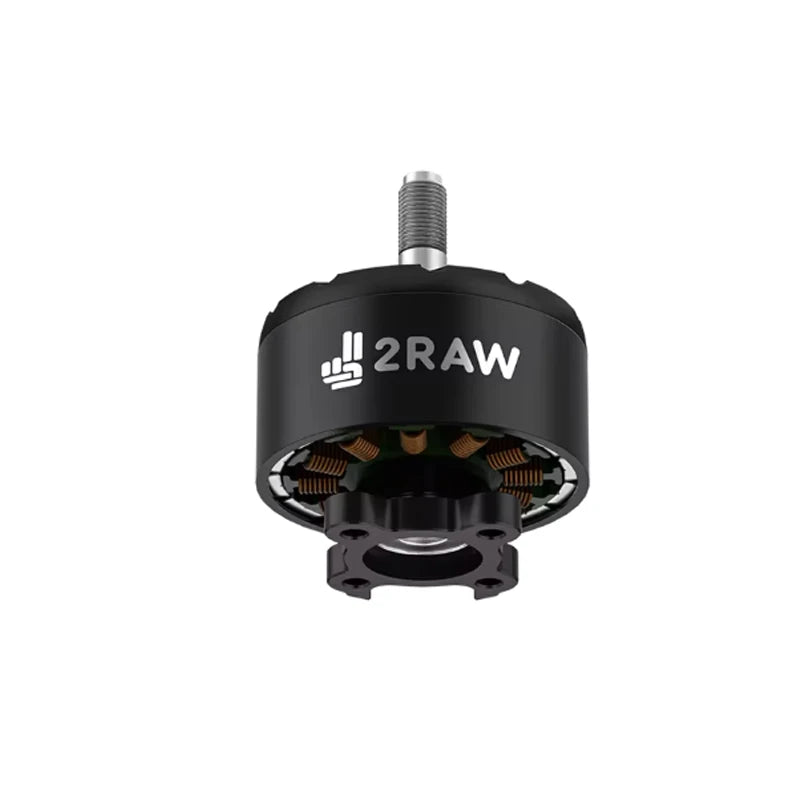

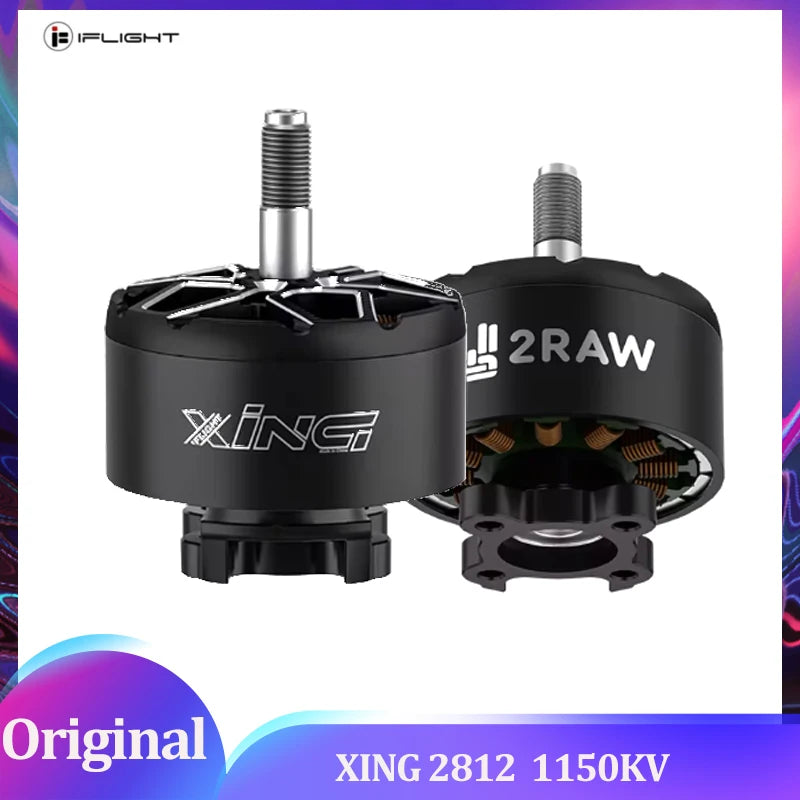

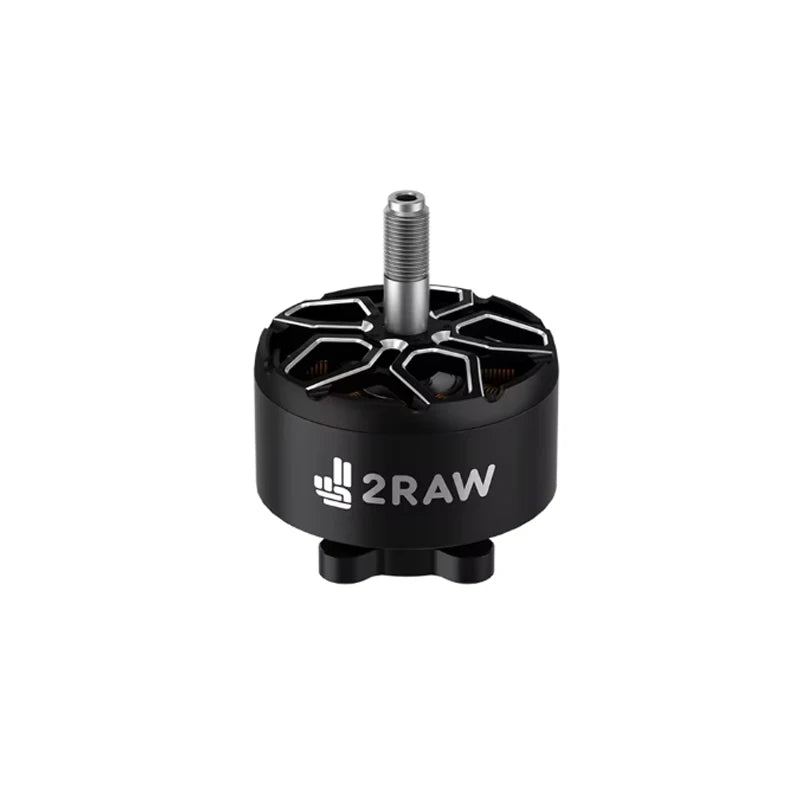

IFlight XING 2812 1150KV FPV Cinelifter Motor with 5mm Shaft

• The XING 2812 Cinelifter Motor is specifically engineered for the Centurion X8 BNF, delivering high-efficiency performance as a dedicated cinelifter motor.

• Upgraded for enhanced smoothness, reliability, and power, these motors now reflect our manufacturing excellence and surpass previous performance benchmarks. Featuring new center-slotted N52H curved arc magnets, they drastically minimize motor response time, redefining efficiency for professional applications.

Specification

• KV: 1150KV

• Weight(included wire): 77g

• Dimension: φ33.55*42.8mm

• Interphase Resistance: 83.21mΩ

• Input Volts: 24V

• Peak Current: 61.15A

• Max Watt: 1423W

• Mounting Holes: 19*19 φ3mm

• Rotor Specifications: Segmented bell

• Shaft Diameter: 5mm

• Shaft Protruding Length: 15.15mm

• Lead: 260mm/18AWG

• Magnet: N52H Curved

• Configuration: 12N14P

• Bearing Specification: φ11*φ5*5

• Winding: Single Strand copper winding

Packing List

• 1 x XING 2812 motor

• 1 x M5 Screw nut

• 4 x M3*6 screws
