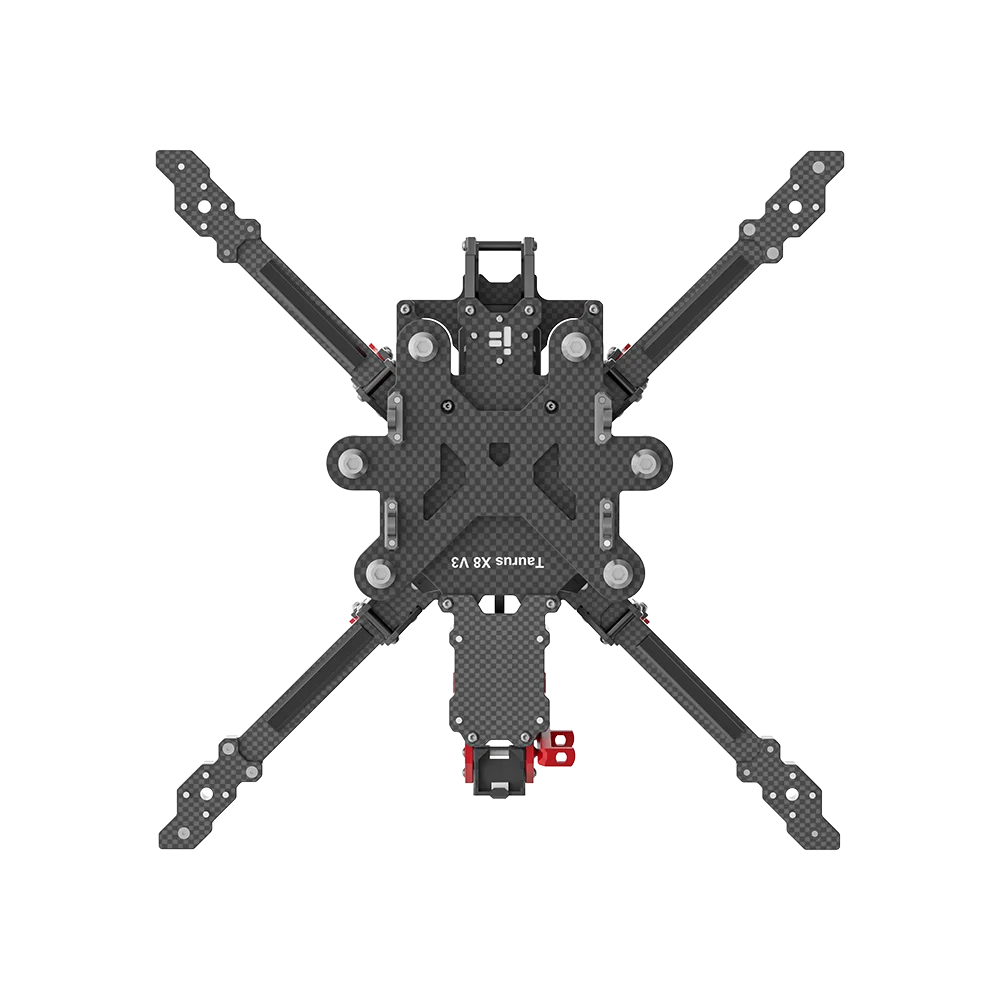

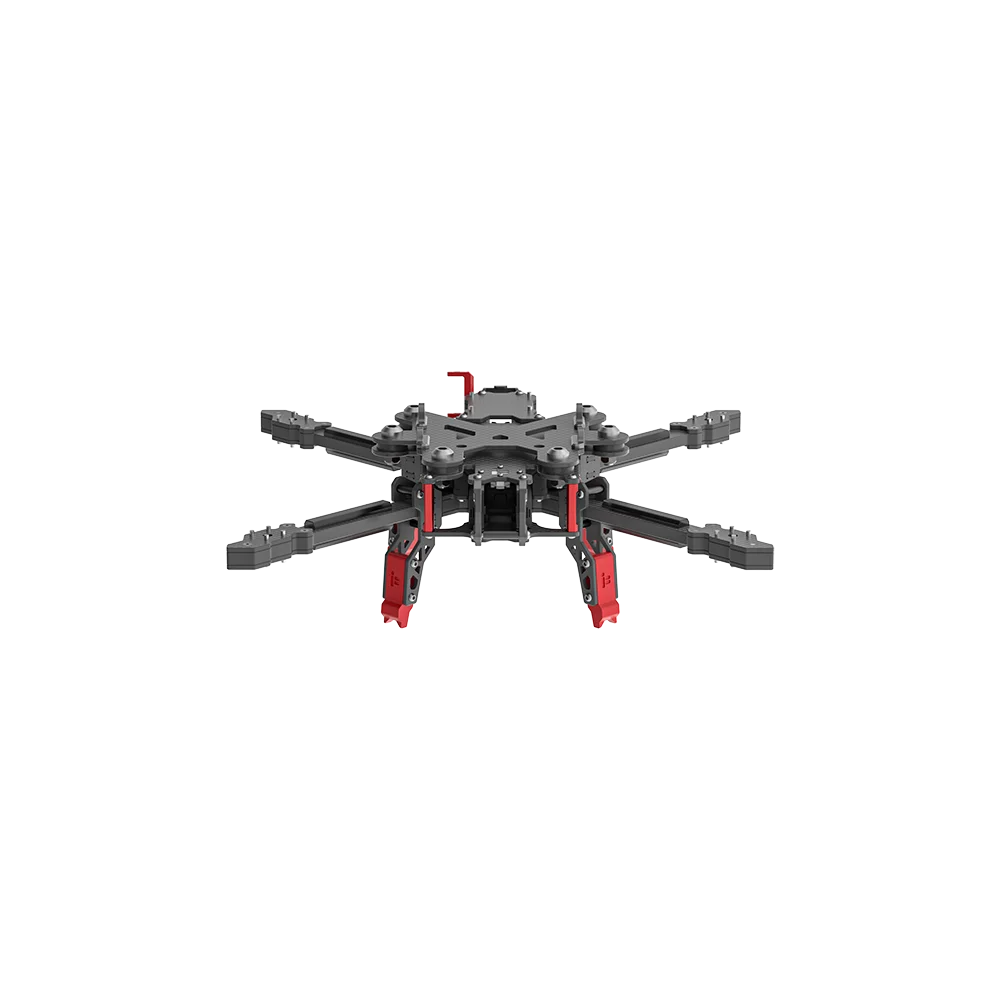

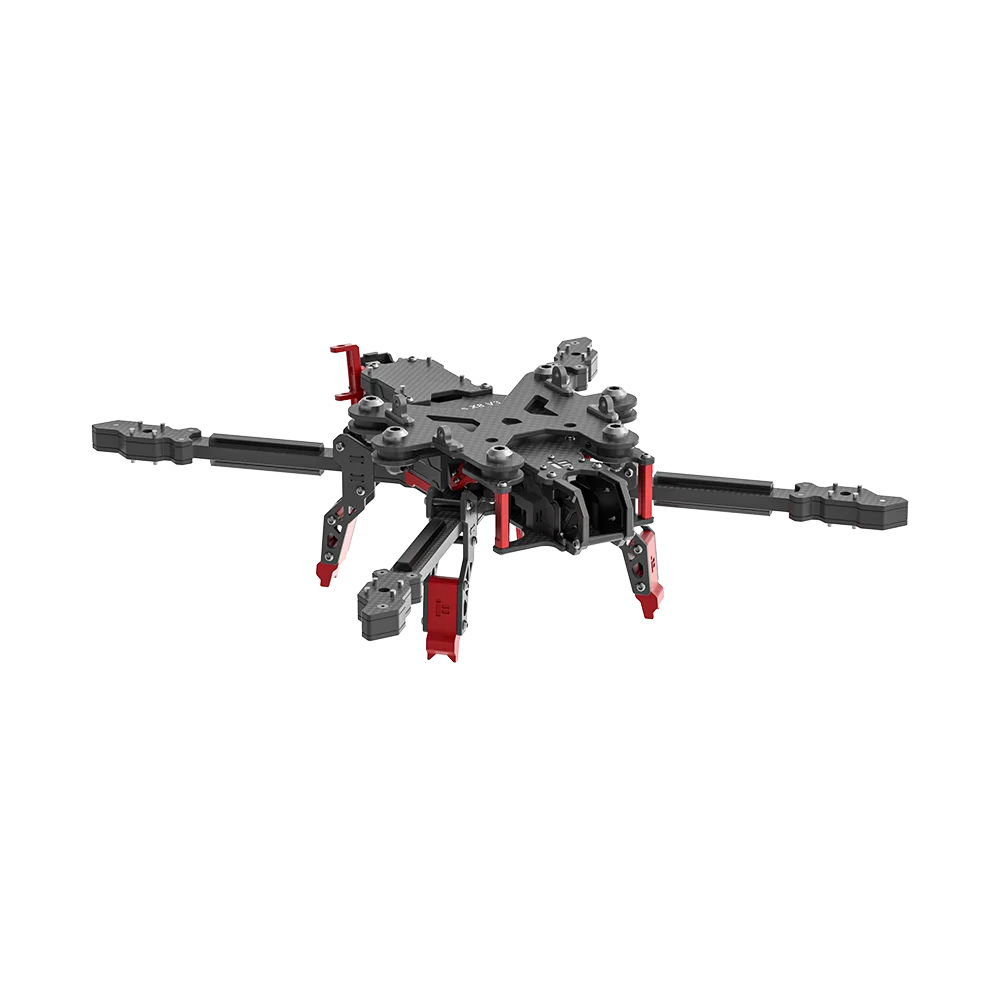

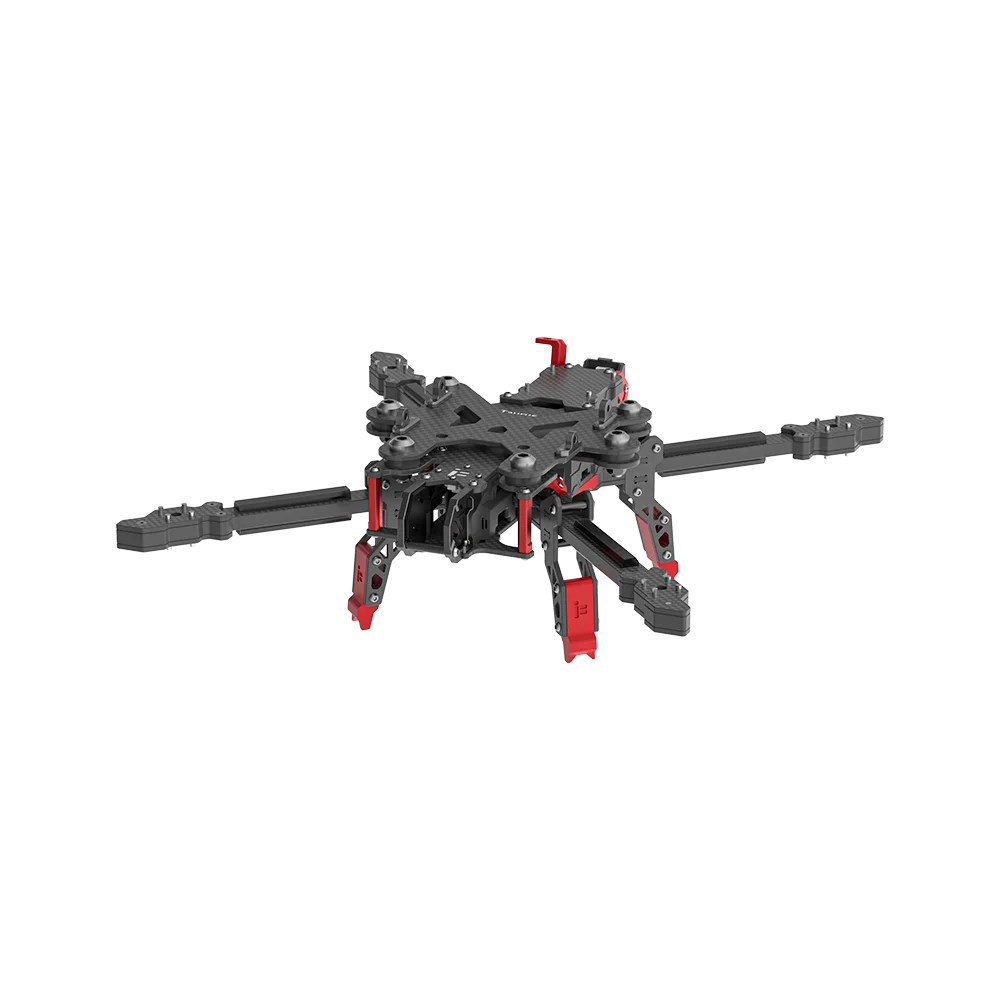

iFlight Taurus X8 V3 8inch Cinelifter FPV Frame Kit

• The Taurus X8 V3 BNF Cinelifter Frame Kit is aimed towards carrying big payloads, offering a soft-damped universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC, etc).


Features:

• Optimized CG through the adjustable camera and battery mount

• Stable silicon-ball decoupled camera CNC mount

• Redundant ESC and motor configuration

• 2kg max payload for various cinema and DSLR cameras

• Lightweight Side Panels - Keep Your Rig Clean

Changelog

• March 25, 2023: This Frame kit is compatible with the DJI O3 air unit.
• July 25, 2025: Frame Kit updated from compatible with O3 Air Unit to compatible with O4 PRO Air Unit.


Specifications

• Product Name：Taurus V3 X8 HD Cinelifter Frame

• Wheelbase: 400mm

• Frame Dimension: L283*W283*H112 mm

• Arm Thickness: 8mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 3mm

• Upper Plate Thickness: 3mm

• Flight Controller Mounting: 35*35 Φ3mm


• Motor Mounting: 19x19mm Φ4mm

• VTX Mounting: 25.5*25.5mm Φ1.6mm

• Weight: 1130g

NOTE: Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

Package included:

• 1 x Taurus V3 X8 HD Cinelifter Frame


• 8 x 20x300mm battery strap (Color May Vary)


• 1 x Aluminum Quick Release Camera Clamp

• 1 x Taurus X8 Hardware Accessories Kit

• 1 x CNC Aluminum Alloy Cam Mount

• 1 x 3d Printed Parts Kit

• 2 x Battery Pad

• 1 x LED mount

• 10 x Dampers

• 2 x Battery Anti-slip pads
