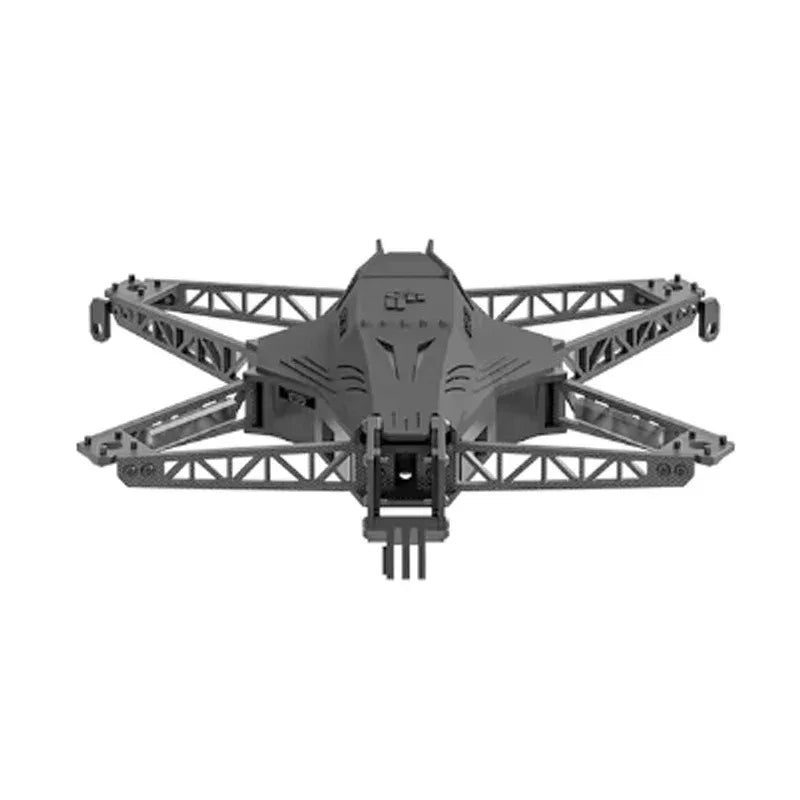

iFlight Specter 7 FPV Drone Frame 4mm Arm Thickness 306mm Wheelbase

• SPEC7ER is a high-performance FPV drone by 2RAW and iFlight.

• Equipped with premium components and an innovative design that emphasizes durability, aerodynamics, and easy maintenance.

Features

Easy Maintenance

The Specter features a unique shell quick-release system that allows for easy one-click opening of the shell, providing full access to the internal electronics.

Reinforcement Structure

The Specter incorporates CNC aluminium parts in key areas such as arm ends, internal arm joints, and the GoPro mount. This design simplifies the complex truss structure, allowing for easy assembly while ensuring exceptional strength.

Truss Design

The Specter features the tried-and-tested 2RAW truss design for its arms, delivering an unparalleled strength-to-weight ratio while maintaining exceptional torsional resistance.

Aero Shell

2RAW’s signature aero shell protects the internal electronics from debris and dirt, drastically improving the drone's aerodynamic performance in the sky. It also features integrated LEDs, allowing users to easily spot their drone in the air.

Unmatched FOV

With a unique underslung GoPro mounting method, the Specter enables users to have no props in view from -45 to 45 degrees in both the DJI O4 feed and the GoPro feed.

Specifications

• Product Name: Specter Frame

• Wheelbase: 306mm

• Frame Dimension(L*W*H)：232*201*62mm

• Arm Thickness: 4mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 3mm

• Max Flight Stack Height: 20mm

• Max VTX Height: 20mm

• Flight controller Mounting: 30*30/Φ3mm

• VTX Mounting: 25.5*25.5/Φ2mm

• Motor Mounting: 19*19/Φ3mm

• Weight: 315g

• Compatibility: DJI O4 Air Unit Pro

Packing List

• 1 x Specter Frame Kit

• 1 x TPU Set

• 2 x Battery Anti-slip pads

• 1 x Screw Bag

• 2 x Battery Strap

• 4 x Motor Wire Shield Tube
