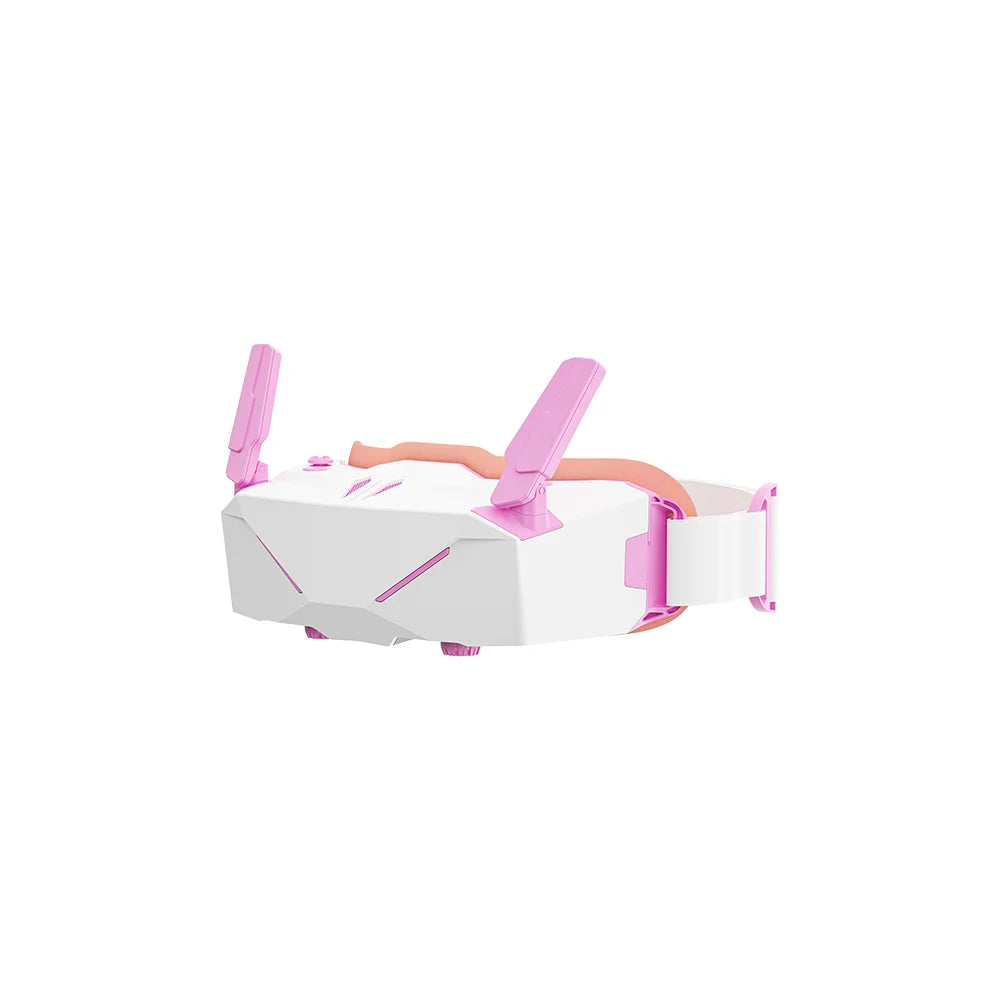

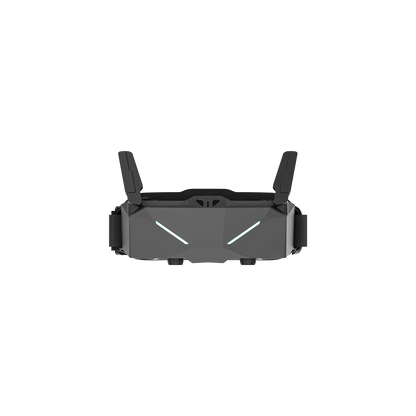

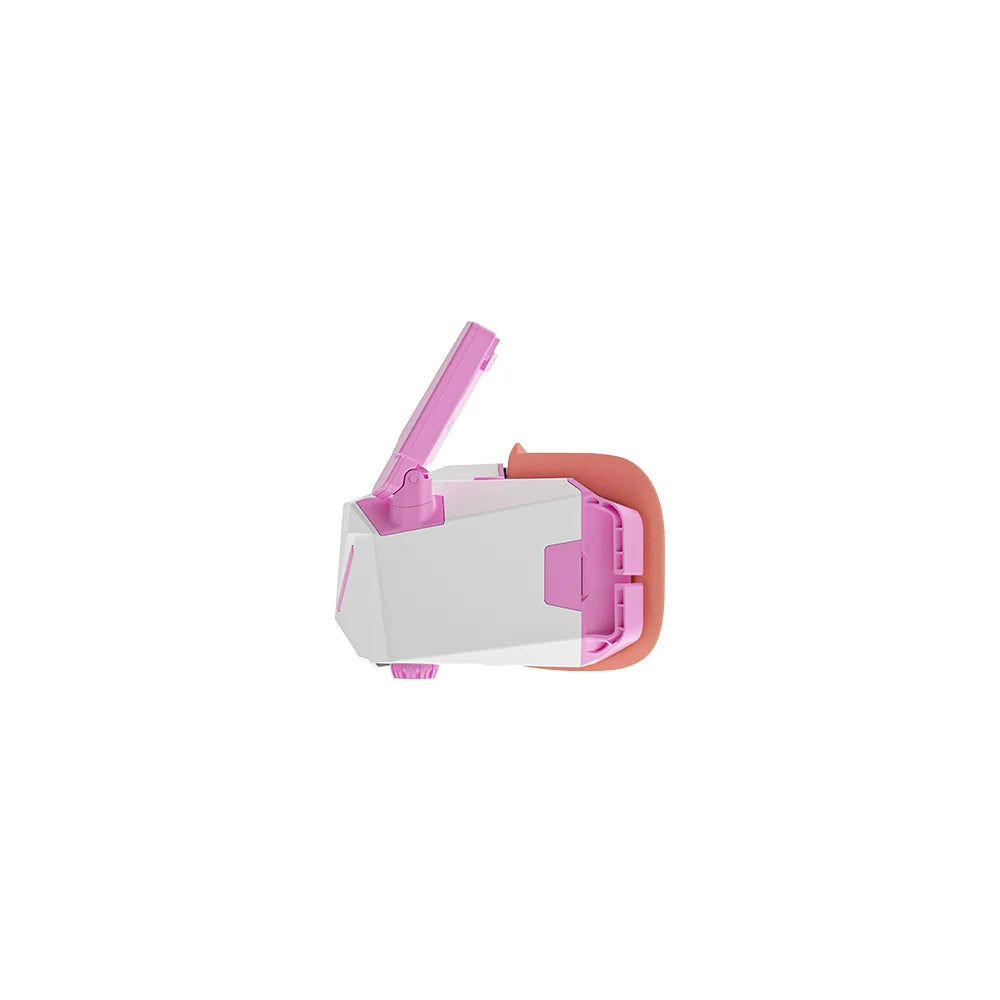

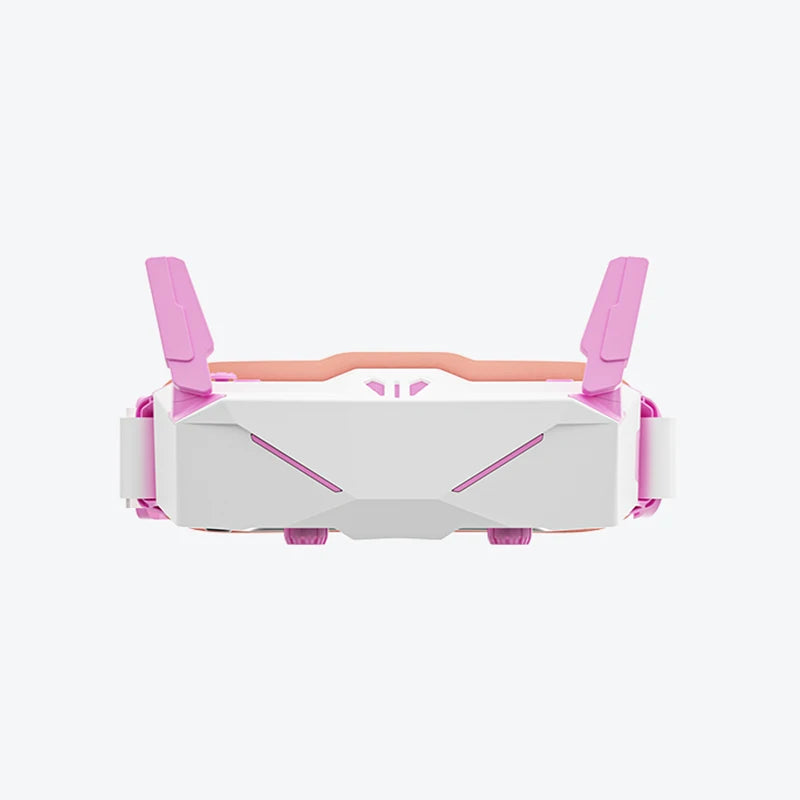

iFlight Skyviz Goggles PinkBlack FPV Analog Goggles

Description

The Skyviz Goggles are the first mecha-style, highly integrated FPV Analog goggles with a built-in fusion receiver and foldable antenna design, offering a compact and ergonomic layout.

Supporting third-party HD video receivers with a dedicated mounting bracket, these goggles ensure compatibility and flexibility. The minimalist UI and intuitive controls enhance the user experience, while dual Micro-OLED displays (100Hz refresh rate) deliver ultra-smooth, crystal-clear visuals.

Featuring a 7-element aspherical lens system, the Skyviz Goggles provide sharp, distortion-free images with no screen-door effect, adapting seamlessly to any diopter setting for unparalleled immersion.

Features

Uncompromised Visual Performance

Engineered with dual 100Hz Micro-OLED displays and a 7-element aspherical lens system, the goggles deliver stutter-free, high-fidelity imagery with zero screen-door effect. Customize your view with diopter adjustment (-7D to +2D) and IPD tuning (56-72mm) for universal comfort.

Modular Receiver & Input Flexibility

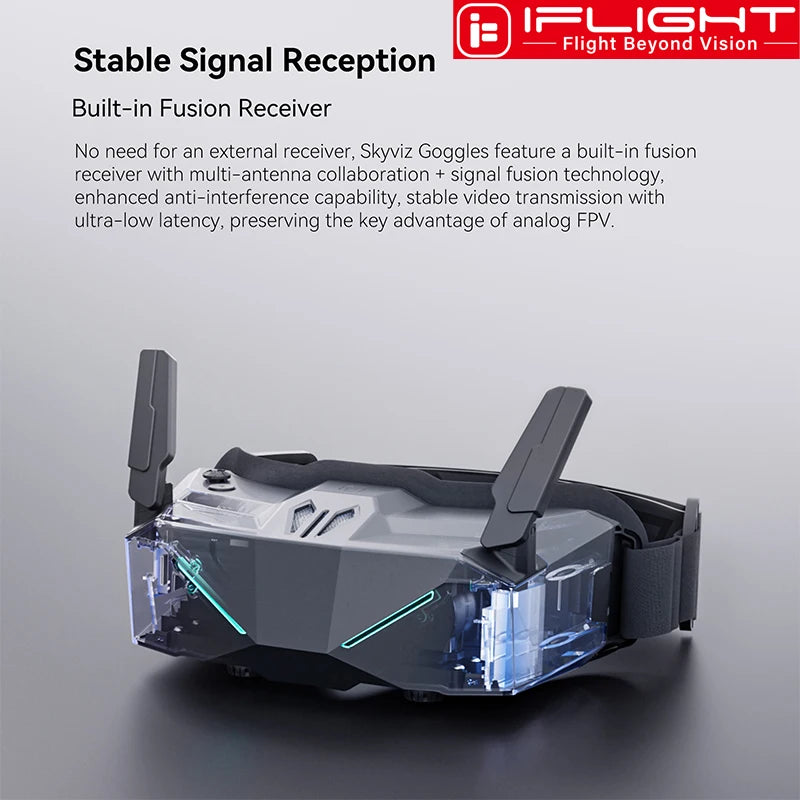

It uses an integrated receiver for high-quality image transmission and also supports third-party receivers. Compatible with VRX, AV, and HDMI input modes, it adapts to various usage scenarios.

Customizable Display Settings

Tailor visuals with Race/Freestyle FOV modes, focus chart-assisted calibration, and granular image settings (brightness/contrast/color/sharpness). Toggle between 16:9 and 4:3 aspect ratios to match your feed.

Enhanced Usability Features

The DVR recording and playback function with adjustable settings, voltage display and calibration, and a multilingual interface in Chinese and English improve practicality.

Comfort & Customization

Manual control of the fan switch and speed provides comfort during long-term use, and the option to customize LED colors adds a personalized touch to the goggles' appearance.

Specification

Product Name: Skyviz Analog Goggles

Weight: Approx. 300grams（headband included）

Dimensions (L×W×H): L174.5 * W101.6 * H69.5mm(Antenna folding)

Screen Size (single screen): 0.49-inch

Resolution (single screen): 1920×1080

Refresh Rate: 100 Hz(Max)

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -7.0 D to +2.0 D

FOV (single screen): 44°

Aspect Ratio: 16:9/4:3

Receiver: Built-in receiver

Language: Chinese and English

Power interface: DC4.5

HDMI-IN: Micro HDMI

AV-IN 3.5mm

Headphone jack: /

DVR format: MP4

DVR frame rate: 30FPS (CVBS)

Antenna: Omnidirectional linear polarization antenna

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Power Input: 2-6S

Supported SD Cards: microSD (up to 64 GB)
