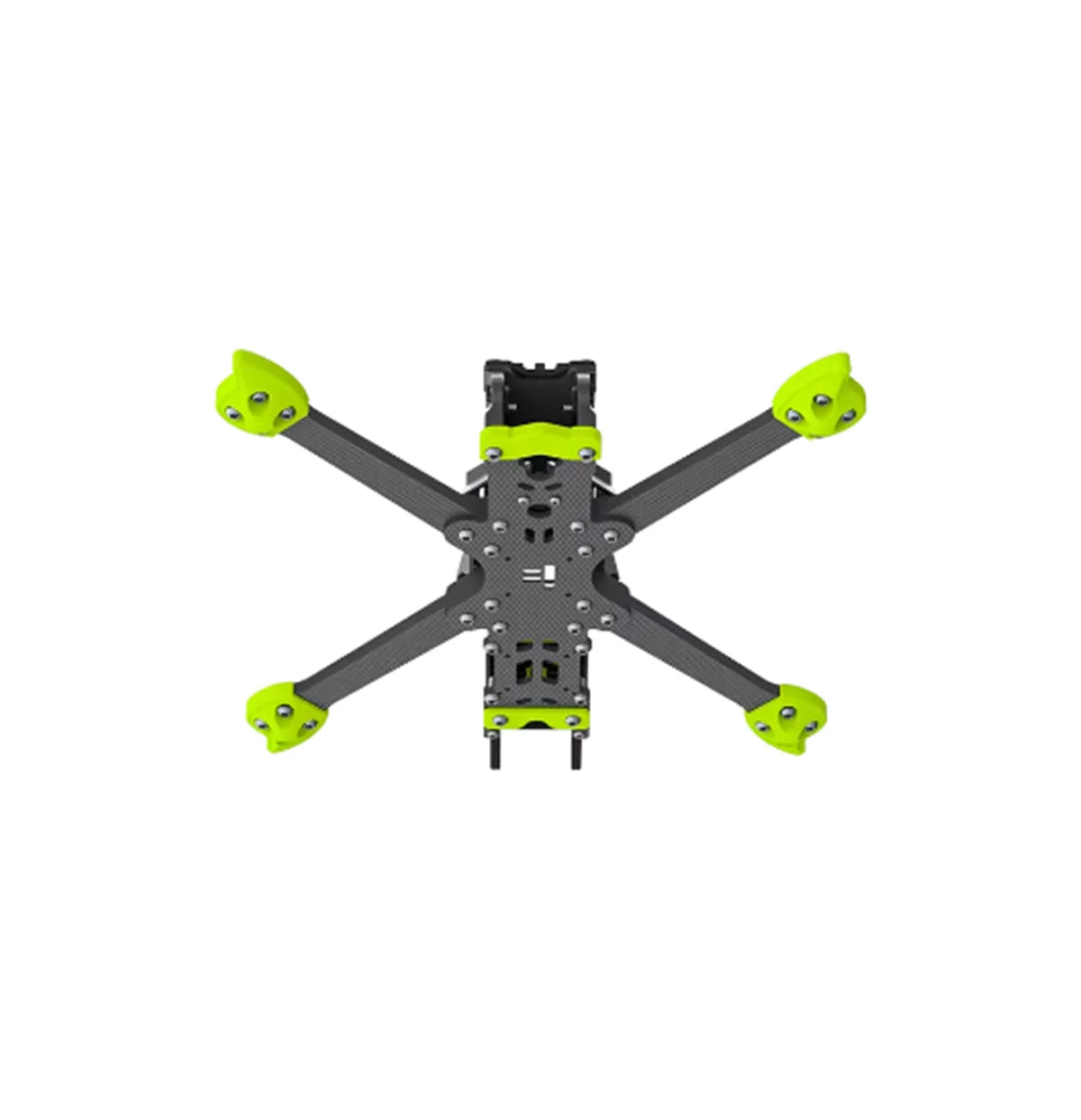

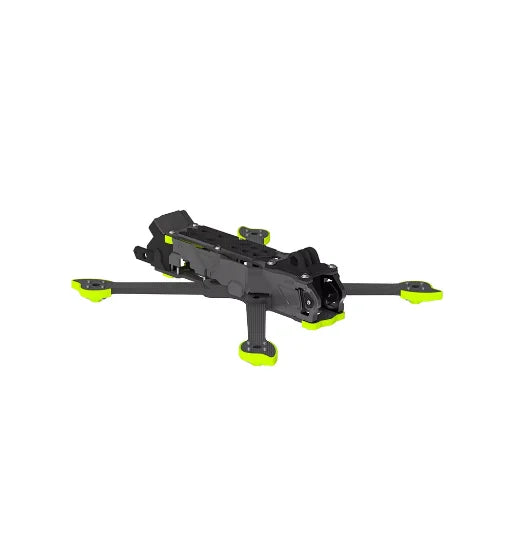

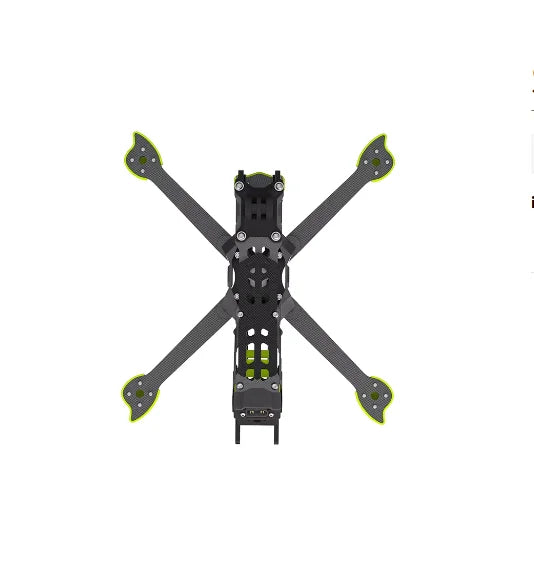

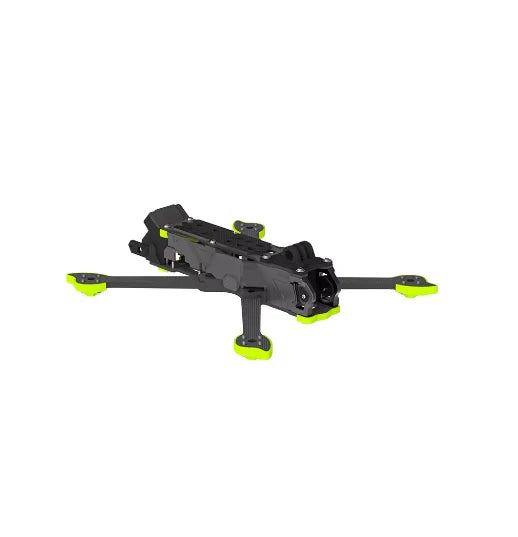

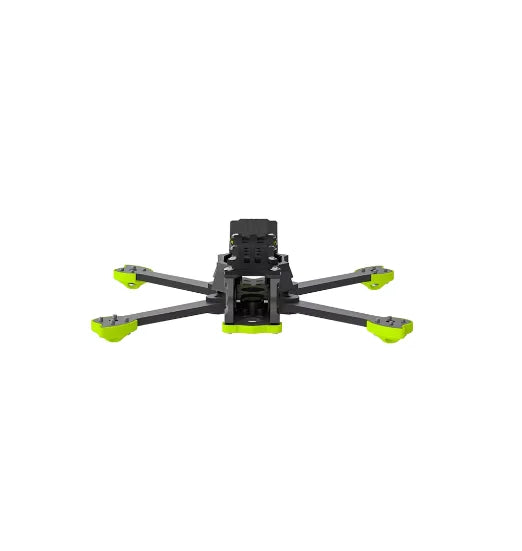

iFlight Nazgul XL5 ECO V1.1 Frame Kit

Description

The iFlight Nazgul5 V3/Nazgul XL5 frame is a 5" freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5" prop control.

This Frame kit and the Nazgul5 V3 Frame kit are the same Frame kit.

Changelog:

July 19, 2024: Battery Plug mount updated to a fixed form. The frame kit upgraded to V1.1.

Sept. 10, 2024: Product upgrade, the side panels will be installed by default.

Highlights

5" version also fits 5.1" style propellers

Fits both 30.5x30.5 and 20x20 stacks

Compatible with DJI O3 HD System

5mm arm design for more durability

Popular True-X configuration

LED illuminated Logo

TPU crash-guards

Easy-Swap arms

Specifications

Product Name: Nazgul5 V3 / Nazgul XL5 V1.1 ECO Frame Kit

Geometry: True-X

Wheelbase: 245mm

Frame Dimension: L173*W173*H36.5 mm

Frame Body Dimension: 33.5mm

Arm Thickness: 5mm

Bottom Plate Thickness: 2.5mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 22mm

Max VTX Height: 29mm

Motor Mounting：16x16mm

VTX Mounting：30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

Weight: 217g (Included no TPU Parts)

NOTE: Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

Packing List

1 x Nazgul XL5 V.1 ECO Frame Kit

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Armguard

1 x Bottom Plate Front Protection TPU

1 x Bottom Plate Rear Protection TPU

1 x Anti-slip Battery Pad

4 x Motor Wire Shield Tube

2 x Battery Strap(20*250mm)
