Features

Lightweight and Durable

A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.

Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We've added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Enhance user experience and streamline maintenance

Equipped with a built-in buzzer and receiver mount, this feature makes it convenient maintenance and adjustments to the receiver.

Specificaitons

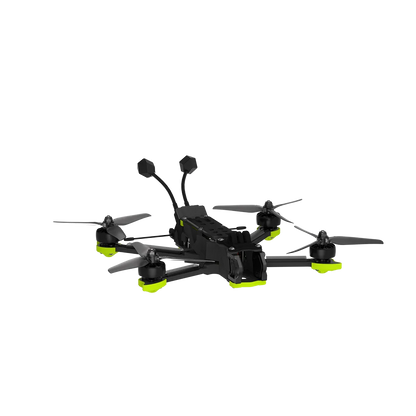

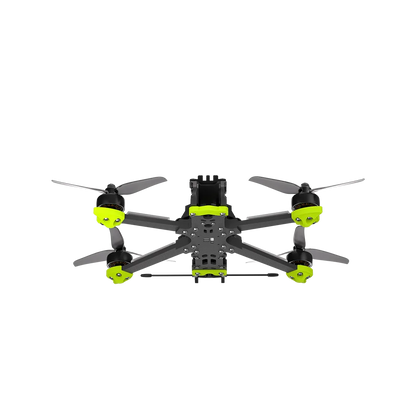

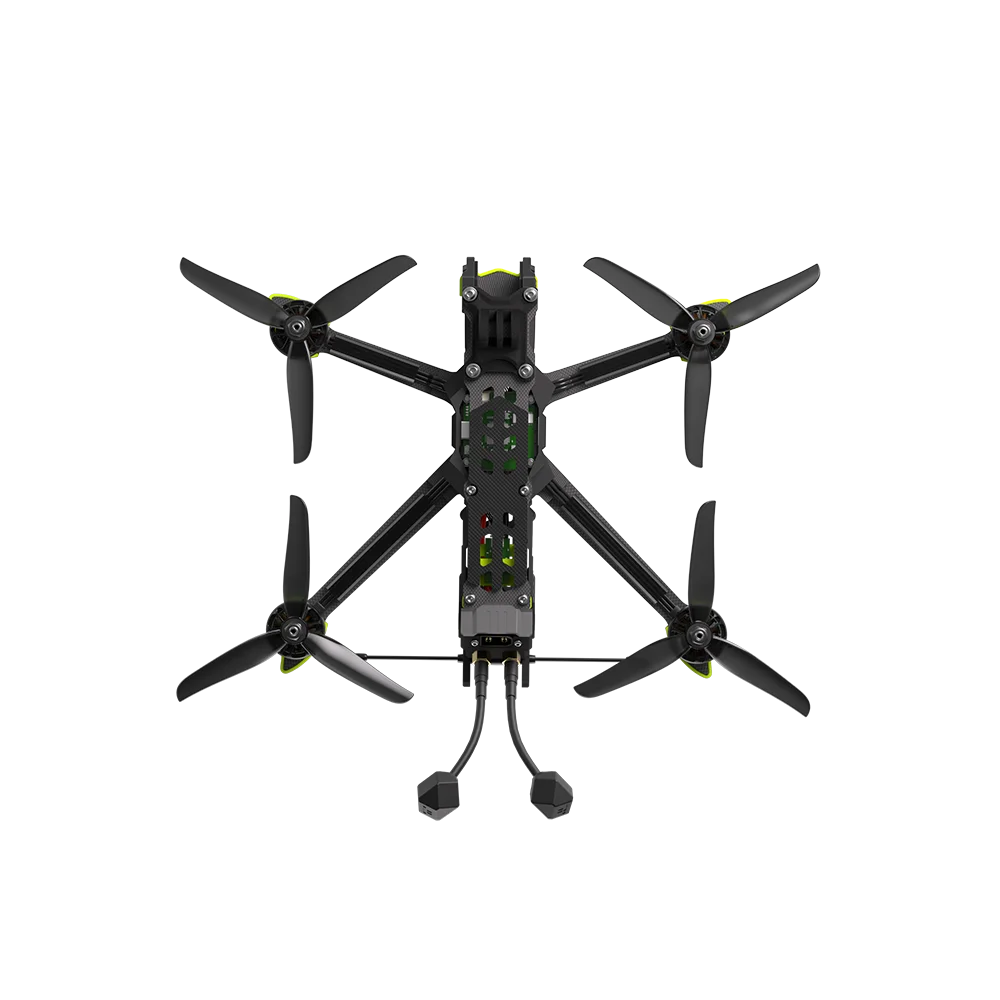

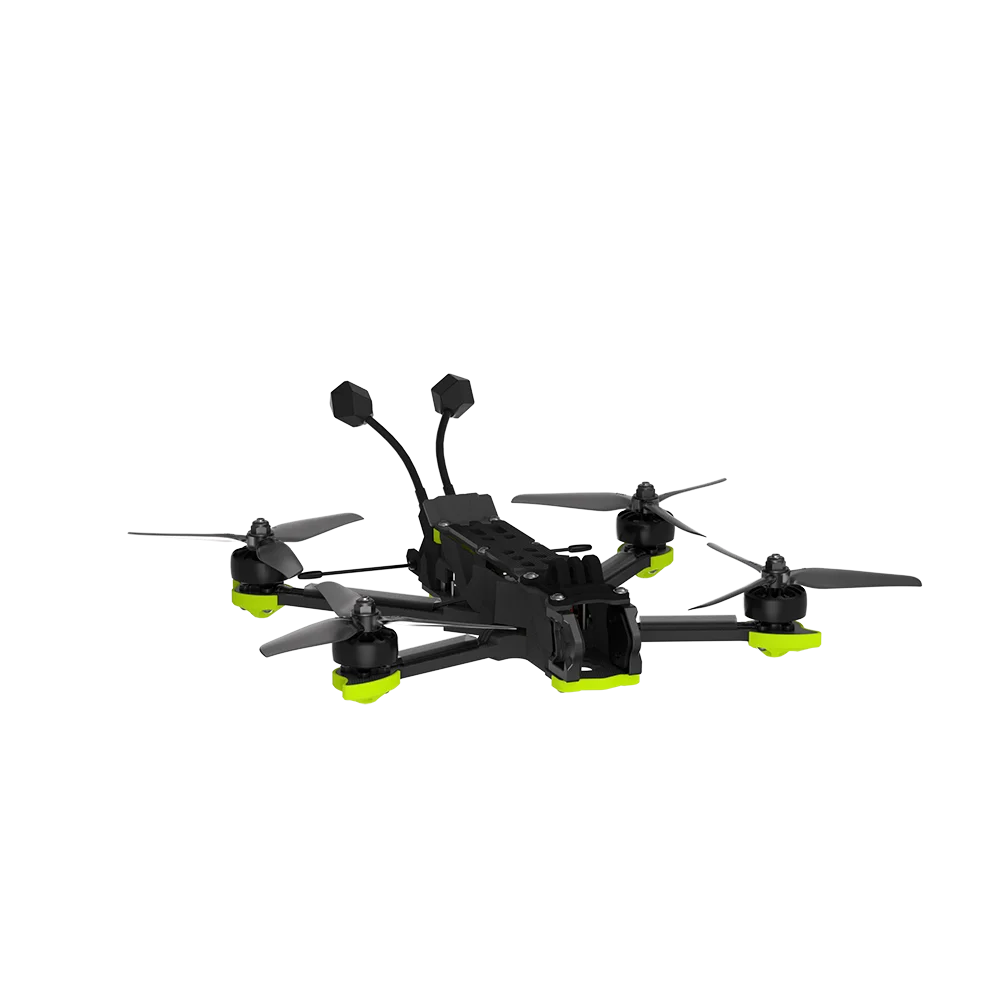

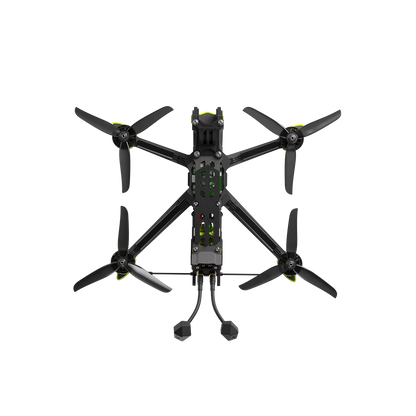

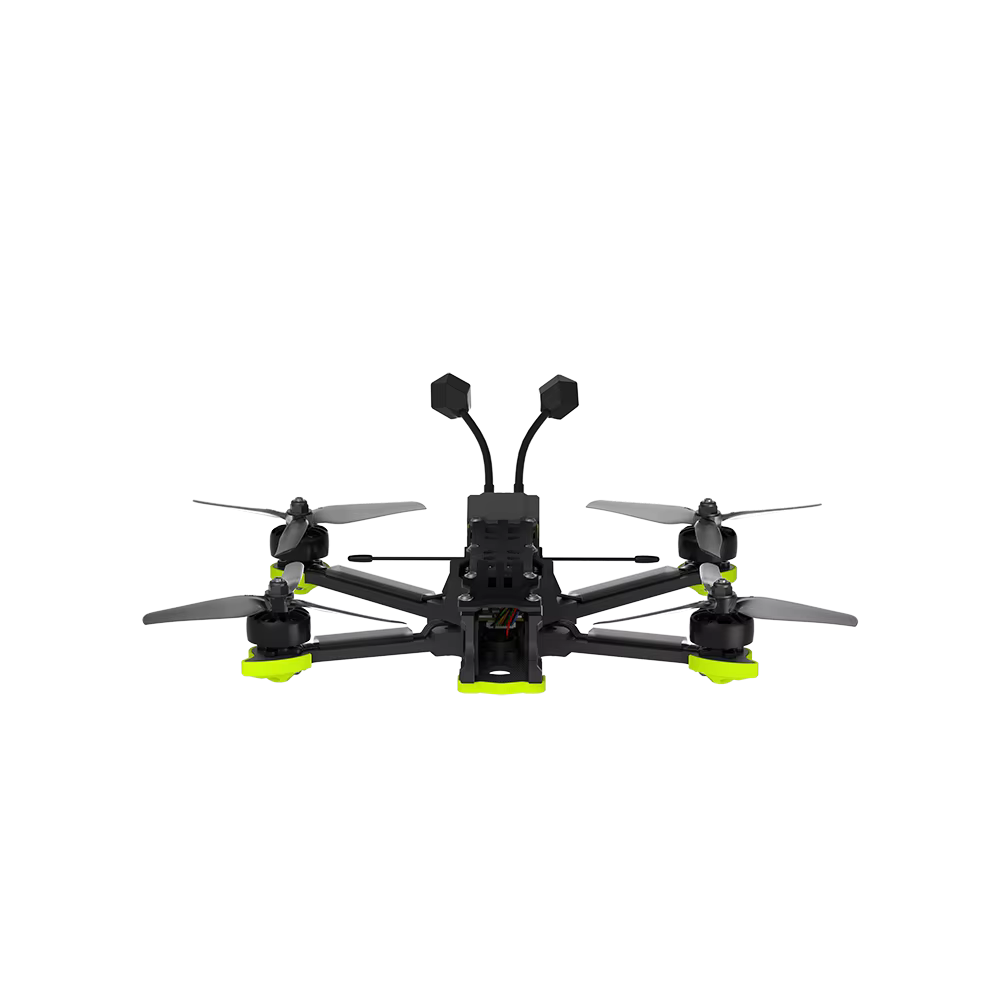

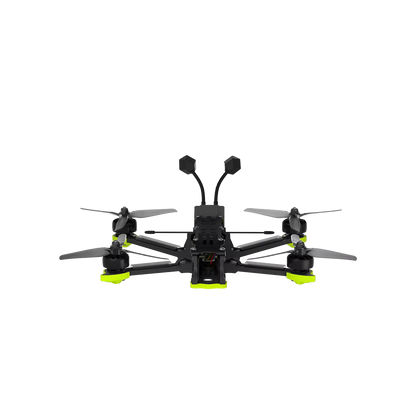

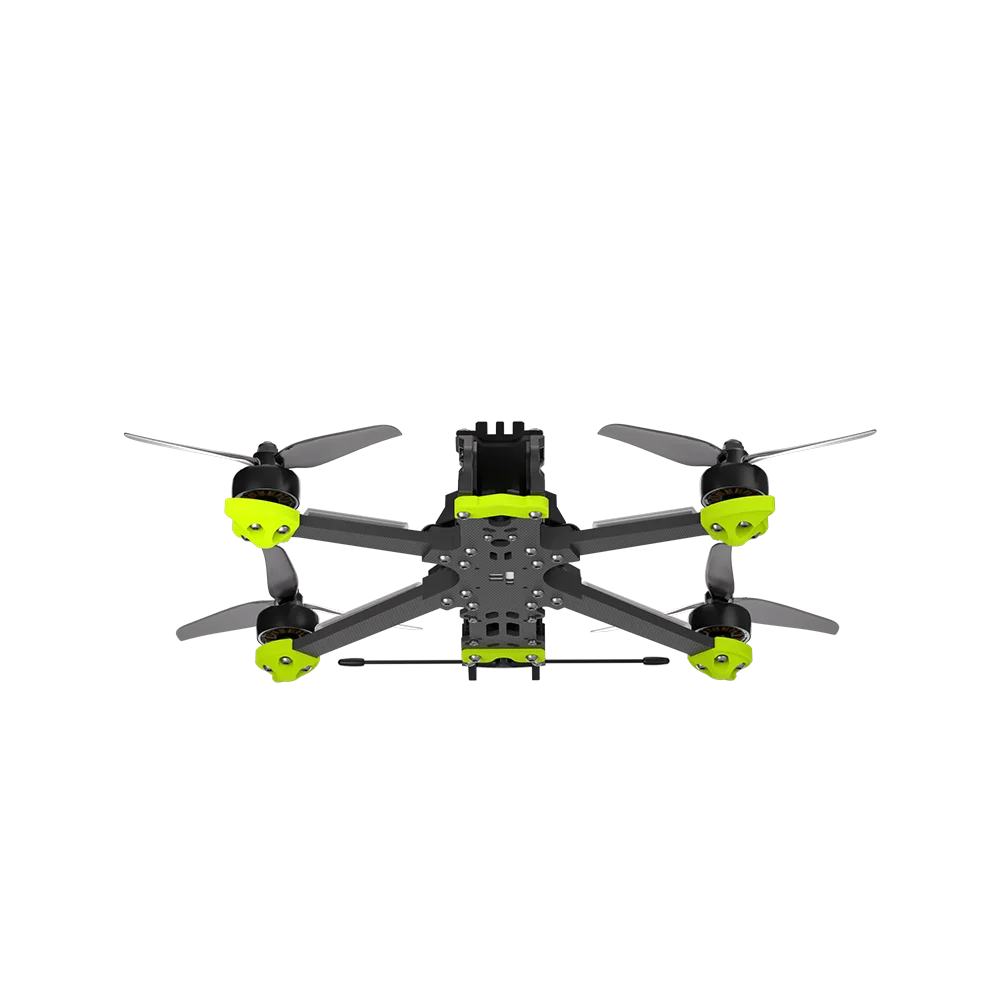

• Product Name: Nazgul DC5 ECO WTFPV

• Geometry: DC (DeadCat)

• FC: BLITZ ATF435 Flight Controller

• ESC: BLITZ E55S 4-IN-1 ESC

• Video Transmission and Camera: None

• Frame: 240mm wheelbase

• Motor: XING-E Pro 2207 1800KV motors

• Prop: Nazgul F5 propellers

• Weight: 418±5g

• Takeoff Weight: Approx. 643±5g (With 6S 1480mAh battery)

• Dimensions (L×W×H): 193×144×34 mm

• Max Speed: 190 km/h

• Maximum Takeoff Altitude: 7000 m

• Max Hover Time: Approx. 7.5 mins (No Load with 6S 1480mAh)

• Max Wind Speed Resistance: Level 7

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Antennas: Dual Antenna

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

Packing List

• 1 x Nazgul DC5 ECO V1.1 WTFPV

• 2 x Antennas

• 1 x Battery pads

• 2 x Prop(Pairs)

• 1 x Screw bag

• 1 x Cable set


Important

• All iFlight BNFs are tested before shipment to guarantee the highest quality.
