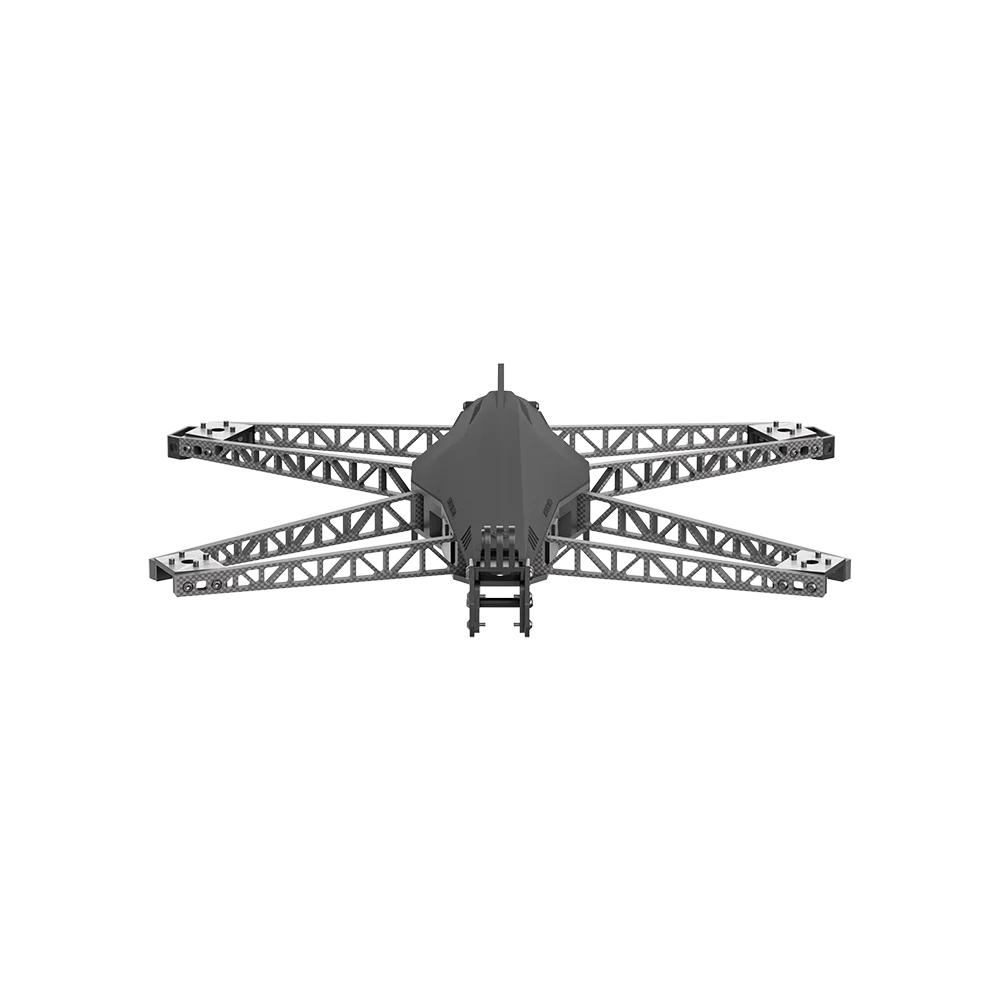

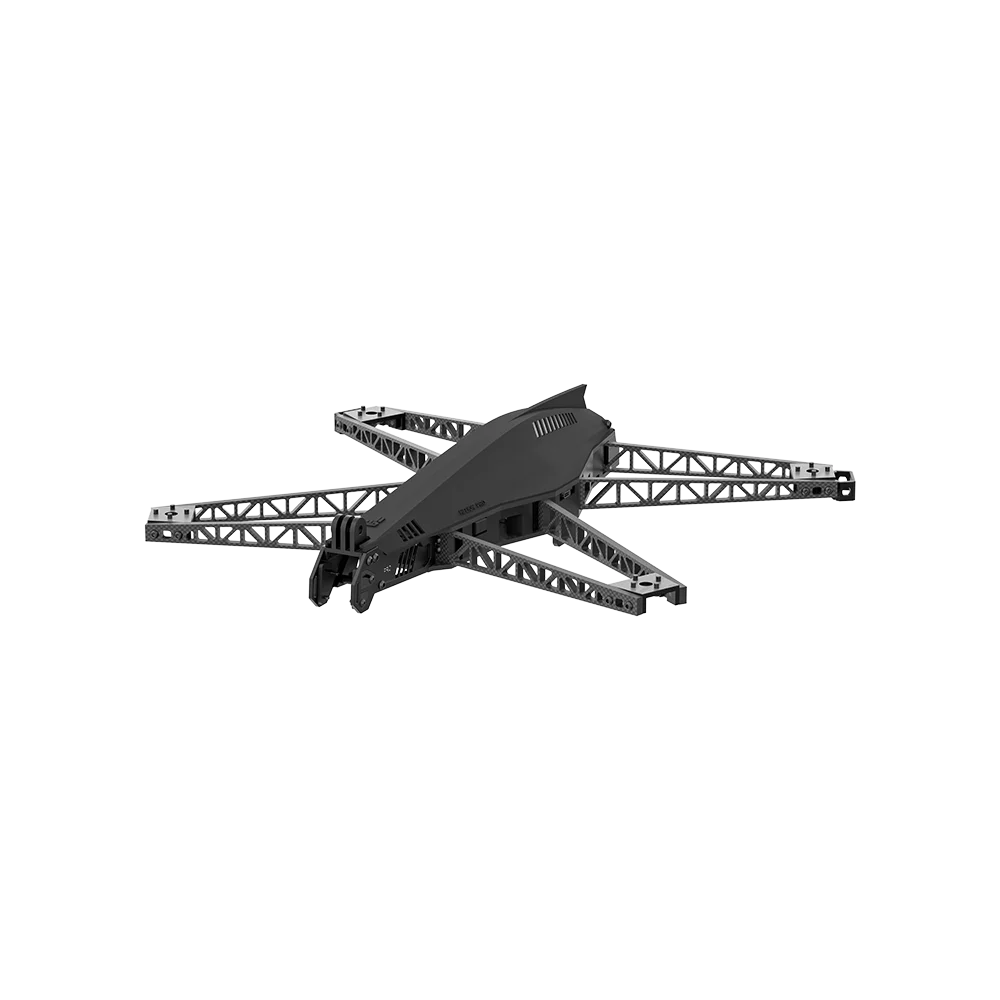

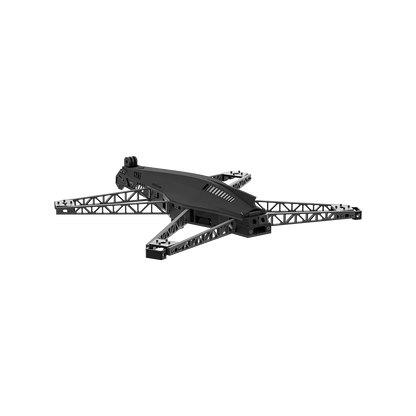

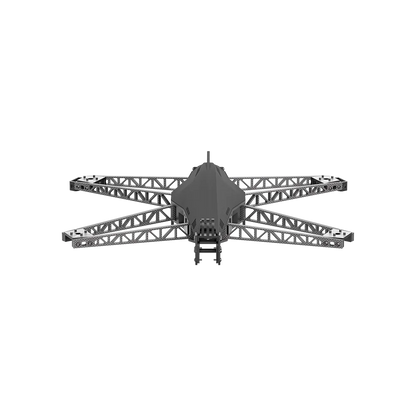

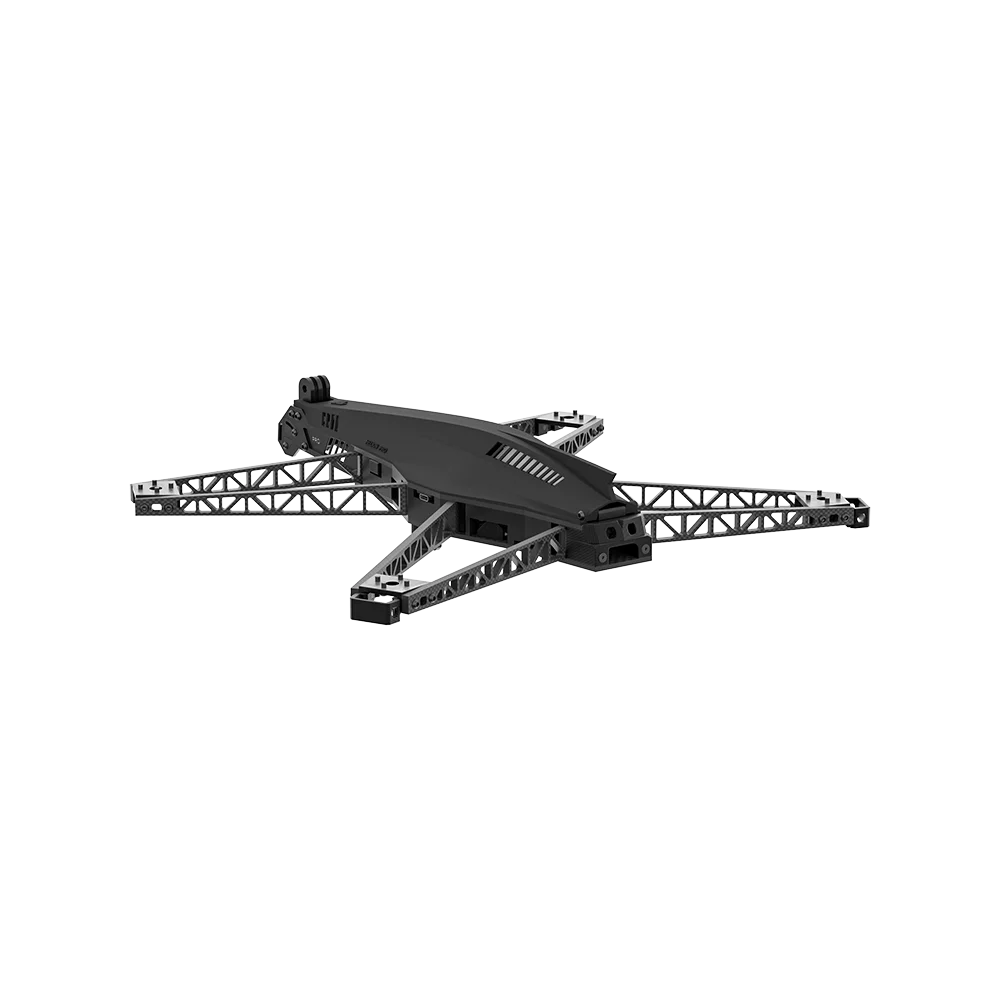

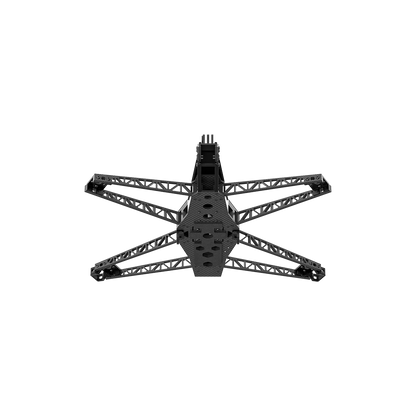

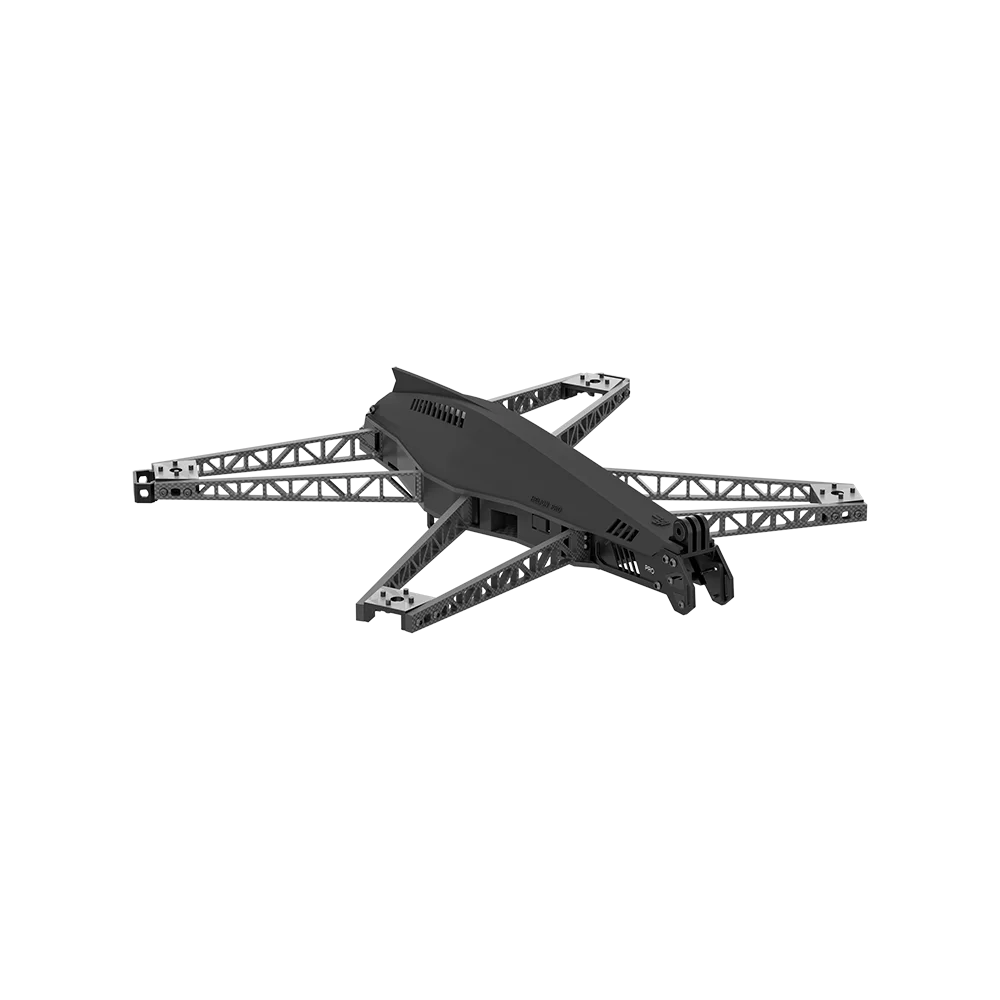

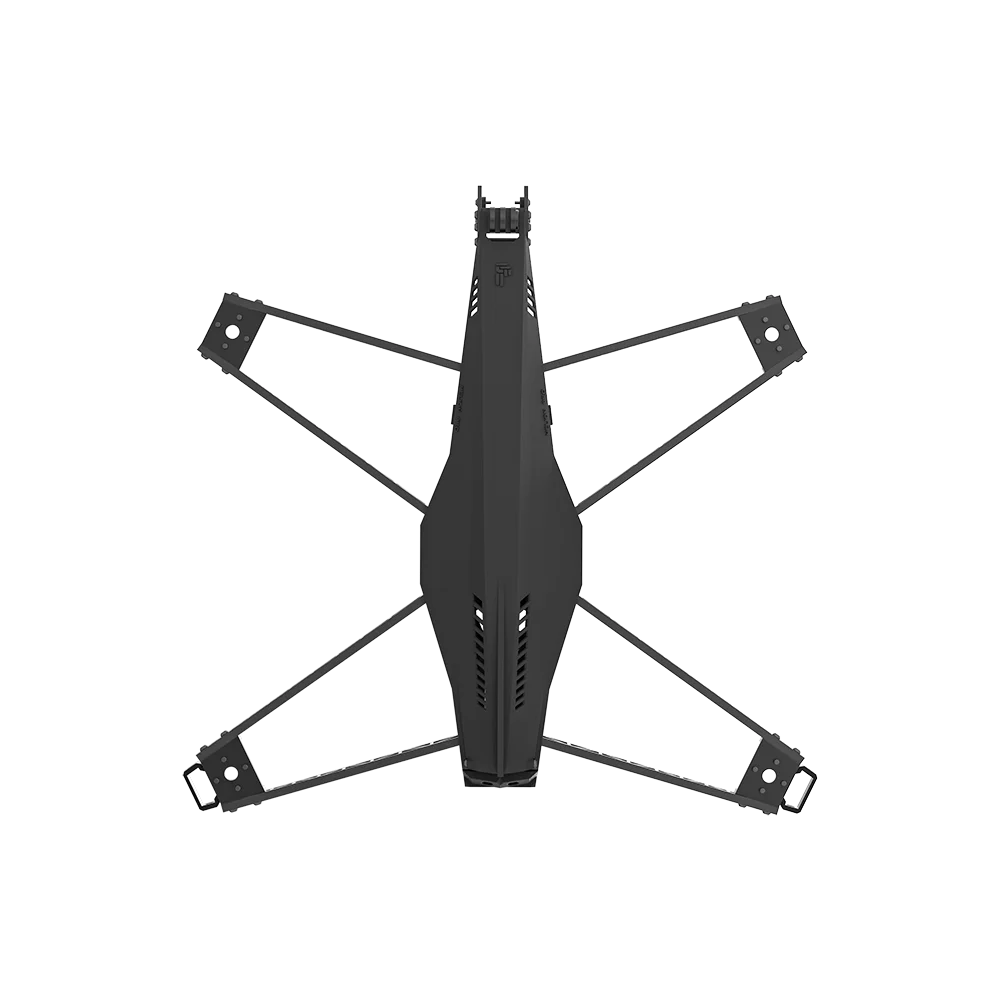

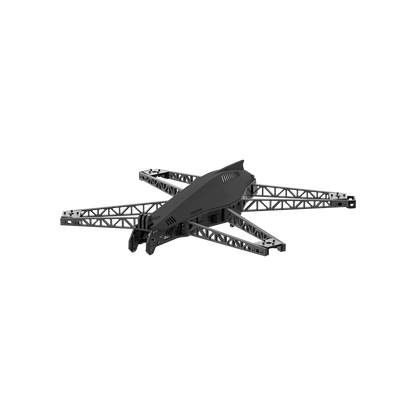

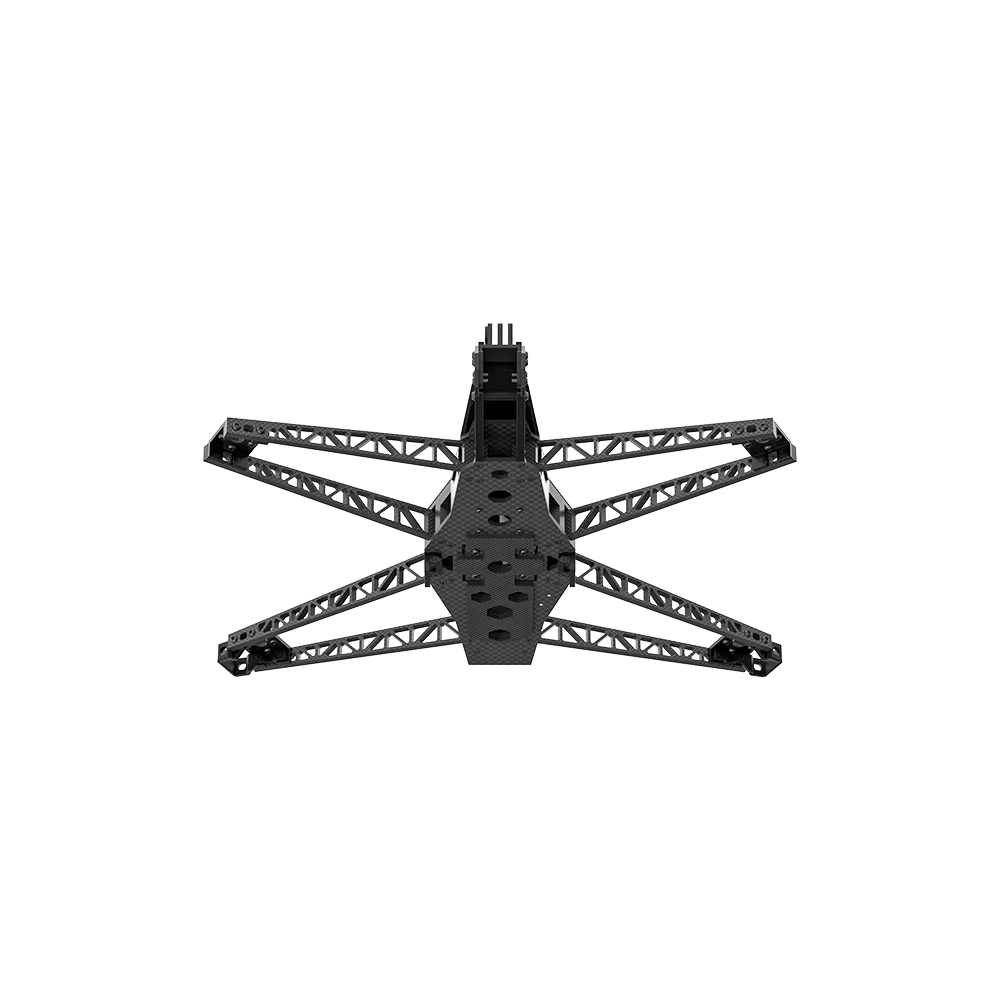

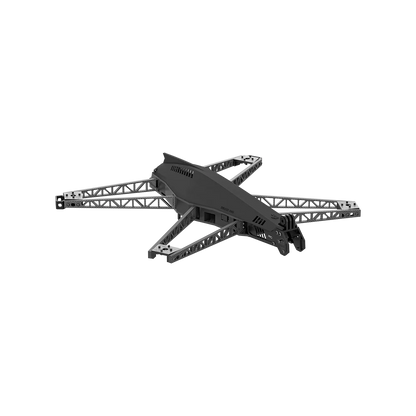

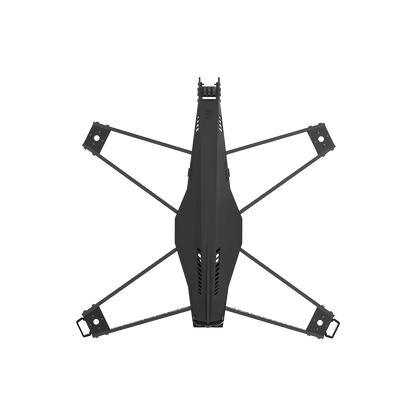

iflight Helion Pro FPV Frame Kit with 5mm arm for FPV Parts

• HELION -  The Long  Range flagship by 2RAW and iFlight

• This drone was built to redefine Long Range. In order to meet the rising demands for more range, and more flight time while maintaining enough weight, to have excellent stability in even the windiest of conditions. Its unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Helion’s distinct frame design was scientifically optimized to balance stability, weight, and rigidity.


Features

Aero-Shell

The unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Users can simply open and close the shell when working on the drone. The idea was to protect the inside but give people full access when maintenance work is being performed on the drone.

Advanced Truss Arms

The Helion Pro features the tried-and-tested 2RAW truss design for its arms, delivering an unparalleled strength-to-weight ratio while maintaining exceptional torsional resistance.

USB-C Power

A USB-C Plug was added so you can power your action cam when running out of power. This was also built in for potential upcoming new small cameras making Helion more future proof.

Specifications

• Product Name: Helion Pro Frame Kit

• Frame wheelbase: 414mm

• Frame Dimension: L320*W262*H70 mm

• Arm Thickness: 5mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 3mm

• Max Flight Stack Height: 20mm

• Max VTX Height: 20mm

• Flight Stack Mounting: 30*30/Φ3mm

• VTX Mounting: 25.5*25.5/Φ2mm

• Motor Mounting: 19*19-φ3mm

• Weight: 681±10g

• Compatibility: DJI O4 Air Unit Pro
