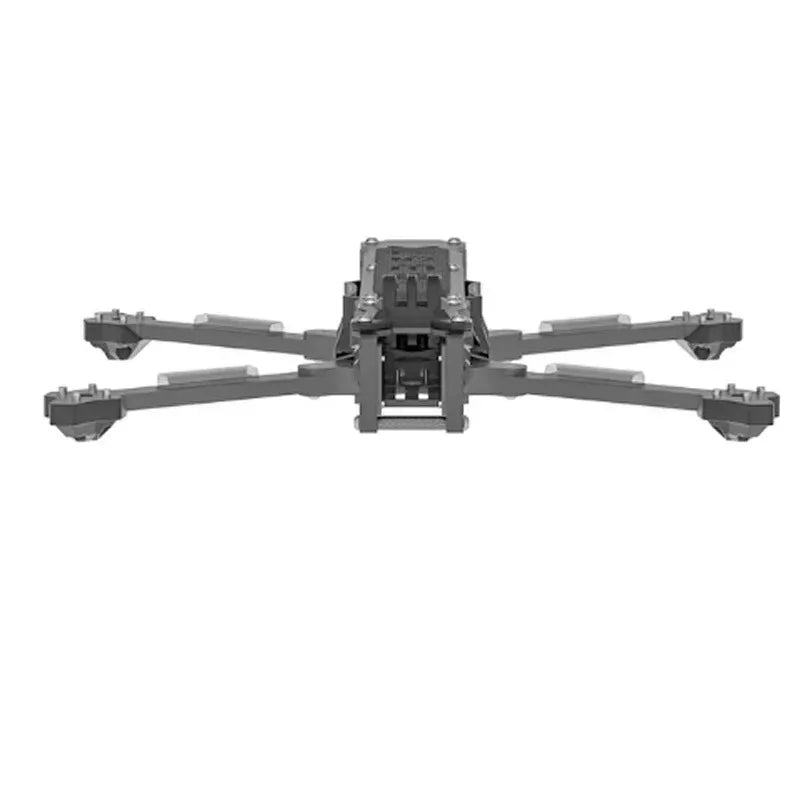

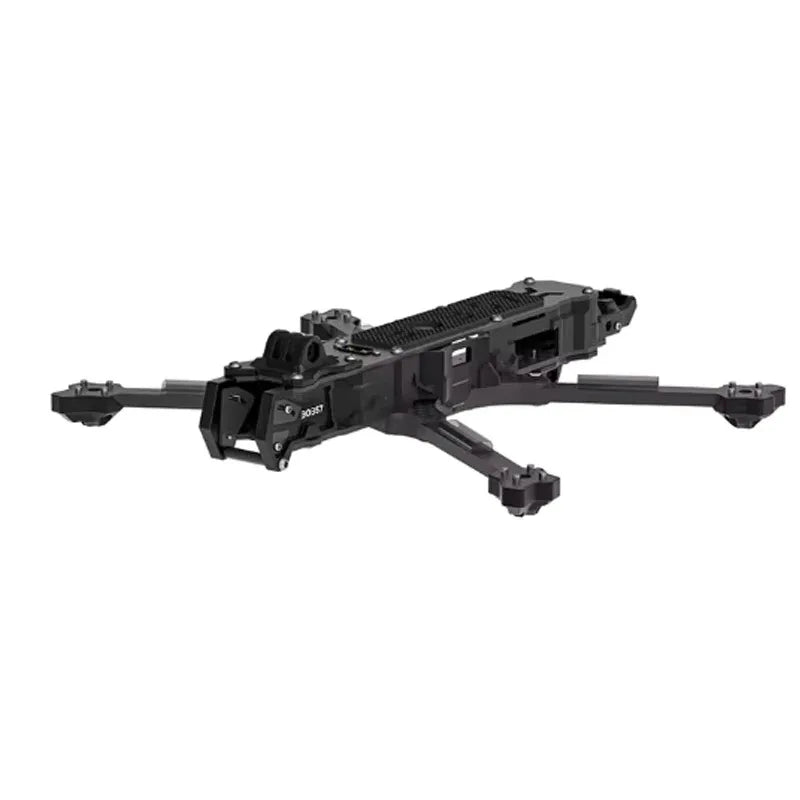

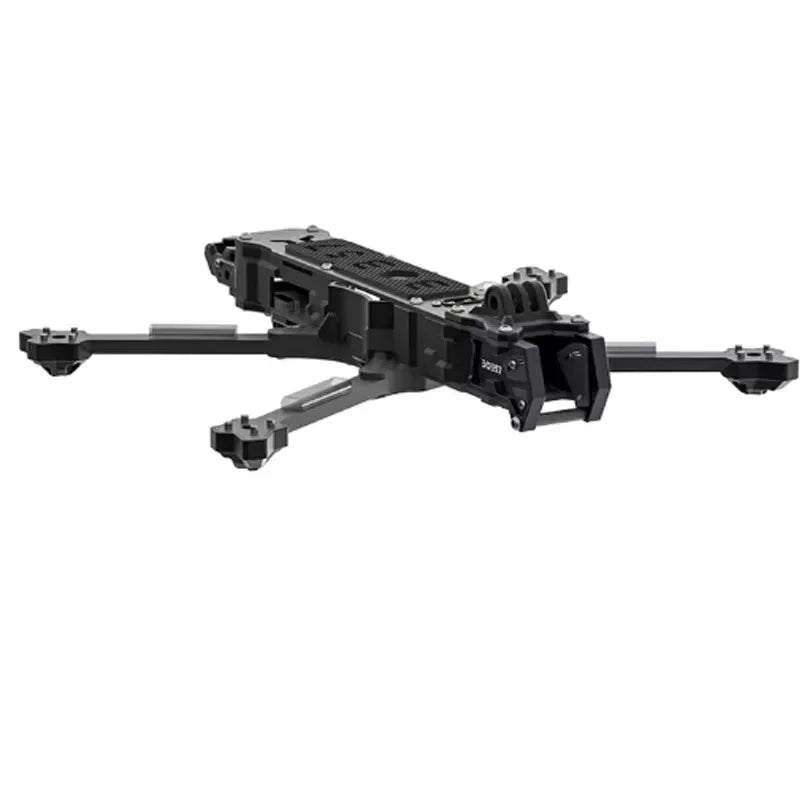

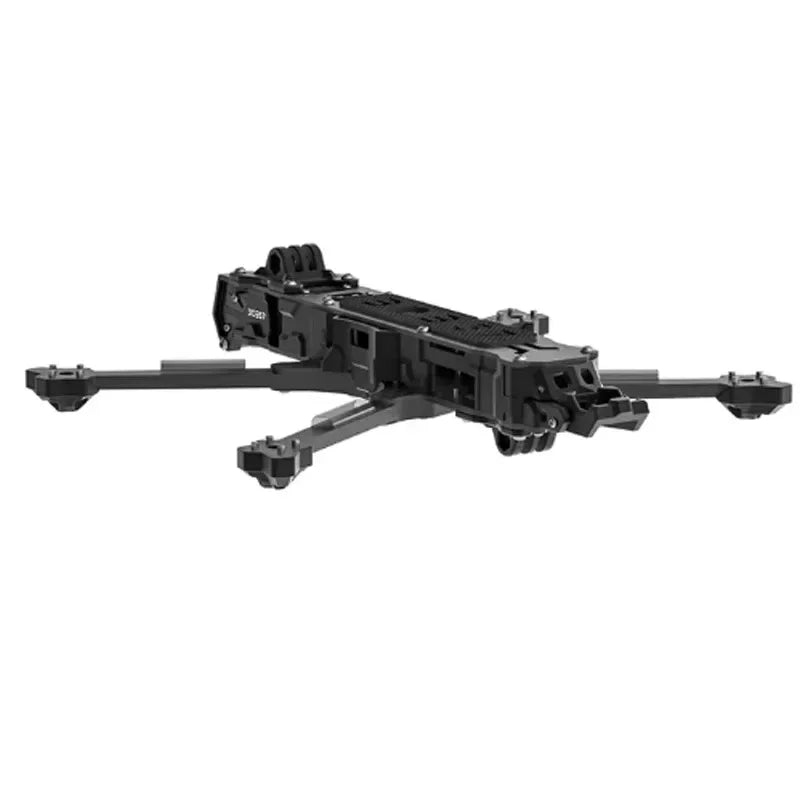

IFlight BOB57 O4Pro Frame Kit with 6mm Arm

$149.99

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

color BOB57 O4 PRO Frame

Features

Hybrid motor design optimized for that can be used with both bi-blade and tri-blade 6" propellers
Solid antenna mount for less ocillations when using long antennas
H-shaped frame with robust middle section for less props in view
Gladiator shell protects from dust and water droplets
Front-mounting XT-60

Specifications

Product Name: BOB57 Frame Kit
Frame wheelbase: 278mm
Frame Dimension: L165*W225*H34 mm
Weight: 305g
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 1.5mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 2.5mm
Max Flight Stack Height: 22mm
Max VTX Height: 22mm
Flight Stack Mounting: 20*20 Φ3mm / 30.5*30.5/Φ3mm
VTX Mounting: 20*20 Φ2mm / 25.5*25.5 Φ1.6mm
Motor Mounting: 16x16mm -φ2
Weight: 305±5g
Compatibility: DJI O4 Air Unit Pro

NOTE: Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

Note

IPEX to SMA Adapter Cables and Anti Spark Filter are not included!
In this frame kit, dual antenna VTX TPU is included, it needs to be used with 2pcs IPEX to SMA adapter Cables and 2pcs antenna

Packing List
