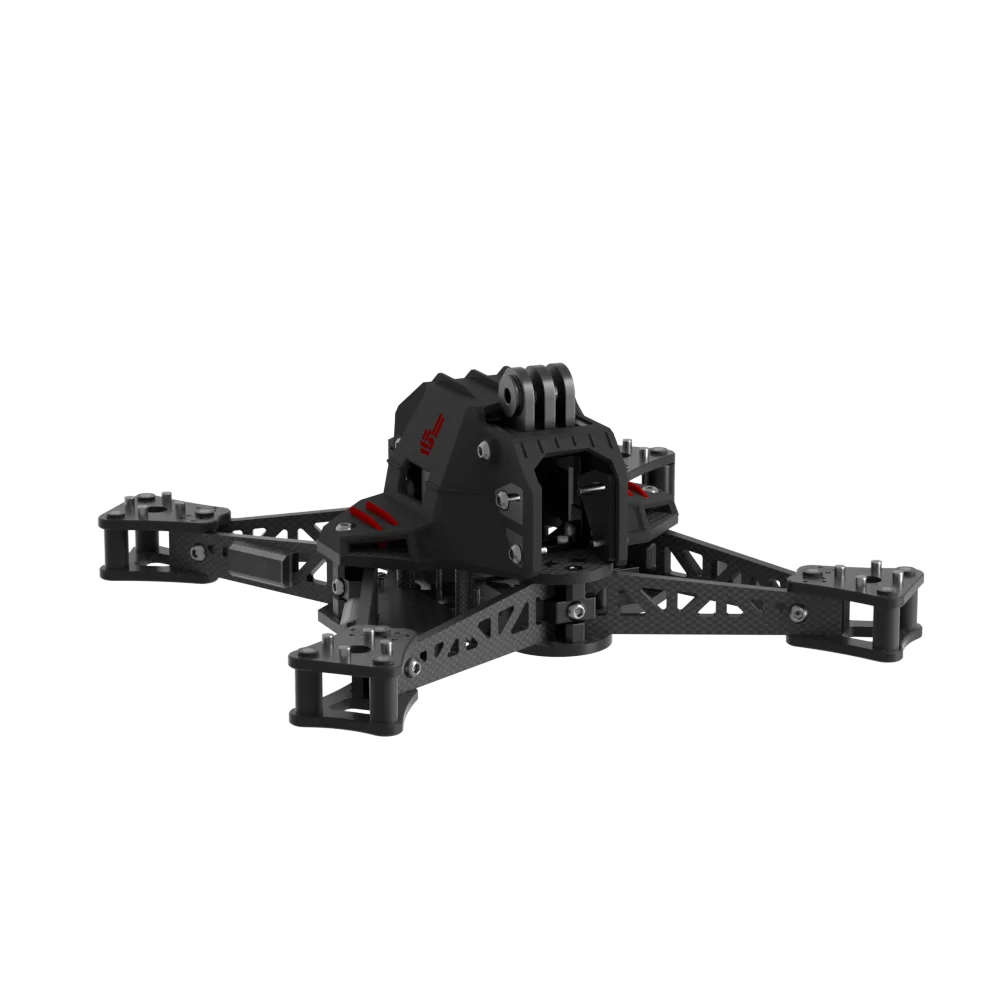

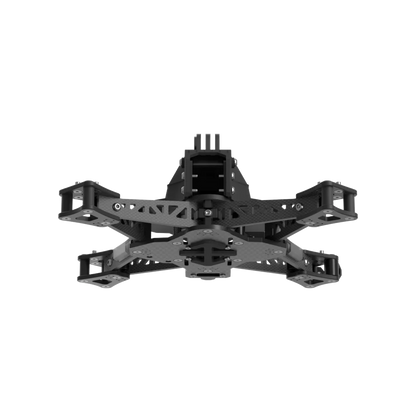

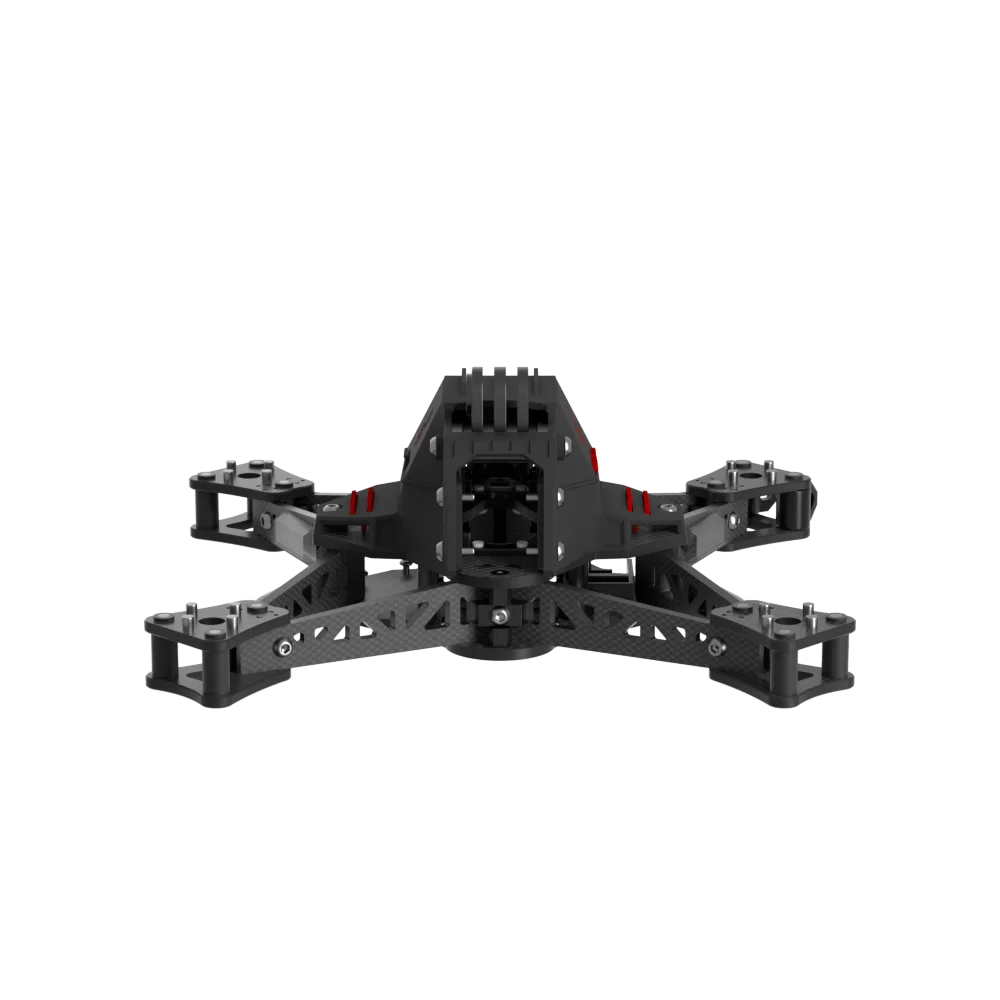

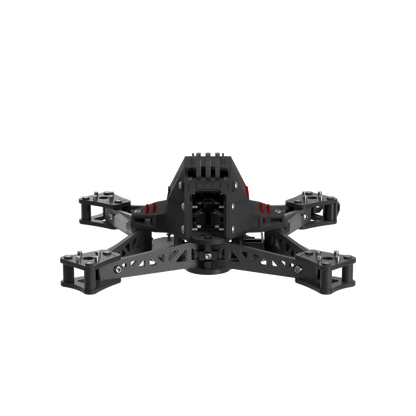

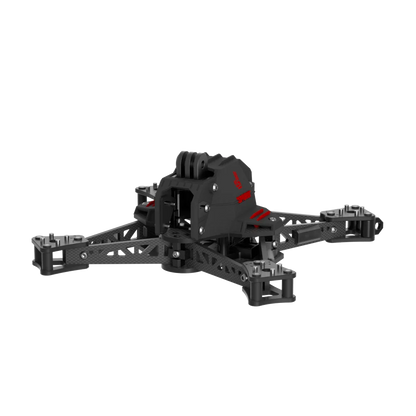

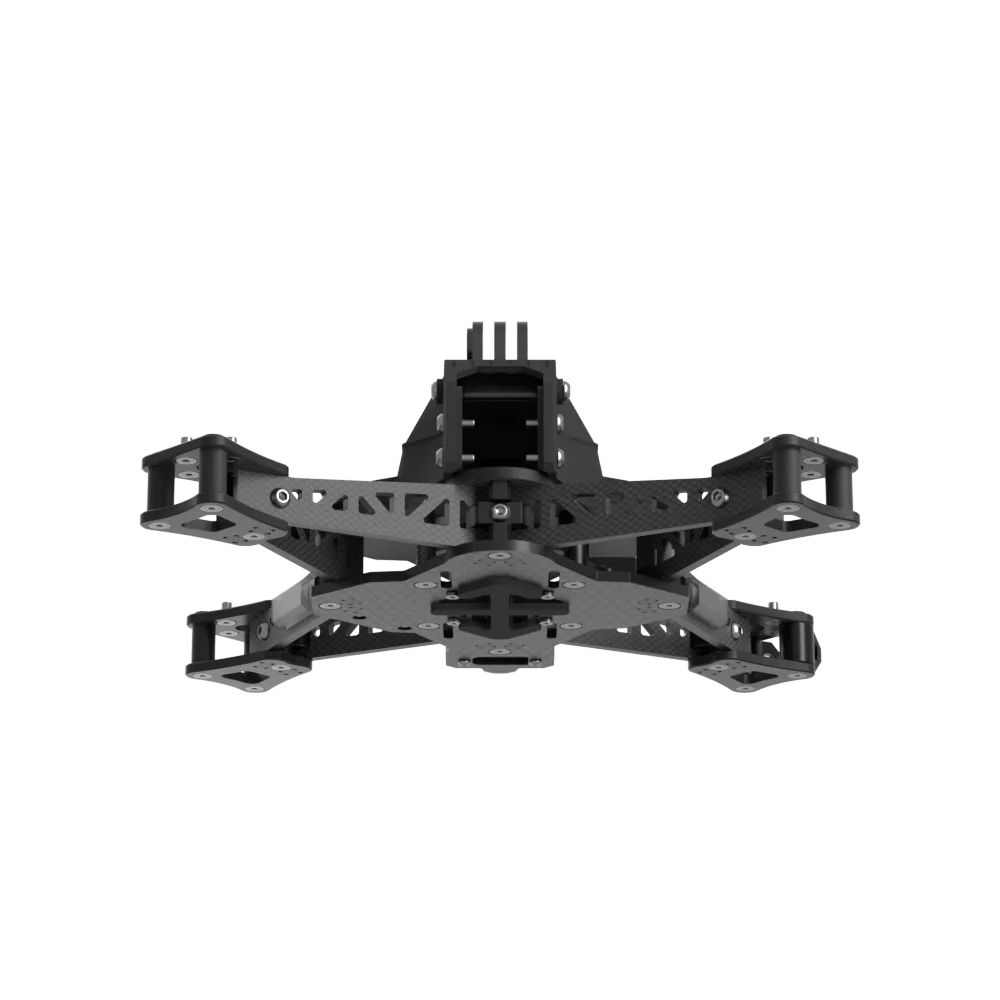

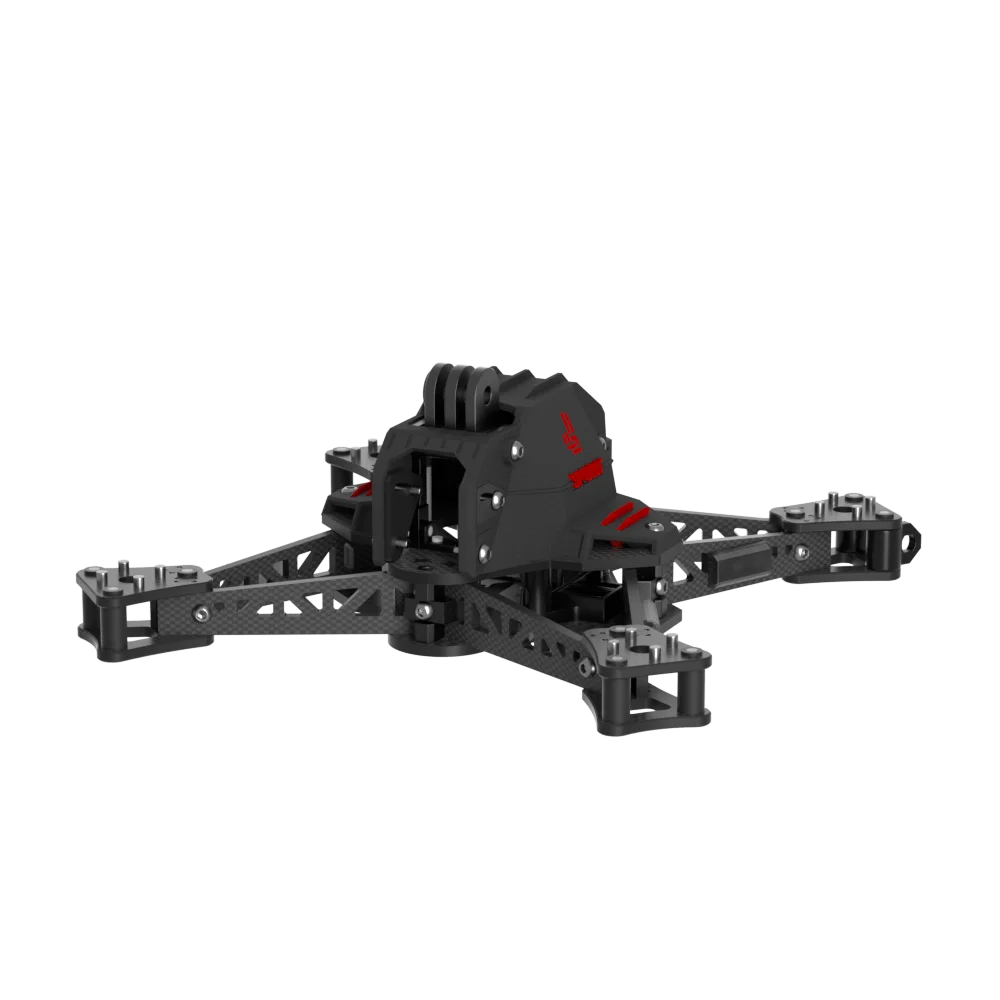

IFLIGHT 5-inch Afterburner Sport Frame Kit

Features

Aeroshell Design

• Optimized to protect internal components while minimizing drag for maximum aerodynamic efficiency.

• Top-Mounted Action Camera

• Supports a 10-60° field of view with no propeller visibility, ensuring a pristine 16:9 aspect ratio for clean, uninterrupted footage during high speed chase sequences.

• Bottom-Mounted Battery

• Strategically placed for optimal center of gravity and balanced flight dynamics, ensuring exceptional stability and control.

• Compact 5-inch Footprint: Designed for unmatched agility and responsiveness, allowing for precision maneuvers in high-speed environments.

• CNC Machined Parts

• Crafted for maximum durability and ease of repair, providing quick access to internal components while enhancing structural integrity.

Specifications

• Product Name：Afterburner Sport O4 Frame Kit

• Wheelbase: 210mm

• Frame Dimension: L48*W148*H77 mm

• Arm Thickness: 3mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 3mm

• Max Flight Stack Height: 17.5mm

• Max VTX Height: 17mm

• Flight Stack Mounting: 30*30/Φ3mm

• VTX Mounting: 25.5*25.5/Φ2mm 20*20/Φ2mm

• Motor Mounting: 16*16/Φ3mm

• Weight: 316g±5g

• Compatibility: DJI O4 Air Unit Pro

Packing List

1 x Afterburner Sport Frame Kit

1 x TPU Parts

4 x Motor Wire Shield Tube

2 x Battery Anti-Slip Pad

2 x Battery Strap

1 x Screw Bag

Note

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
