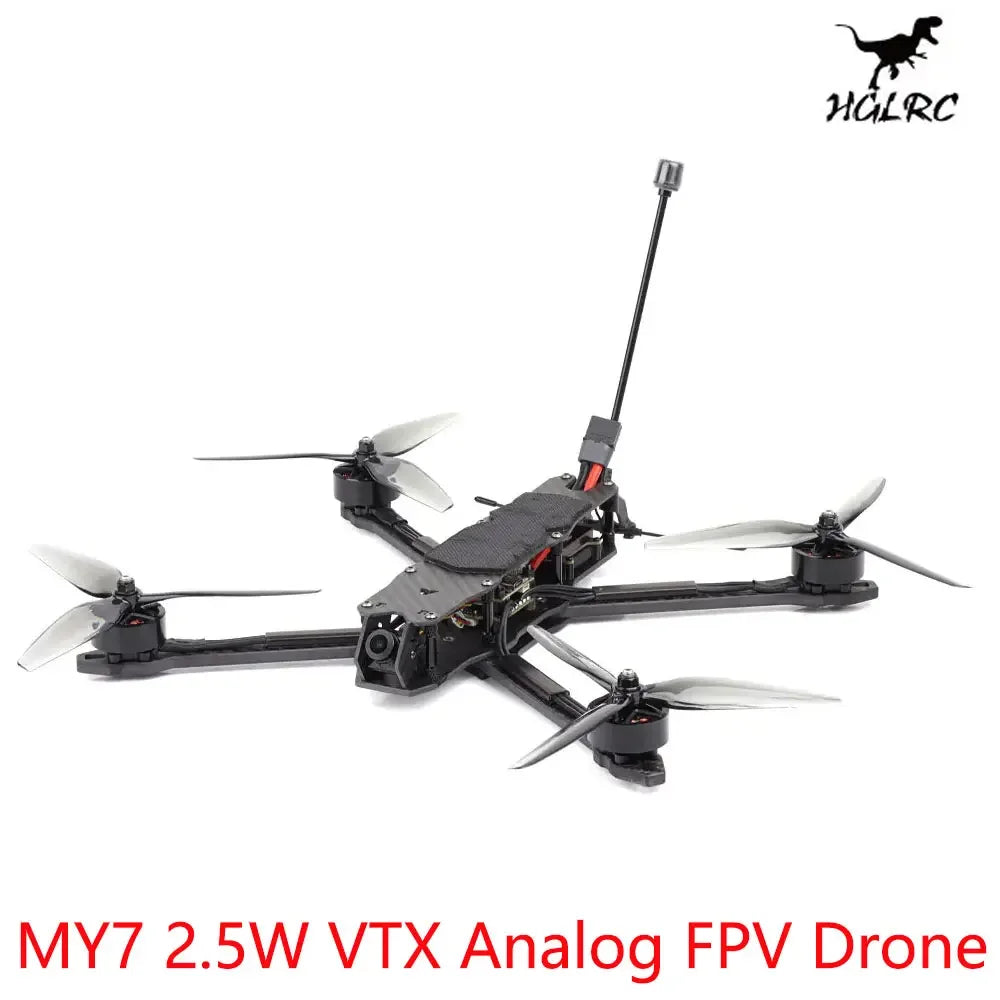

HGLRC MY7 Long Range FPV Drone

HGLRC MY7 2810 1350KV Motor 2.5W VTX FPV Drone
Selling Points:
* MY7 7-inch Structural Design: 6mm thick arms with increased width provide greater stability
and resistance to bending and torsion. The 3*28mm aluminum columns used optimize the internal
space, allowing for a freer layout and more room for possibilities.
* Flight Performance: Excellent flight stability, Maintaining precise, straight flight during
high-speed cruising, while also maintaining agility and maneuverability, Easily cope with various
freestyle actions.
* Battery Combination: A 6S 6000mAh soft-pack lithium battery provides robust flight, while
a 6S 8000mAh 21700 battery pack provides exceptional battery life, perfectly matching the power
system.
* Multiple Versions: 2 versions are available.

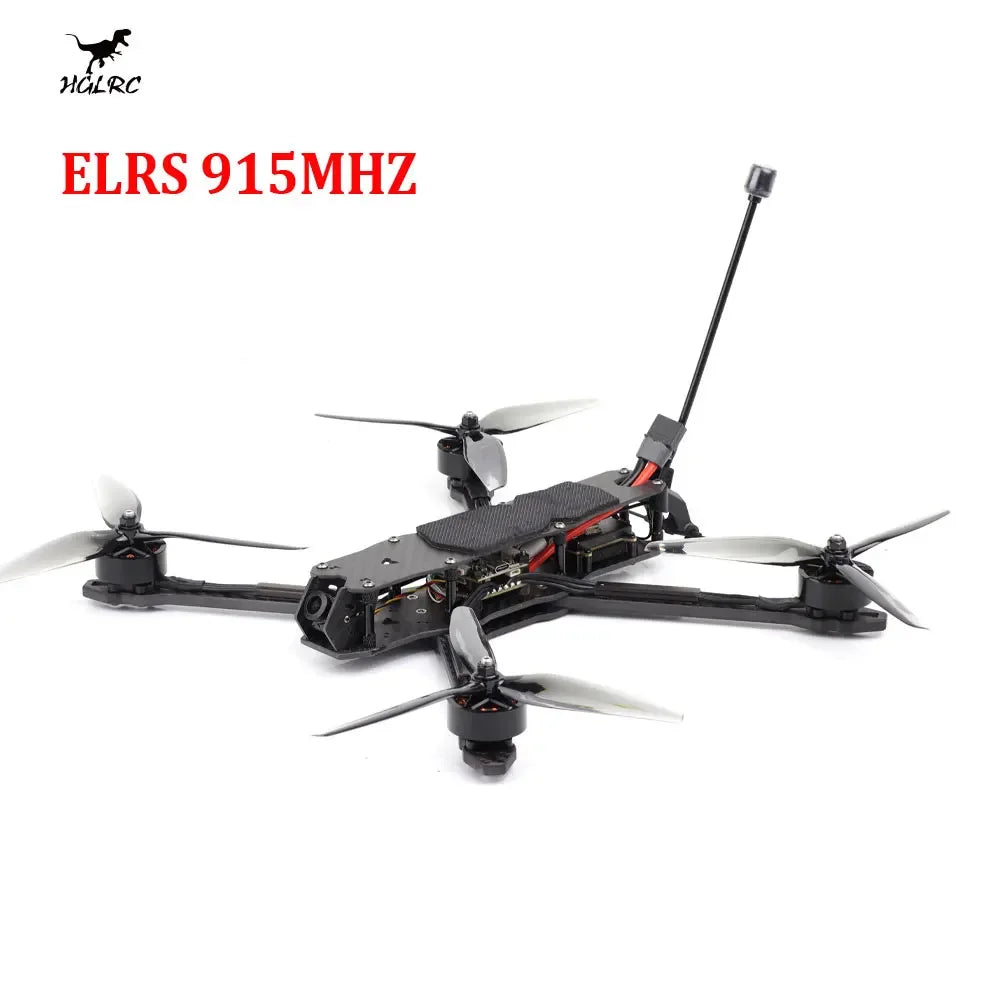

ELRS 915MHz Version: Utilizing a ELRS 915MHz receiver, the drone boasts consistent signal
over mountains and hills. Equipped with a 2.5W VTX system, the drone offers strong signal and
wide coverage.
Suitable for long-distance outdoor flights, through trees, or under obstructing buildings,
it offers a balance of stability and coverage.

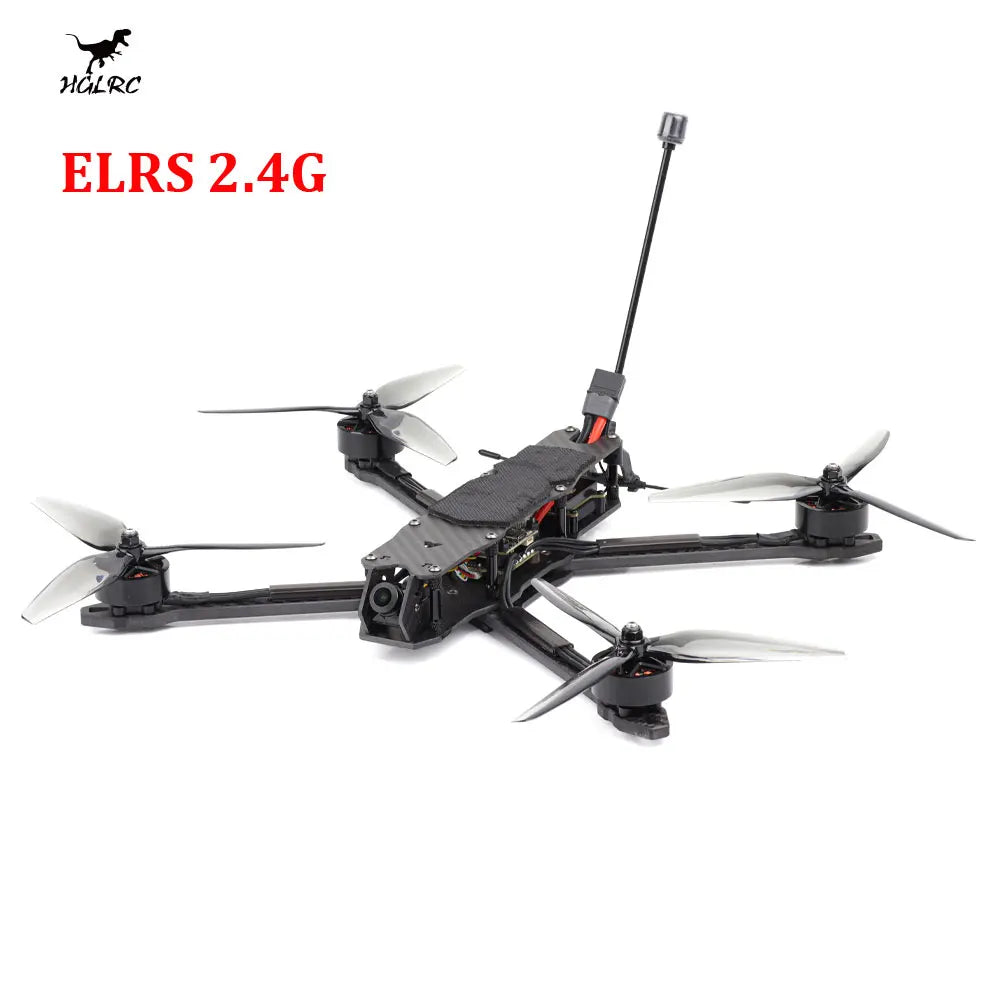

ELRS 2.4G version: ELRS 2.4G receiver with 2.5W VTX, strong signal and wide coverage. Remote
control signal delay is extremely low, anti-interference ability is excellent, ELRS 2.4G receiver,
global universal frequency band, strong compatibility, adapt to mainstream remote control systems
Product

Parameters
Frame: MY7 7-inch
Flight Controller: HGLRC F405 V4
MCU: STM32F405
Gyroscope: ICM42688P
ESC: HGLRC 60A 6S V1
Continuous Current: 60A
Peak Current: 65A（5s）
ESC Firmware: Q-H-40 Bluejay 0.19.0 48kHz
VTX: 2.5W VTX
Motor: 2810 1350kV (6S)
Propellers: HQProp DP7X4X3
Wheelbase: 335mm
External Dimensions: 265mm*300mm

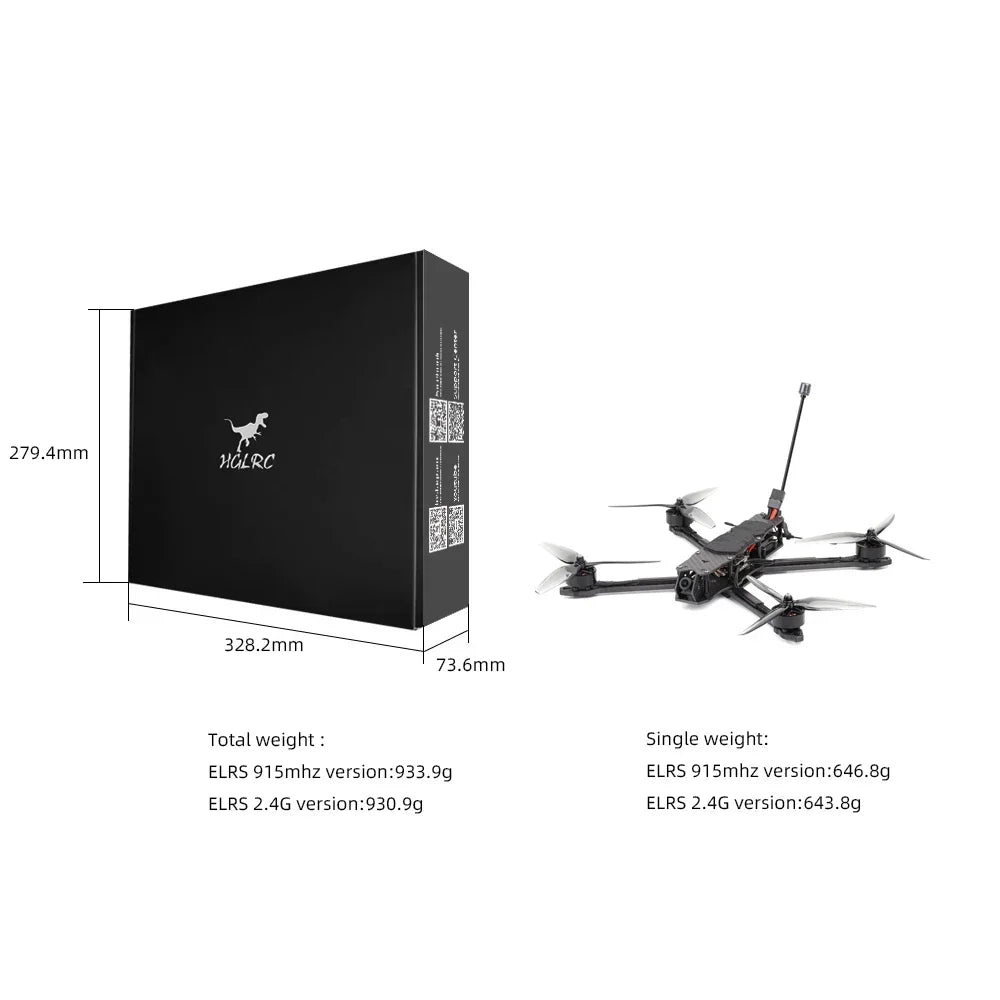

ELRS 915MHz Version Weight: 646.8g
ELRS 2.4G Version Weight: 643.8g

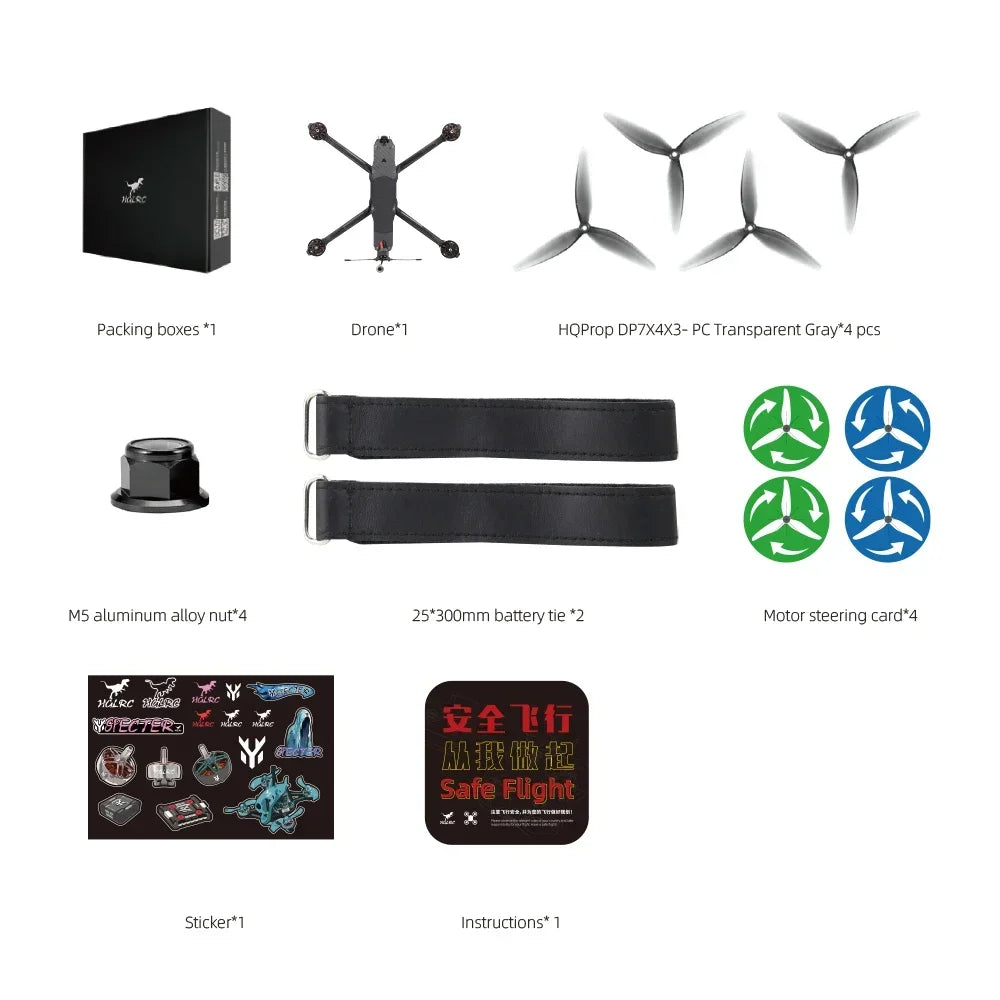

Shipping List
1x MY7 Drone
1x HQProp DP7X4X3 3-blade propeller
4x M5 self-locking aluminum nuts
2x 25x300mm battery strap
1x instruction manual
1x HGLRC sticker
4x motor steering cards
