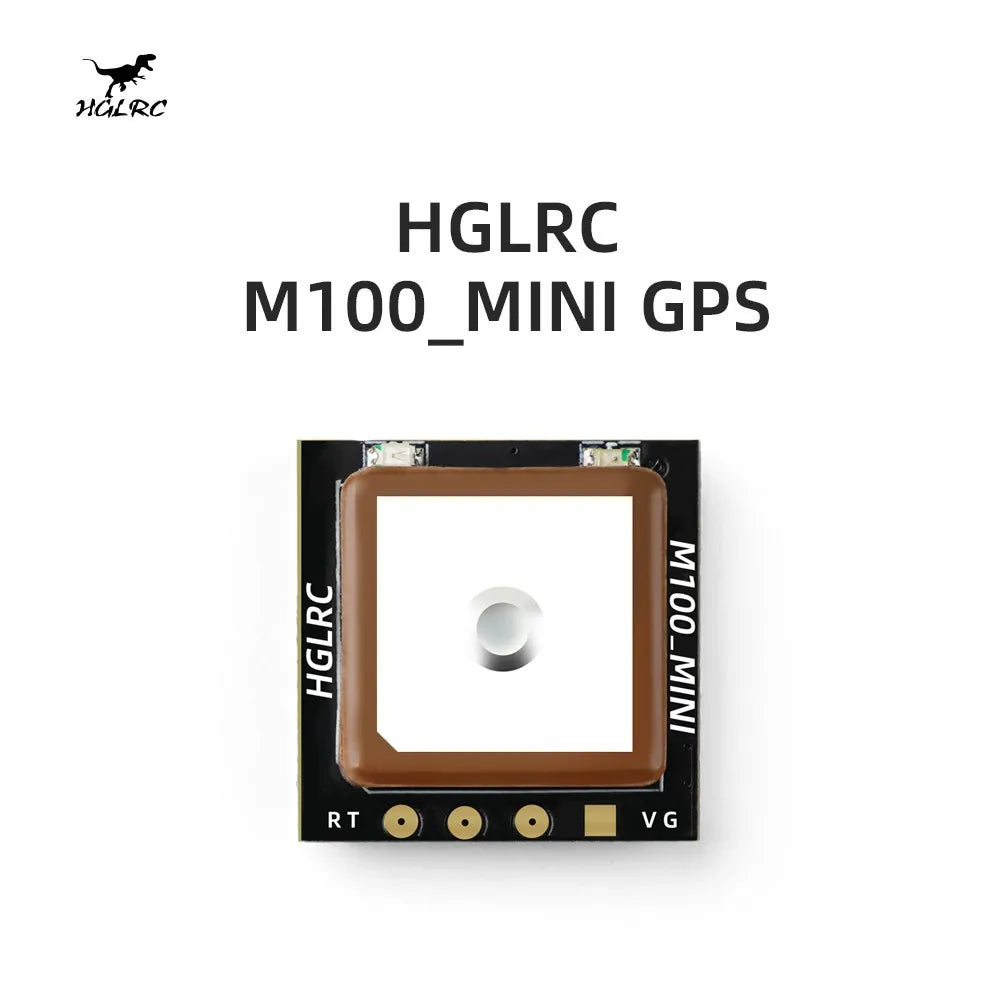

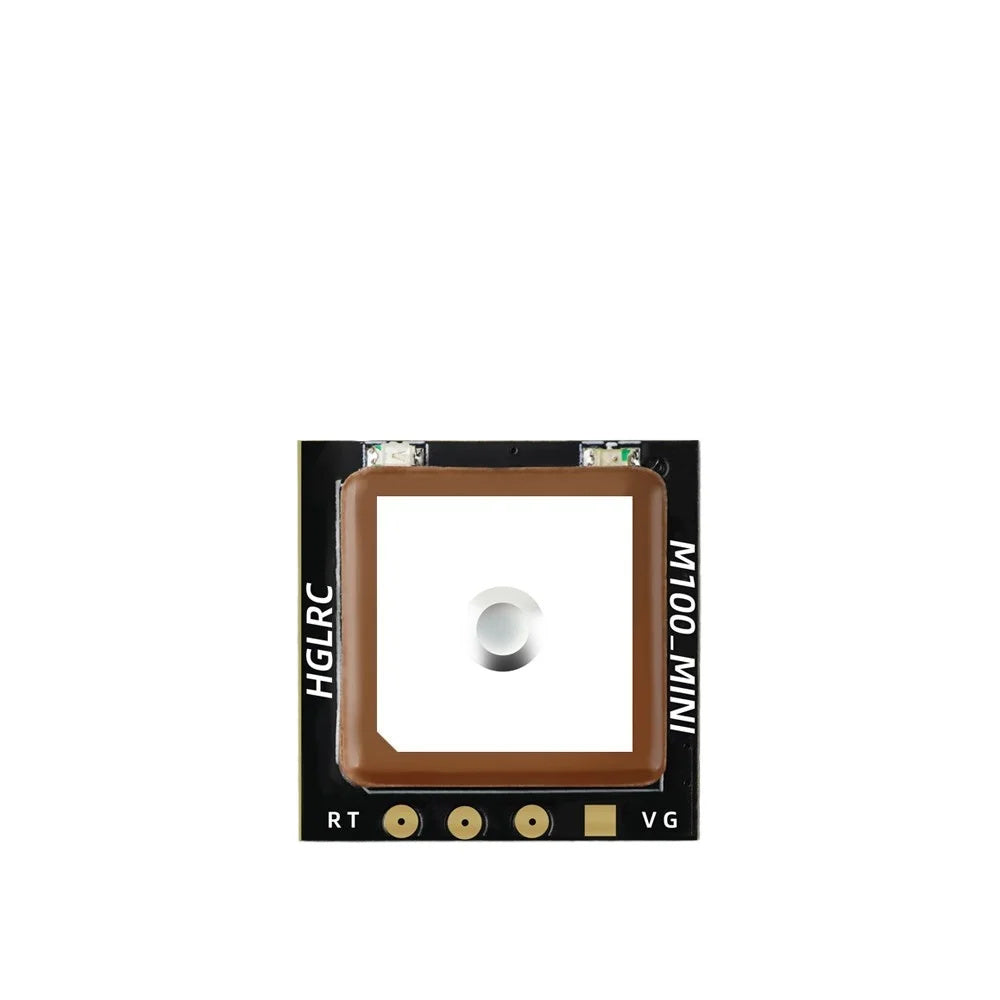

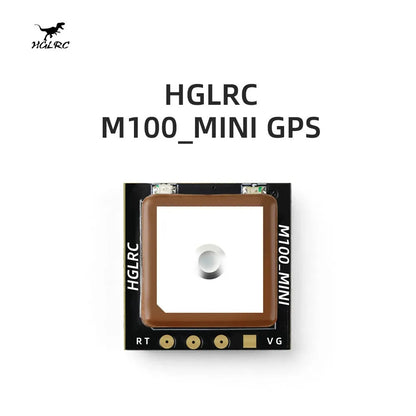

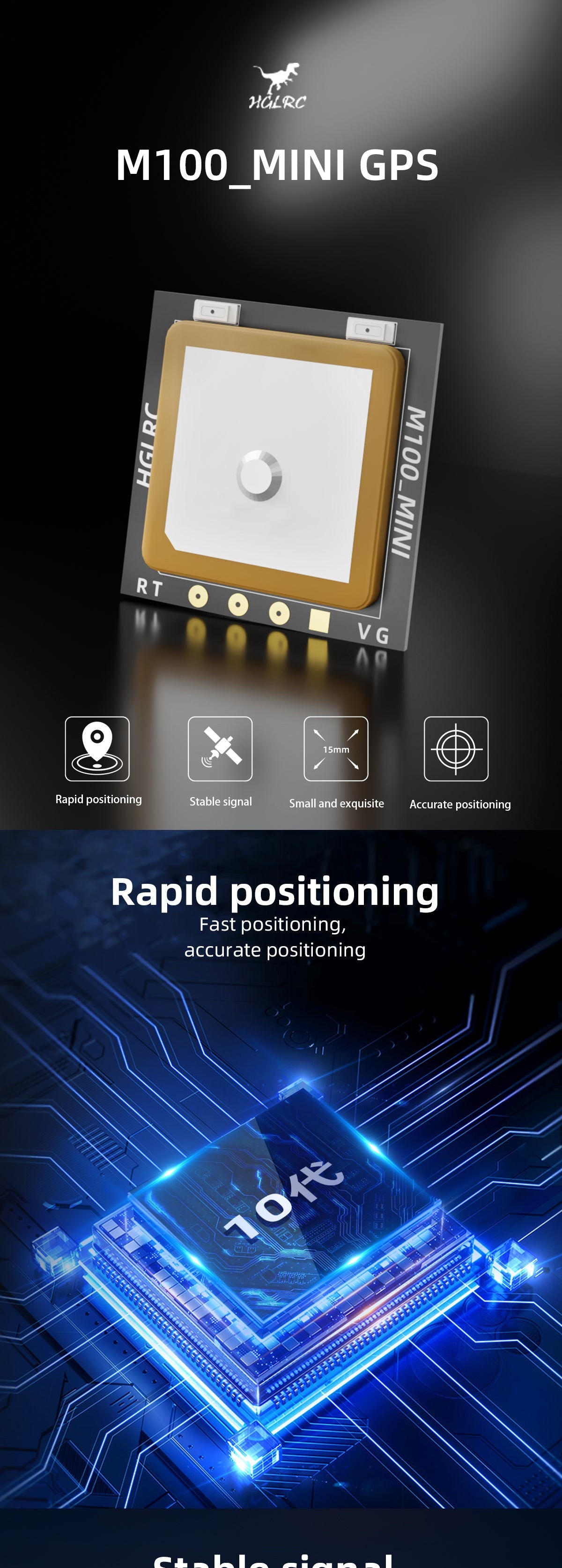

HGLRC M100_MINI GPS

Summary:

Hello everyone, our M80 PRO gps has been well-received and loved by everyone in the past two years. Beginning in the new 2023, HGLRC will bring you the newly developed M100_MINI GPS. Using the new 10th generation chip design, the positioning is fast and accurate. In the test of our HGLRC laboratory, it takes less than 1 minute for GPS to reach the 8 satellites required for take-off. The small and exquisite 15mmx15mm Size can be loaded on 2-7 inch traversing Drone. Selected ceramic antenna and externally expanded PCB design allow M100_MINI GPS to receive satellite signals effectively. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to quickly locate in any area. For the convenience of everyone, we have designed onboard LED indicators, including power indicator and positioning PPS indicator, so that you can know the working status of GPS well.

Features:

Using the new 10th generation chip design, fast and accurate positioning.。

Small size, compatible with 2-7 inch traversal Drone on the market

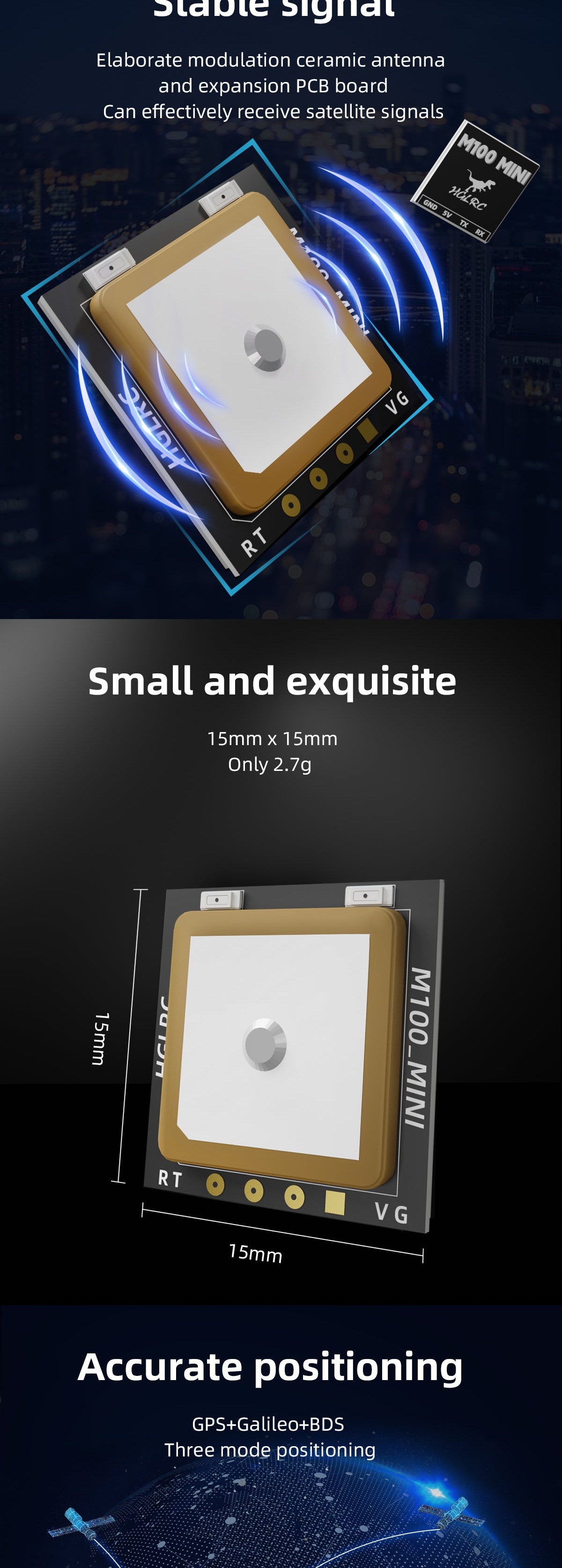

Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals

Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area

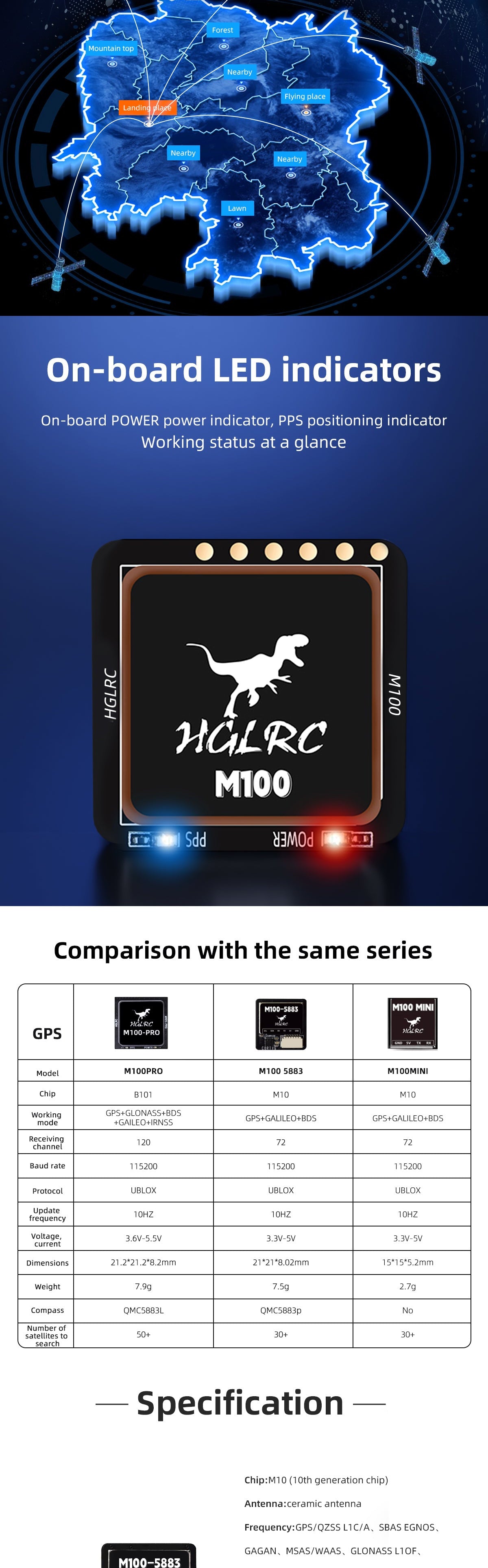

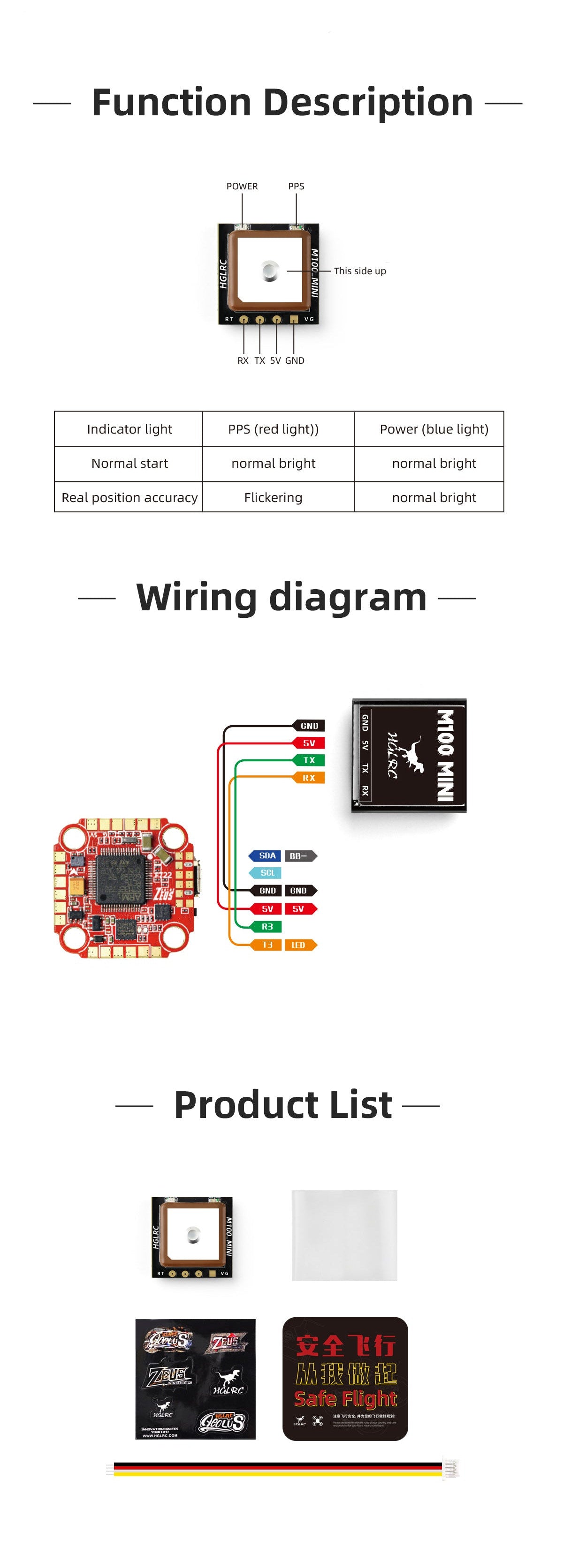

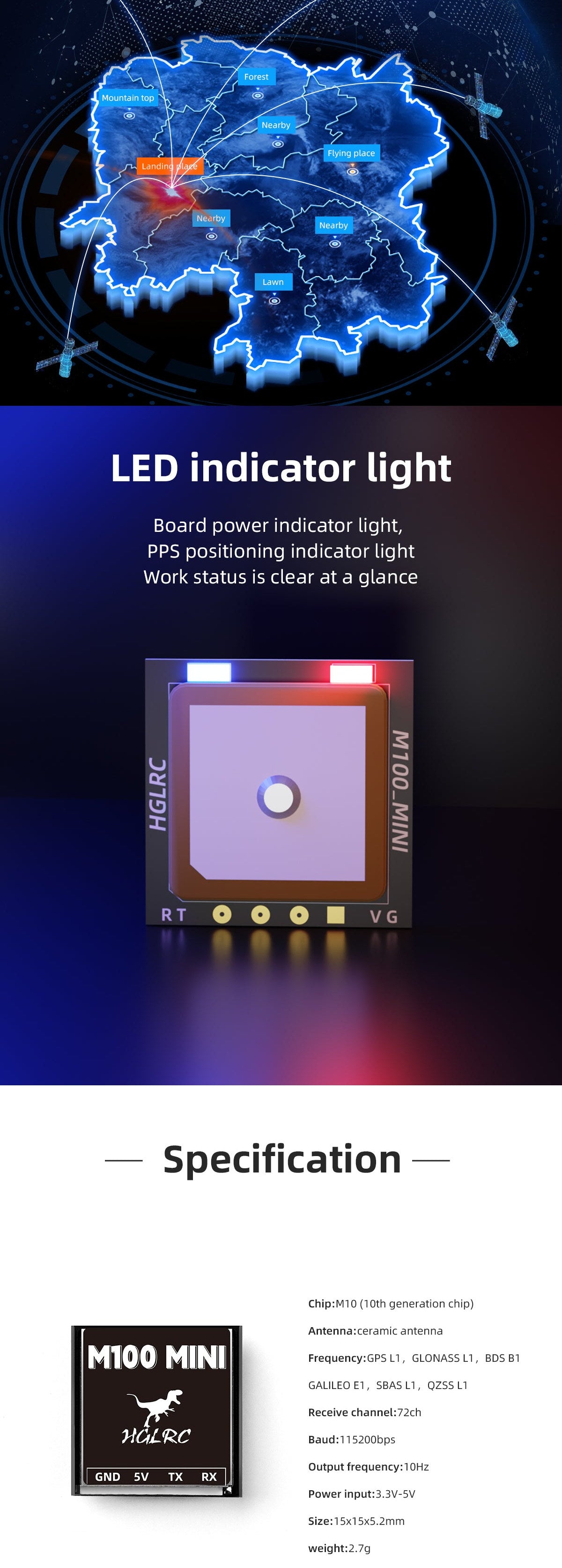

Onboard POWER and PPS indicator lights, the working status is clear at a glance

Compatible power supply, support 3.3V-5V DC power input

Specification:

Chip: M10(10th Generation Chip)

Antenna: Ceramic Antenna

Frequency: GPS L1，GLONASS L1，BDS B1，GALILEO E1，SBAS L1，OZSS L1

Receive Channel: 72ch

Baud Rate: 115200bps

Output Frequency: 10Hz

Input: 3.3V-5V

Size: 15x15x5.2mm

Weight: 2.6g

Speed Accuracy: 0.05m/s

Horizontal positioning accuracy: 2D ACC2.0m(Outdoor)

Receiver Sensitivity: Trace -166dBm

Capture -160dBm

Characteristics: High:50000m，

Speed: 500m/s，

acceleration 4G

Operating temperature: -40°C - +85°C

Storage temperature: -40°C - +105°C

Include:

HGLRC M100_MINI GPS  X 1

Heat Shrink Tube (Φ12mm x 20mm)  X  1

HGLRC sticker  X  1

HGLRC Manual  X  1

SH1.0-4Pin Cable  X  1

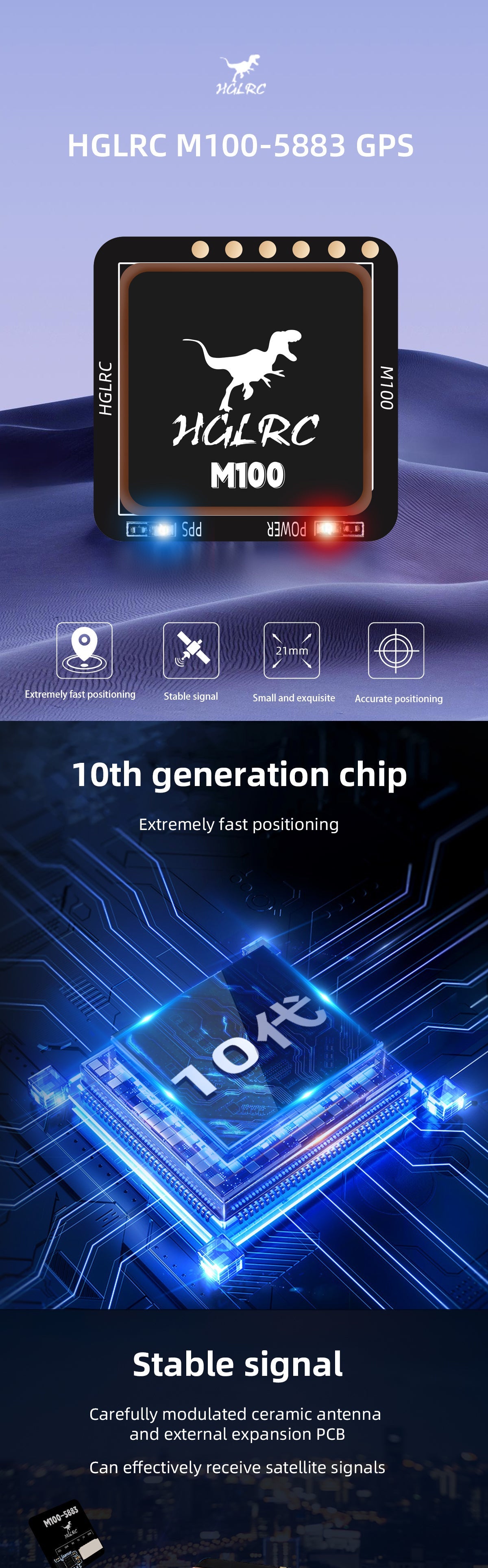

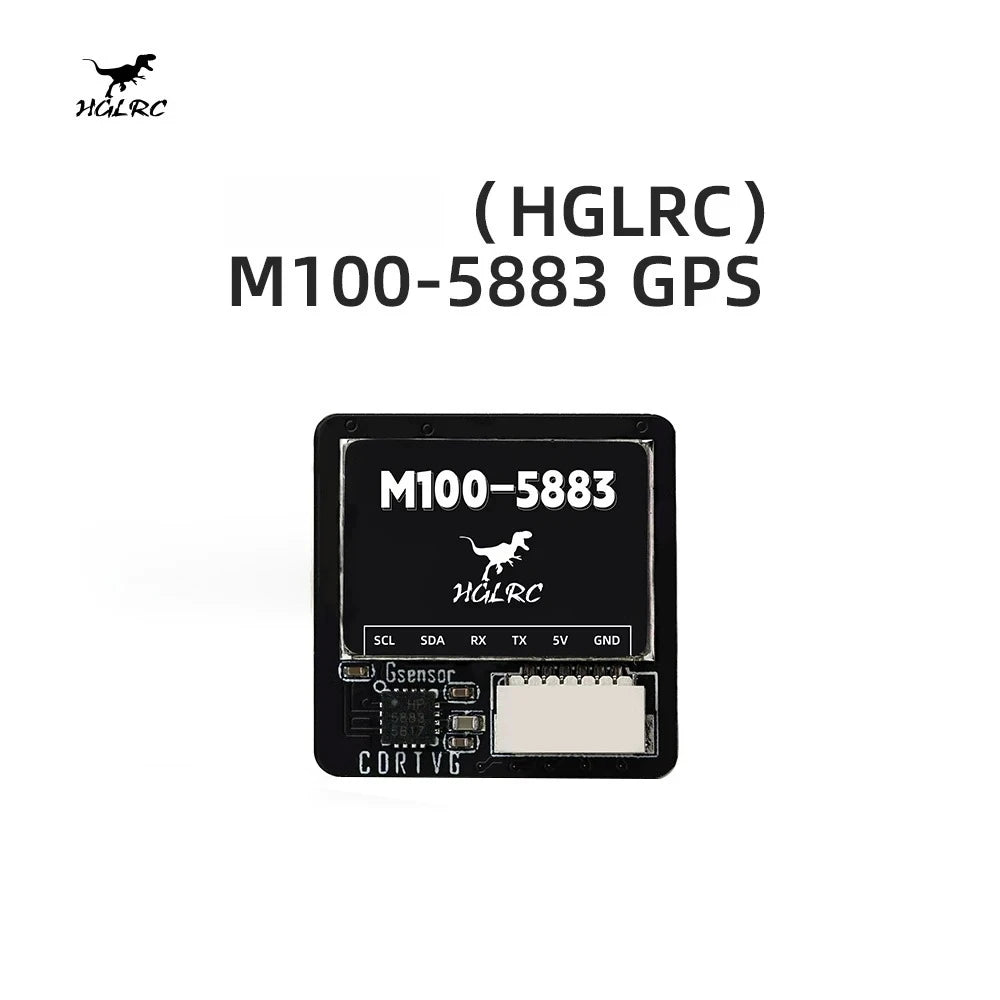

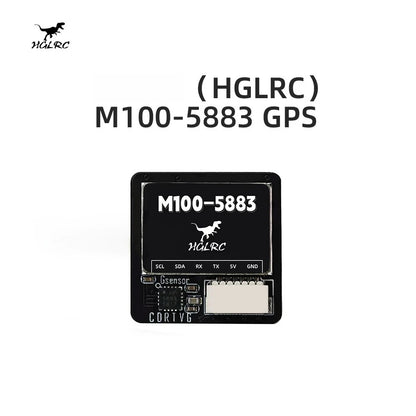

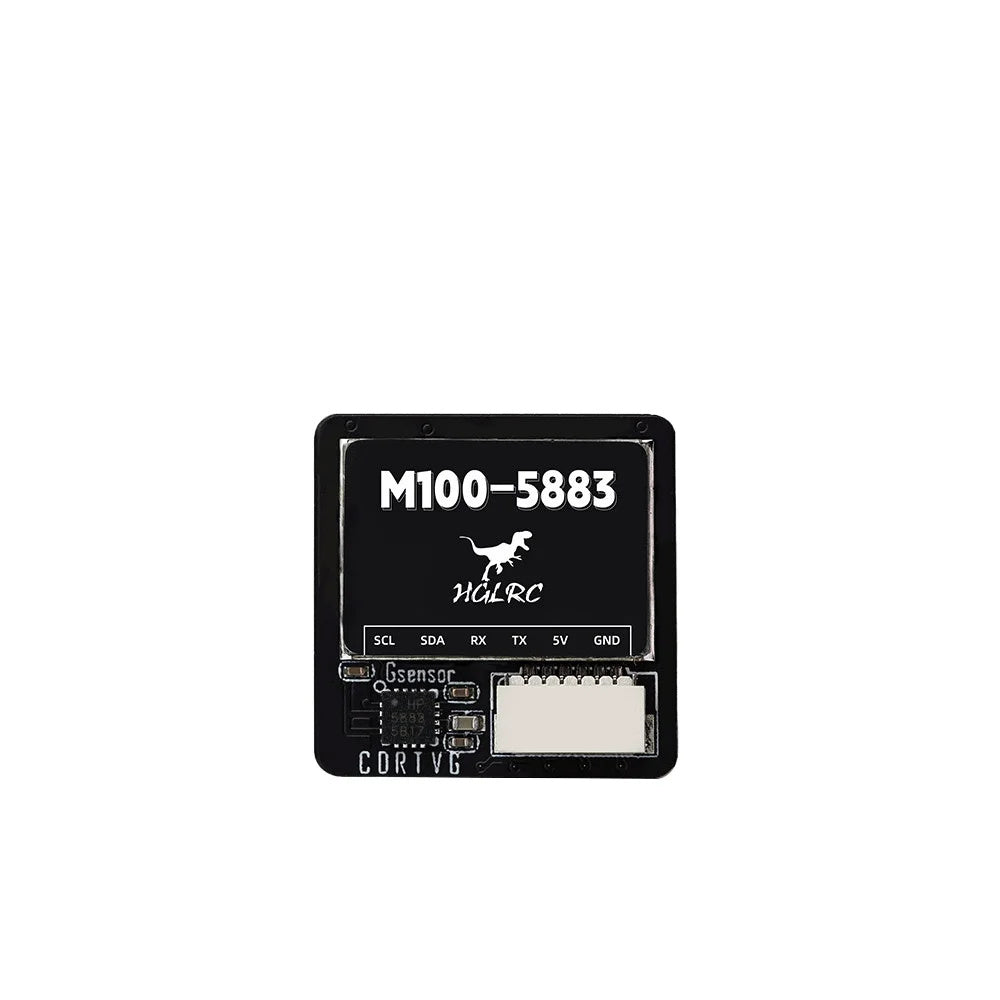

HGLRC M100-5883 GPS

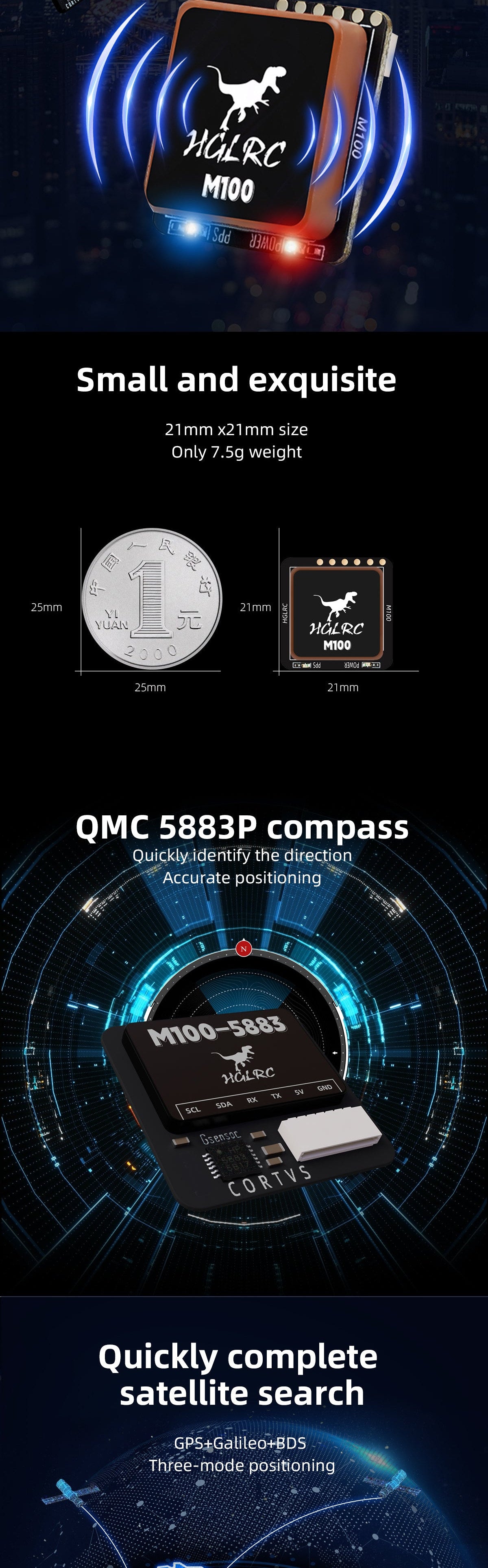

New upgraded 10th generation chip with compass
Suitable for FPV fixed-wing UAV

Technical Parameters:
1. Chip: M10 (tenth generation chip)
2. Antenna: ceramic antenna
3. Frequency: GPS/QZSS L1C/A, SBAS EGNOS, GAGAN, MSAS and WAAS
GLONASS L1OF, BDS B1I, Galileo E1B/C
4. Receive channel: 72ch
5. Baud rate: 115200bps.
6. Output frequency: 10Hz
7. Power input: 3.3-5V
8. Size: 21x21x8.02mm
9. Weight: 7.73g

Features:

• Adopting the new 10th generation chip, the number of satellite searches is 50+

• QMC5883L compass, more accurate pointing

• The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.

• Five-mode positioning, strong and stable signal to protect you.

Product parameters:

• Chip: B101 (10th generation chip)

• Receiving channel: 120

• Baud rate: 115200  Protocol: UBX

• Antenna: ceramic antenna  Output frequency: 10Hz

• Frequency: GPS L1, GLONASS G1, BDS B1,

• GALILEO E1, QZSS L1, SBAS L1, IRNSS

• Power input: 3.6-5.5V

• Weight: 7.9g  Acceleration 4G

• Speed: 500m/s

• Size: 21.2×21.2×8.2mm

• Operating temperature: -40℃~+85℃

• Storage temperature: -40℃~+105℃

Product List

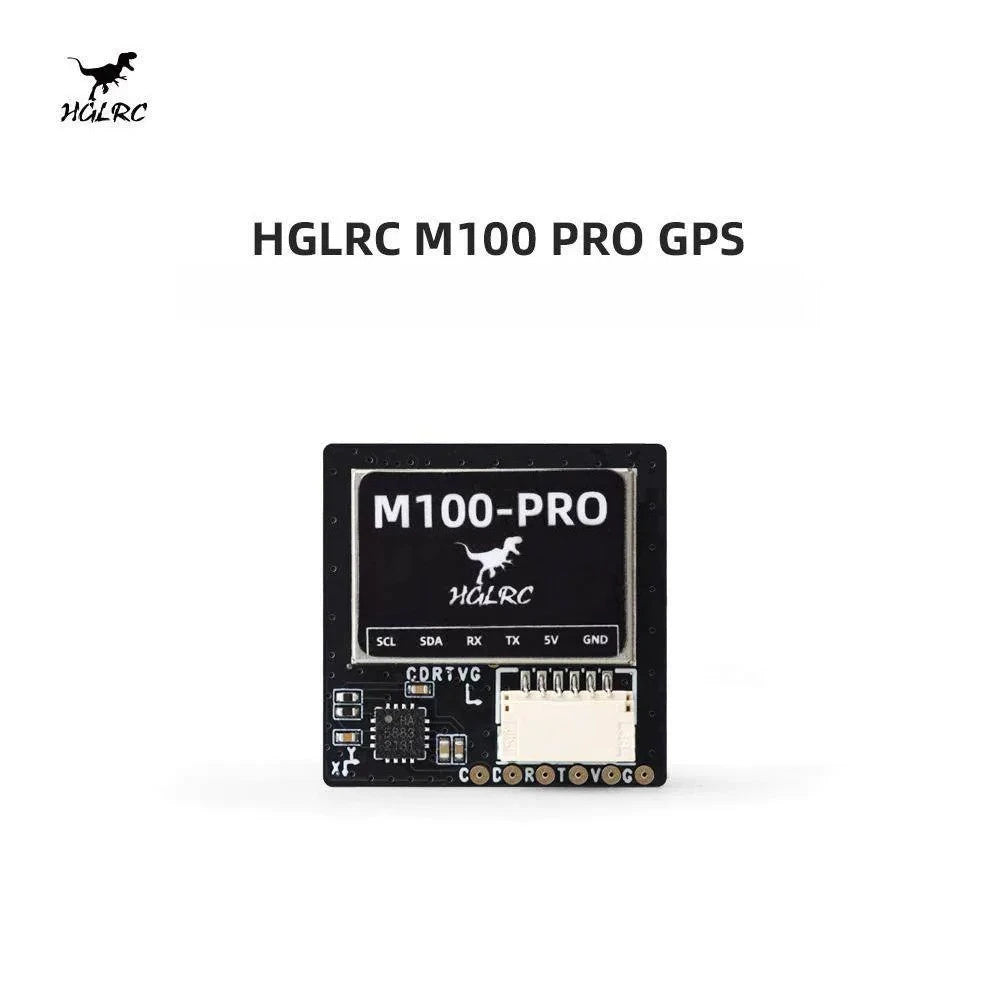

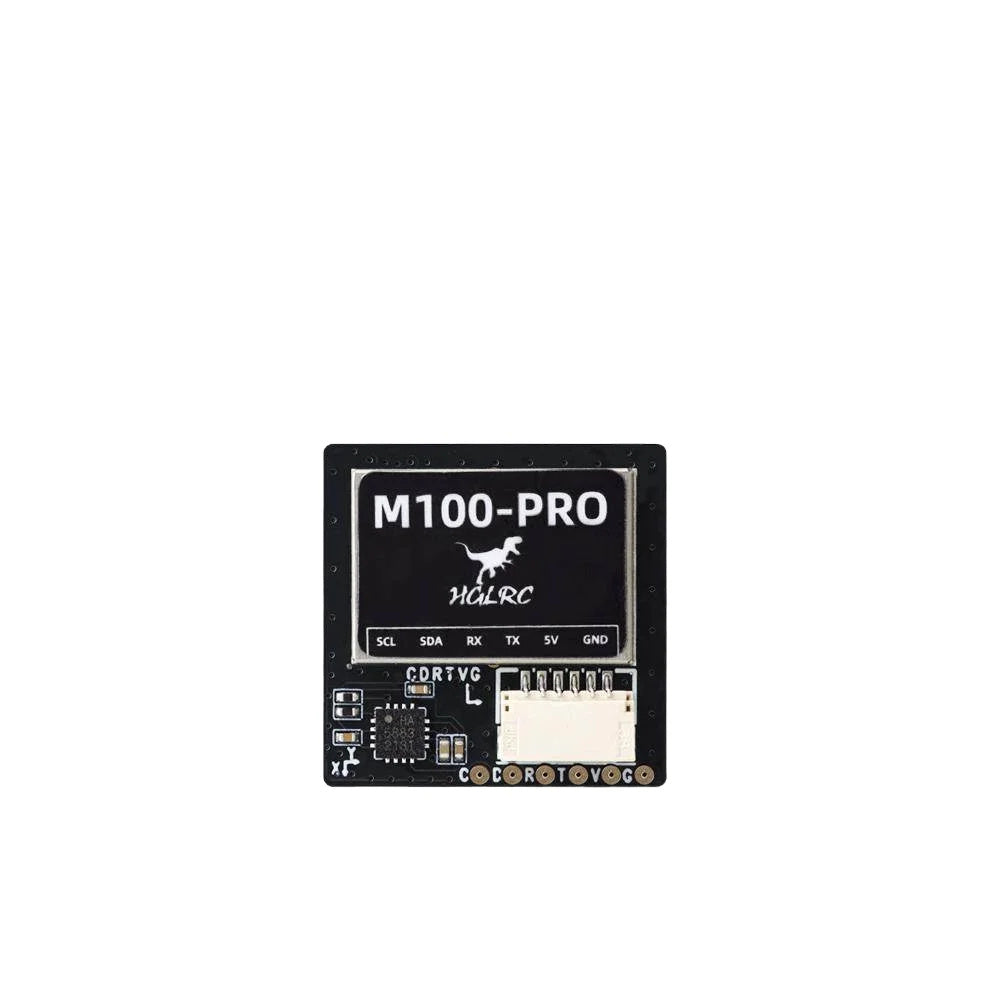

• HGLRC M100 PRO GPS x 1

• Heat shrink tube (φ18mm x 25mm) x 1

• HGLRC sticker x 1

• HGLRC manual x 1

• SH1.0-6pin cable x 1
