HGLRC H743 8S MINI V1 FPV 60A 4IN1 6S ESC FC MINI Flight

Features

1、Equipped with the high-performance STM32H743 MCU, delivering powerful computing and rapid response.

2、Chose ICM42688P gyroscope for the FC to enhance the stability.

3、Includes a 16MB large-capacity Blackbox for comprehensive flight data logging.

4、Supports 8S high-voltage input for power output to keep fast response and stable control.

5、Fully modular plug-and-play design with direct connectors, eliminating the need for soldering.

6、Ultra-narrow size and dual BEC design greatly save installation space, making it compatible with small frames.

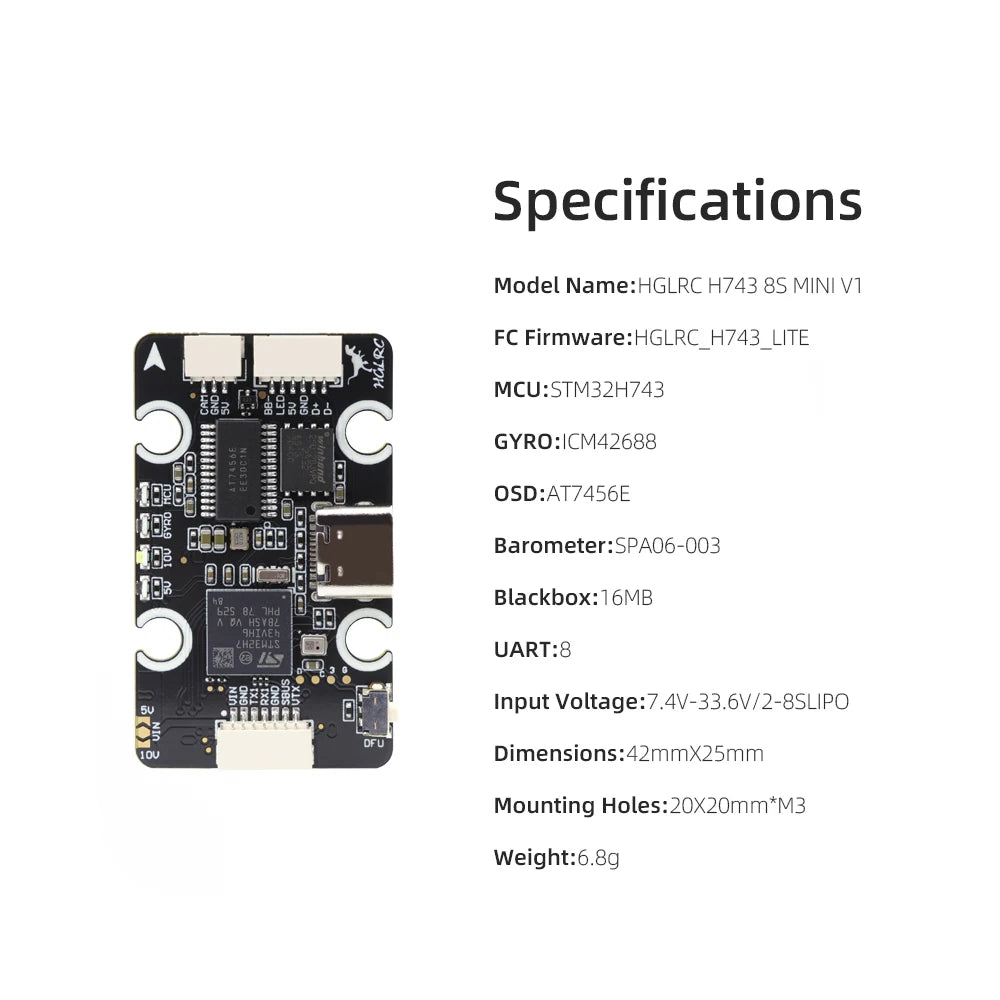

Specifications

Model Name:HGLRC H743 8S MINI V1

FC Firmware:HGLRC_H743_LITE

MCU:STM32H743

GYRO:ICM42688

OSD: AT7456E

Barometer:SPA06-003

Blackbox:16MB

UART:8

Input Voltage:7.4V-33.6V/2-8SLIPO

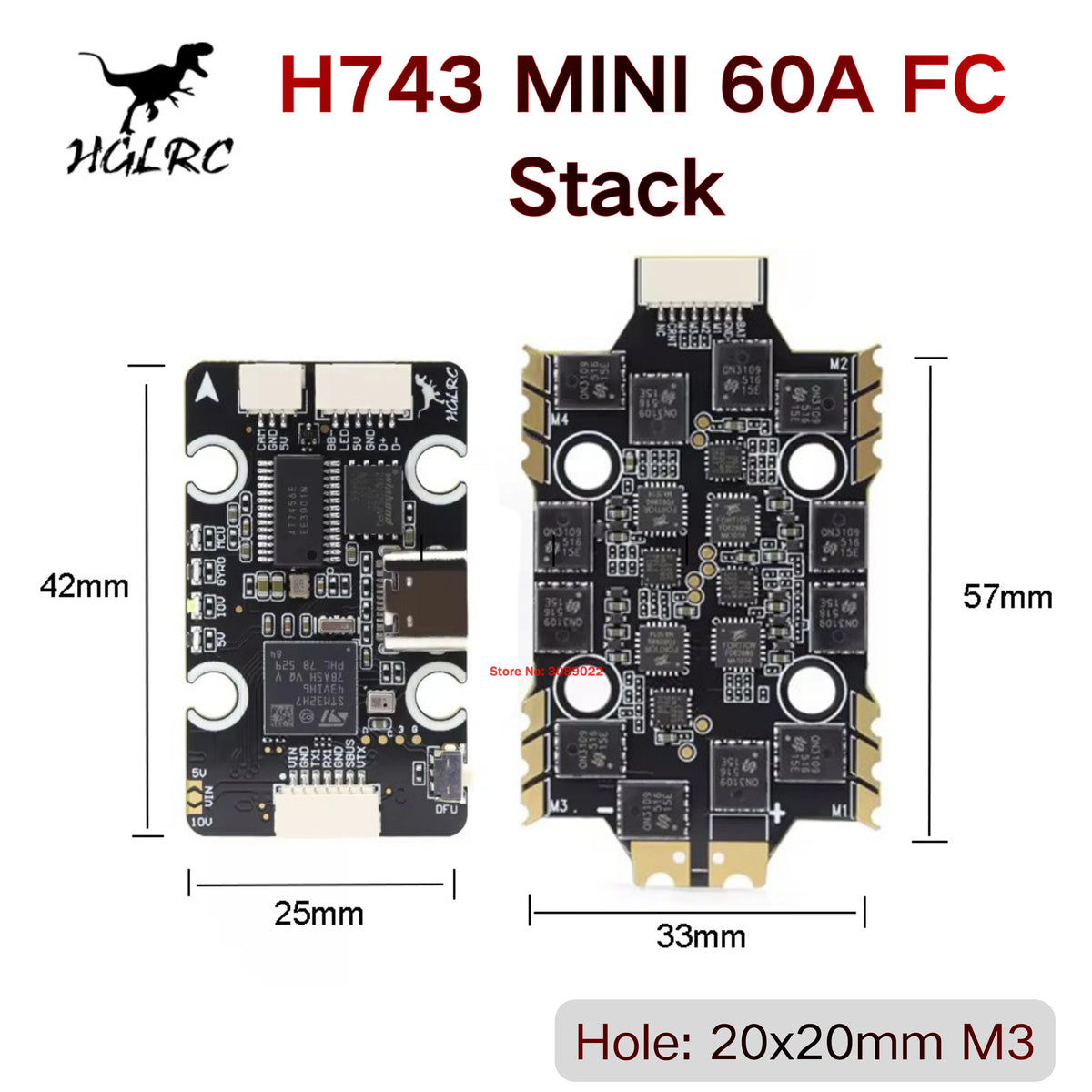

Dimensions:42mmx25mm

Mounting Holes:20x20mm，M3

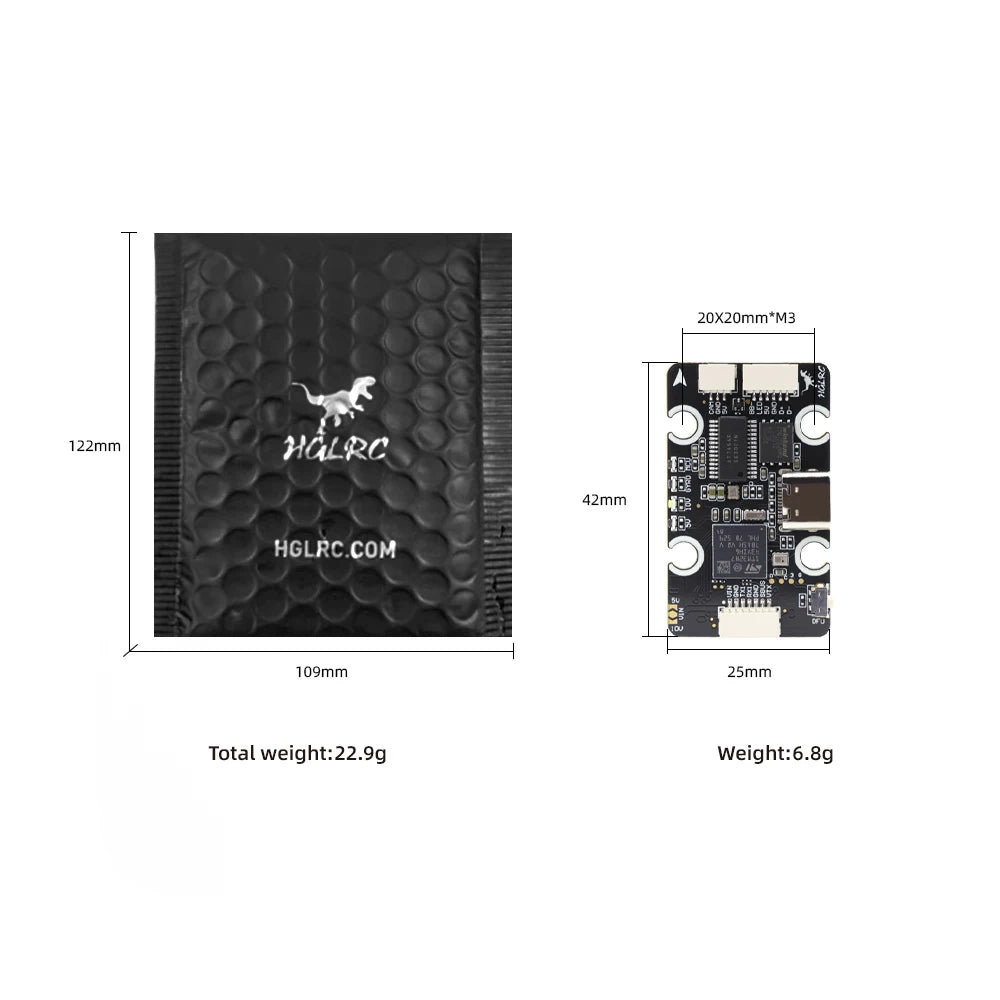

Weight:6.8g

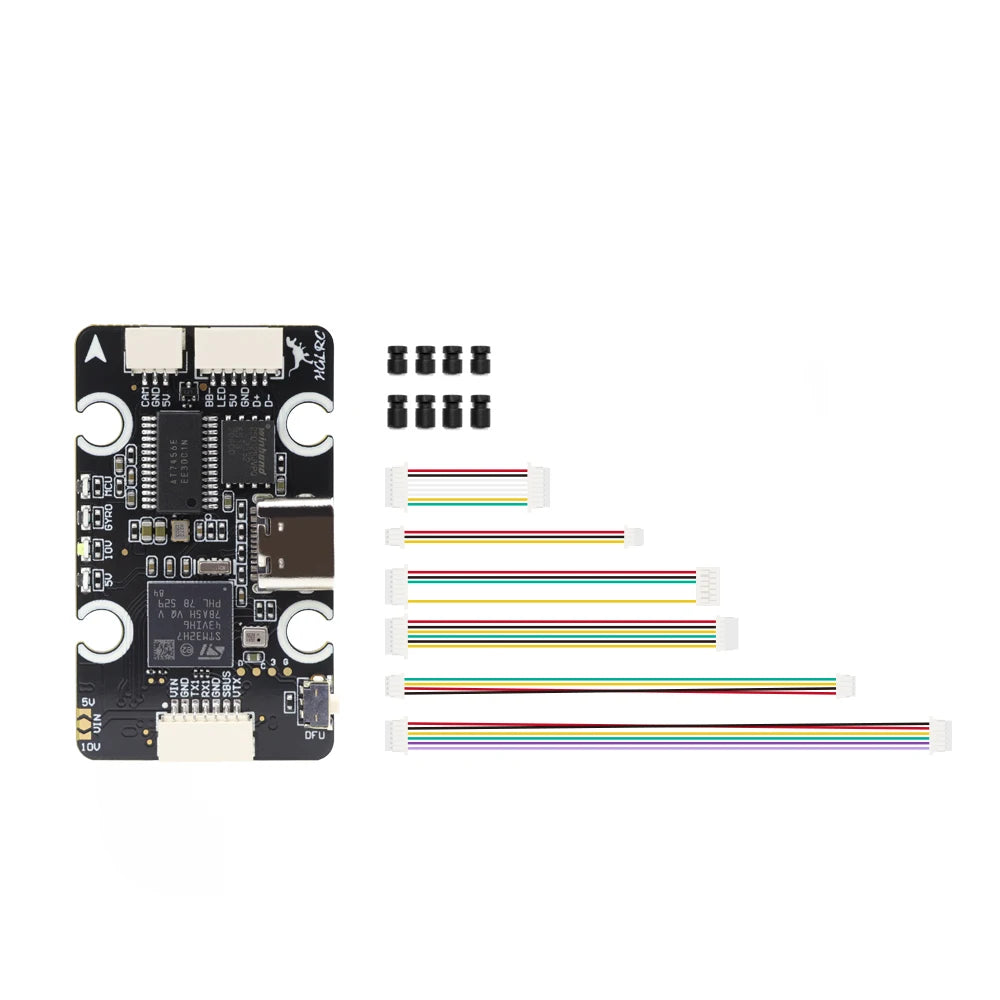

Package Contents：

1x HGLRC H743 8S MINI V1 FC

1x 30AWG 25mm Double-ended SH1.0-8P Cable 1x 30AWG,100mm Double-ended SH1.0-4P Receiver Cable 1x 30AWG,50mm Single SH1.0-3P / Single SH1.25-3P Camera Cable

1x 30AWG 70MM Single GH1.25-6P / Single SH1.0-7P DJI Cable

1x 30AWG 70MM Single SH1.0-7P / Single 1.0-6P VTX Cable

1x 30AWG，120mm total length, Double-ended SH1.0-6P GPS Cable

4x 3*8 Vibration Damping Standoffs

4x 3*6.6 Vibration Damping Standoffs

1x HGLRC Sticker

1x QR Code Card
