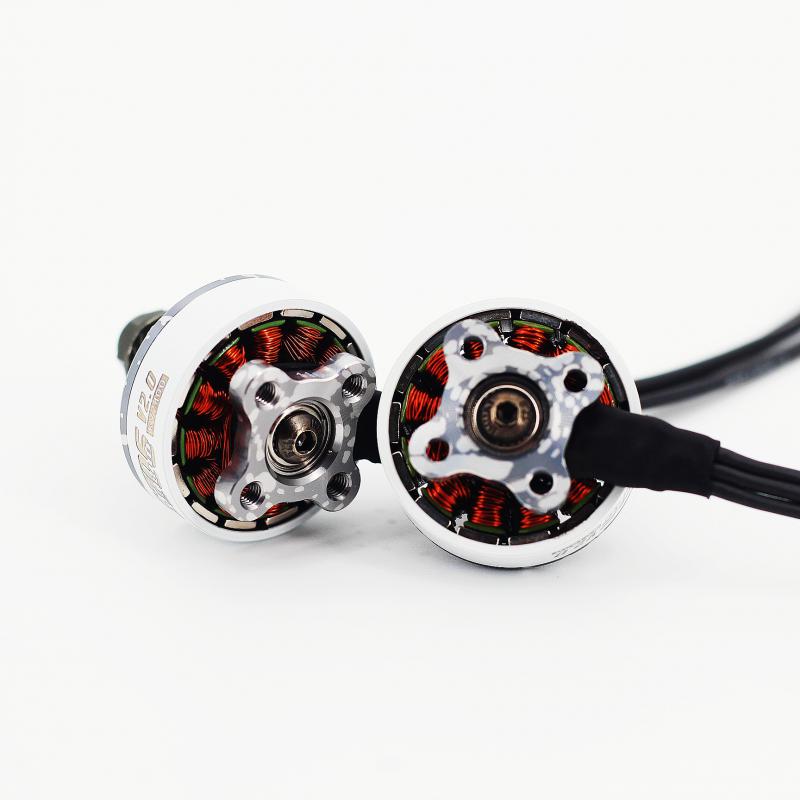

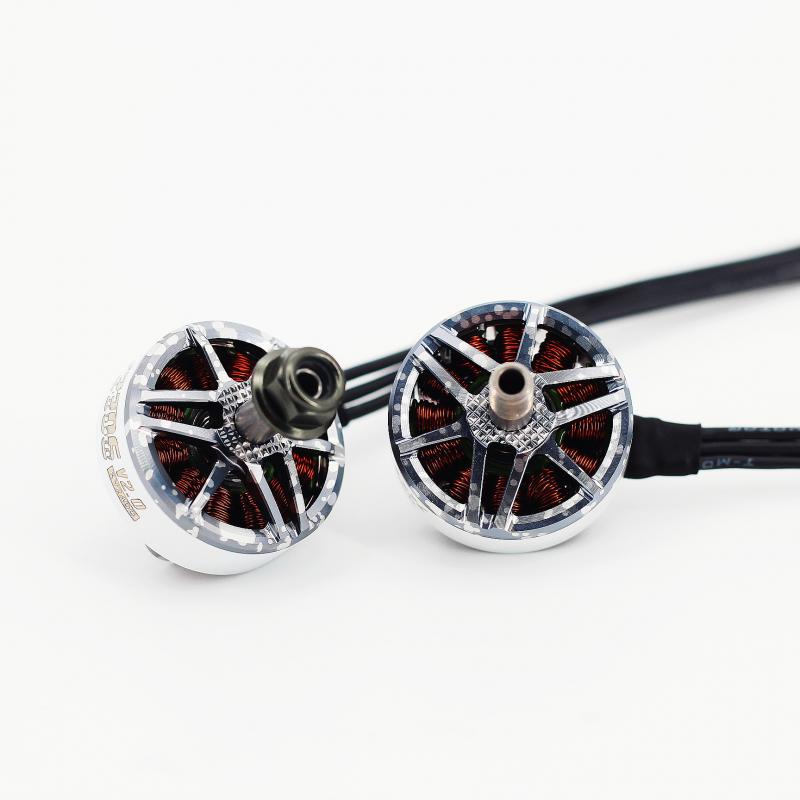

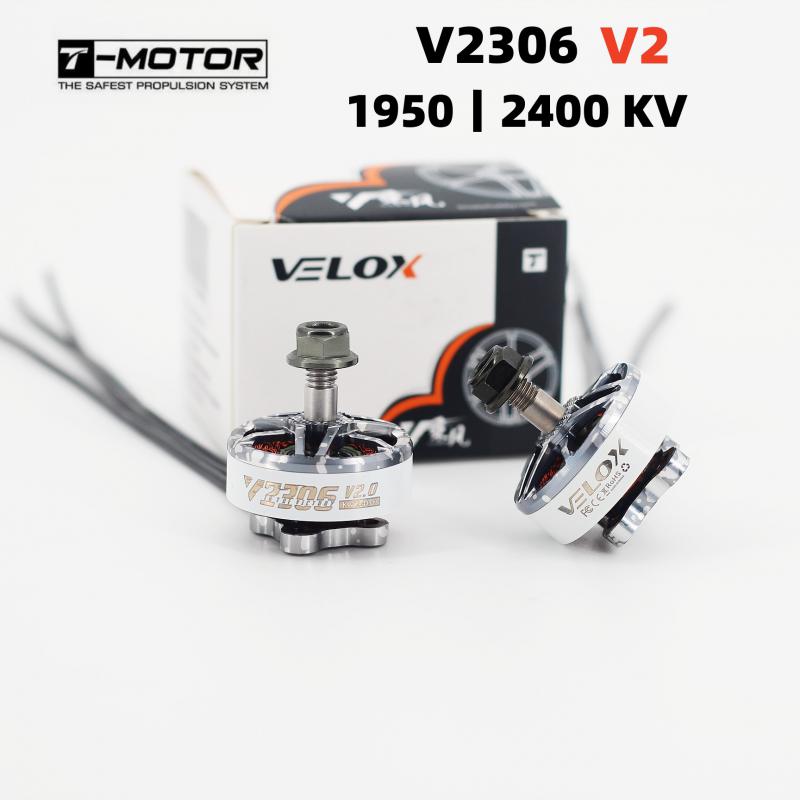

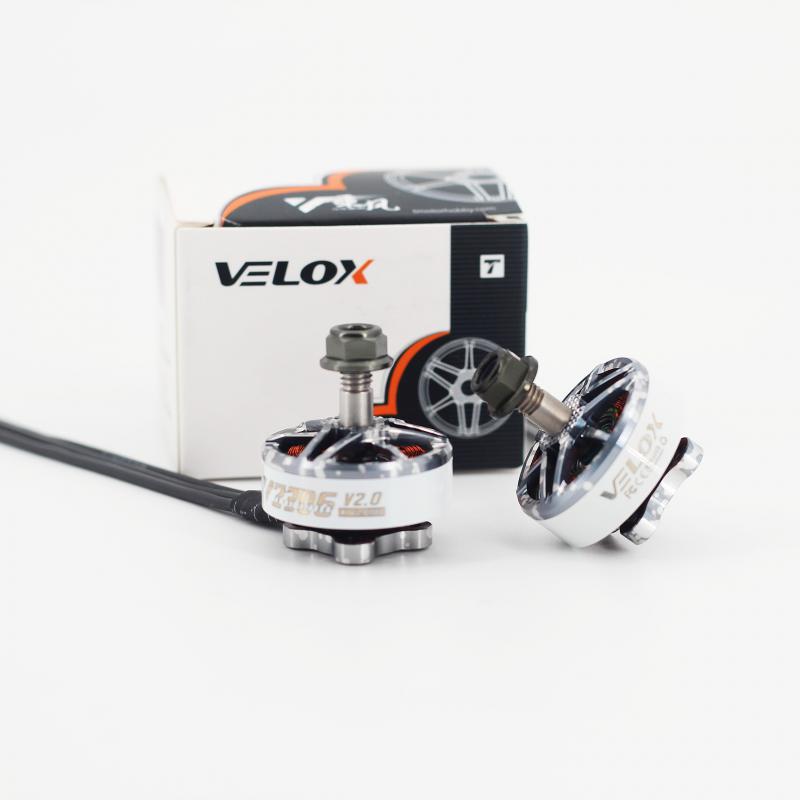

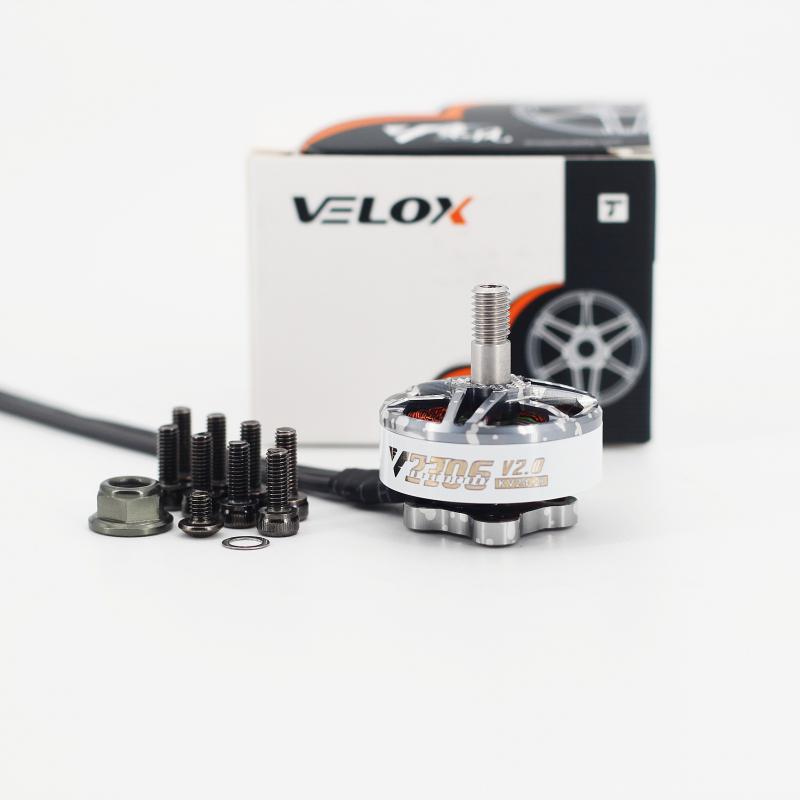

T-motor VELOX V2306 V2.0 2306 1950KV 5-6S / 2400KV 4S Brushless Motor

Item: T-motor V2306 V2.0 1950KV 2400KV FPV Brushless Motor
Parameters:
Brand: T-motor
Item Name: V2306 V2.0
KV: 1950KV 5-6S / 2400KV 4S
Version: CW Screw Thread
Motor Dimensions: Φ27.9x30.3mm
Lead: 20#AWG 150mm
Configuraton: 12N14P
Shaft Diameter: 4mm
Idle Current(10): 1.35A@1950KV; 1.85A@2400KV
Peak Current (60S): 38.1A@1950KV; 34.1A@2400KV

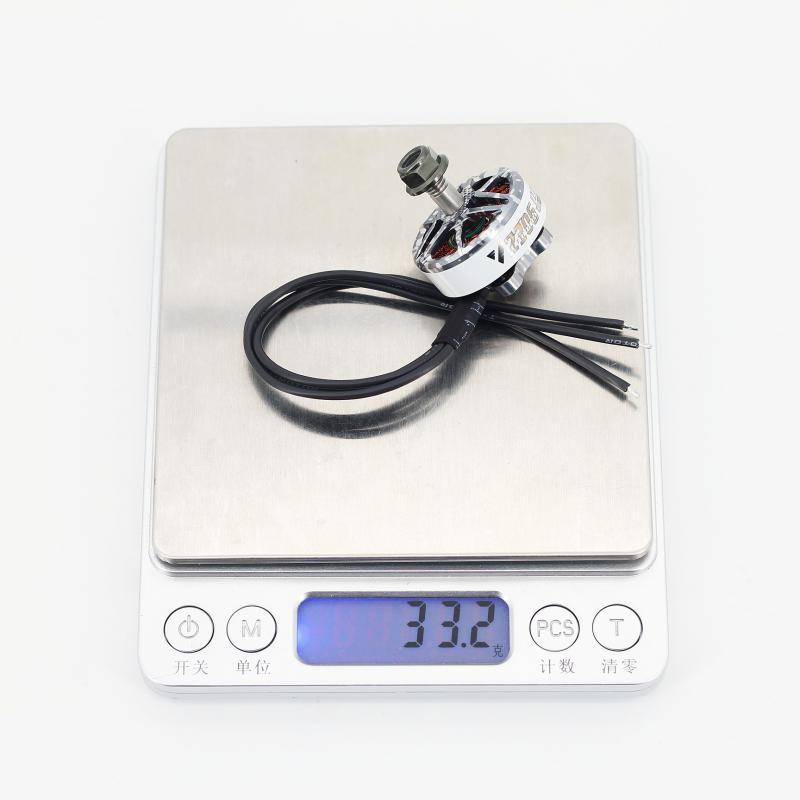

Weight (Inc. Cable): 32g ( Include Cable); 28.2g (Exclude Cable)
Internal Resistance: 64mΩ@1950KV; 49mΩ@2400KV
Max. Power (60S): 850W@1950KV; 494W@2400KV
Mounting: 16x16mm/M3
