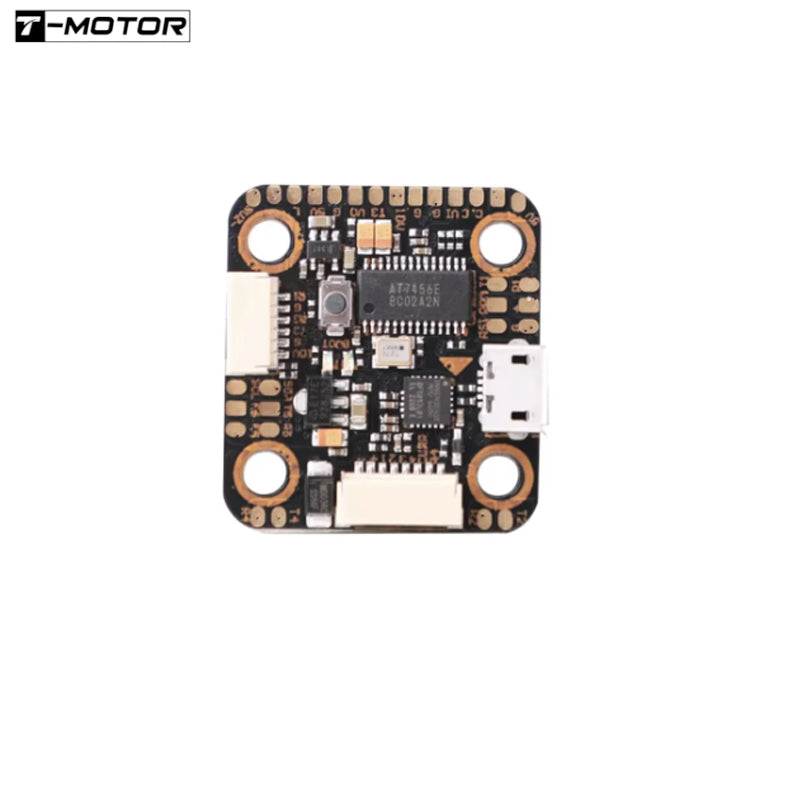

T-Motor Mini F7 HD F722 Flight Controller – 20×20mm, 3–6S, OSD & VTX Switch

T-Motor Mini F7 HD F722 Flight Controller – 20×20mm, 3–6S, OSD & VTX Switch

Regular price $84.99
Regular price Sale price $84.99
Sale Sold out
Shipping calculated at checkout.
color
Quantity

T-Motor Mini F7 HD F722 Flight Controller – 20×20mm, 3–6S, OSD & VTX Switch Matching with F45A MINI 4IN1 ESC for FPV Drone

Build a compact FPV stack around the T-Motor Mini F7 HD. Its F722 processor and 20 × 20 mm mounting pattern bring flight control, OSD support and a switchable VTX power function to a board weighing approximately 5.1 g.

The Mini F7 HD supports 3–6S input and provides dedicated power outputs for peripherals and compatible DJI HD video systems. Pair it with a suitable 20 × 20 mm ESC, such as the T-Motor F45 Mini, after checking the connector pinout.

Check out the rest of our Flight Controllers and all our T-Motor Products!

Key features

  • STM32F722 processor
  • Compact 20 × 20 mm mounting pattern
  • 3–6S input support
  • OSD support for compatible video setups
  • VTX switch / PIT power-control function
  • 5 V and 10 V regulated outputs
  • Approximately 5.1 g board weight

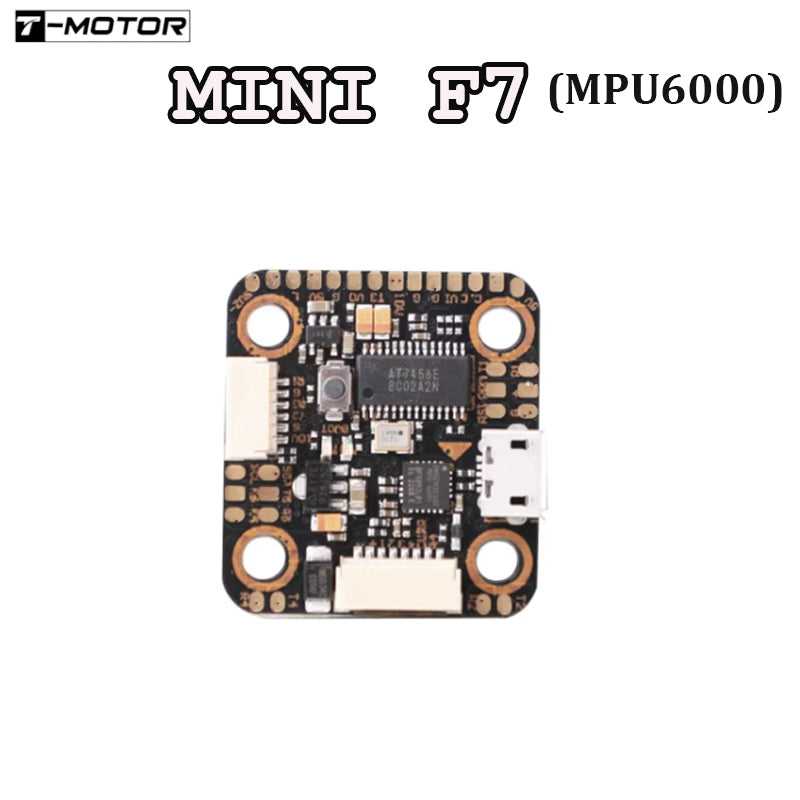

  • MPU6000 or BMI270 Gyro

Specifications

Brand T-Motor
Model Mini F7 HD

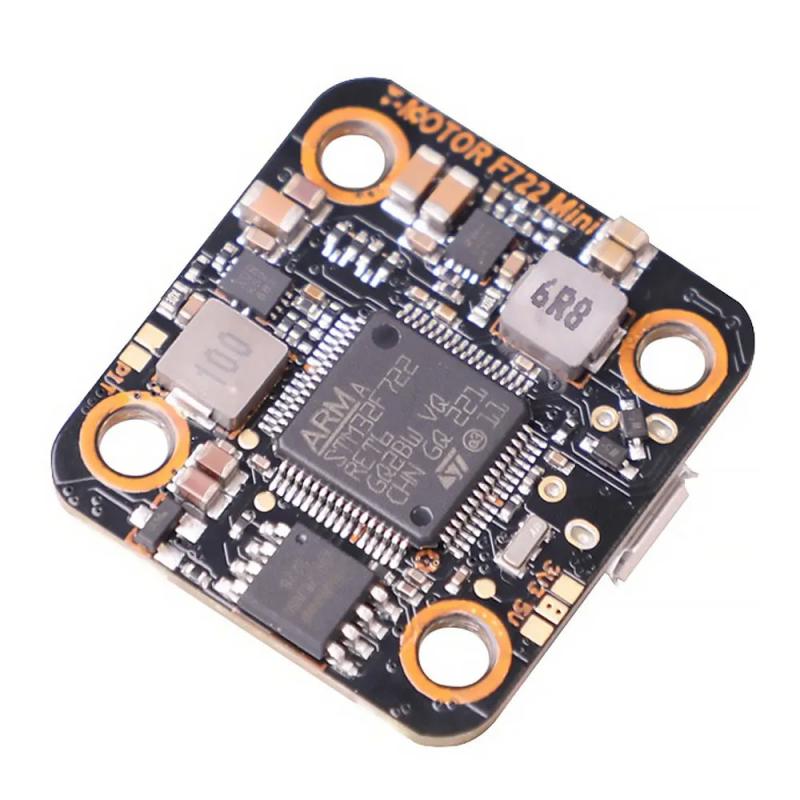

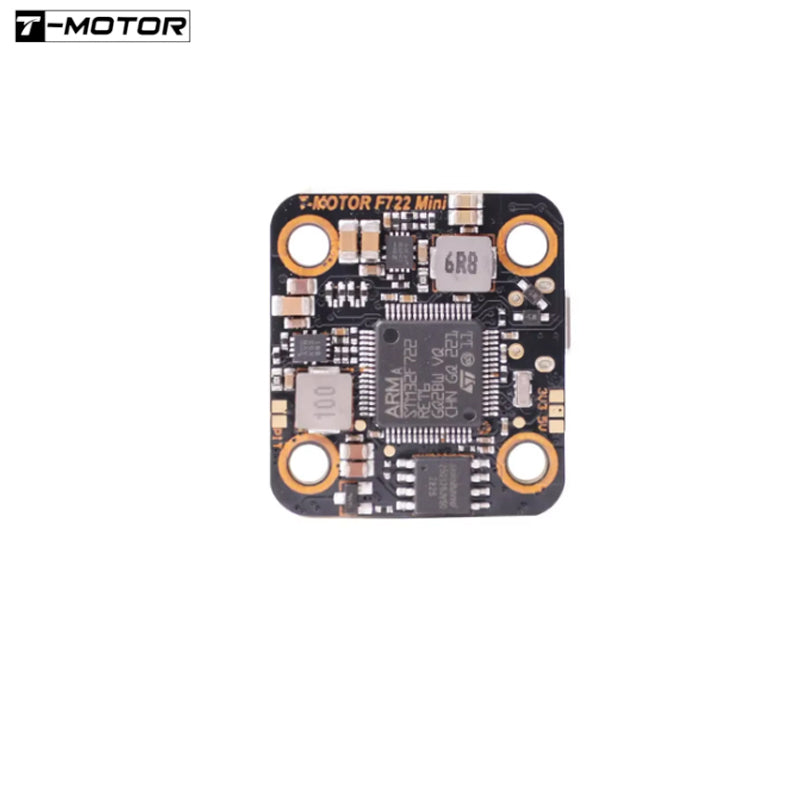

Processor STM32F722
Input 3–6S LiPo
Mounting pattern 20 × 20 mm
Listed onboard memory 16M
OSD Supported
VTX power switch Supported
BEC output voltages 5 V / 10 V
Board weight 5.1 g
Listed firmware target TMOTORF7 (STM32F7X2)

Installation

Check the wiring diagram for the exact hardware revision before connecting the ESC, receiver or video transmitter. A matching plug does not guarantee matching pin assignments. Confirm the supported output current and your VTX power requirements before installation.

Package contents

1 × T-Motor Mini F7 HD flight controller. ESC, receiver and video system sold separately.
