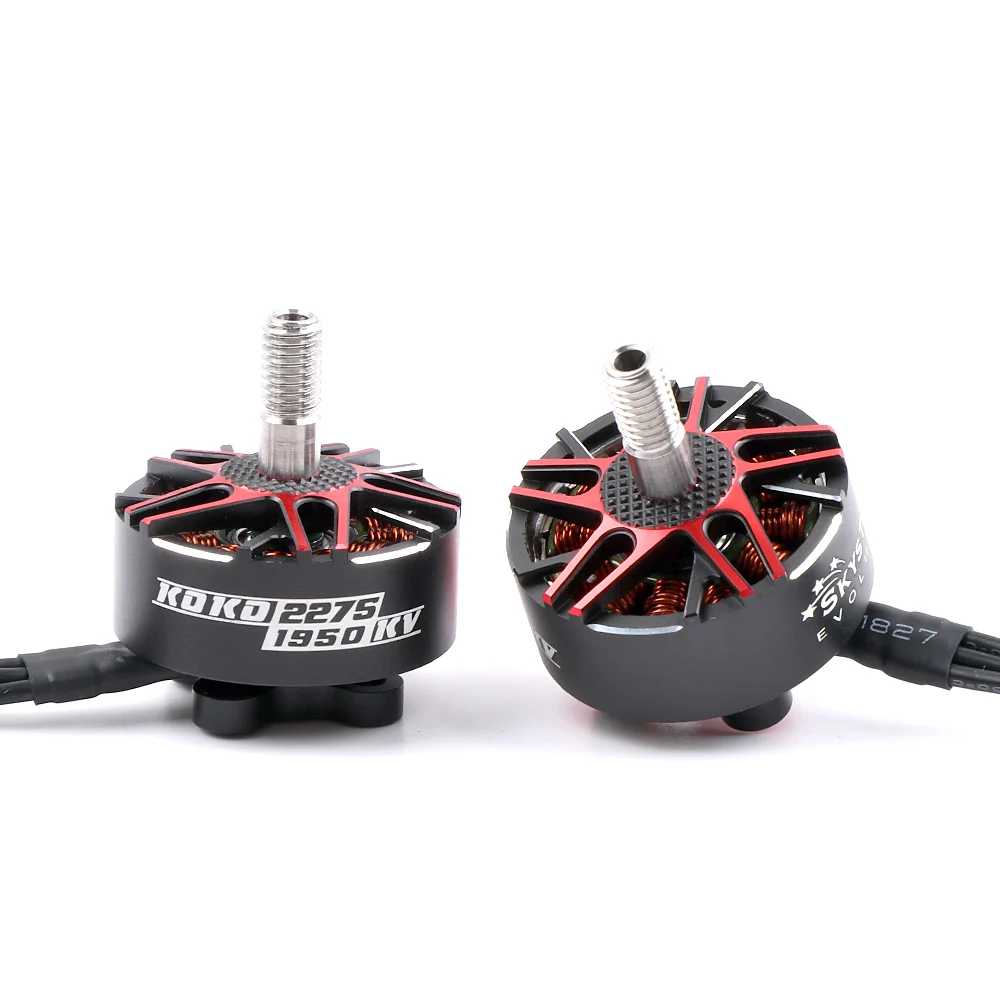

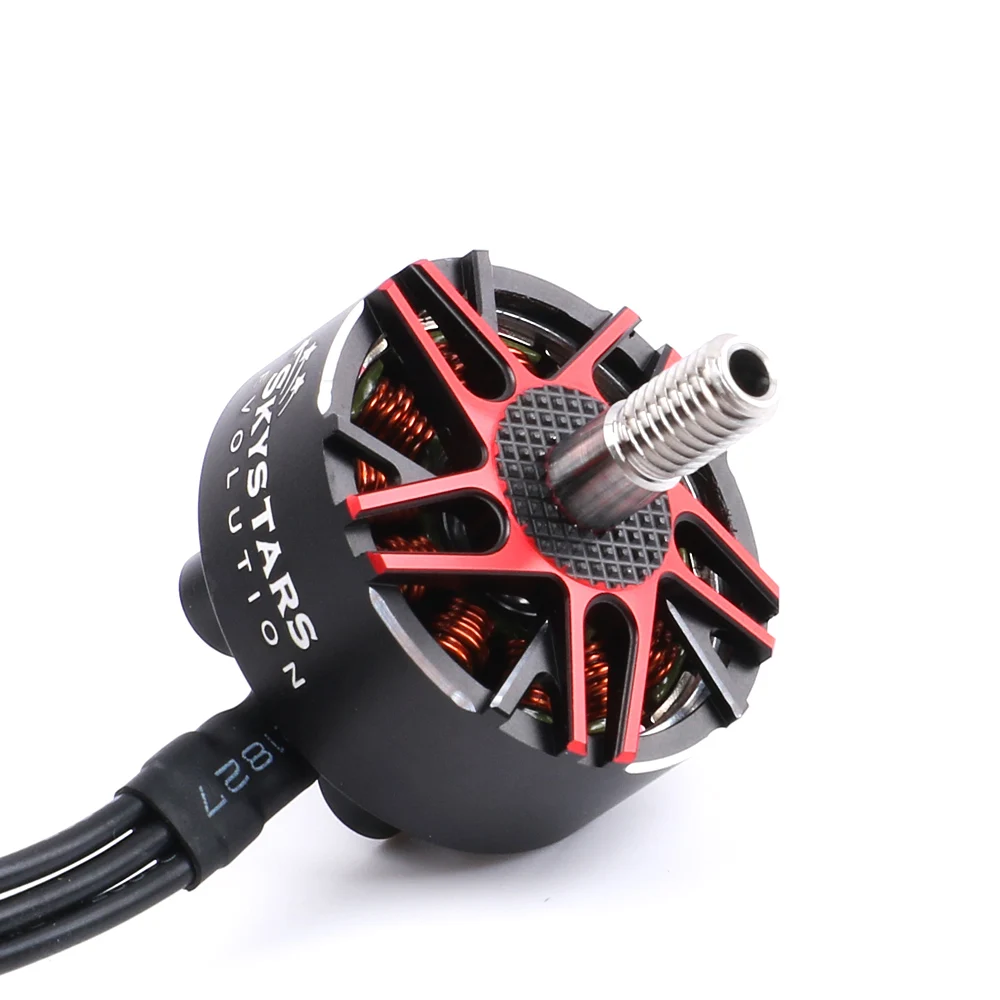

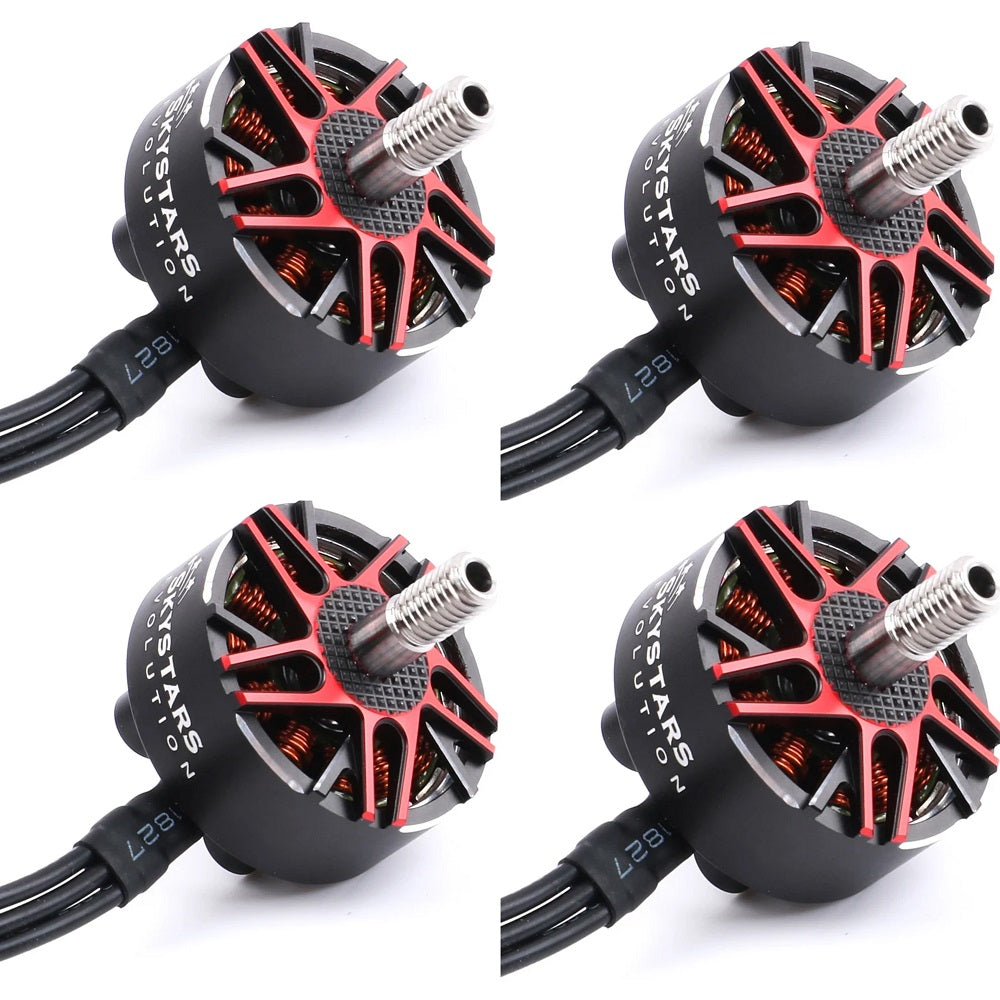

skystars race spec 2275 1950KV 6S Brushless Motor

Specification:

Brand Name: skystars

Model: KOKO RS 2275

Item Name: 2275 1950KV Brushless Motor

KV: 1950KV

Version: CW Screw Thread

Input Voltage: 5-6S @ 1950KV ;

Configuration: 12N14P

Stator Diameter: 22mm

Stator Length: 7.5mm

Shaft Diameter: 5mm

Motor Dimension: 32x27.9mm

Weight: 32g

Idle Current(10) @10V: less than 1.1A (1950KV);

Max. Con. Power (180S): 1000W@1950KV;

Internal Resistance: 78.5mΩ@1950KV;

Max. Current (180S): 36A@1950KV;

KOKO RS series are very strong and powerful FPV motors for FPV racing, great value choice with well known KOKO performance.focuses on quality, the KOKO-RS series affordable motors that are strong and durable.

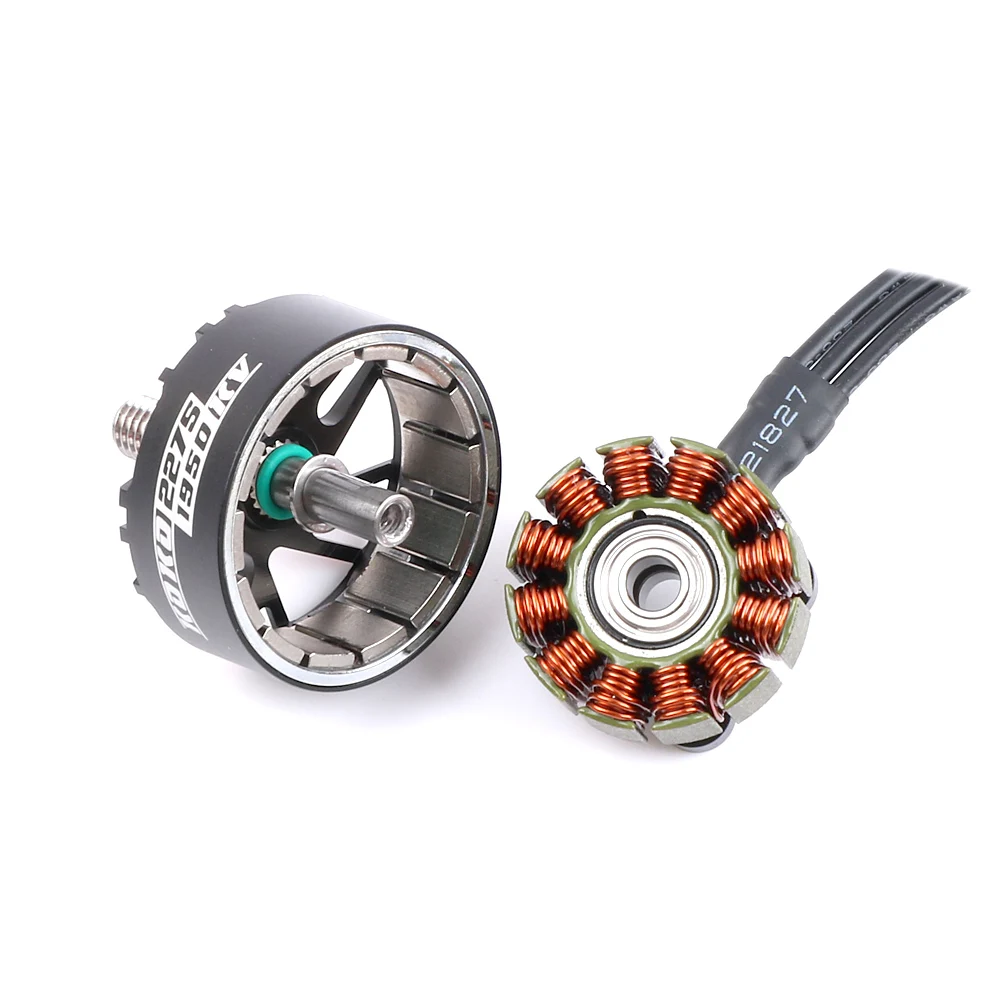

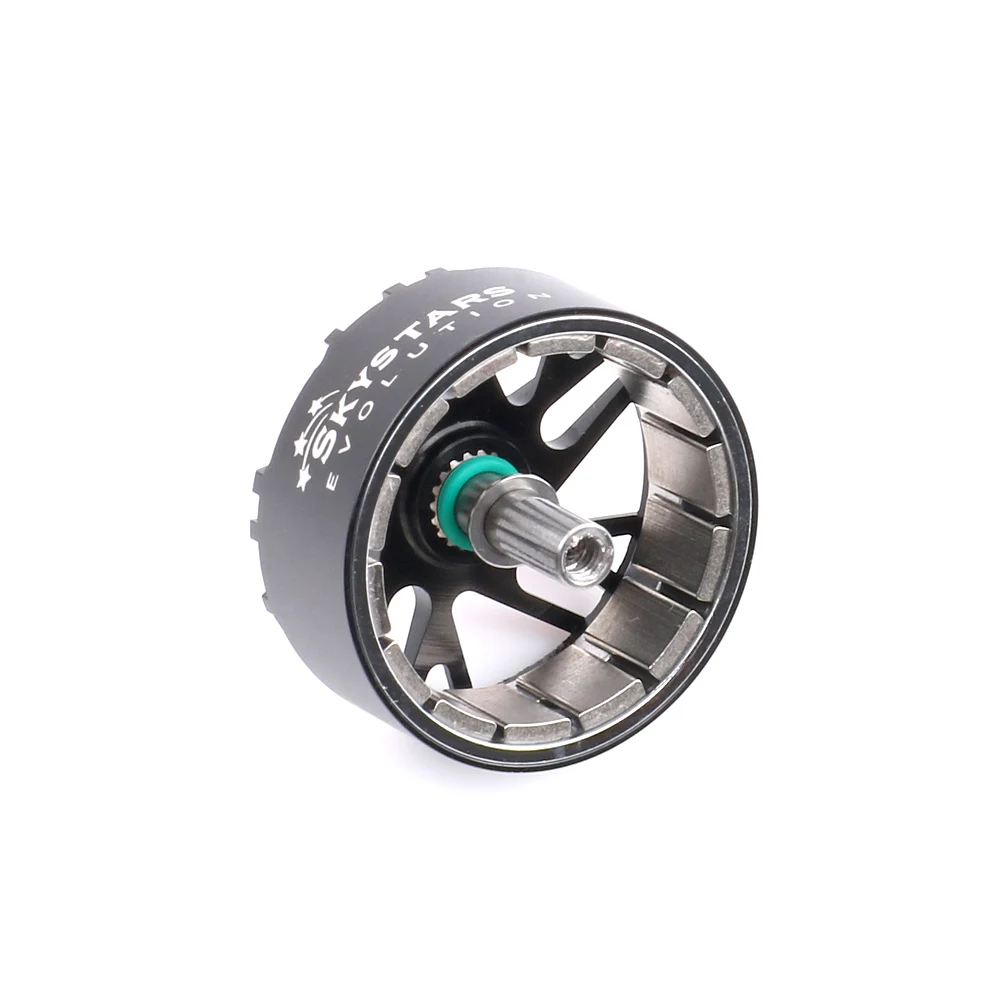

This 2275 sized motor features a High-strength 5mm Titanium Alloy hollow shaft,Single strand windings for performance,Curved magnets, M3 shaft screw, and larger 9x4x4mm NMB684zz bearings.

Features

High-strength 5mm Titanium Alloy hollow shaft

N52H High-temperature Curved magnets, NMB bearings

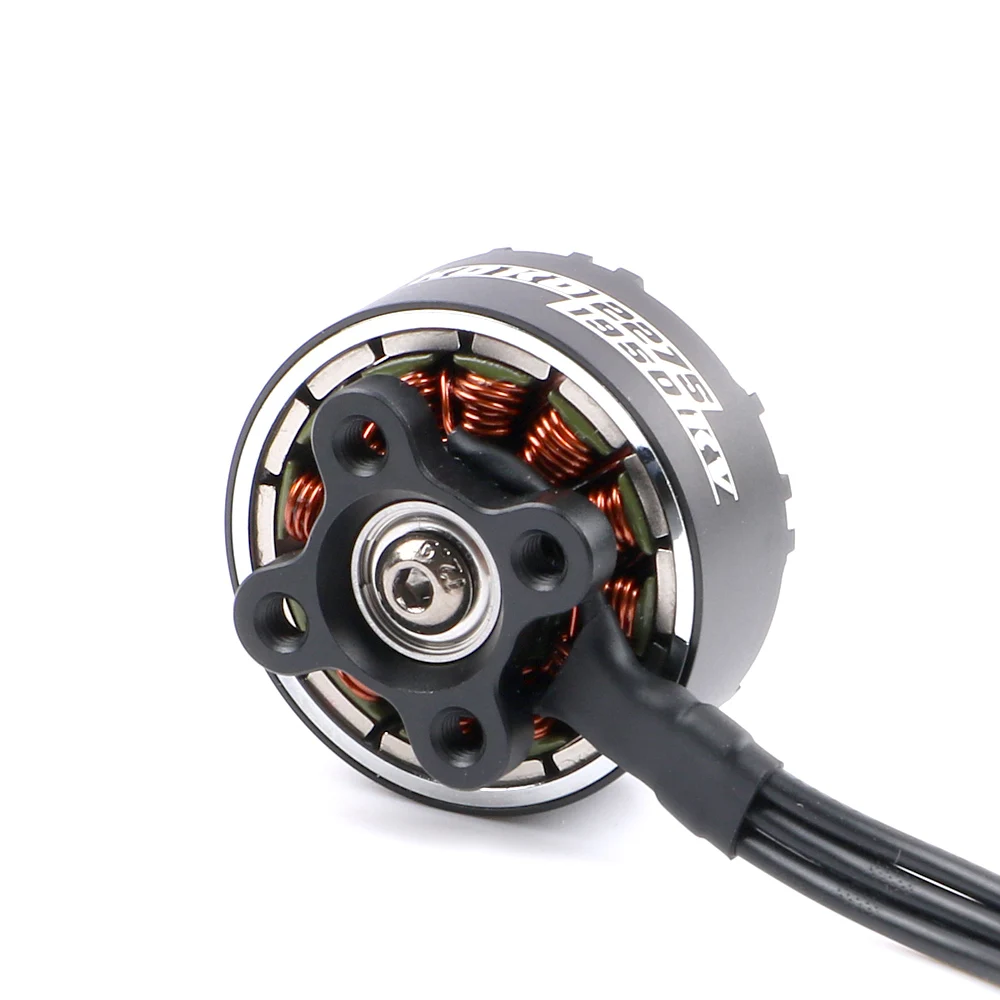

16x16mm hole pattern

Single strand copper winding

Hex bolt shaft set screw

Two-color Popular style
