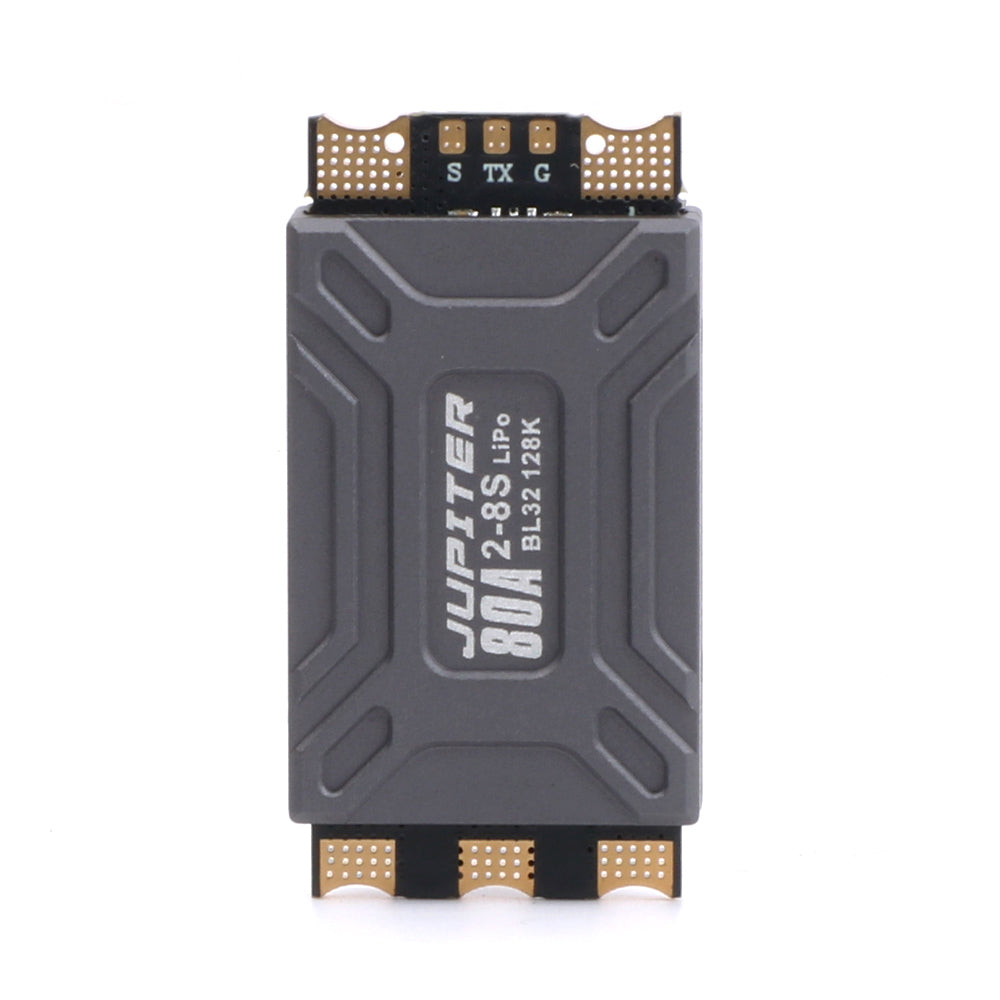

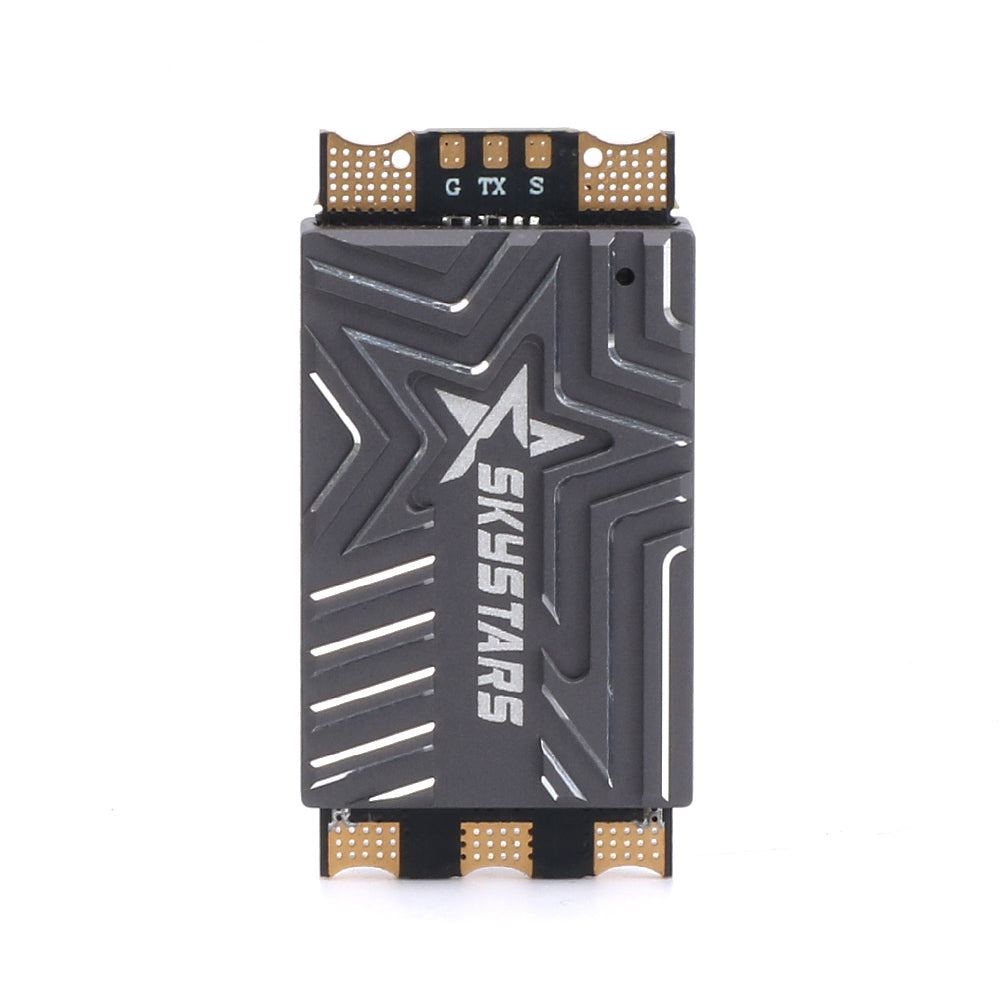

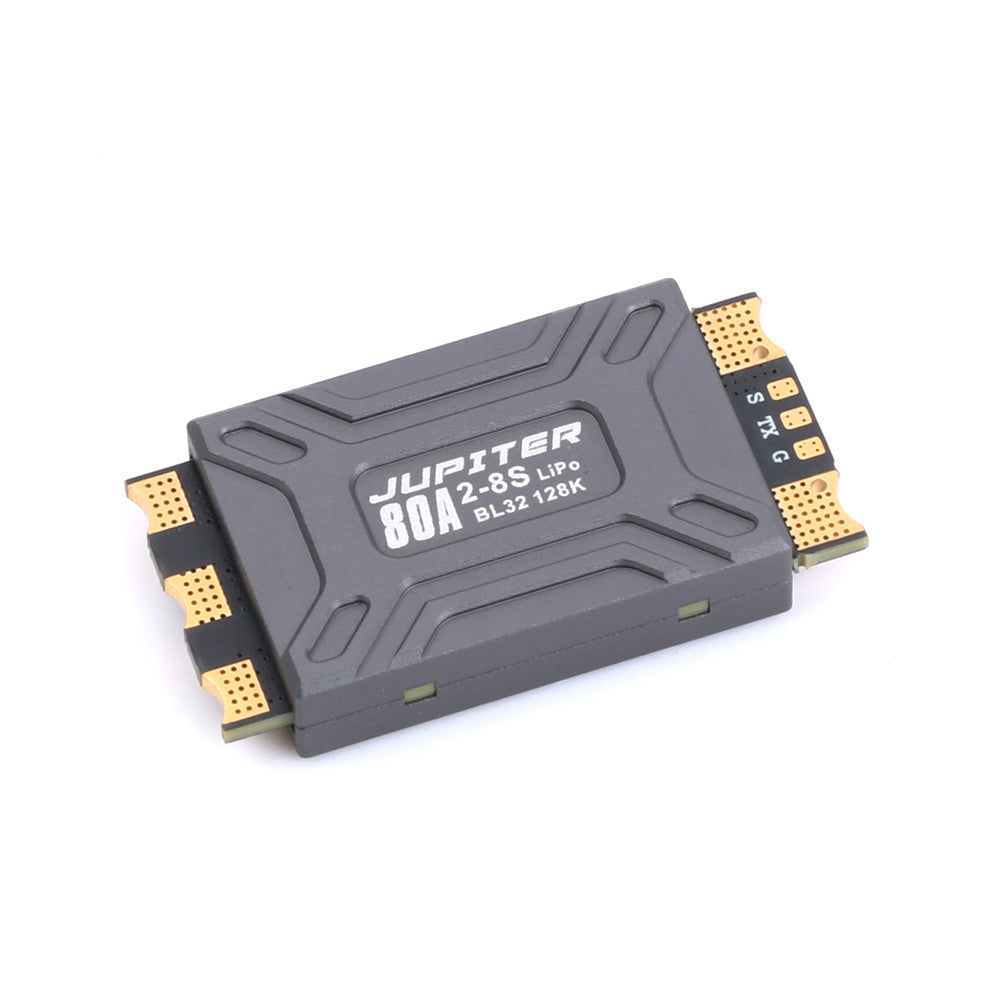

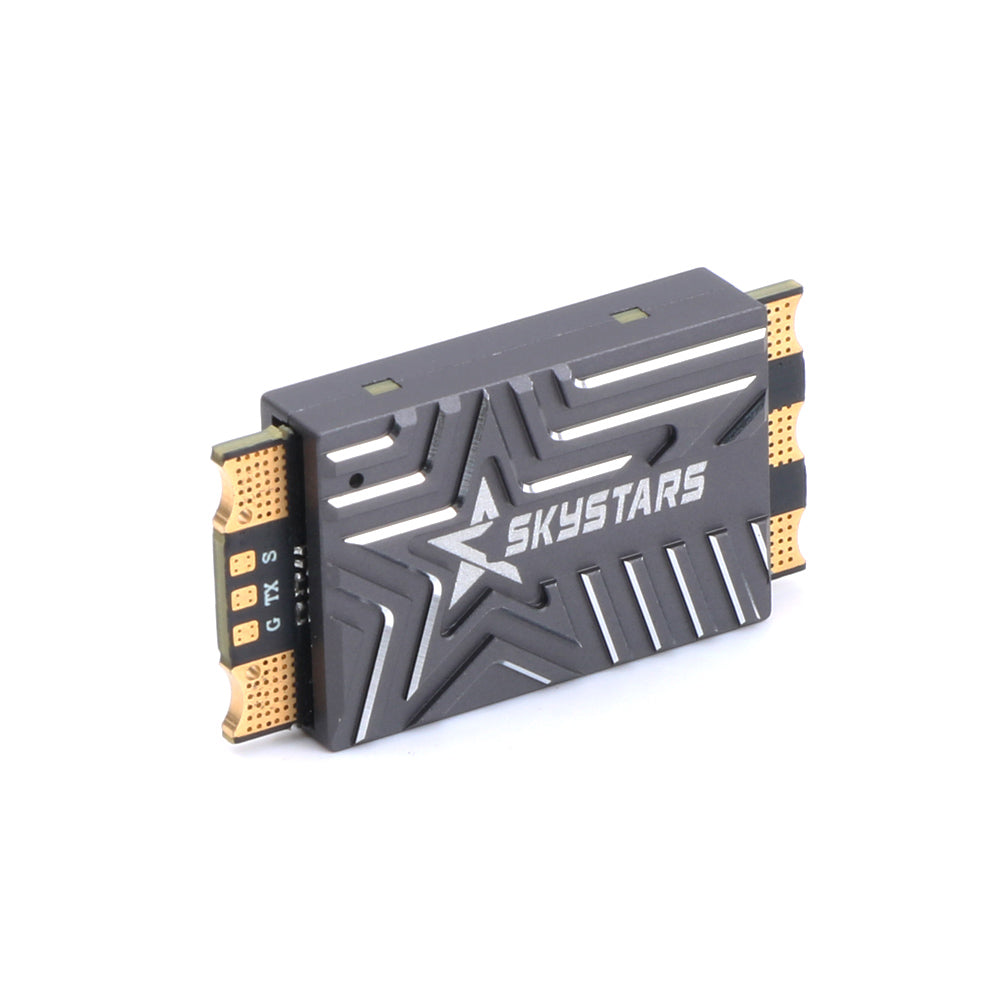

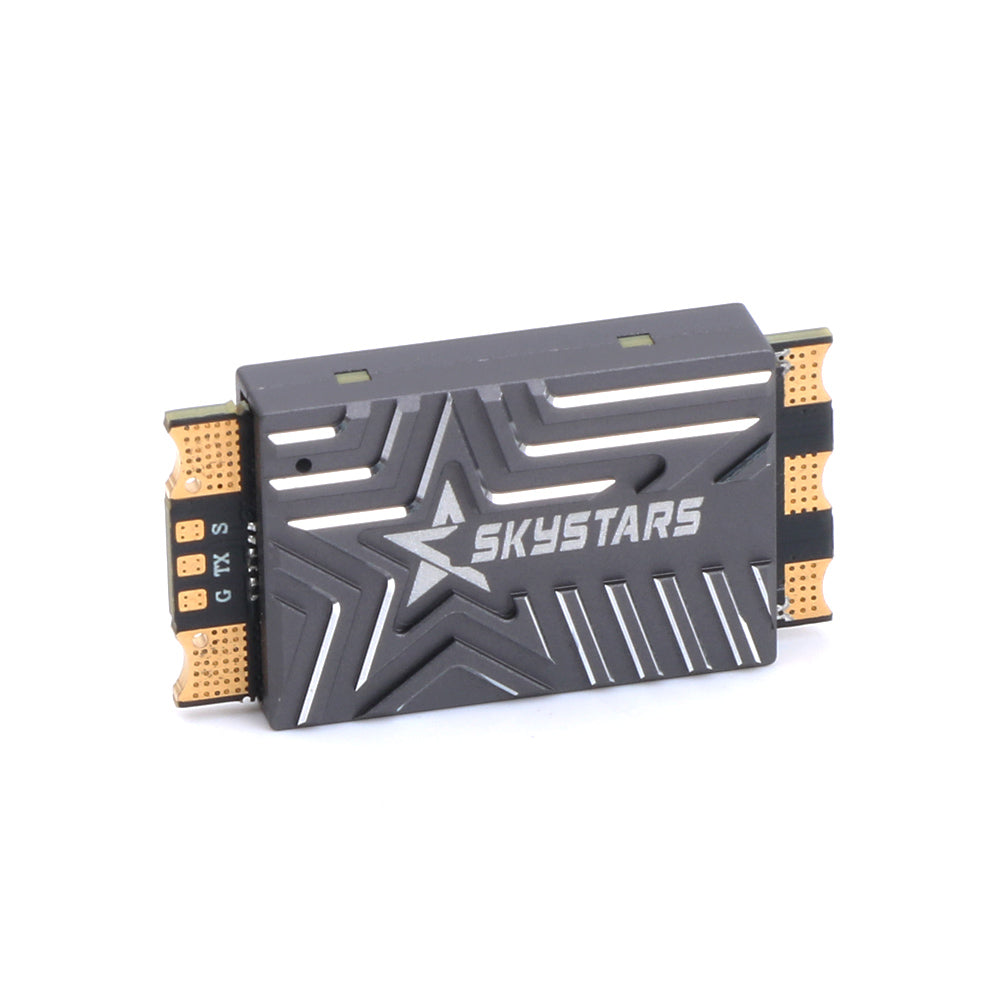

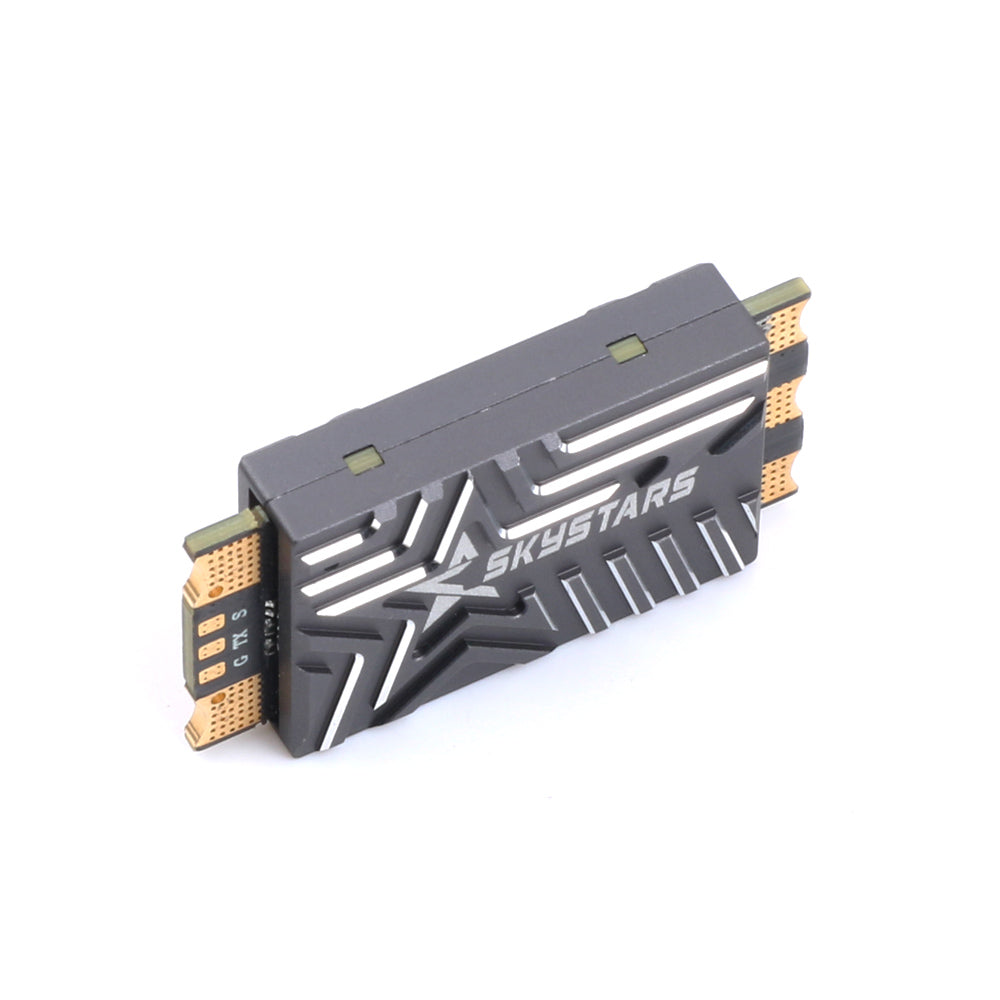

Skystars Jupiter SL80A Single 80A ESC

Skystars Jupiter SL80A Single 80A ESC G071 BLHELI32 2-8S LIPO NO BEC for FPV Freestyle X-Class Drones DIY Parts

JUPITER SL80 BLHeli Dshot600 Single ESC was designed to give your motors smooth power with great stability and durability. The 32bit G071 MCU and 12 PCS Low ESR MosFets bring faster-responding speed and smoother flying experience.

Features:

2-8S input (max 8S)

80A 8 layers 4OZ copper PCB, better operating load capacity;

14 pieces TDK MLCC Low ESR capacitors, lower ripple and more stable;

Top grade 40V MOSFET, stable and reliable;

1*RGB LED for power- on display;

Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.

Specification:

Dimension: 42.6*22mm

Weight: 15g(±2g)

Supports 2-8S lipo input

STM32G071 MCU, 48Mhz Runs BLHELI 32.X Firmware

Capacitance: total 300UF Low ESR

Telemetry output

BEC: No

Supports: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

Target: SKYSTARS_SL80A

Support:

Current Sensor

Telemetry output

Motor Timing

Brake on Stop
