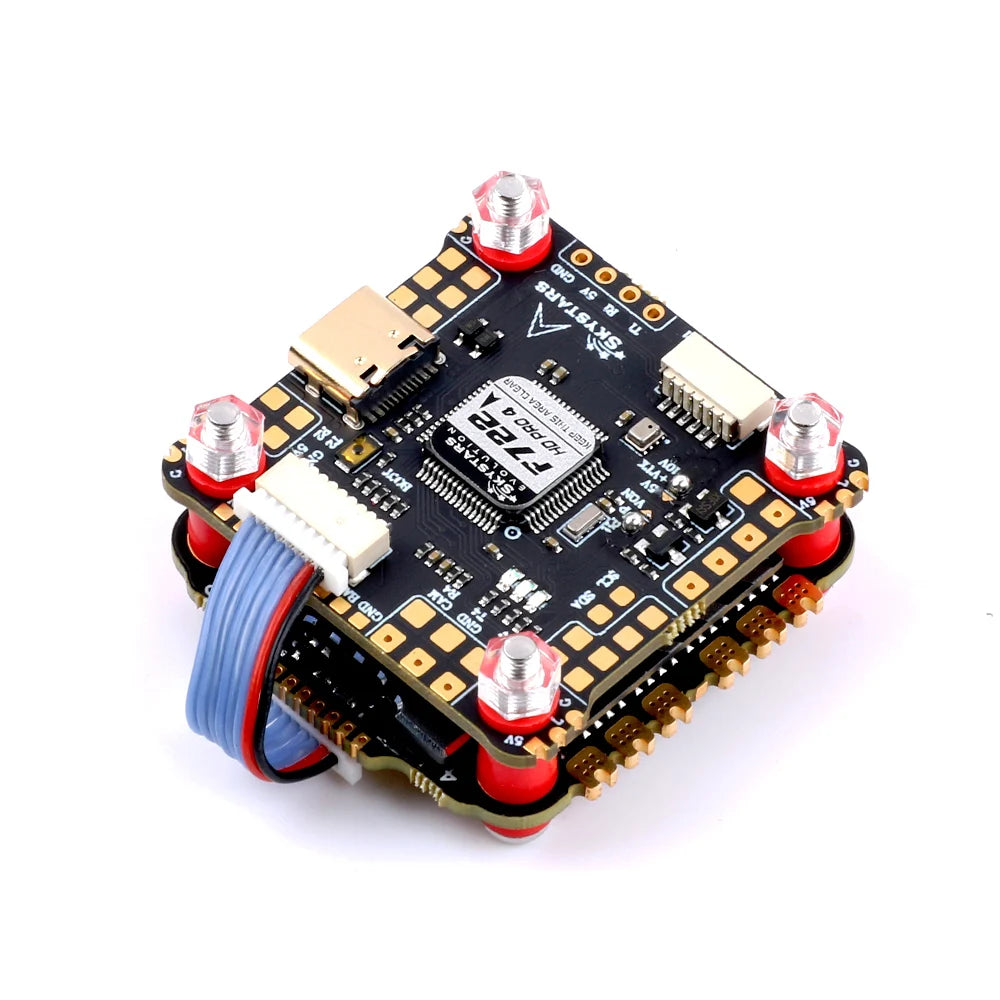

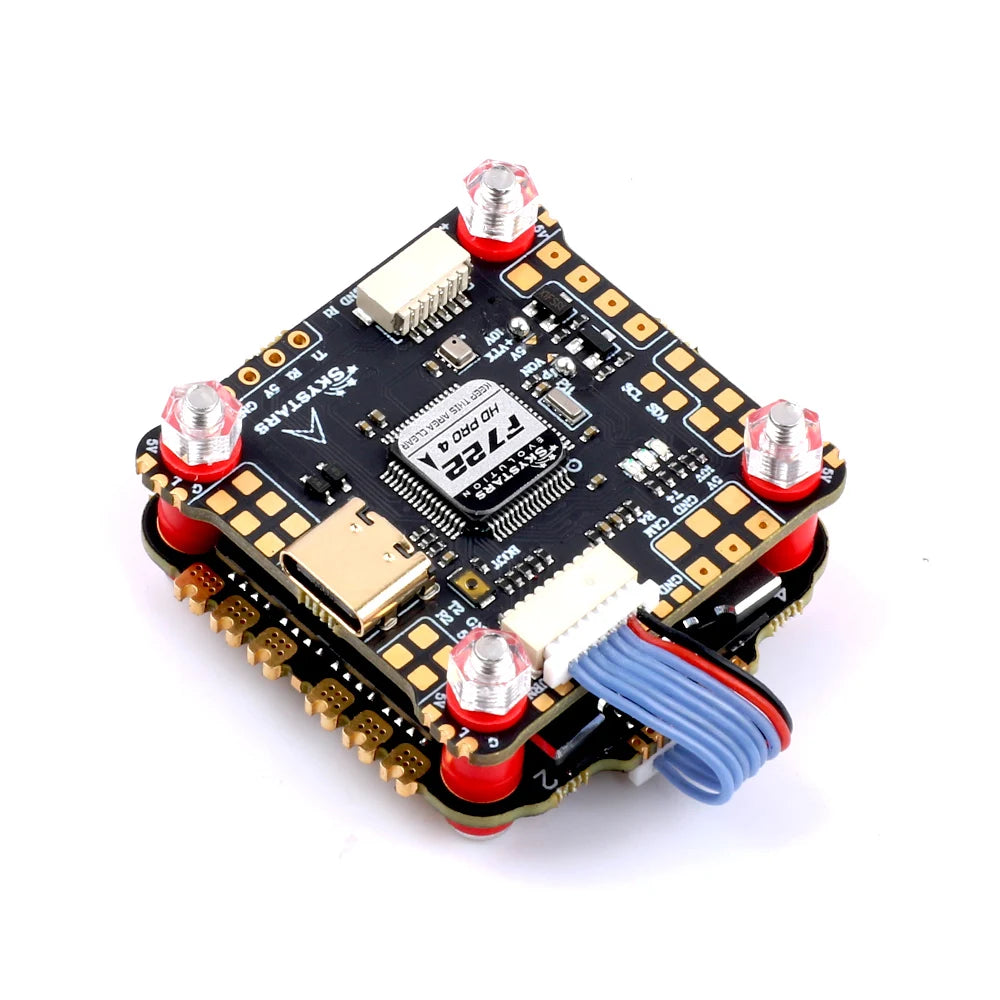

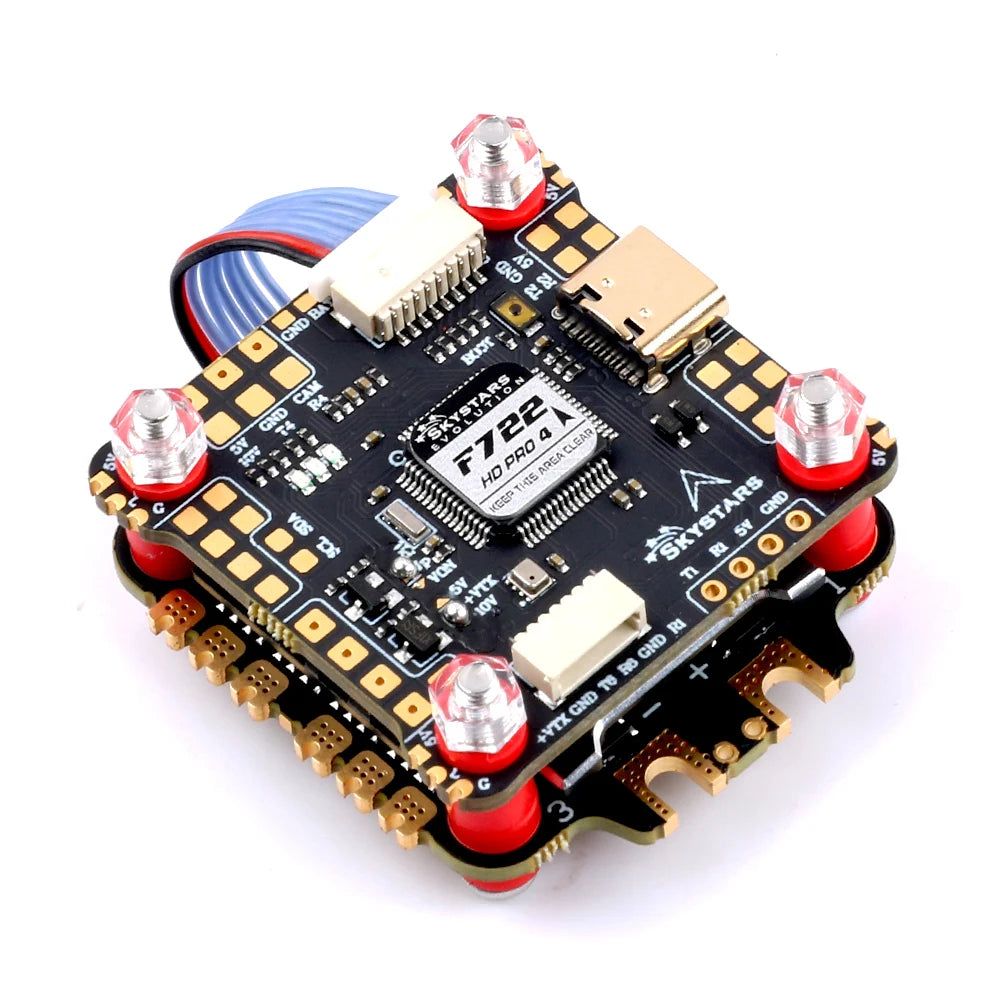

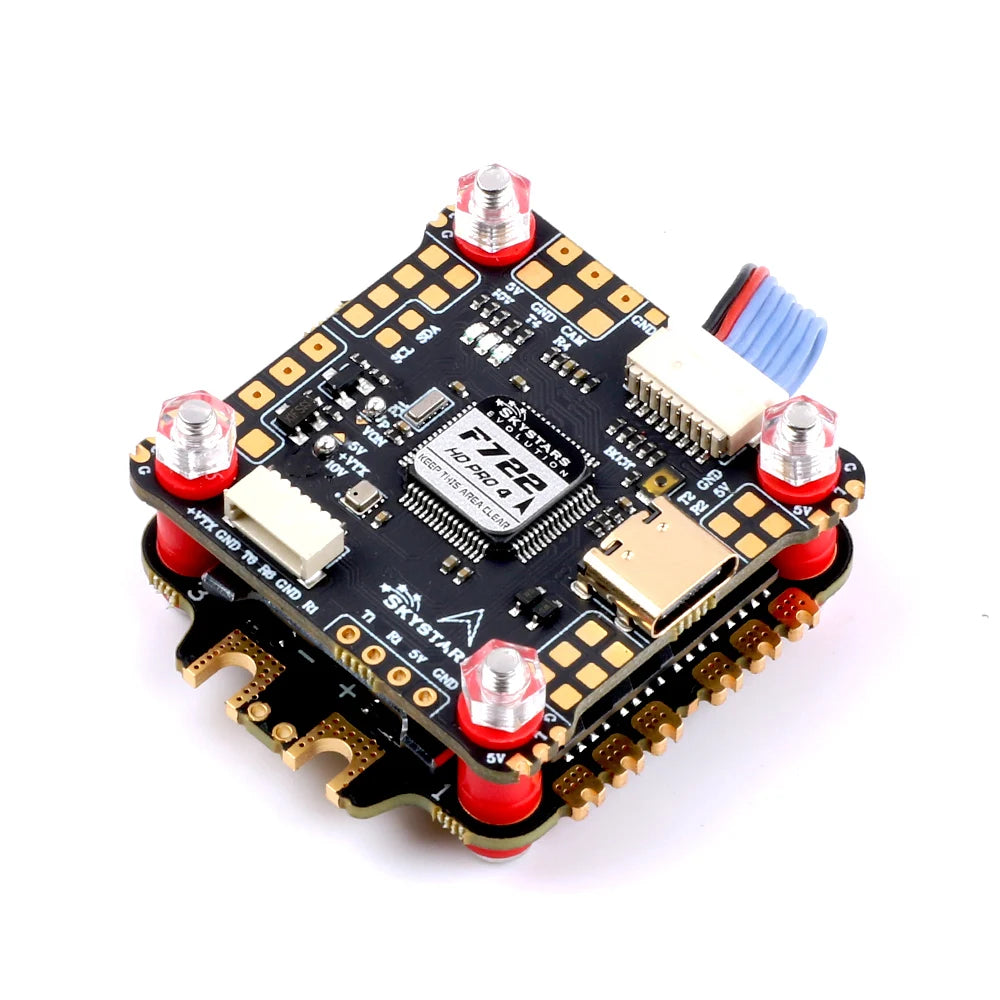

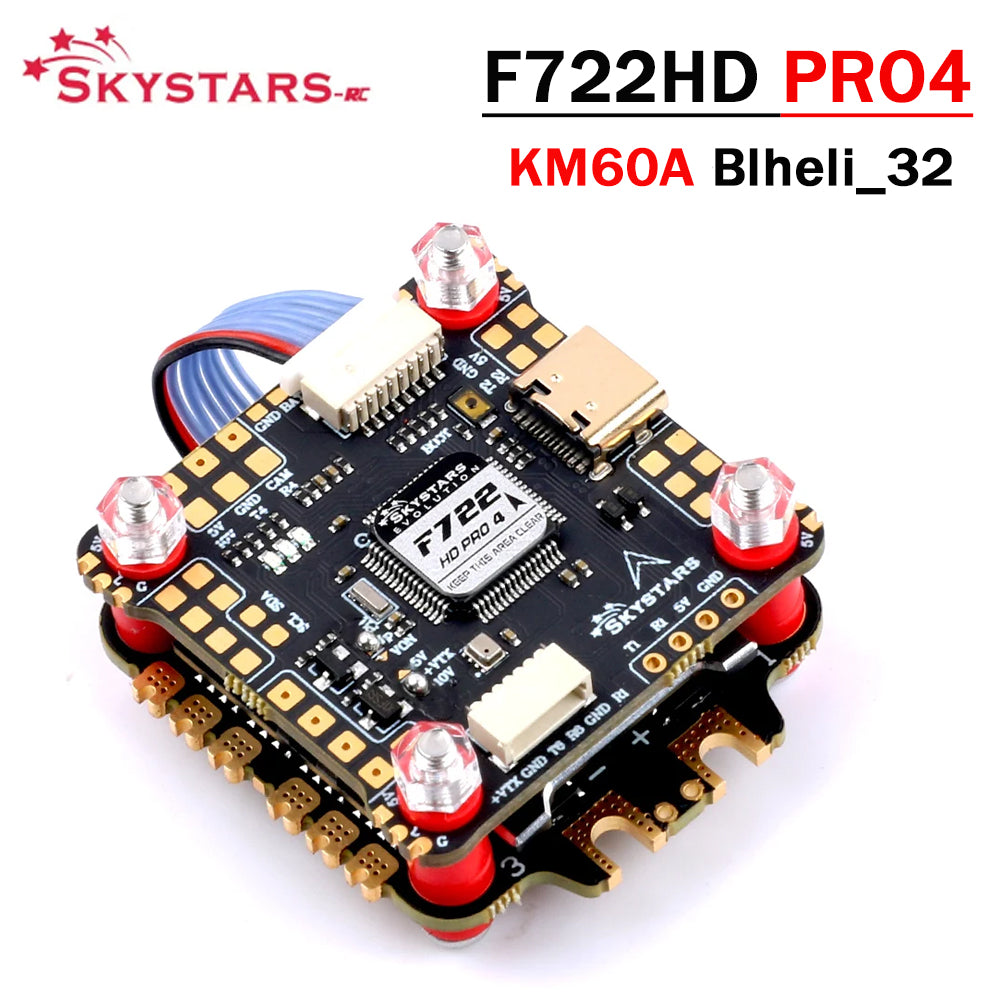

Skystars F722+KM60 Blheli_32 Fly Stack

FC Specifications:

MCU: STM32F722RGT6 216MHz

Gyroscope: MPU6000

Baro:Bmp280

OSD: Betaflight SPI OSD Compatible with DJI DJI HD OSD(UART6)

Black box: 16MB

6x Uarts: UART 1/2/3/4/5/6

4x PWM outputs

1x I2C

3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

USB Type-C(USB2.0)

1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)

1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)

VTX 10V/Vbat filtered power ON/OFF switch

DJI FPV OSD is supported by any spare UART

LED: 4 LED independent pads, support WS2812 programming lamp output.

Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is

UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

Power:

Input voltage: 3-6S

BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI

LDO 3.3V: Max.250mA

FC Firmware:

BetaFlight firmware: SKYSTARSF722Pro

INAV firmware:SKYSTARSF722HD

Mounting:

Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

External size 39mm × 39mm

Flight control weight: 6.9g

Flight control onboard voltage sensor.

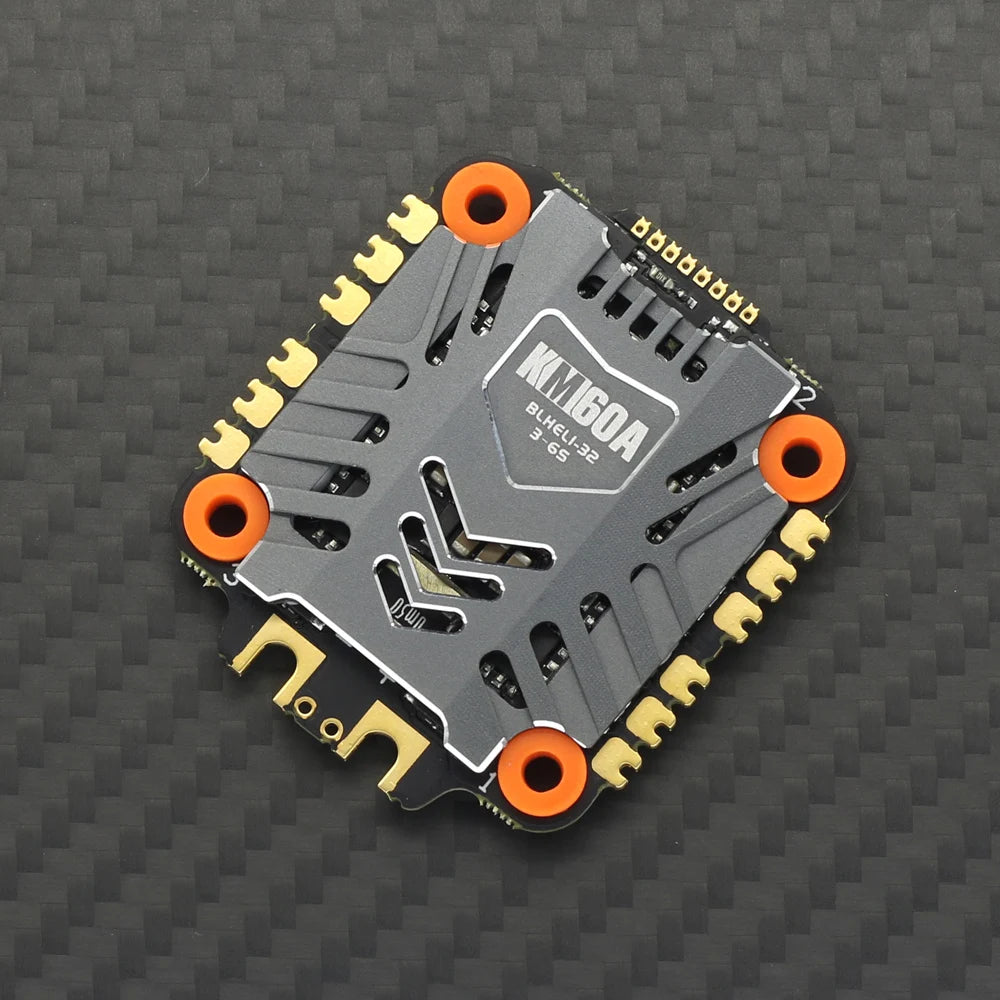

KM60 BL32-60A 4IN1 3-6S ESC BLheli32 128K DShot1200 4-in-1 ESC:

Input voltage: 3-6S LiPo

Con.Current: 60A

Peak Current: 80A≥ 10S

Firmware: BLHeli_32

Support : Dshot 600/1200

Mounting hole : 30.5mm/M3

BEC: No

Product size: 41*46*7.6mm

Weight: 18g

Extreme stably support 6S LiPo battery

By use of 24 pcs of new Toshiba standard 40V 5x6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It make ESC can fully support 6s battery and get a better performance.

- The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage,

and protects the flight control ESC precision components.

- EMI Shell provides stronger anti-interference capability.
