SEQURE 2.4GHz Dual RX True Diversity Dual Antenna Receiver

Product Description:

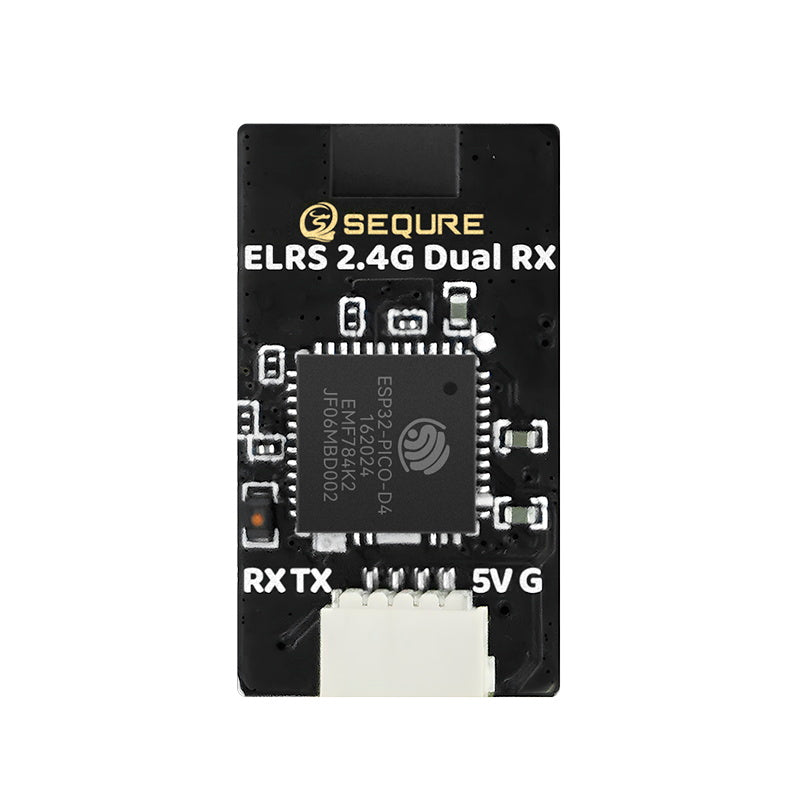

(1) High-performance ESP32-PICO-D4 master control, dual-frequency SX1281 chip, true diversity dual antenna receiver.

(2) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.

(3) High-speed data transmission, support F1000Hz and F500Hz ultra-high refresh rates, meet the low latency requirements of racing players.

(4) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.

(5) Integrated with dual-channel high-power PA+LNA low-noise amplifier and 100mW (20dBm)*2 telemetry return, the return of flight data is more stable.

(6) Onboard RGB color indicator, quickly identify different working status.

(7) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.

Parameters of Product

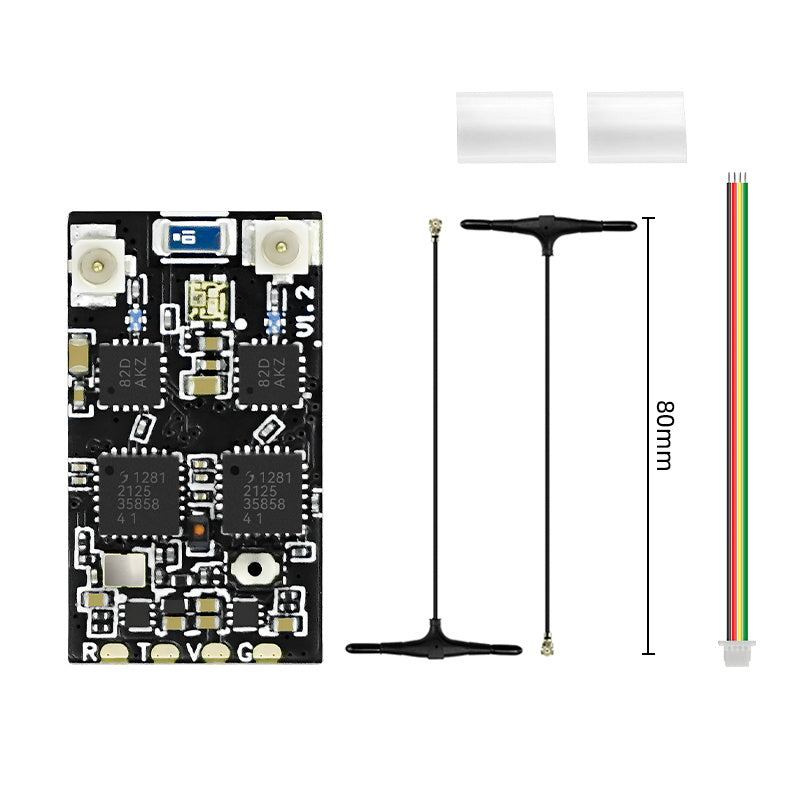

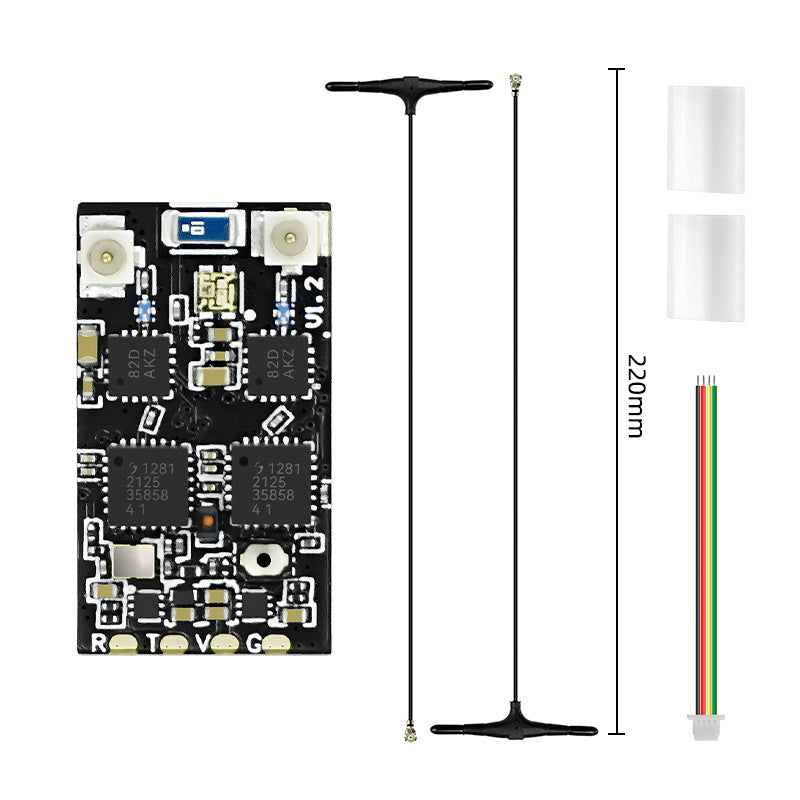

Package included:

SEQURE ELRS 2.4GHz Dual RX×1

2.4G antenna×2

30AWG 100mm single-end SH1.0-4P cable×1

12*30mm heat shrink tube×2
