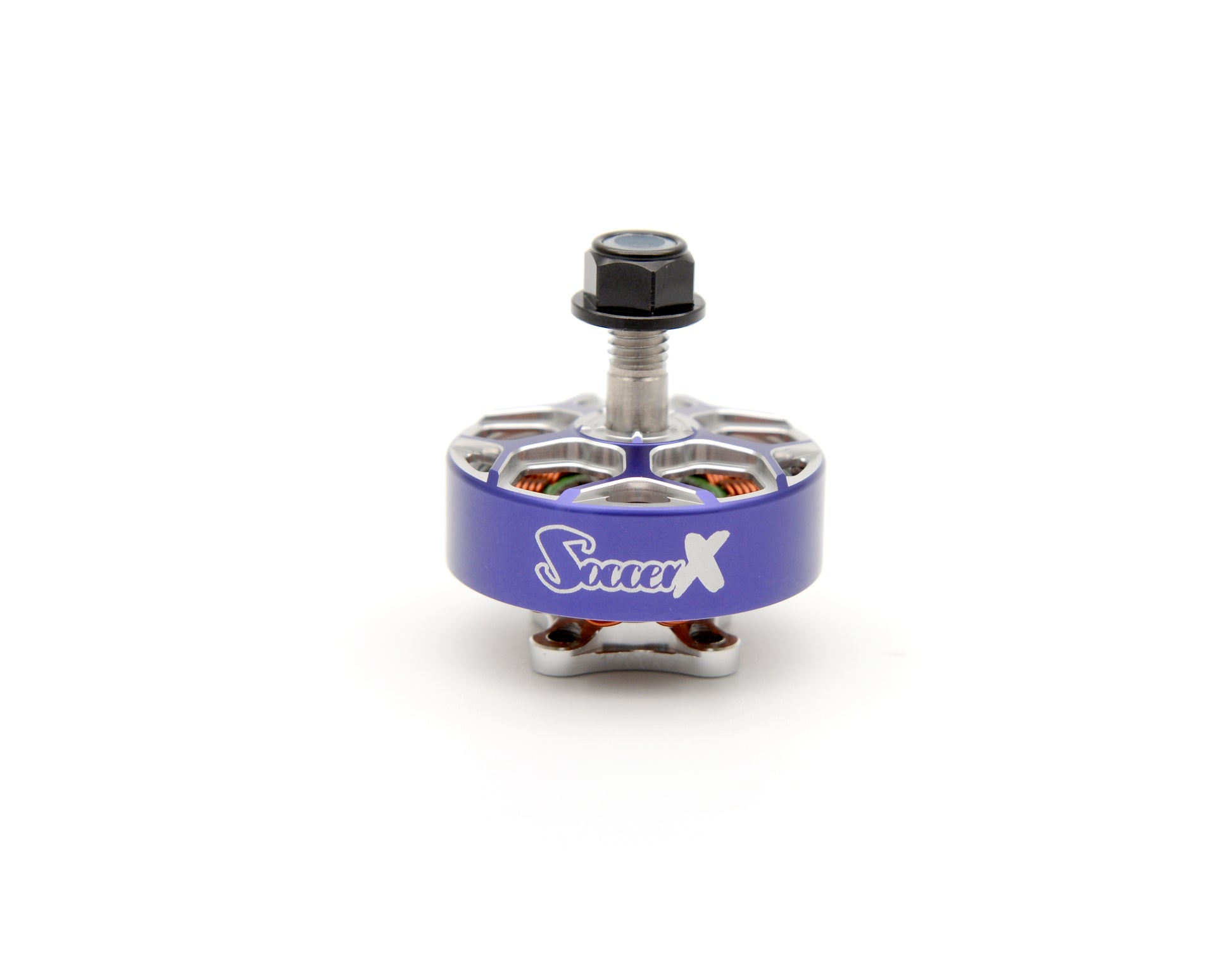

Rcinpower 2506 1960KV 2560KV 5-inch FPV Brushless Motor

RCinPower 2506 1960KV Brushless Motor - High-Performance FPV Motor for 5-Inch Drones / Drone Soccer

Check 22XX Series motors  and the rest of our RCINPOWER Collection!

Dominate the Skies with Unmatched Power and Precision

Elevate your 5-inch FPV drone to the next level with the RCinPower 2506 1960KV Brushless Motor. Engineered for the serious pilot who demands peak performance, this motor delivers a perfect balance of raw power, exceptional efficiency, and buttery-smooth control. Whether you're racing through tight gates or capturing cinematic freestyle footage, the 2506 motor provides the responsive thrust and reliability you need to fly with confidence.

Key Features & Benefits:

• Optimized for 5-Inch Props: Specifically designed to unleash the full potential of 5-inch propellers, providing the ideal thrust-to-weight ratio for aggressive flying and rapid acceleration.

• High-End 1960KV Rating: The 1960KV rating is perfectly tuned for 6S LiPo batteries, offering explosive power for quick punches and top-end speed, while maintaining excellent low-end throttle control for technical maneuvers.

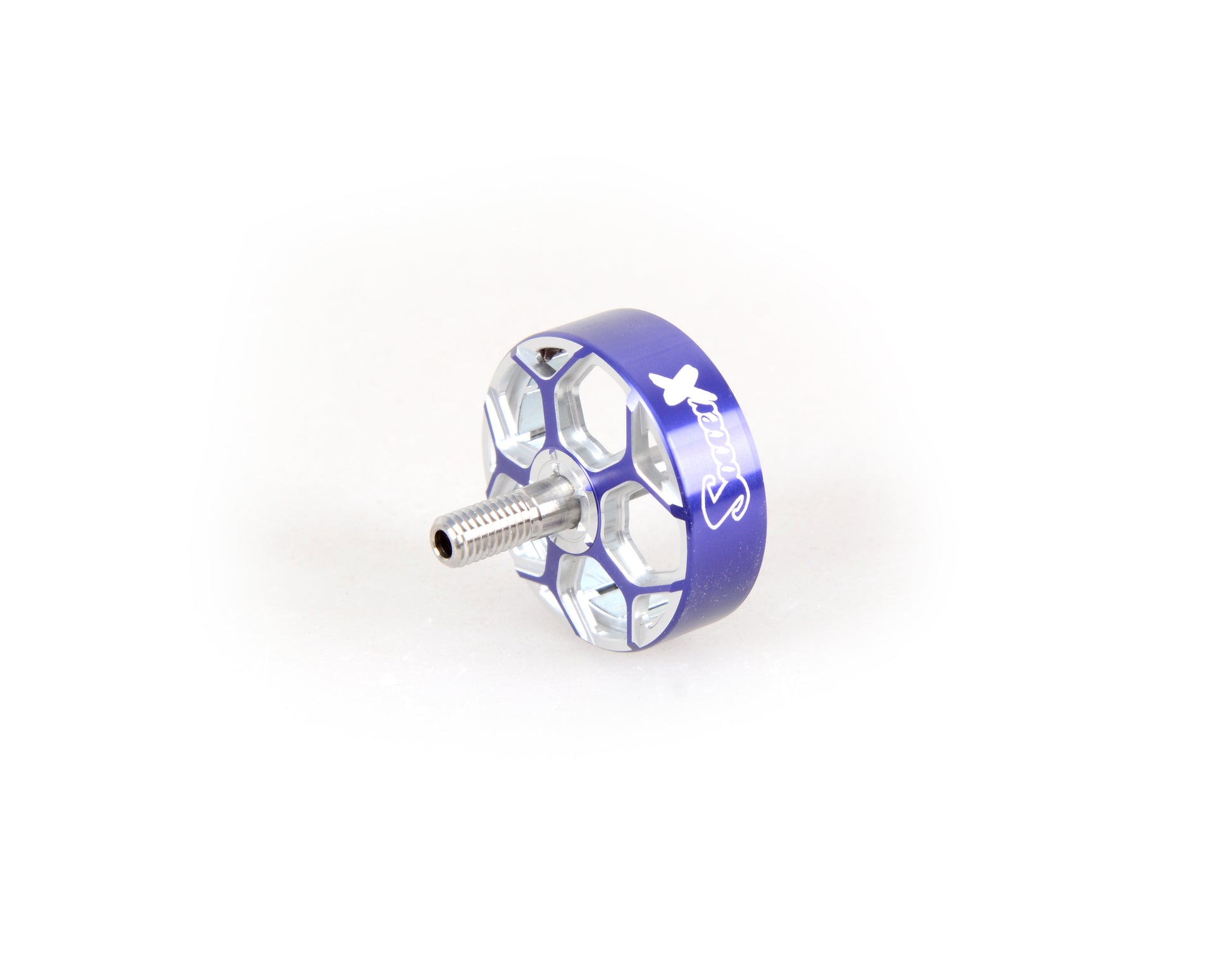

• Superior Build Quality: Featuring a robust N52H high-grade magnet, a precision-machined CNC aluminum alloy housing, and a hardened steel shaft for maximum durability and impact resistance.

• Butter-Smooth Operation: Advanced manufacturing and dynamic balancing ensure exceptionally smooth rotation. This reduces vibrations for jello-free video and extends the lifespan of your other components.

• Exceptional Efficiency: Experience longer flight times and cooler running temperatures thanks to an optimized magnetic circuit and low-resistance design, giving you more airtime per battery.

• Lightweight & Powerful: The innovative design maximizes power output without adding unnecessary weight, contributing to a more agile and responsive drone.

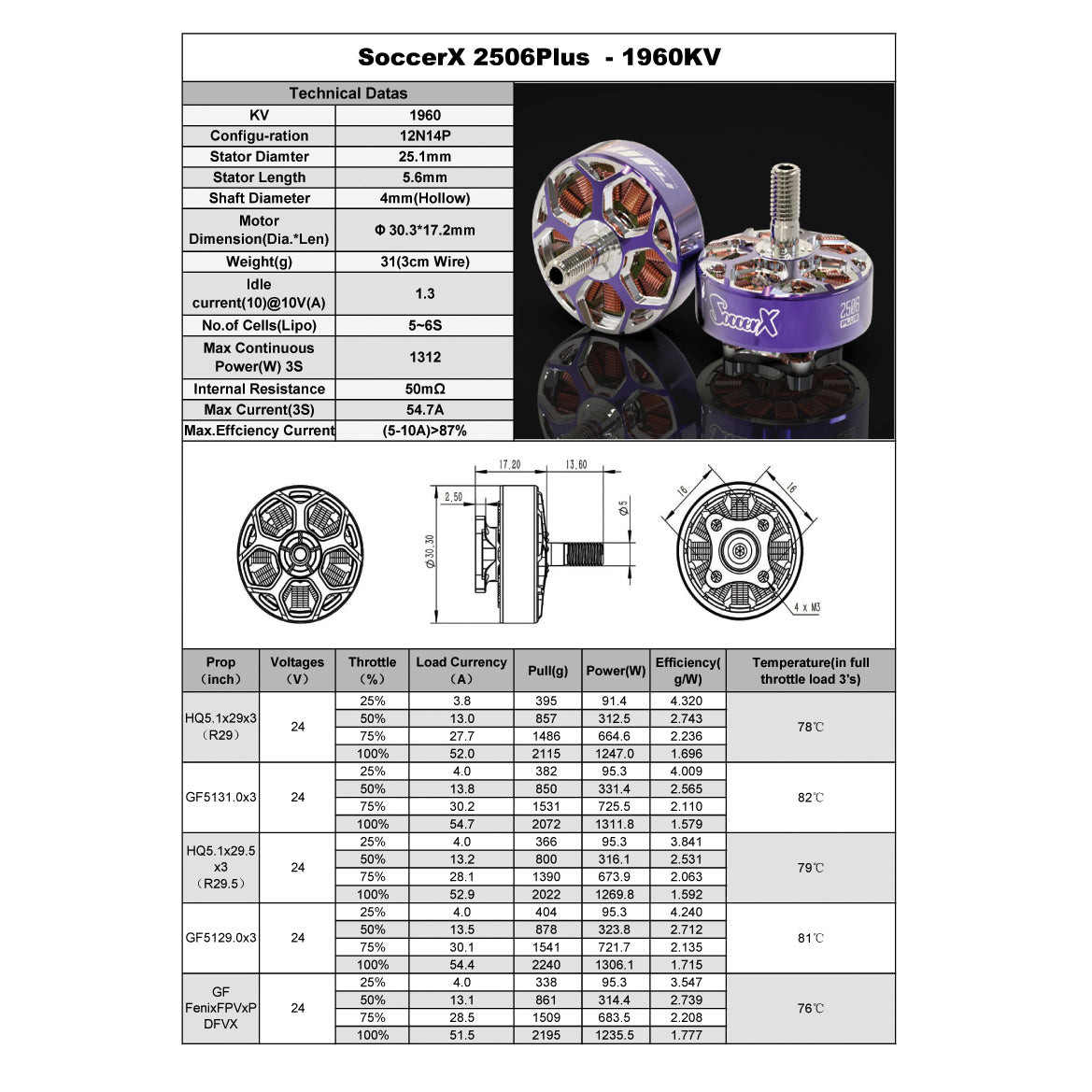

Technical Specifications:

• Model: RCinPower 2506

• KV: 1960 ,2560

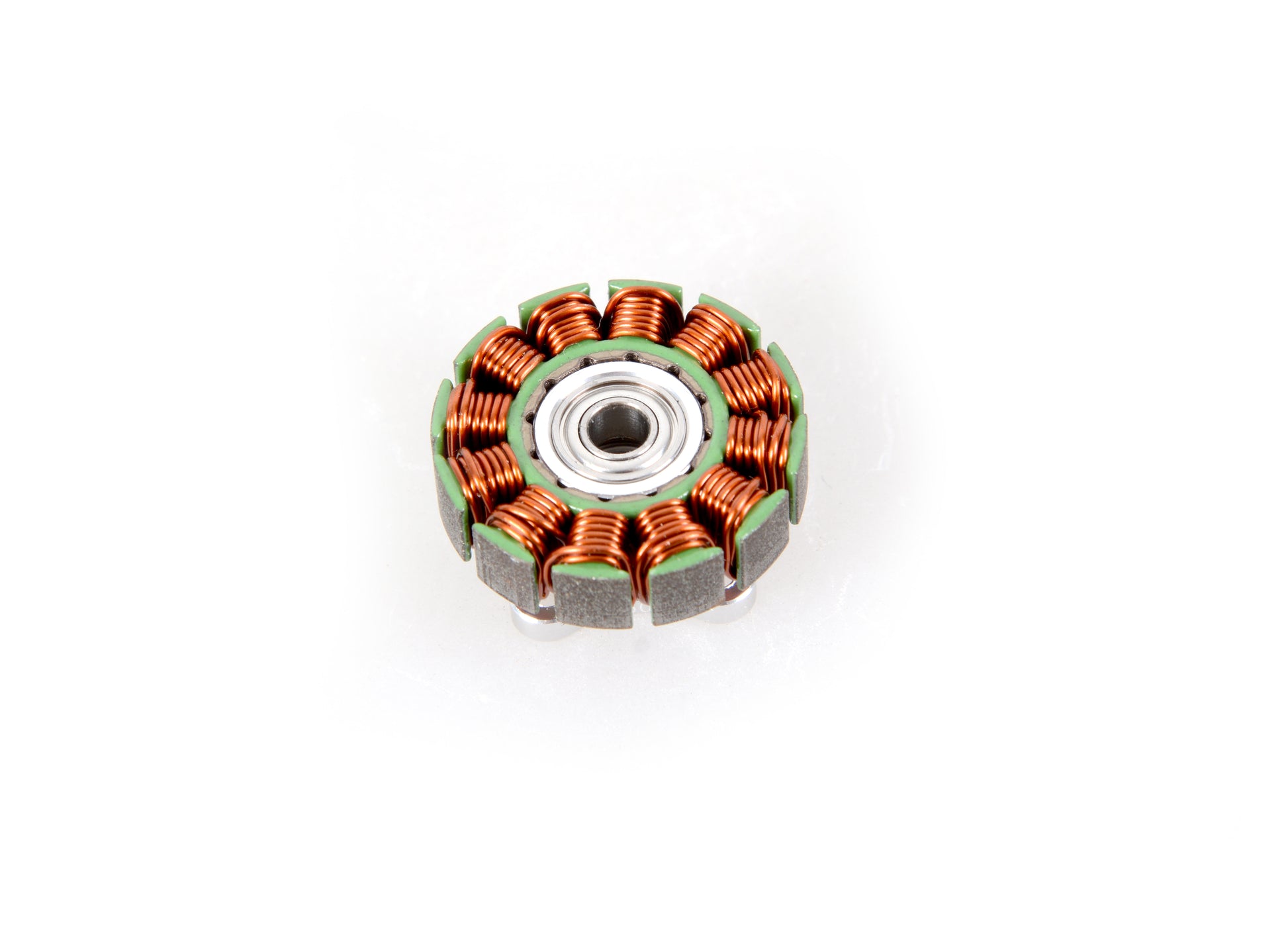

• Stator Size: 25.0mm x 6.0mm (2506)

• Shaft Diameter: 3.175mm (M3)

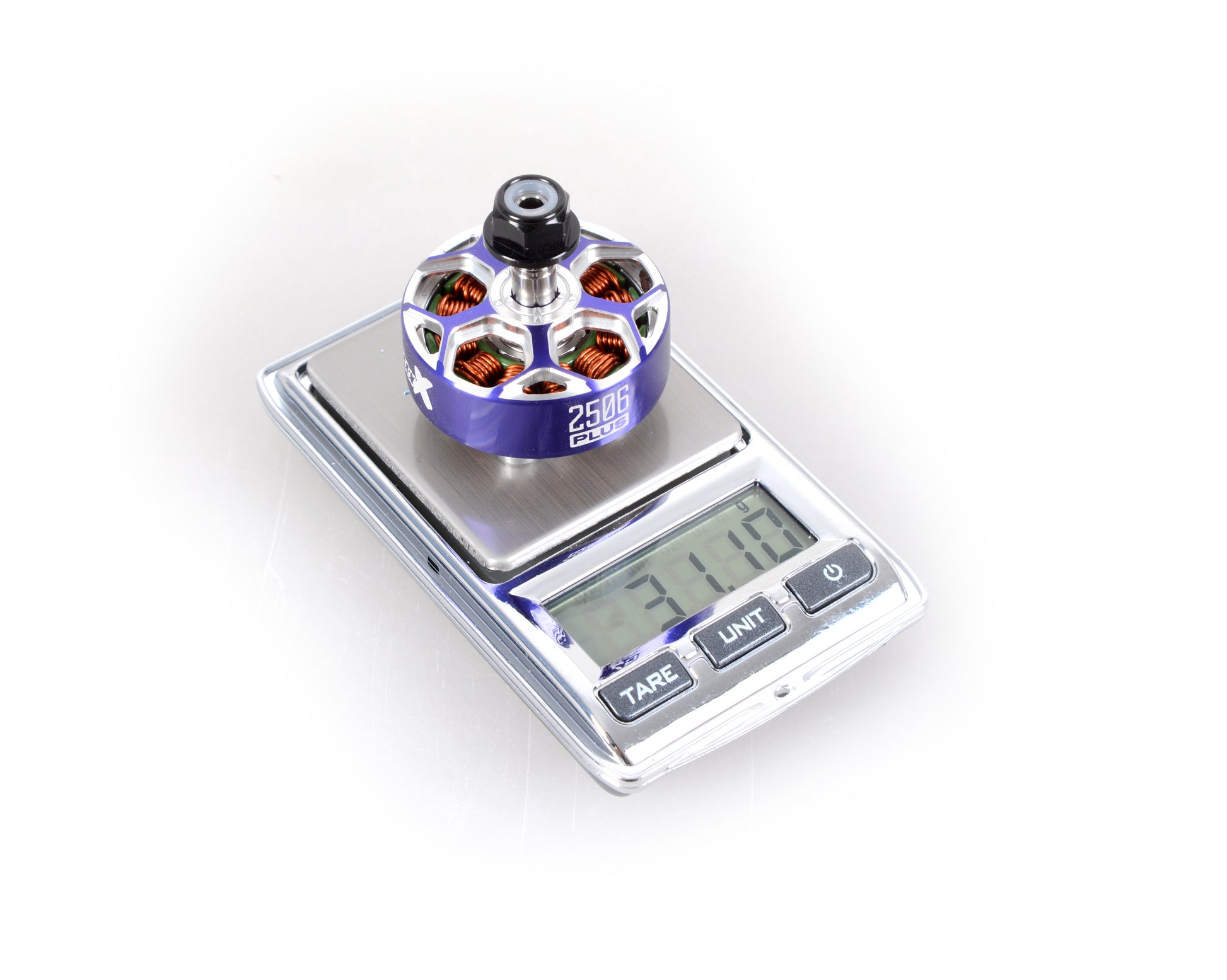

• Weight: Approx. 32g

• Max Continuous Current: 45A

• Max Power: 630W (6S)

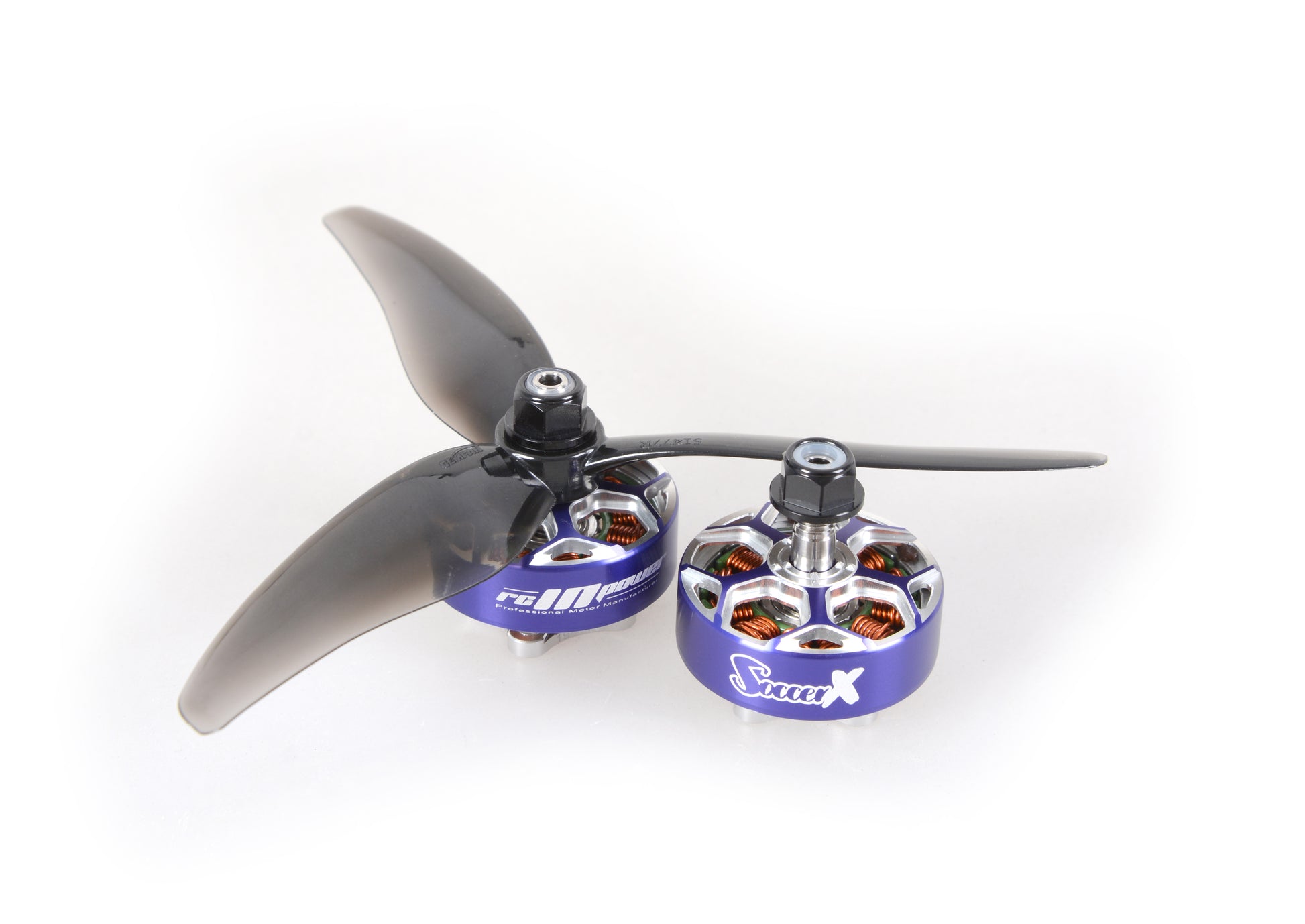

• Recommended Prop: 5-inch (e.g., 5x4x3, 5x3x3)

• Recommended Battery: 4-6S LiPo

Who Is This Motor For?

This motor is the ultimate choice for:

• Competitive FPV Racers needing instant throttle response.

• Advanced Freestyle Pilots seeking reliable power for complex tricks.

• Cinematic FPV Builders who require smooth, vibration-free performance.

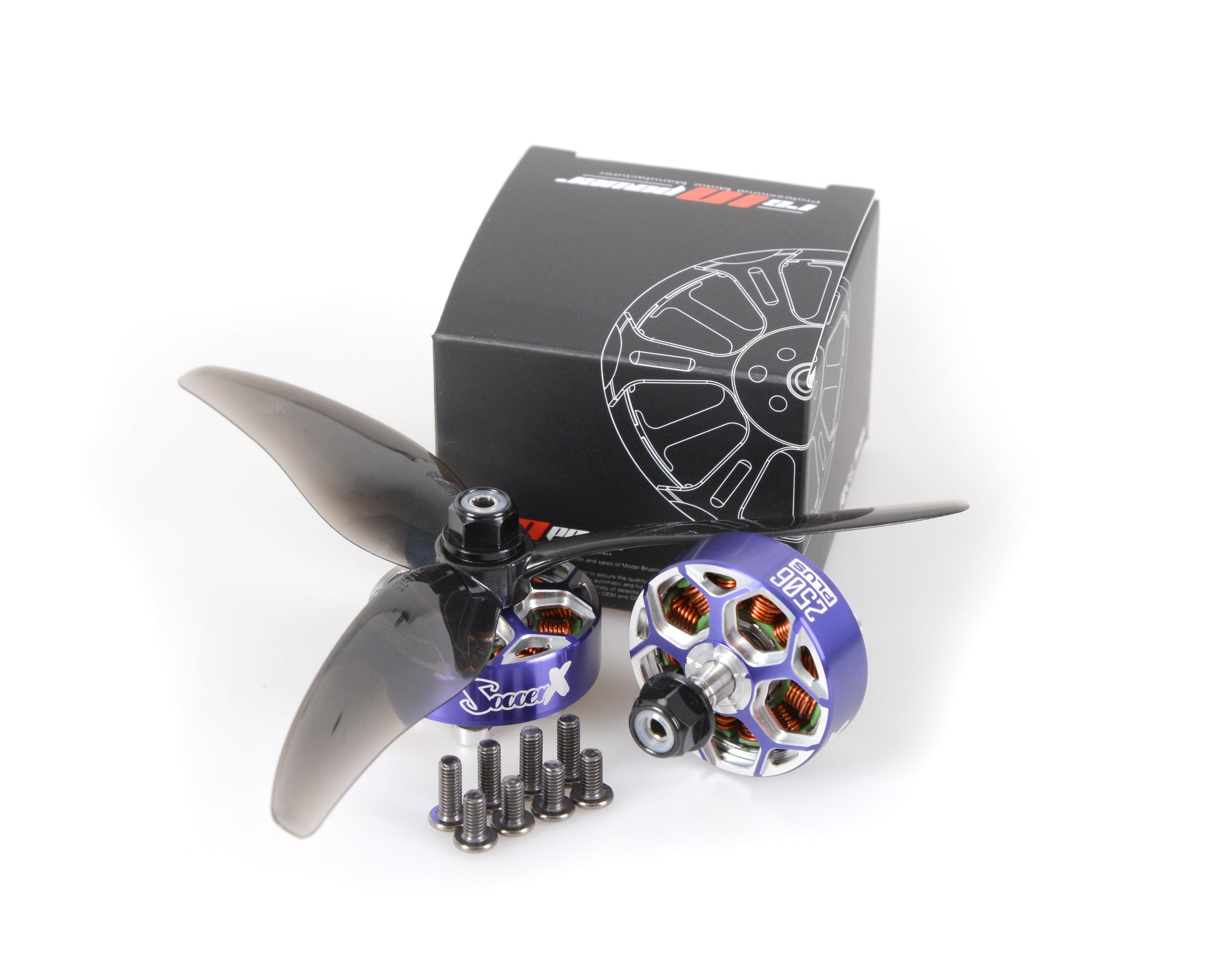

What's in the Box?

• 1 x RCinPower 2506 1960KV/2560KV Brushless Motor

• 4 x M3 Mounting Screws

Upgrade Your Build Today!

Stop compromising on performance. Add the RCinPower 2506 1960KV motor to your cart now and feel the difference that professional-grade engineering makes.
