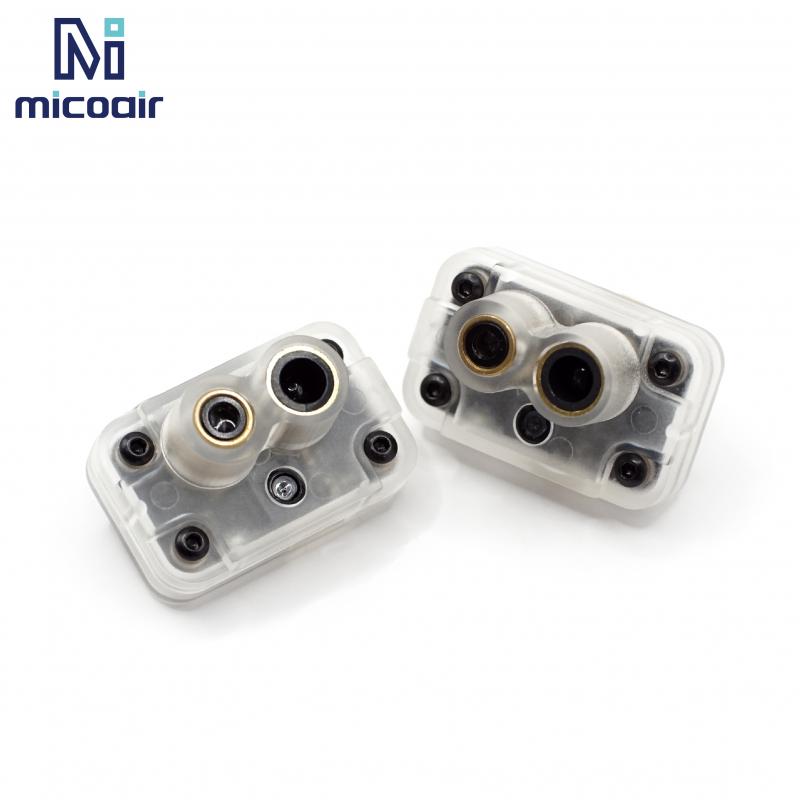

MicoAir MTF-01P Optical Flow & Lidar Sensor

MicoAir MTF-01P Optical Flow & Lidar Sensor

You'll achieve greater accuracy in navigation with our MTF-01P Optical flow & 12m Range 2IN1 Sensor, thanks to its advanced technology and 12 meter range. Make smarter decisions and stay in control with our optical sensor solution.

Check out all our FC Accessories and the rest of our MicoAir Products!

Specifications

• Output Mode: UART 115200
• Output Interface: LVTTL (3.3V)
• Protocol: Micolink/Mavlink/MSP
• Output Rate: 100Hz
• Firmware Supported: Ardupilot/PX4/INAV/FMT
• TOF Range: 12m@90% reflectance/600Lux; 8m@90% reflectance/60KLux;
• Center Wavelength: 808nm
• Emitting Angle: 1.5°
• Dead Zone: 2cm
• Ranging Accuracy: 2cm(0.1-2m@90% reflectance);2%(>2m@90% reflectance)
• Optical Flow FOV: 42 °
• Max Speed Measurement: 7m/s@1m height
• Ambient Light Demand of Optical Flow: >60Lux
• Optical Flow Working Distance: >8cm
• Light source: Laser
• Power Consumption: 500mW
• Supply voltage: 5V

Physical

• Mounting: 24.3 x 12mm, Φ2.5mm
• Dimensions: 33.2 x 20.8 x 16.8 mm
• Weight: 8g
