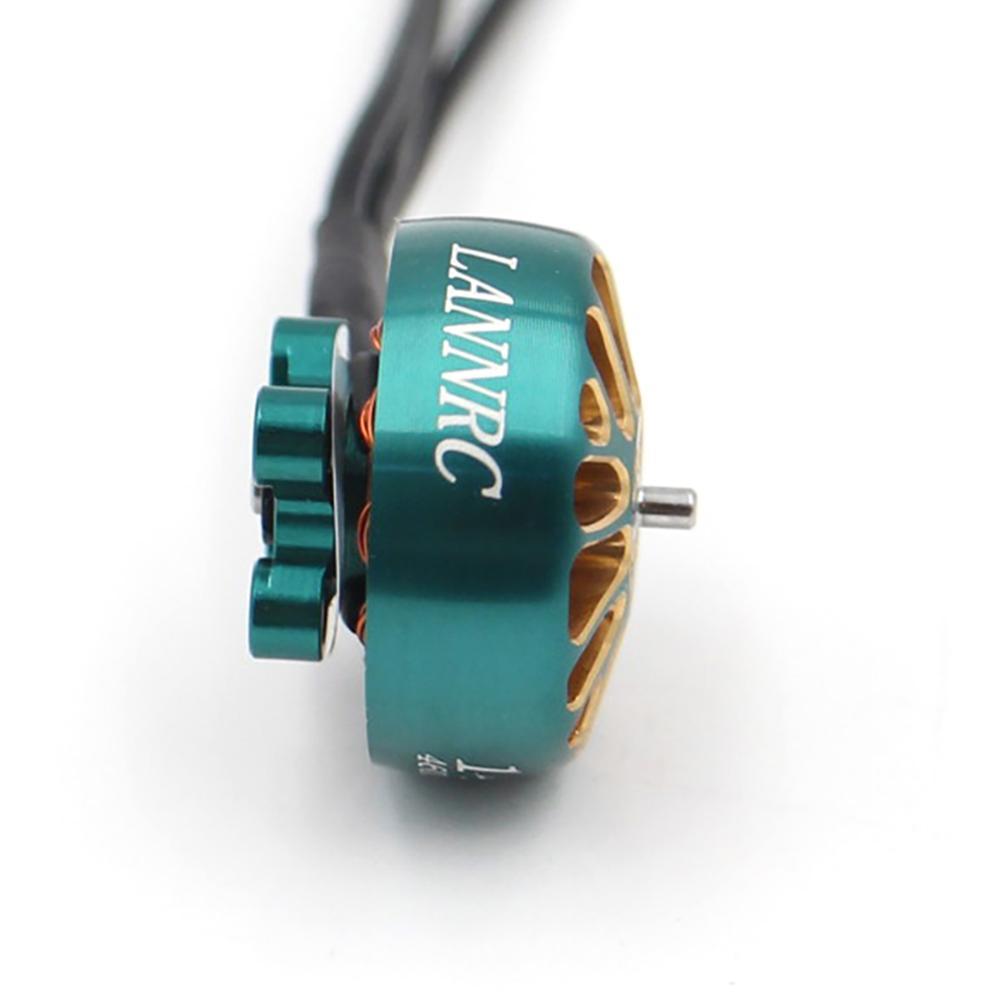

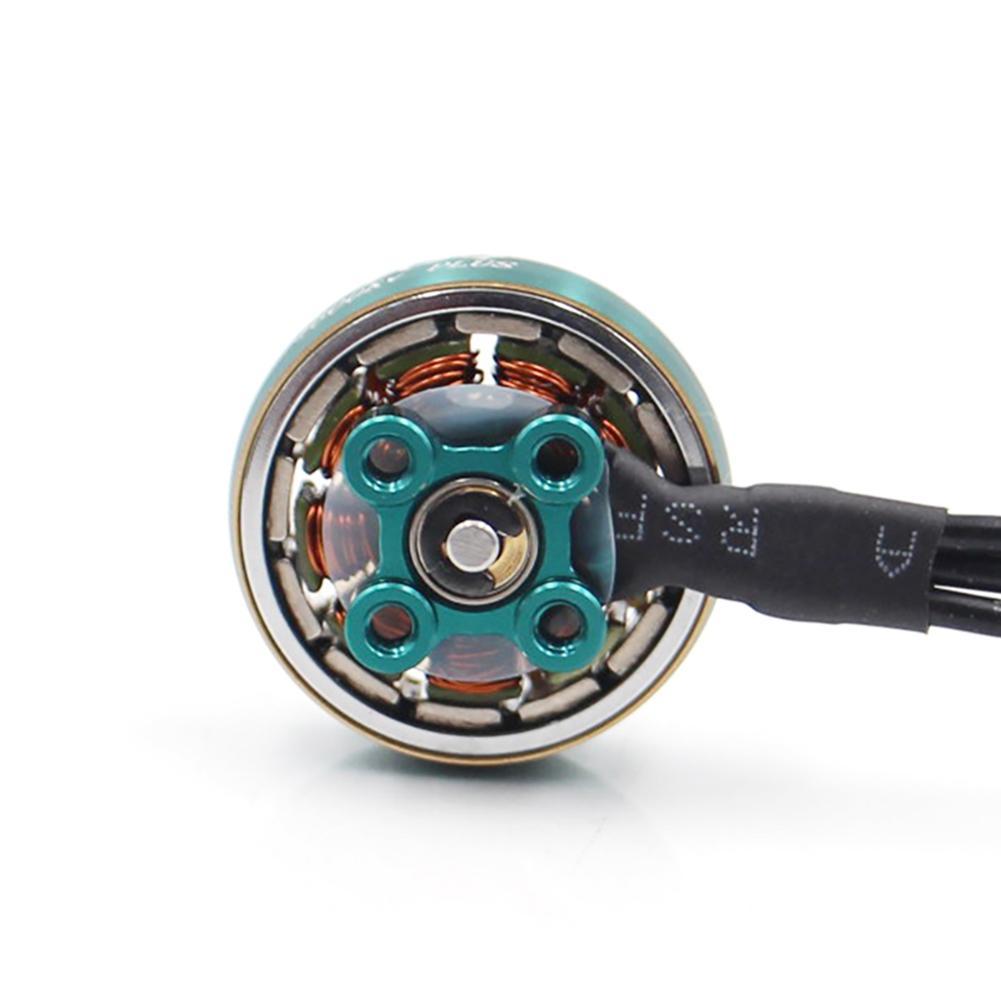

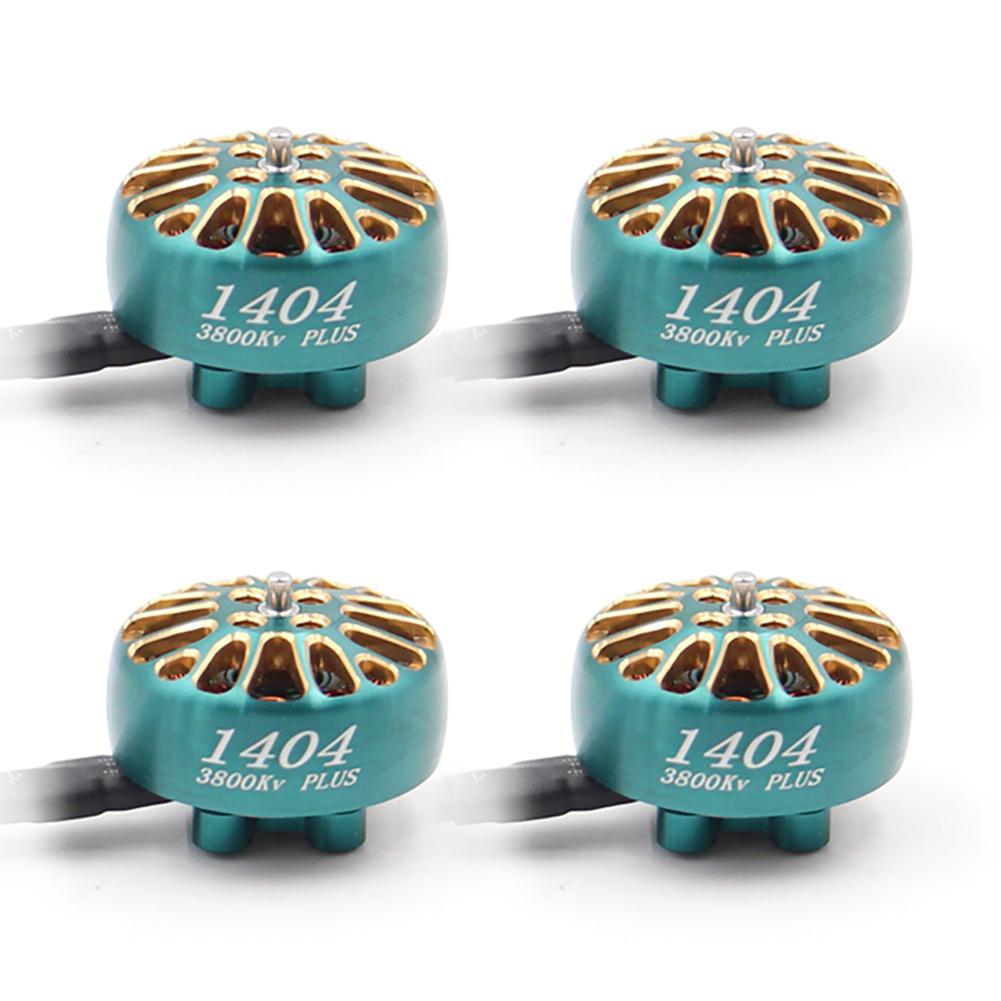

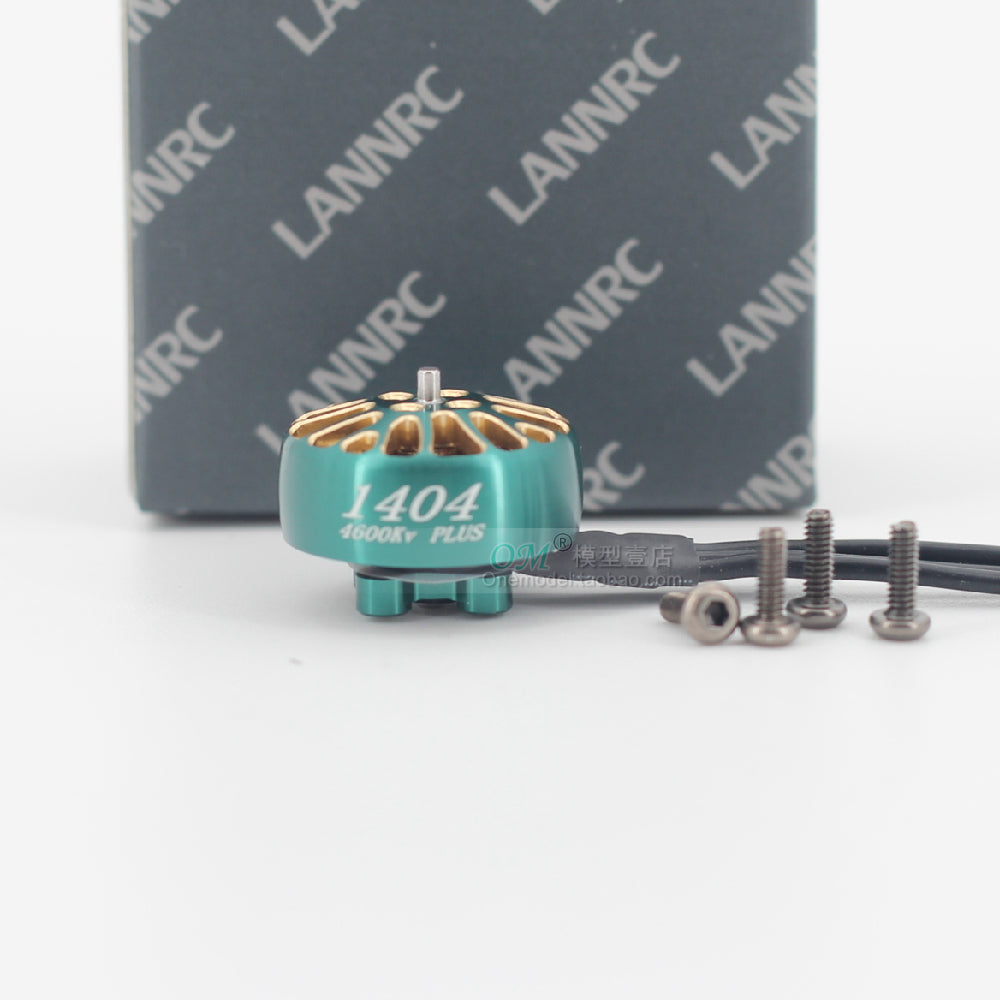

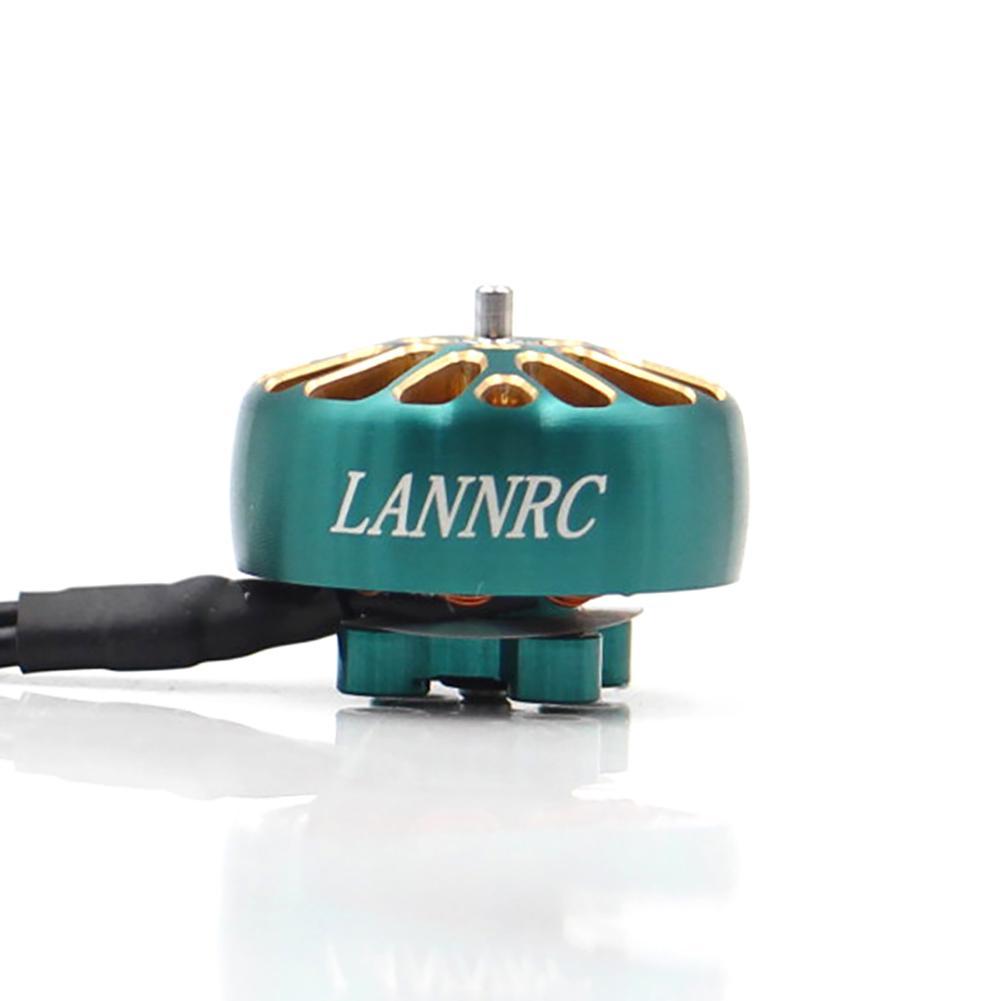

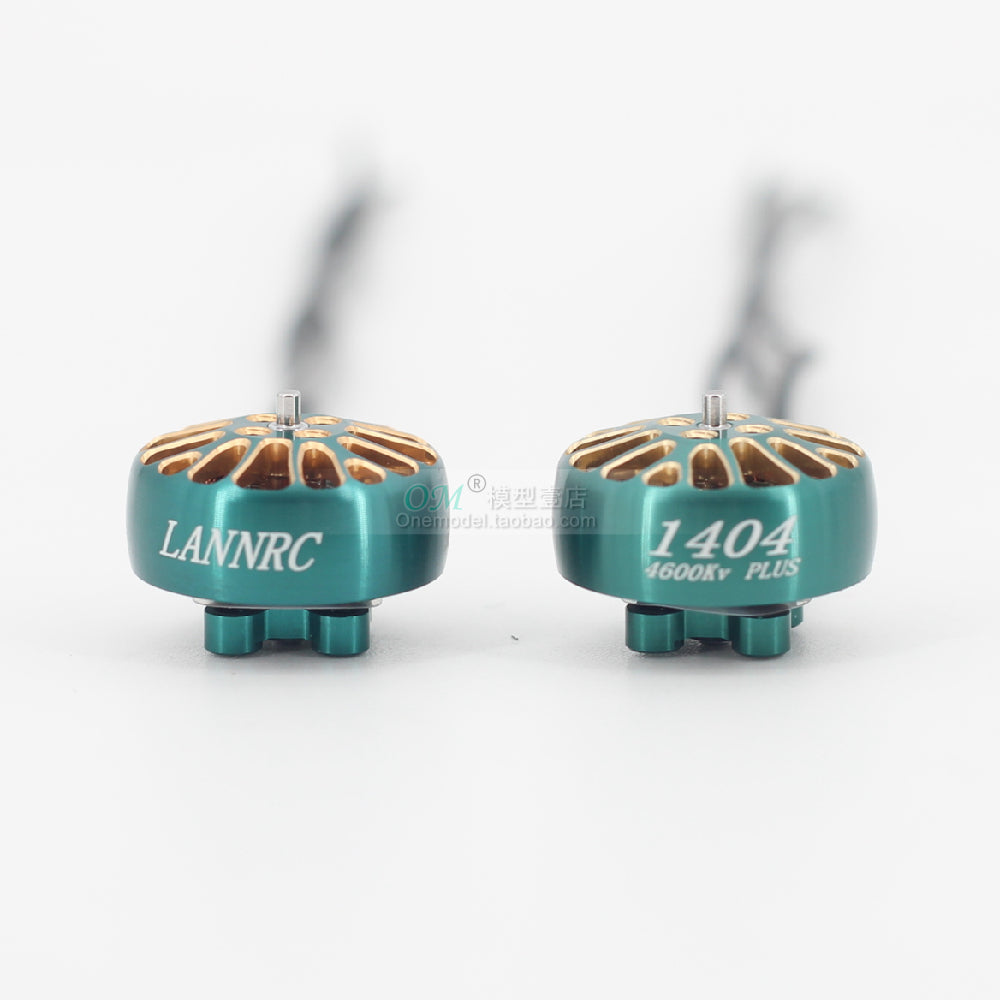

LANNRC 1404 Plus 3800kv 4600kv Brushless Motor

Name: LANNRC 1404 3800KV 4600KV Brushless Motor
Brand Name: LANNRC
Model: 1404 PLUS
KV:3800 / 4600

3800KV
Confign Ration:9N12P
Stator Diameter:14mm
Stator Length:4mm
Staft Diameter:2mm
Size: Φ19.3 x 14.8mm
Weight:10.0g
Idle Current(10)@10V:≤0.6A
NO.of Cells(LIPO):2-4S
Max Contimous Power(W)60S:240W
Internal Resistance:142mΩ
Max Current(60S):15A
Cable: 22AWG # 150mm Cable

4600KV
Configu-ration: 9N12P
Stator diameter: 14mm
Stator Length:4mm
Staft Diameter:2mm
Size: Φ19.3 x 14.8mm
Weight:10.3g
Idle current (10) @10V: ≤0.72A
No. of cells (Lipo): 3~4S
Max continuous power (W) 60S: 287.8W
Internal Resistance: 159mΩ
Max current(60S): 17.99A
Cable: 22AWG # 150mm Cable
