IFlight XING2 3106 1500KV 6S Brushless Motor

Model: XING2 3106 Motor

KV: 1200KV / 1500KV

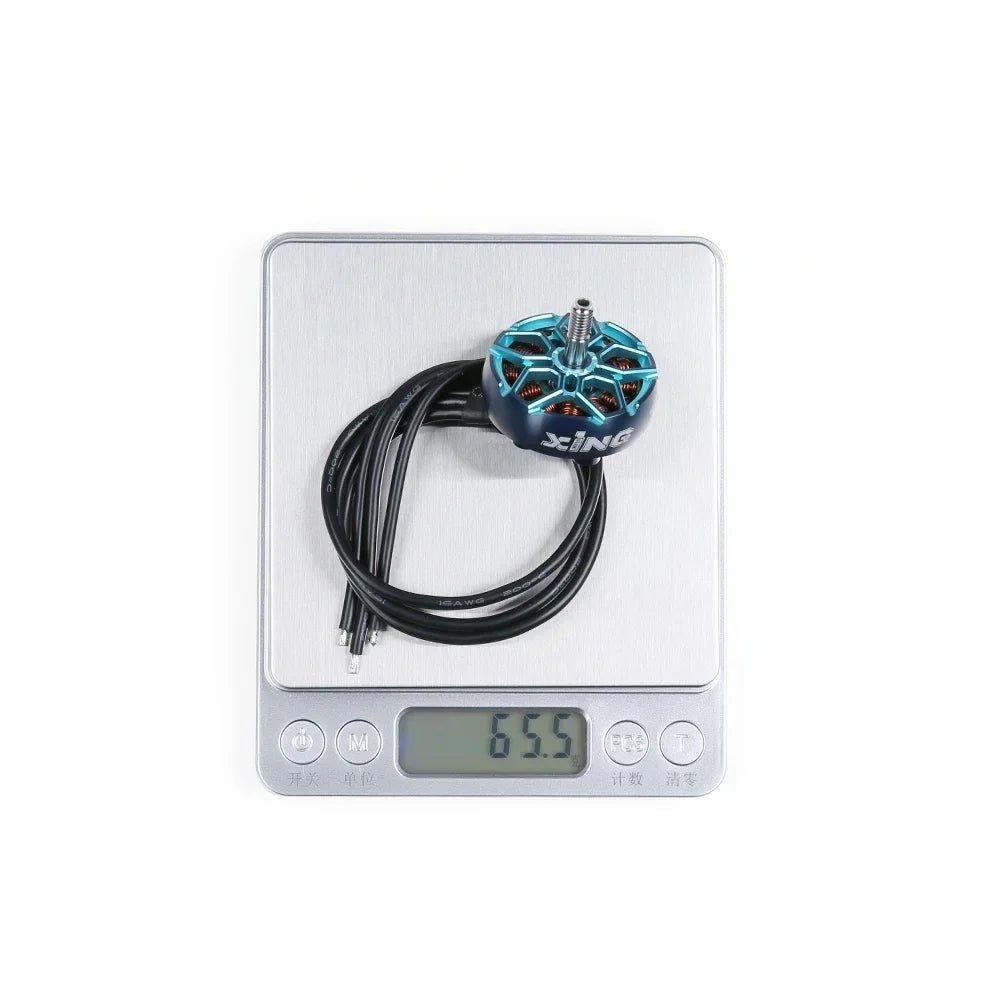

Weight(included wire): 58g

Dimension: φ38.6*21mm

Interphase Resistance: 64.5mΩ /  45.3mΩ

Input Volts: 24V

Peak Current: 63.01A / 68.5A

Max Watt: 1512W / 1644W

Mounting Holes: 19*19 φ3mm

Rotor Specifications:  Unibell

Shaft Diameter: 5mm

Shaft Protruding Length: 15mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ11*φ5*5

Winding: Single Strand copper winding
