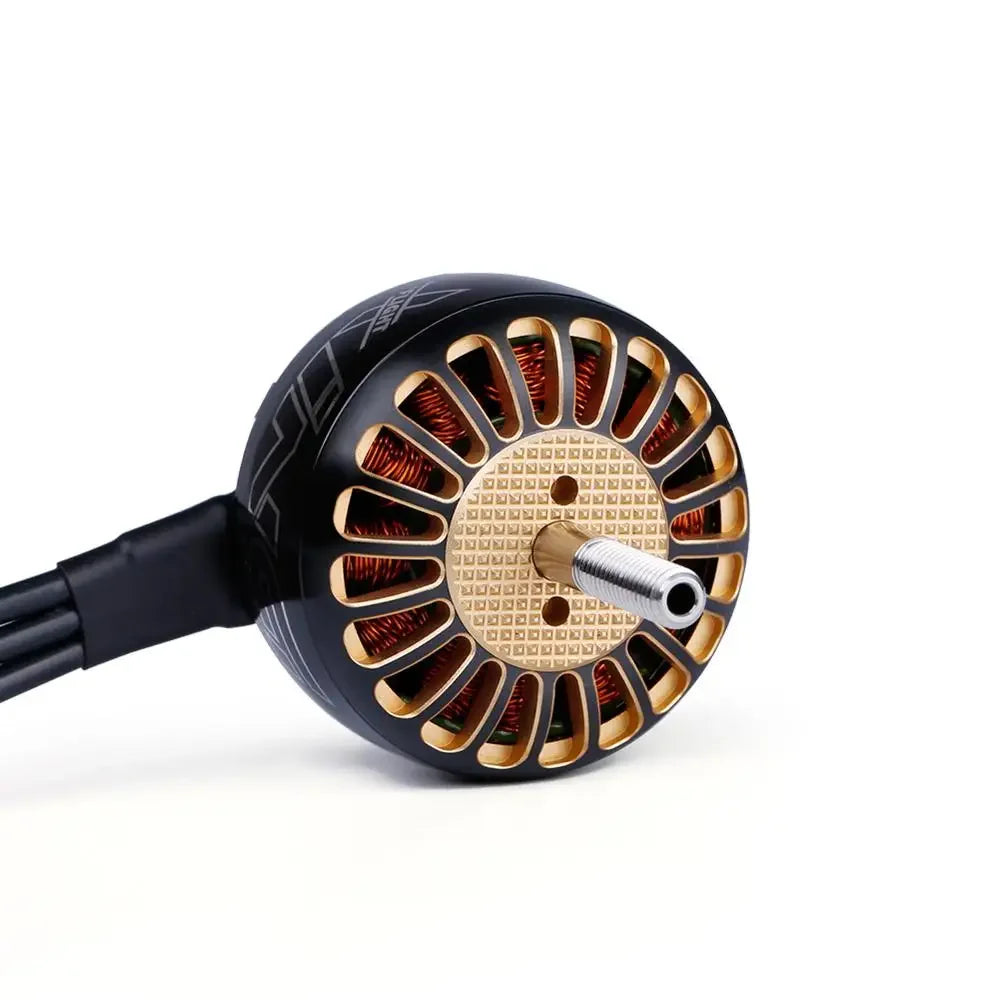

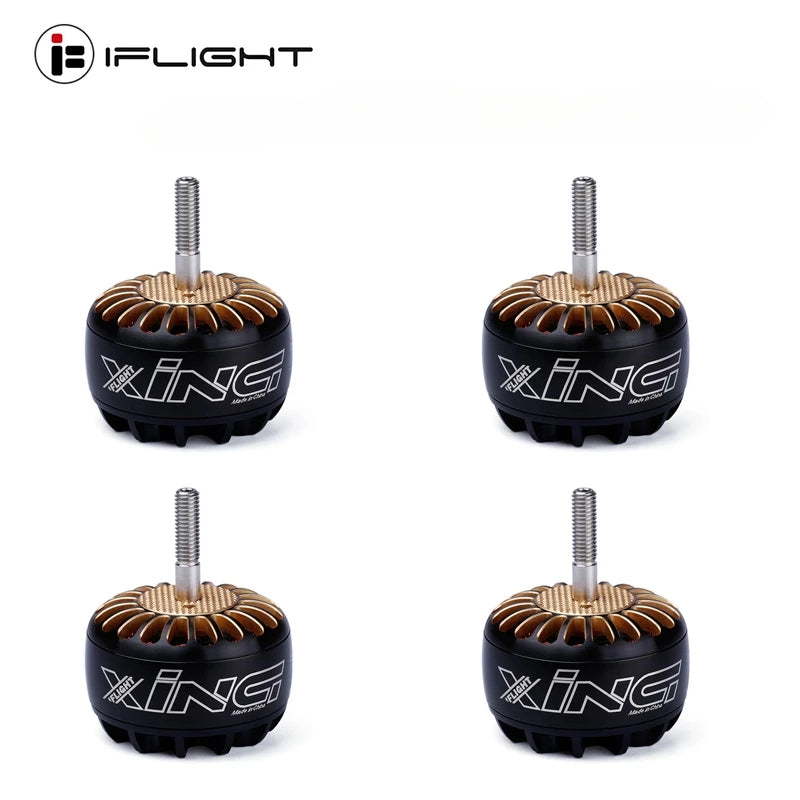

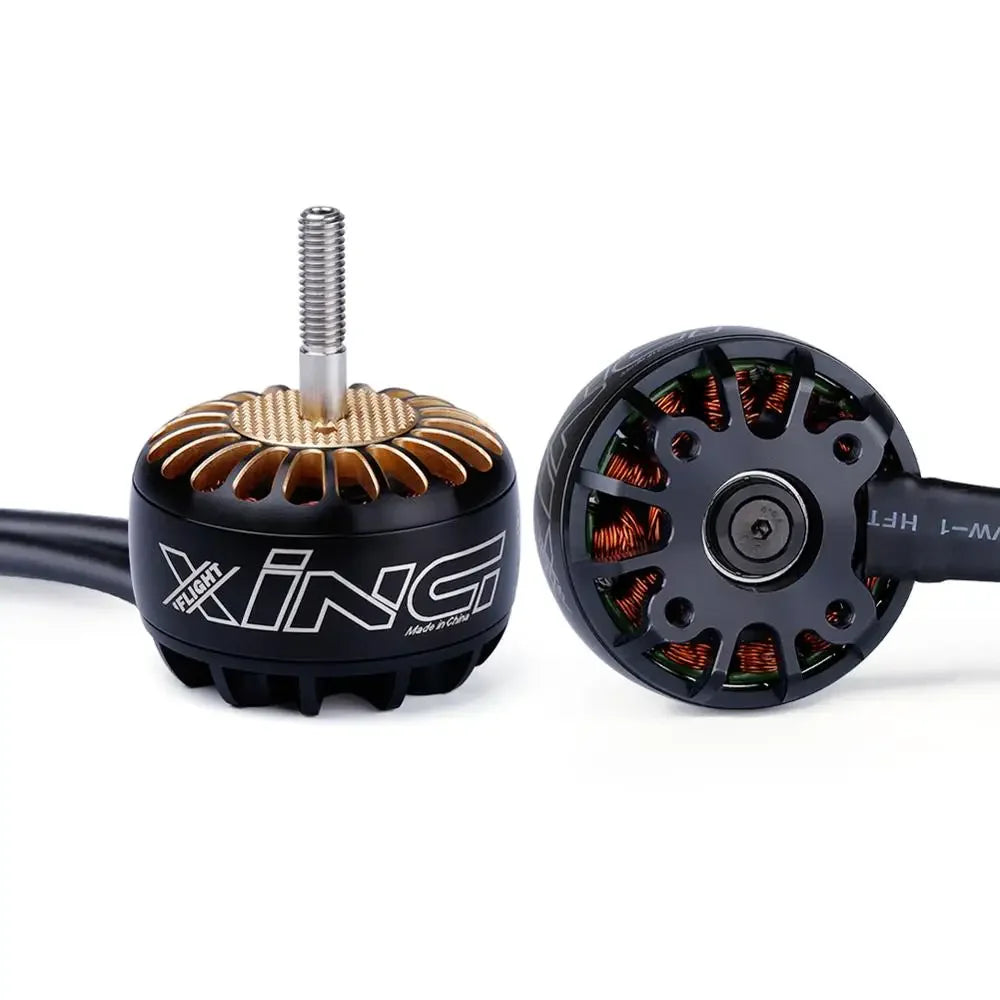

IFlight XING T4214 Brushless Motor

IFlight XING T4214 4214 400KV / 660KV 3-8S X-CLASS Brushless Motor compatible 14/15/16inch propeller for iX15 X-class FPV Drone
Descriptions:
The iFlight XING T4214 motor is designed to offer responsive power with a low KV. It's perfect for 6S 15 "X-Class racing drone like iX15! Named after and inspired by the XING series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Pacific copper wires in combination with N45SH magnets & very small air gap. EZO bearings provide a silky smooth flight. All of these results in incredible flight performance and experience!

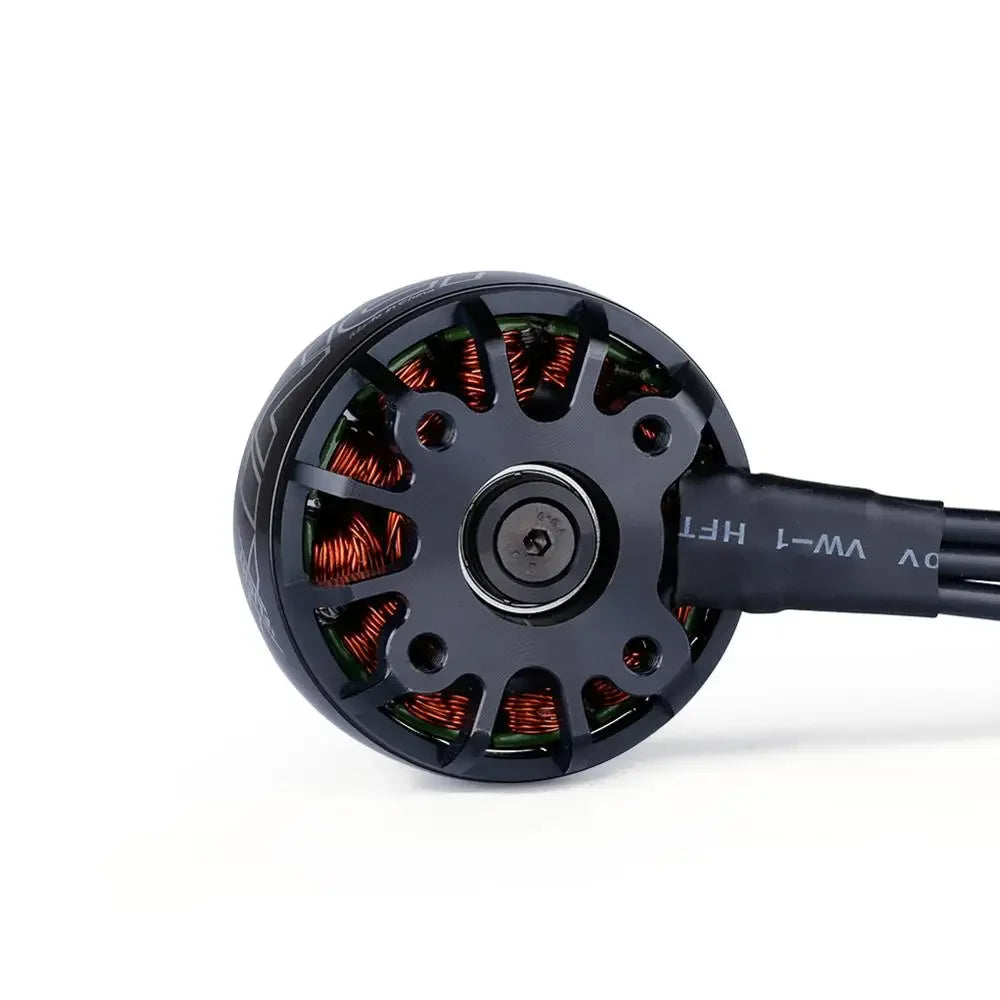

Anti-slip aluminum bell, 420 stainless steel 26.5mm (outer length) φ6mm shaft & M6 hex nut allows most propellers on market to be easy to install and remove on T4214. Pre-tinned 800mm wires and 4mm threaded holes in 30 * 30mm pattern on the back plate apply to most of the X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.
All in all, the new iFlight XING T4214 is definitely the first choice for X-Class racing!

Properties:
Specially developed for X-Class Racing
Oxidation color 7075 T6 milled aluminum bell and base
420 stainless steel
Japanese Kawasaki 1200 Iron Core
Solid Pacific 220 ℃ Heat Resistant Copper Wire & Winding
Long life Japanese EZO bearings
N45SH High-temperature tegular magnets, small air gap
Electromagnetically matched magnets and stator
Optimized heat dissipation structure design, 20% heat reduced
Max 7.9kg thrust from 660kv
50% -90% thrust max efficiency and thrust
Single piece 6mm shaft runs all over the engine to prevent bell warping in hard hits
Hex bolt shaft set screw for easy maintenance
Dynamically balanced
Motor wire protected

Specifications:
Name: iFlight XING T4214
KV: 400KV / 660KV
Structure: 12N14P
Stator diameter: 42mm
Stator length: 14mm
Outer Shaft length and diameter: 26.5mm M6
Motor size:? 50 * 33mm
Magnet: N45SH
Warehouse: EZO
Cable: 14AWG, 800mm
Weight: 270.1g w / cable

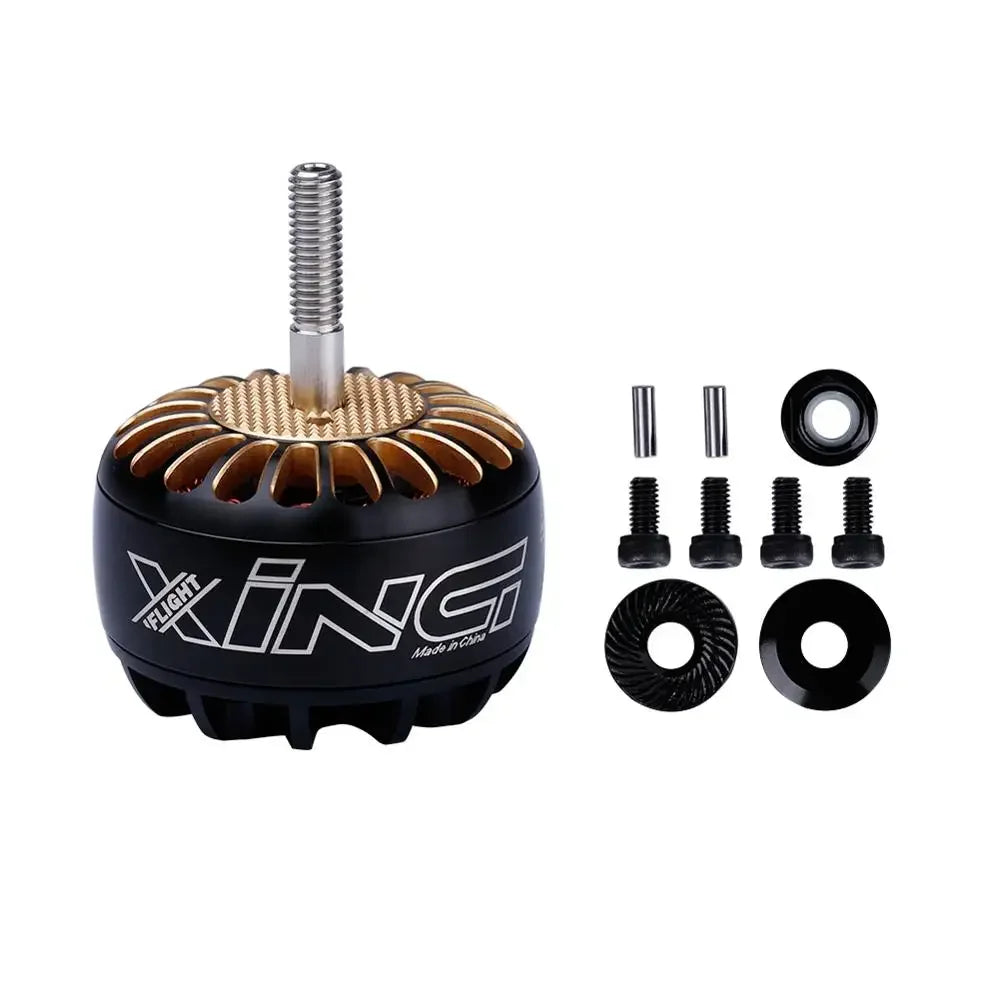

Package Include:
1pcs Xing T4214 X Class Racing Motor
Screw & nut 4 sets
