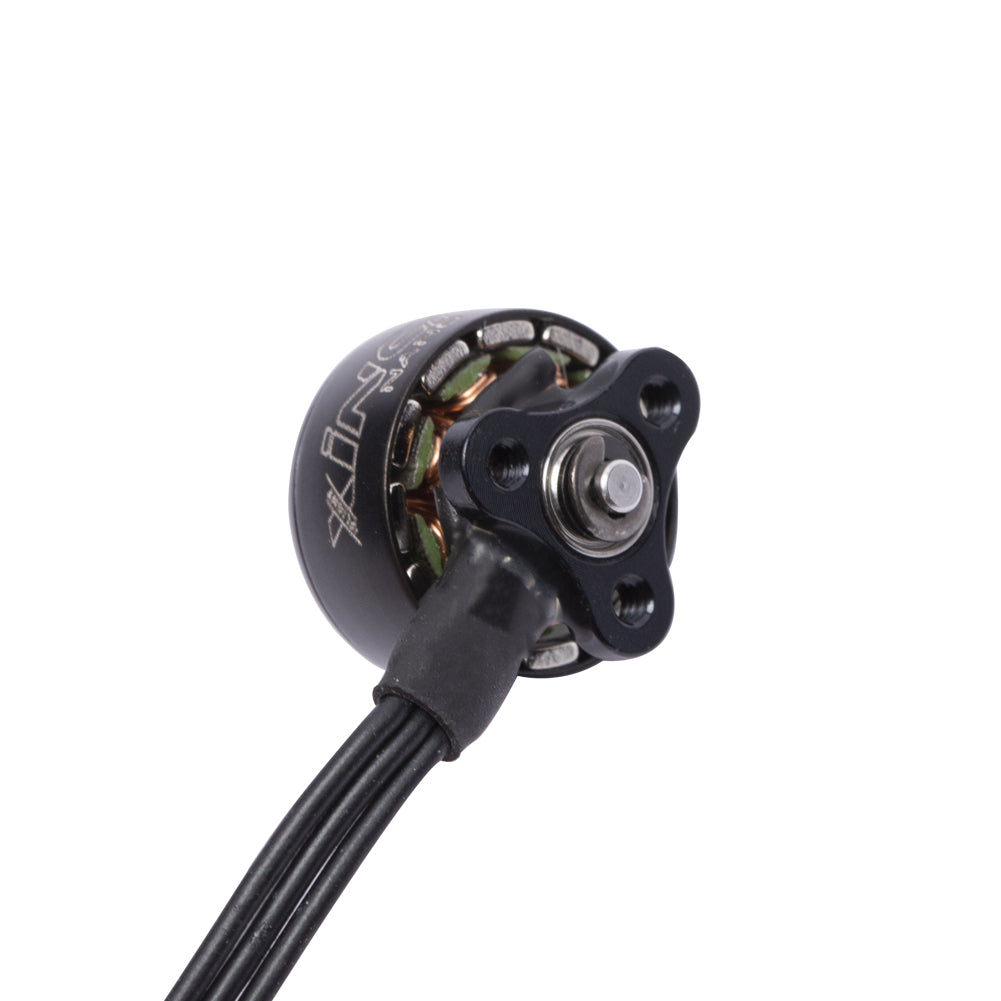

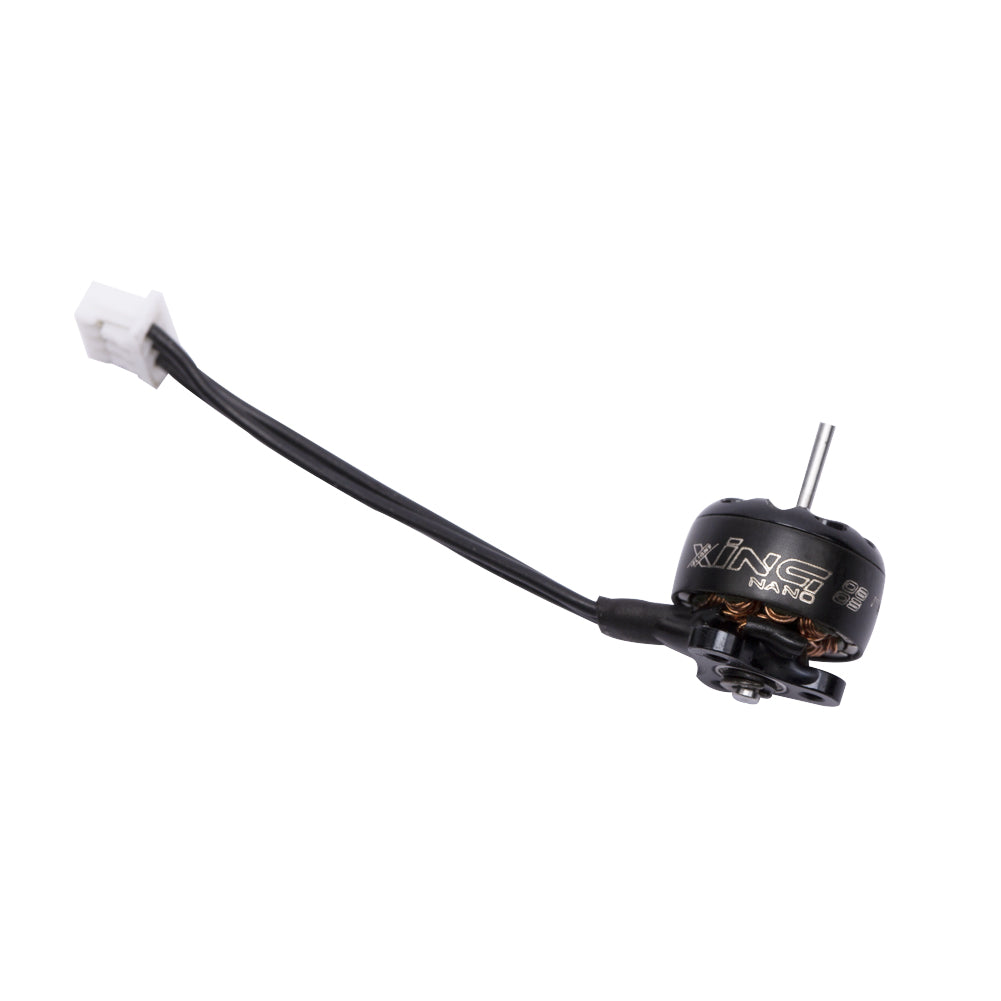

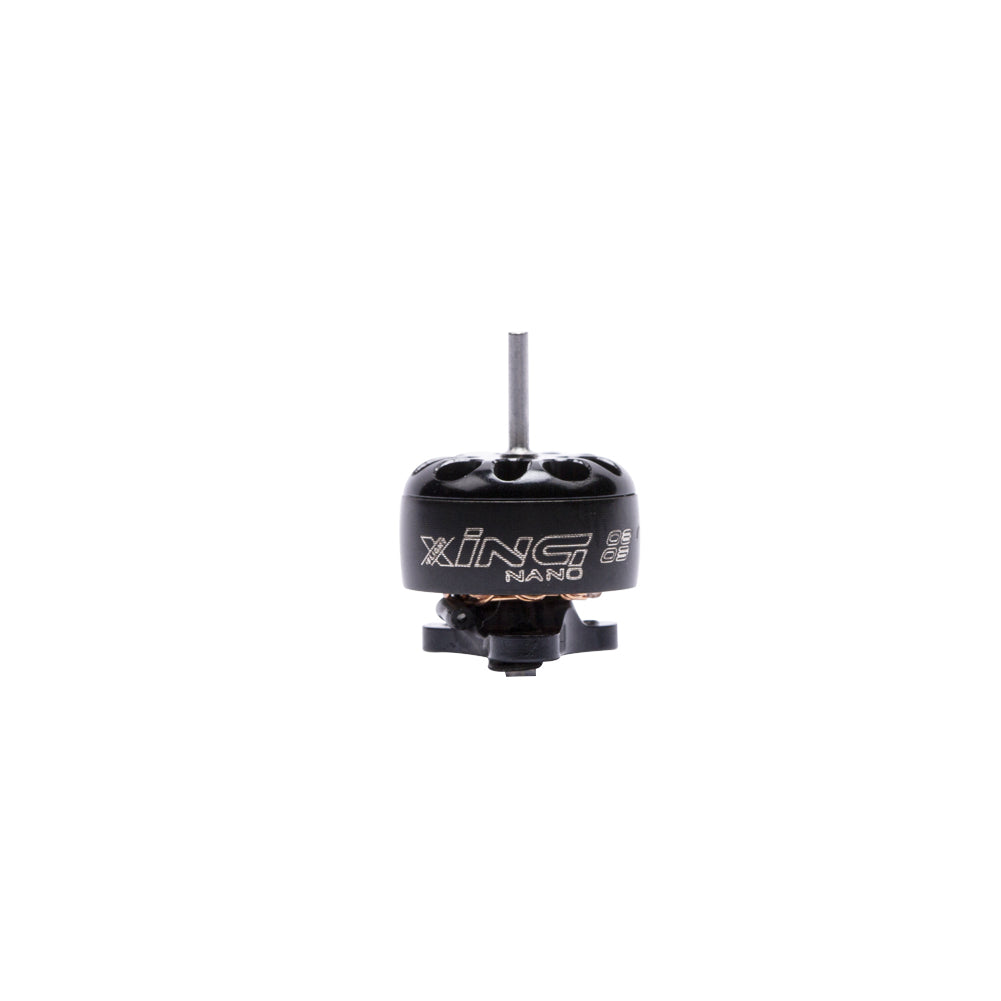

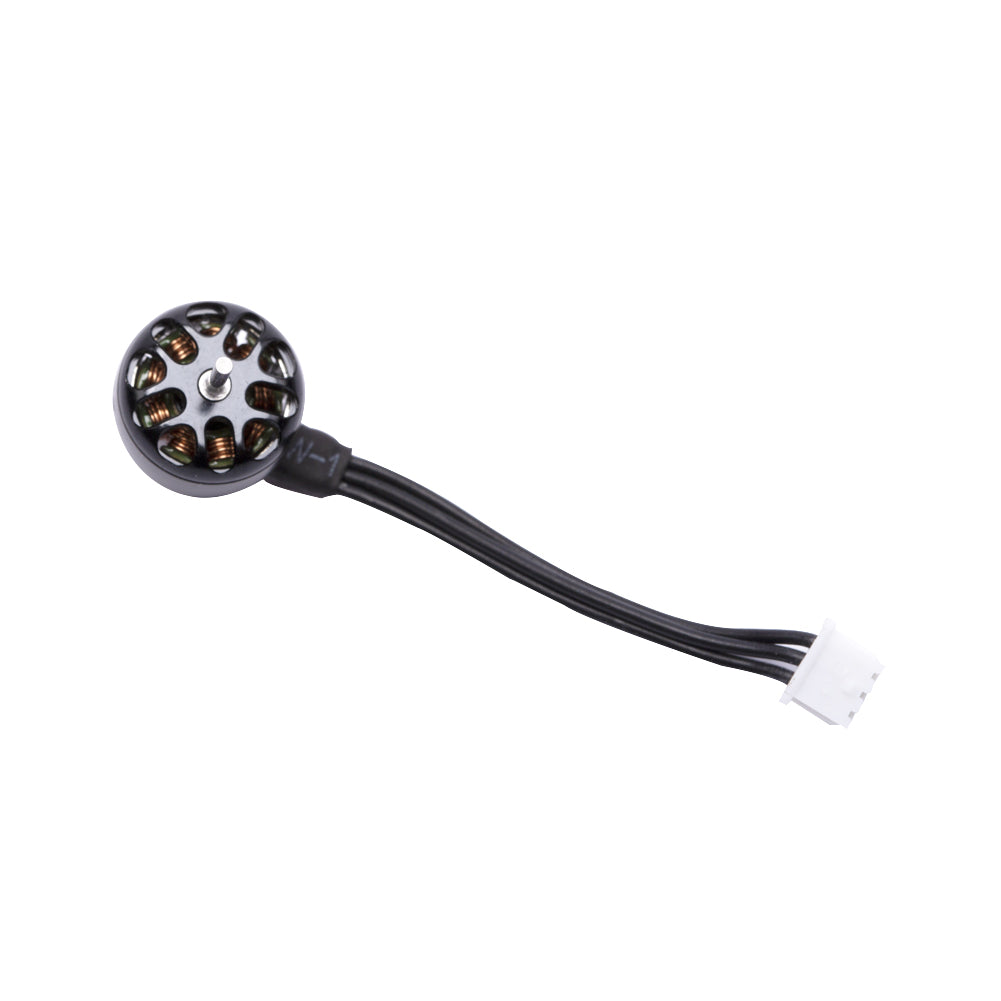

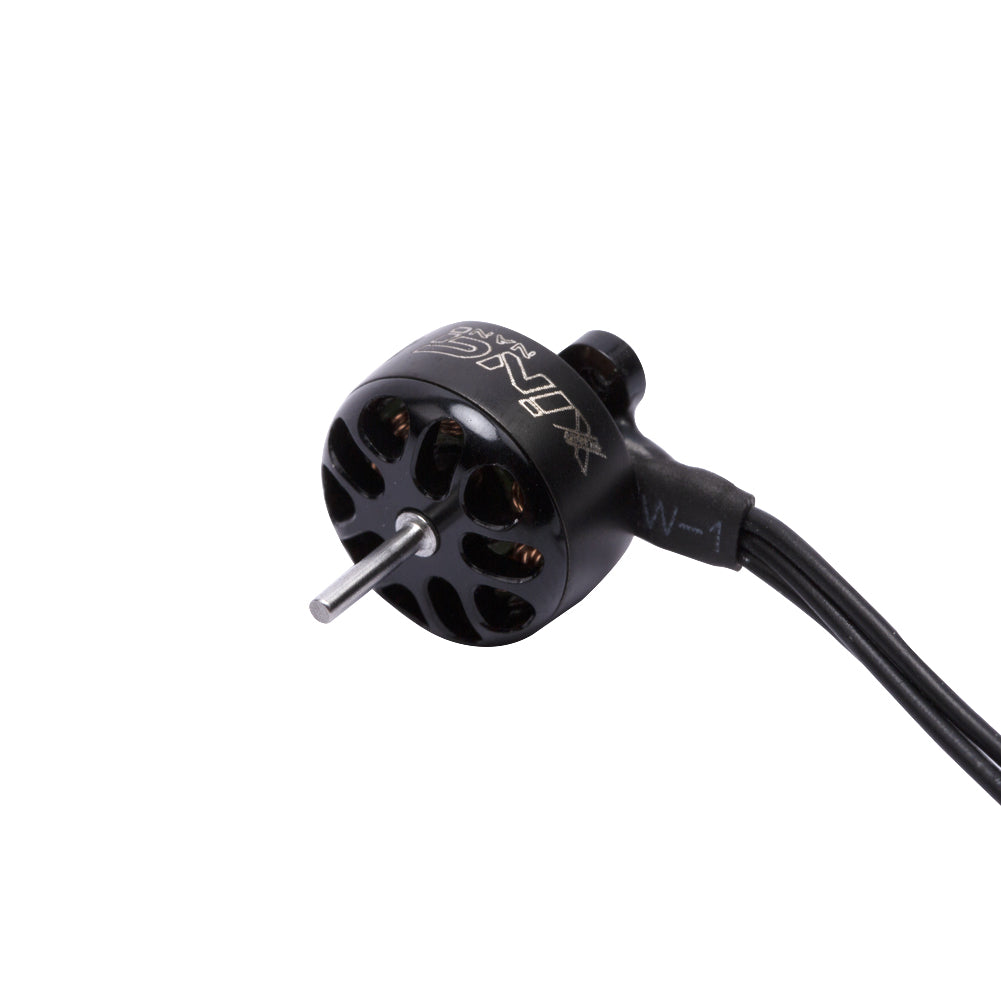

iFlight XING NANO 0803 Motor (wPlug) 17000kKV 22000KV Brushless FPV Drone Motor

iFlight XING NANO 0803 Motor (wPlug) 17000kKV 22000KV Brushless FPV Drone Motor

$13.99
$13.99
Sale Sold out
Shipping calculated at checkout.
color
Specifications

  • Model: XING NANO 0803

  • KV: 17000KV / 22000KV

  • Input Voltage: 1S Lipo

  • Configuration: 9N12P

  • Shaft: 1mm

  • Dimension: 10.9*9mm

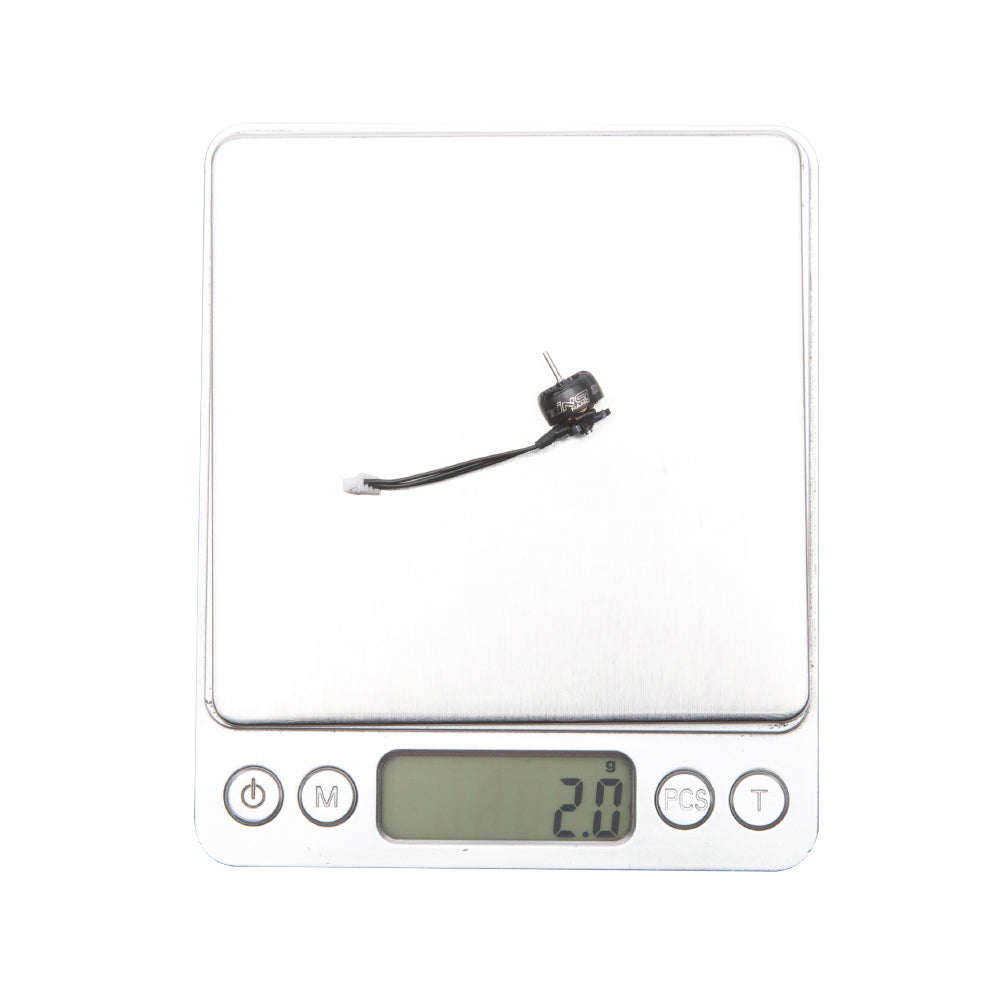

  • Weight: 2.1g (with 30mm wire plug)

  • Interphase Resistance: 58mΩ

  • Peak Current: 4.11A / 5.81A

  • Max Watt: 16.4W / 23.2W

  • Mounting Holes: 6*6 φ1.4mm

  • Rotor Specifications:  Unibell

  • Shaft Protruding Length: 5.5mm

  • Magnet: N52H Curved

  • Bearing Type: NSK

  • Winding: Single Strand copper winding
