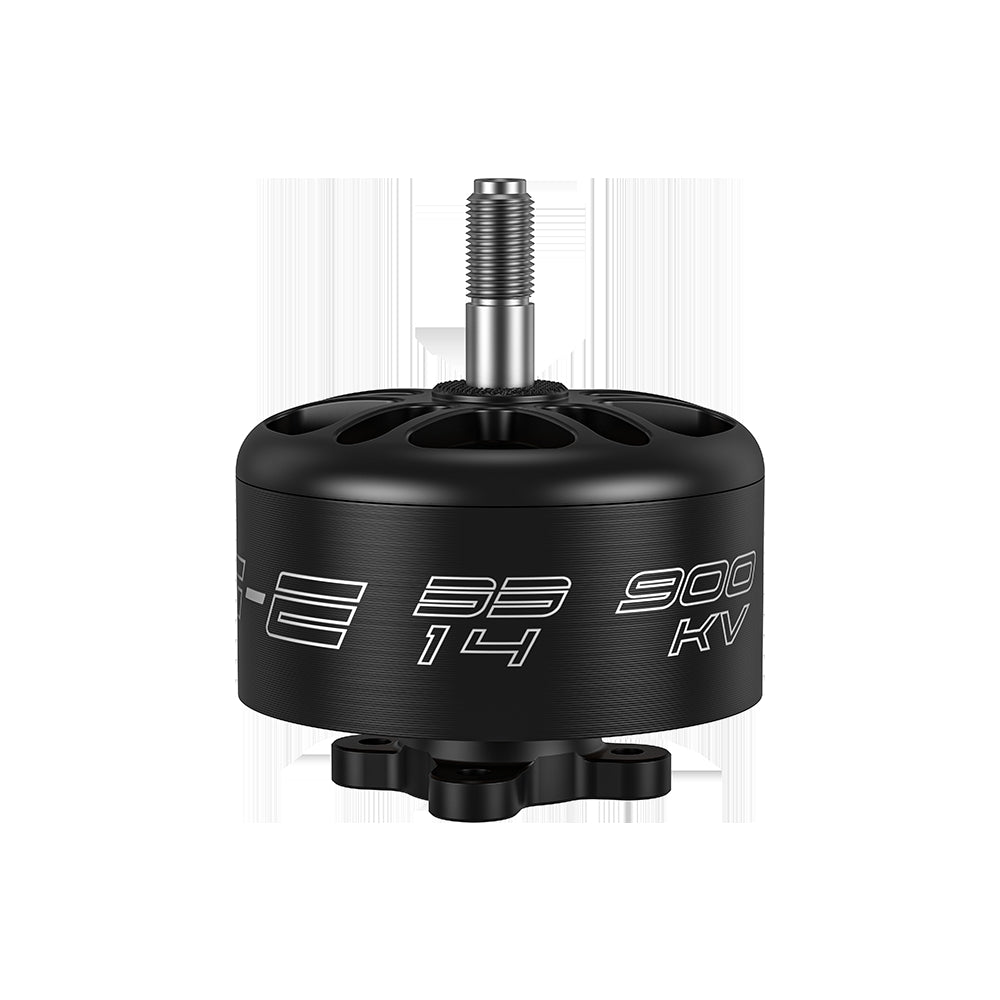

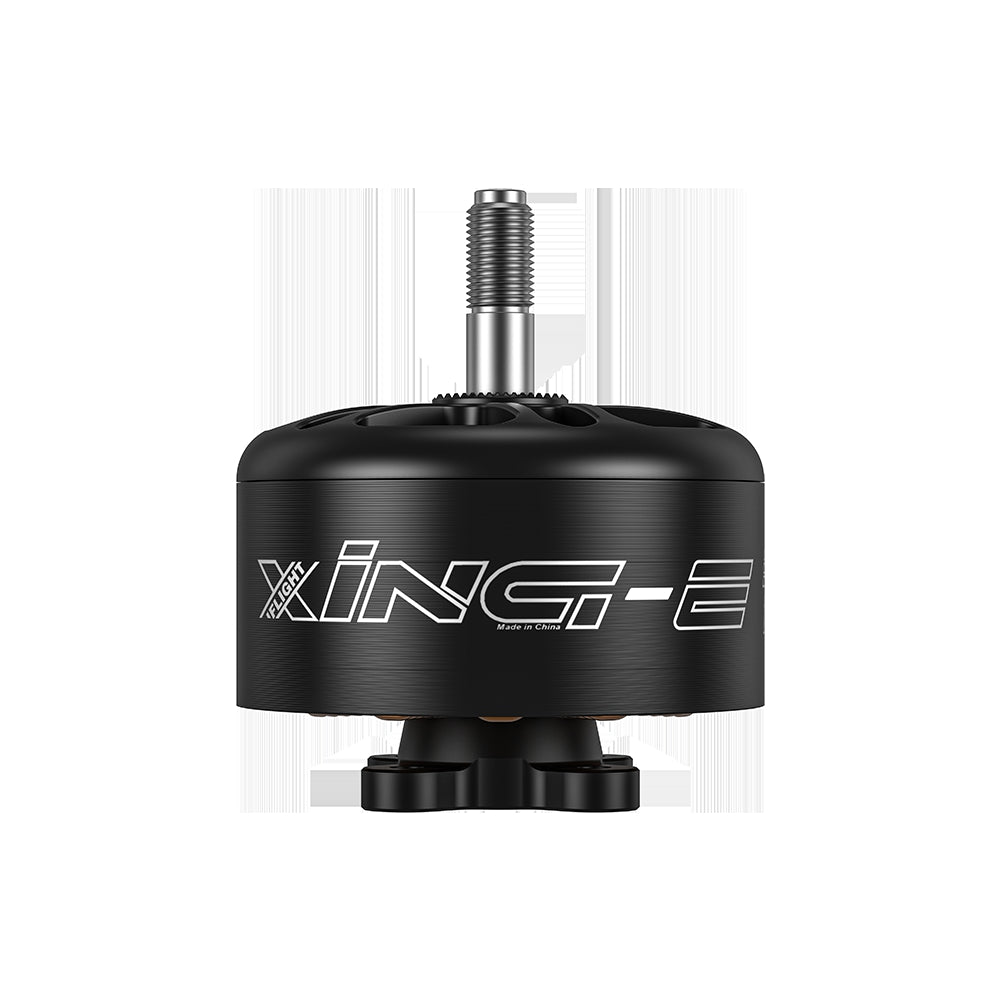

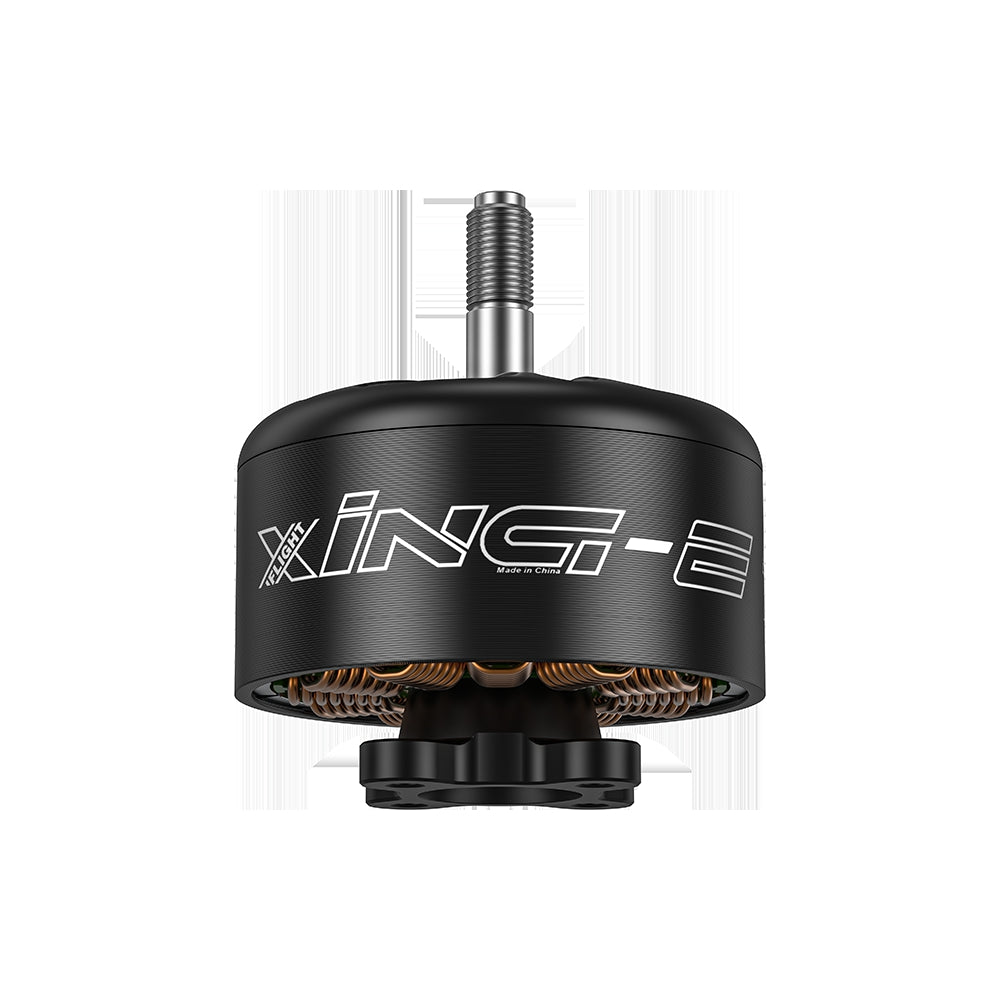

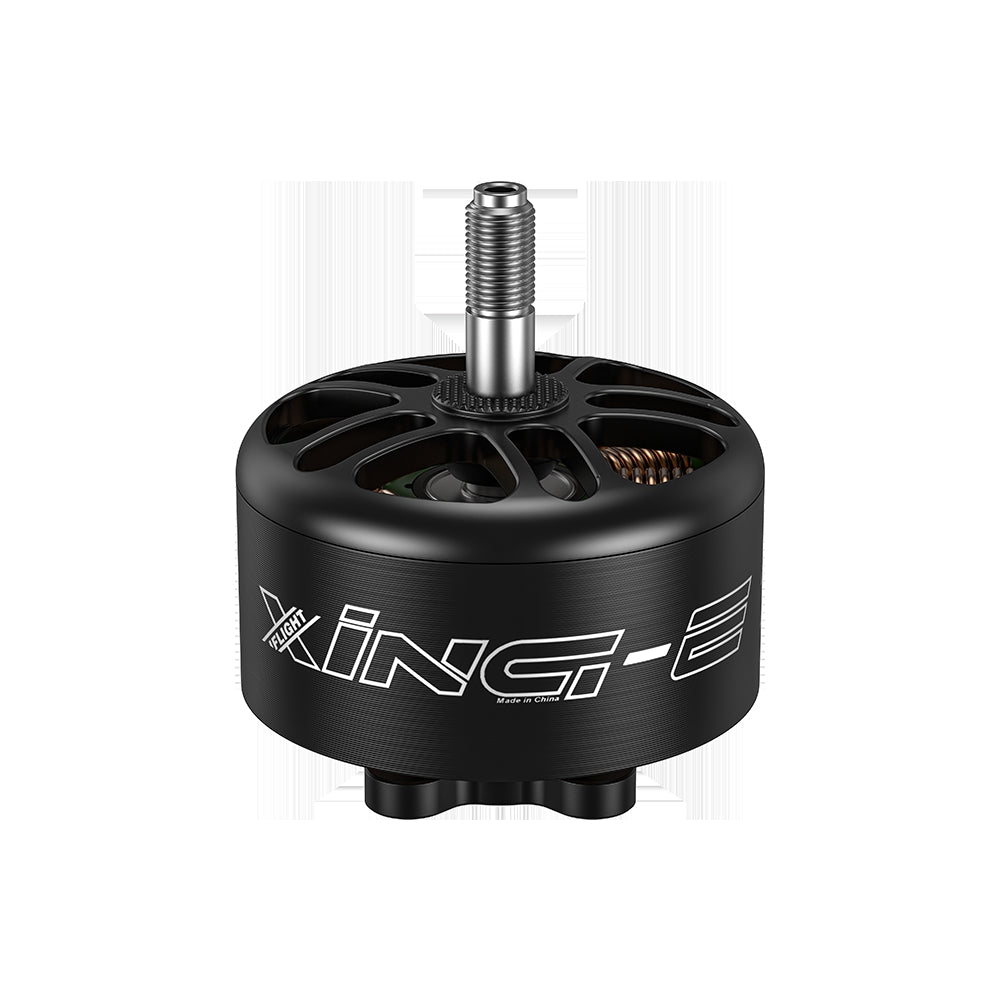

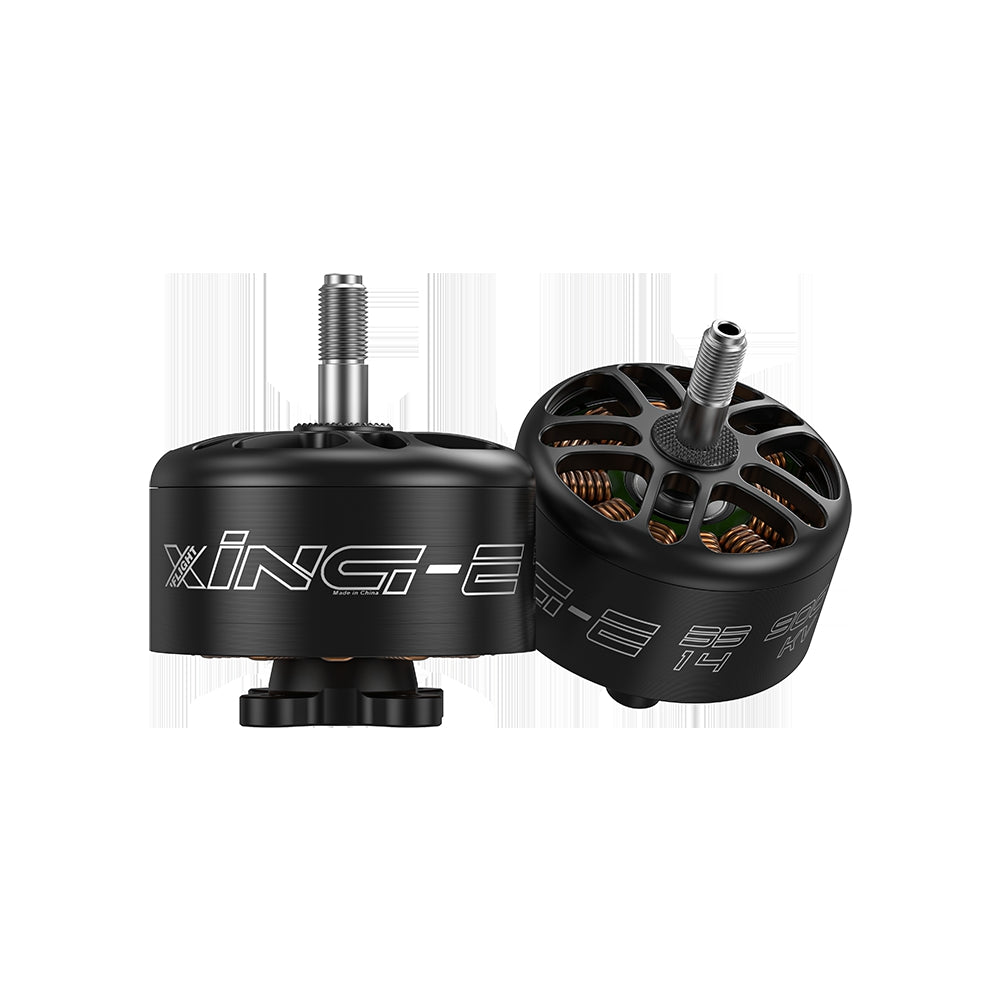

iFlight XING-E 3314 900KV FPV Cinelifter Motor

iFlight XING-E 3314 900KV FPV Cinelifter Motor

Regular price $39.99
Regular price Sale price $39.99
Sale Sold out
Shipping calculated at checkout.
KV
Specification

Model: XING-E 3314 Motor

KV: 900KV

Weight(included wire): 120g

Dimension: φ38.6*29.8mm

Interphase Resistance: 48.1mΩ

Input Volts: 24V

Peak Current: 58.48A

Max Watt: 1366.1W

Mounting Holes: 19*19 φ3mm

Shaft Diameter: 5mm

Rotor Specifications: Segmented bell

Shaft Protruding Length: 15mm / 17mm

Lead: 400mm/16AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*φ5*5

Winding: Single Strand copper winding

Packing List

1 x XING-E 3314 900KV Brushless Motor

4 x M3*10 screws

1 x M5 Flange Nut
