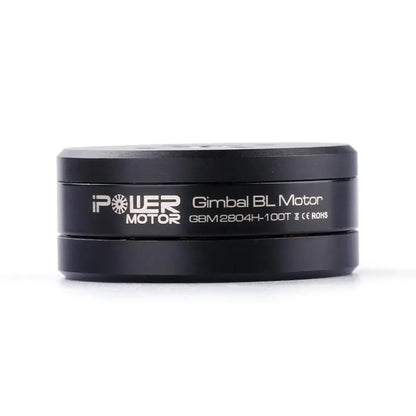

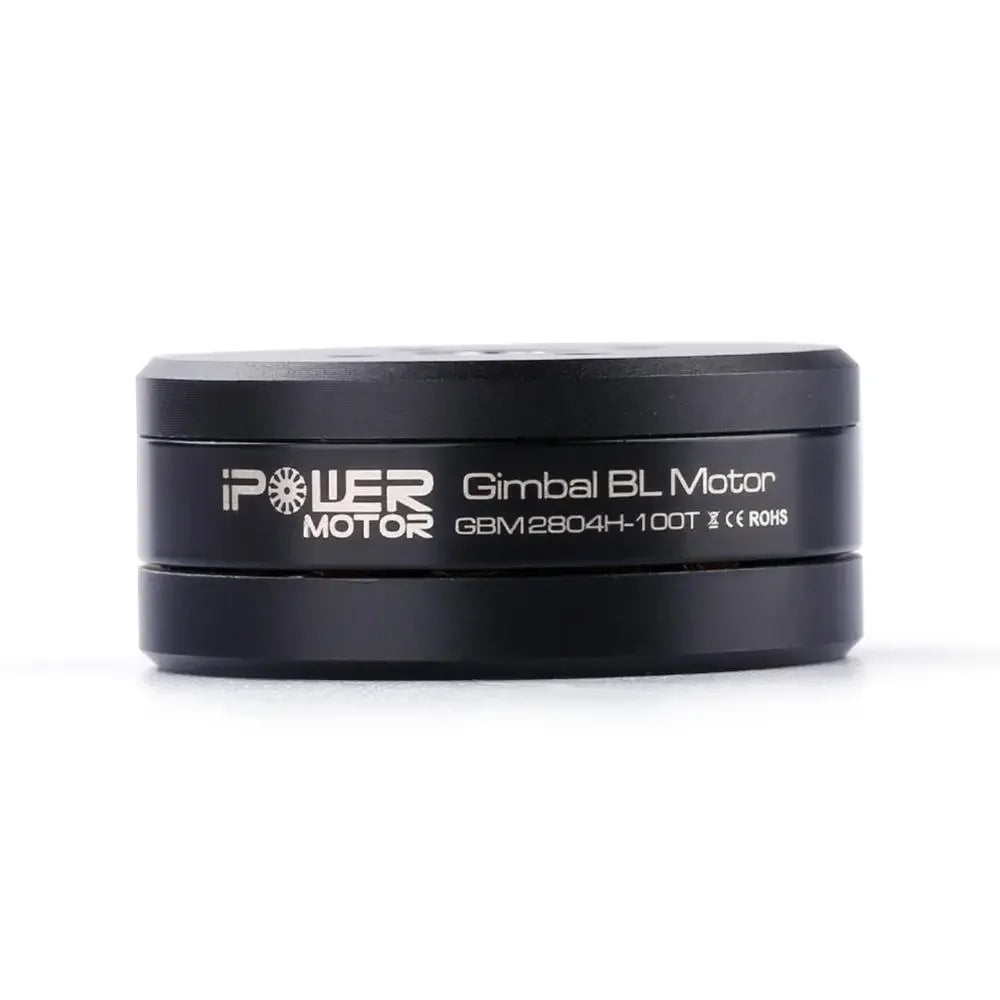

iPower GBM2804H-100T Brushless Gimbal Motor
iPower GBM2804H-100T Brushless Gimbal Motor
Couldn't load pickup availability
iPower GBM2804H-100T is a hollow-shaft brushless gimbal motor for compact GoPro camera setups. Check the 100-turn configuration, 41.5 g weight, dimensions and voltage limits listed below before fitting.
IFlight IPower Motor GBM2804H 100T Brushless gimbal motor with hollow shaft for gopro brushless gimbal stabilizer GoPro Camera
The GBM2804H-100T motor by iPower Motors are the ultimate brushless gimbal motor for GoPro cameras. This motor is looking for small multi-rotor platforms to lift GoPro size gear - 0.5-1 KG / cm Torque. The principle of camera stabilization with brushless direct drive motors In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo
Specifications:
Model NO .: GBM2804H-100T
Weight: 41.5g

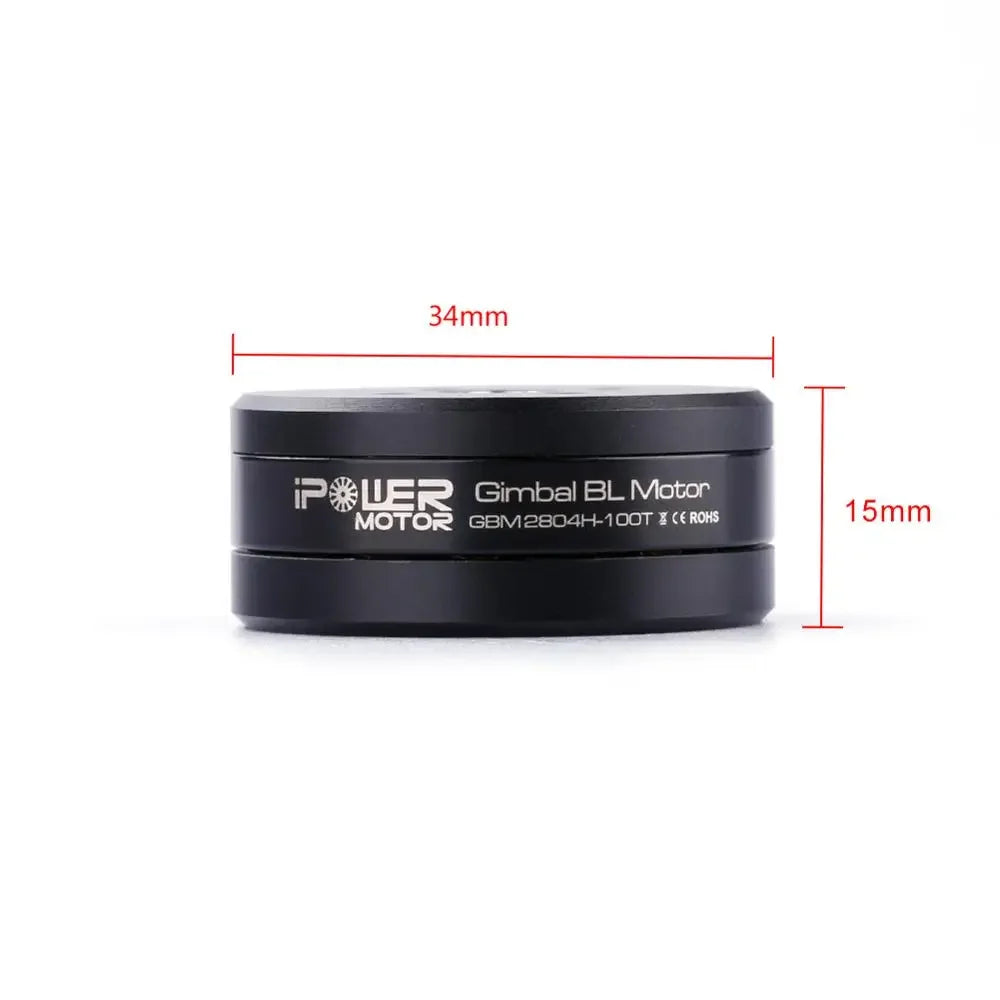

Motor Diamension: 35mm * hgt15mm
Stator diameter: diameter 28mm * hgt 4mm
Copper wire (OD): 0.19mm
Configuration: 12N14P
Resistance: 11.2 ohms

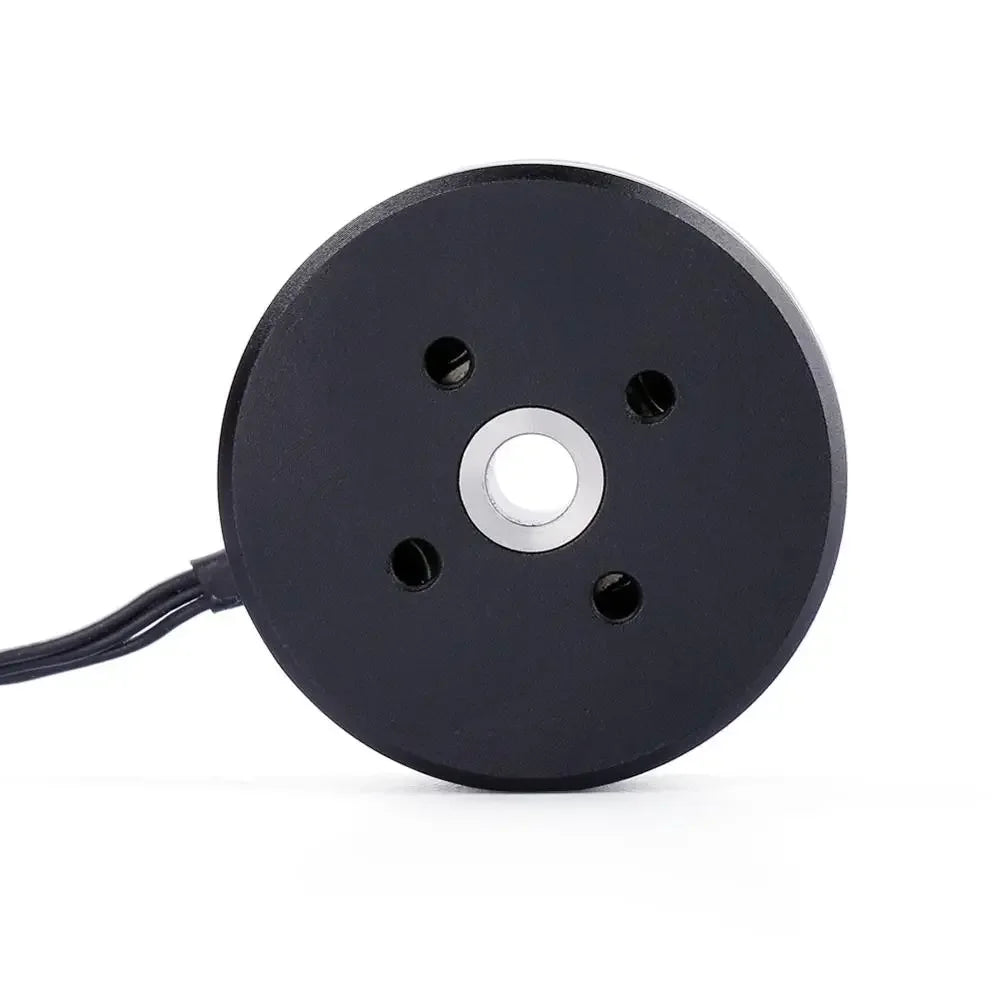

Base center pitch: 16mm 19mm

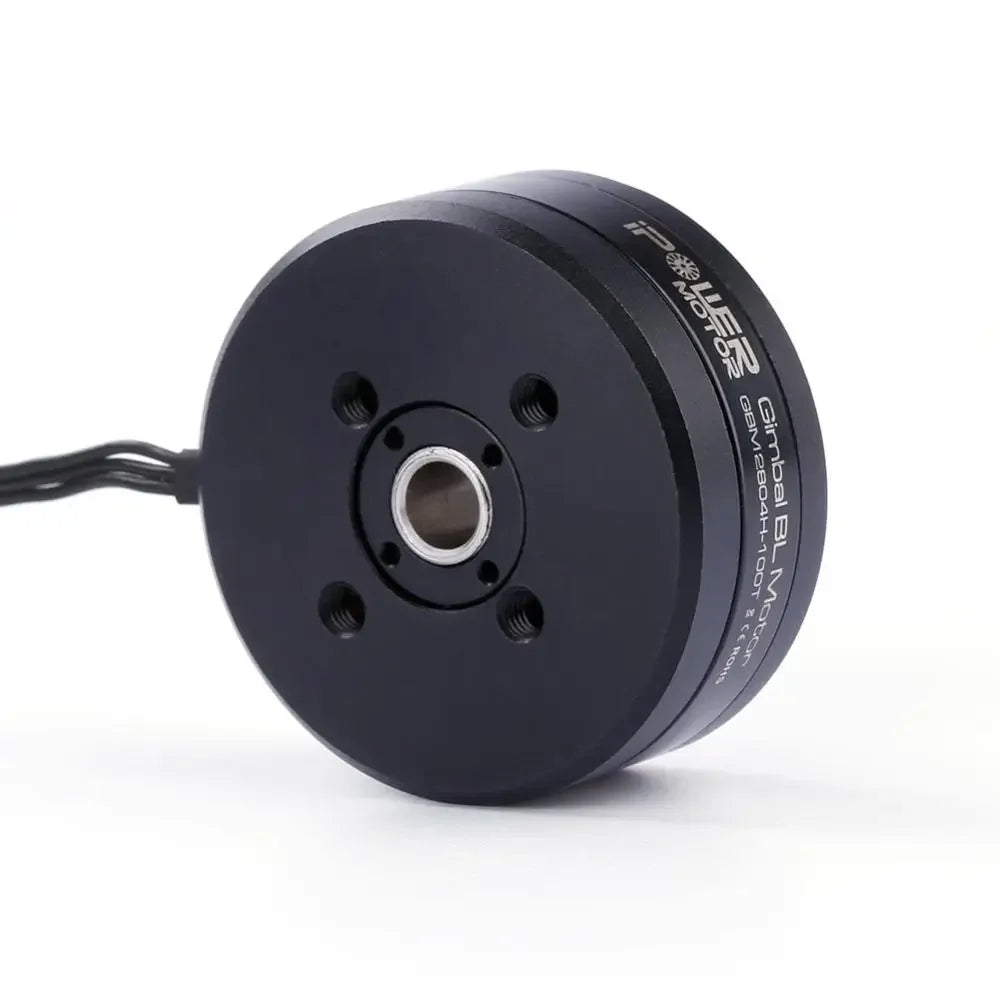

Pre-wound: with 100 turns hollow shaft
Camera range (Torque): 200g-400g
Test voltage: 11.1V
Max voltage: 14.8v
Test current: 0.0099 A
Max current: 5A
Test rotation speed: 1637 rpm
Max rotation speed: 2180rpm
Package include:
1pcs GBM2804H-100T
