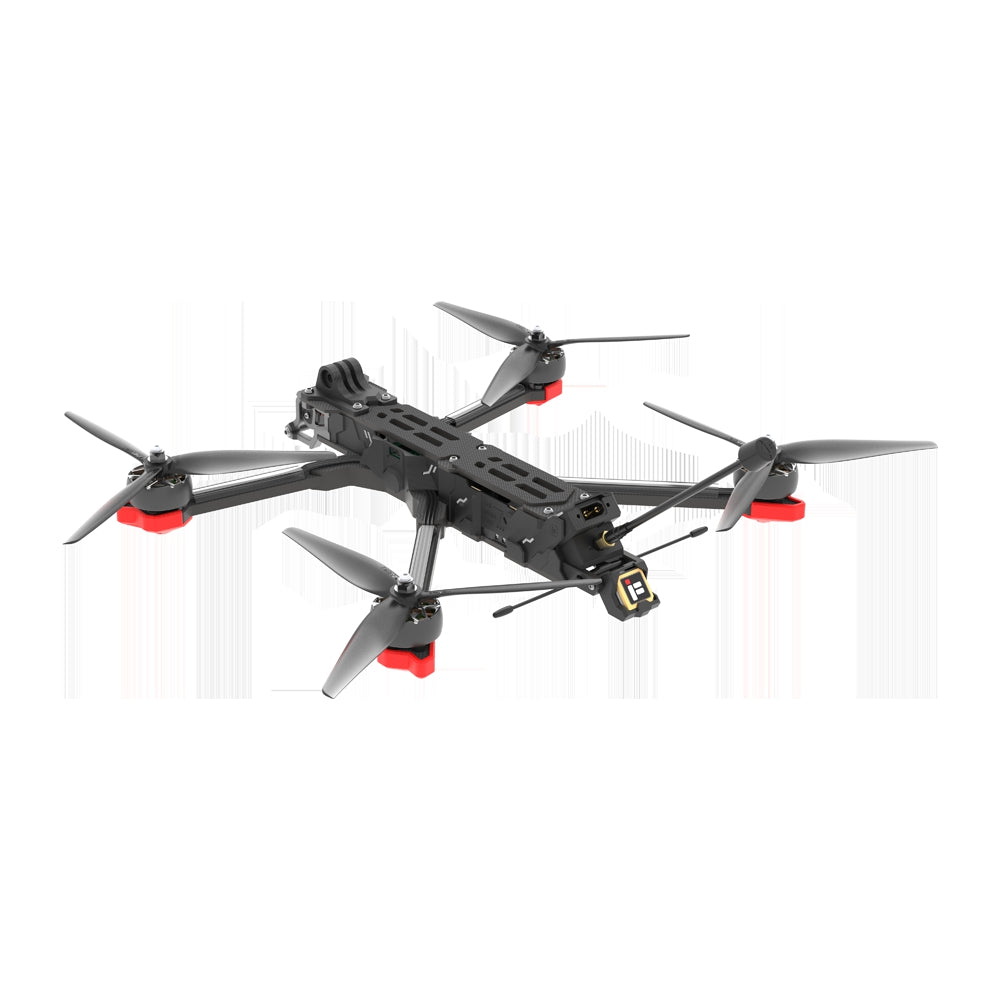

iFlight Chimera7 Pro V2 BLITZ 5.8G image transmission

• 1 x Chimera7 Pro V2 6S Analog BNF

• 1 x Battery pad

• 1 x Antennas

• 1 x Propellers(Pairs)

• 2 x Battery strap

Packing List

• Product Name: BLITZ 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 5V

• Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: IPEX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 16.5 gram

• Dimensions：L37mm*W31.5mm*H10mm

Video Transmission

• Product Name: Chimera7 Pro V2 6S Analog

• FC: BLITZ F722 Flight Controller

• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

• Video Transmission: BLITZ Whoop 1.6W VTX

• Frame: 327mm wheelbase

• Motor: XING2 2809 motors

• Prop: 7.5X3.7X3 propellers

• Weight: 665±5g

• Model: Chimera7 Pro

• Takeoff Weight: Approx. 1590 ±10g

• Dimensions (L×W×H)：270x199x34±2mm

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

• Antennas: Single Antennas

• GNSS：GPS+SBAS+Galileo+QZSS+Glonass


Specifications:

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

GPS Pre-Installed for More Safety at A Distance

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Secured Battery Plug with Anti-Spark Filter

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Latest Chimera7 Pro Frame for Maximum Protection

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Smooth and Powerful XING2 Motors

HIGHLIGHTS:

• The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.
