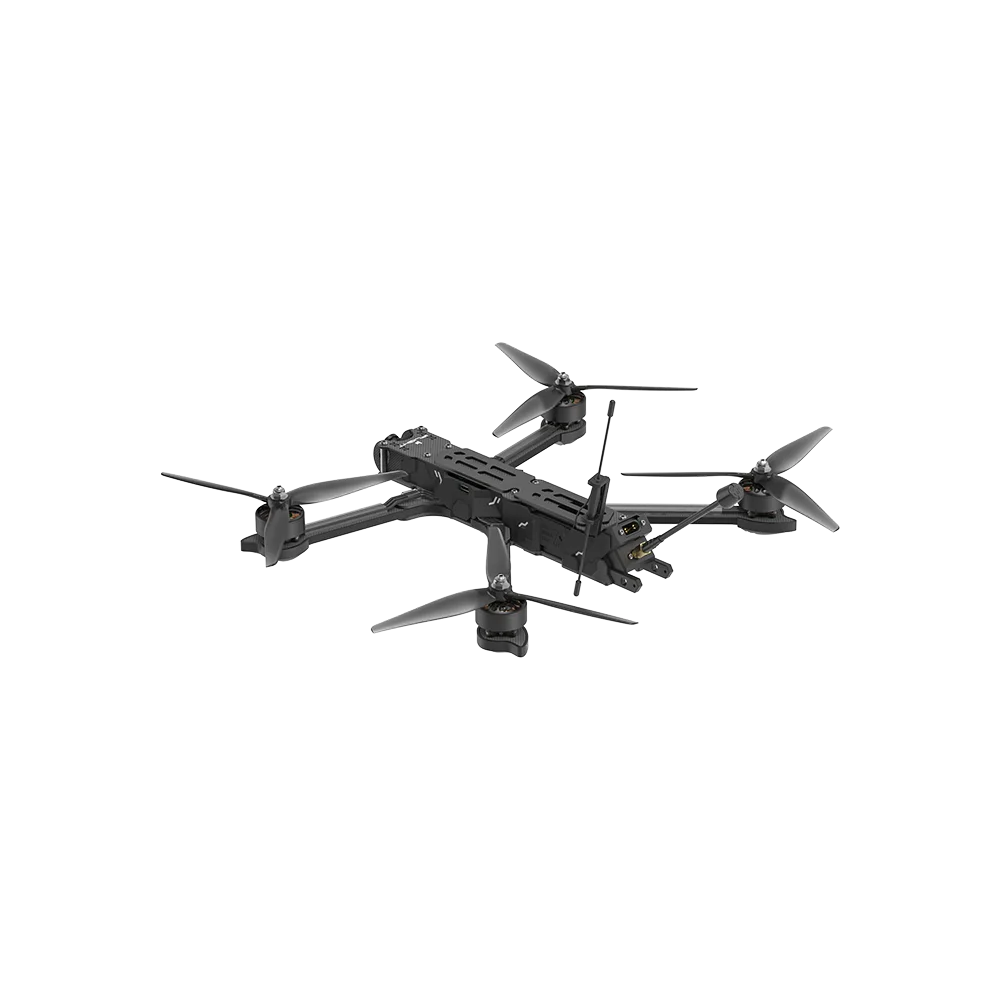

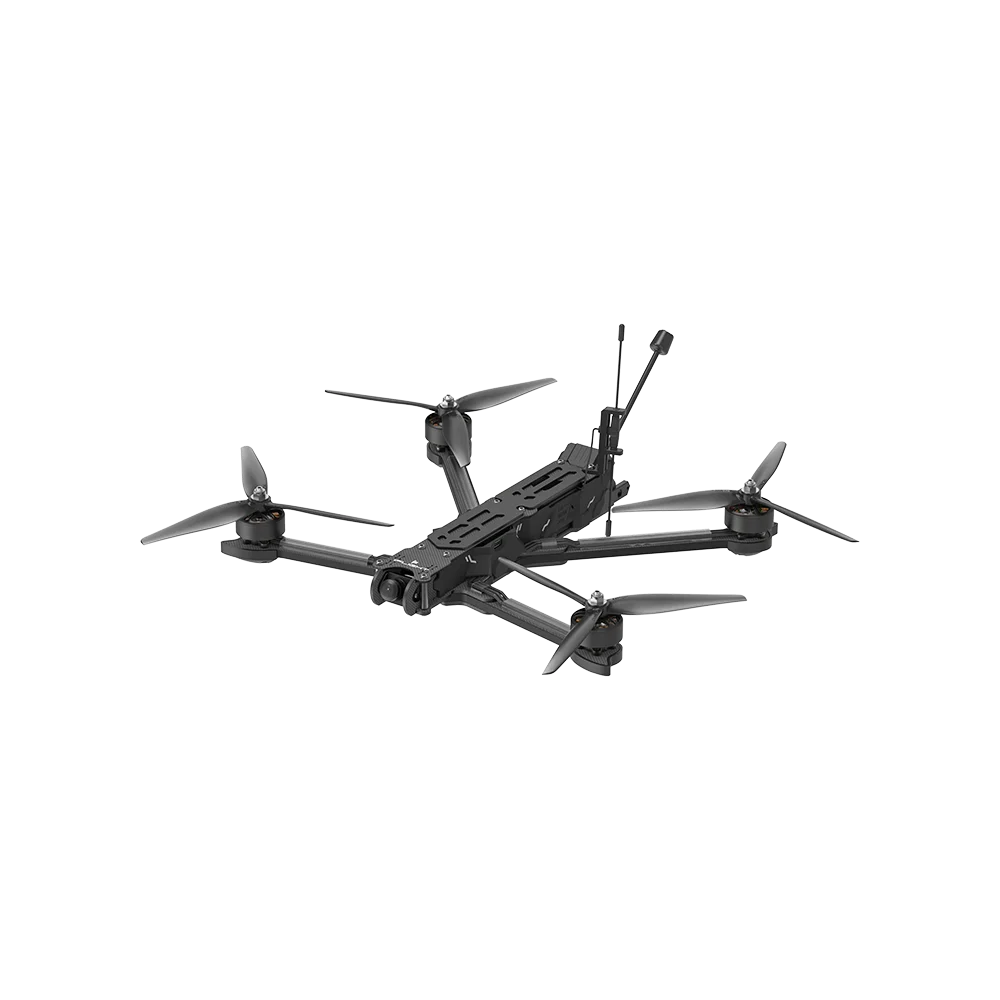

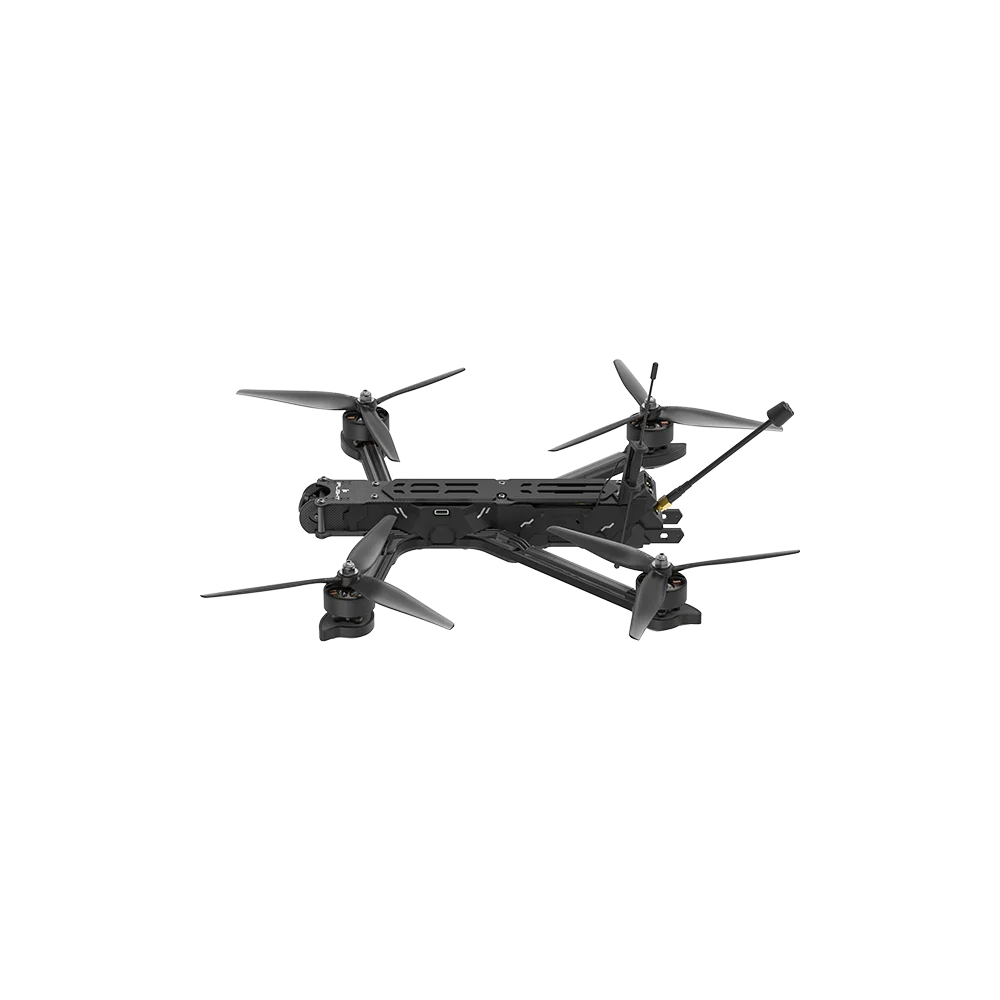

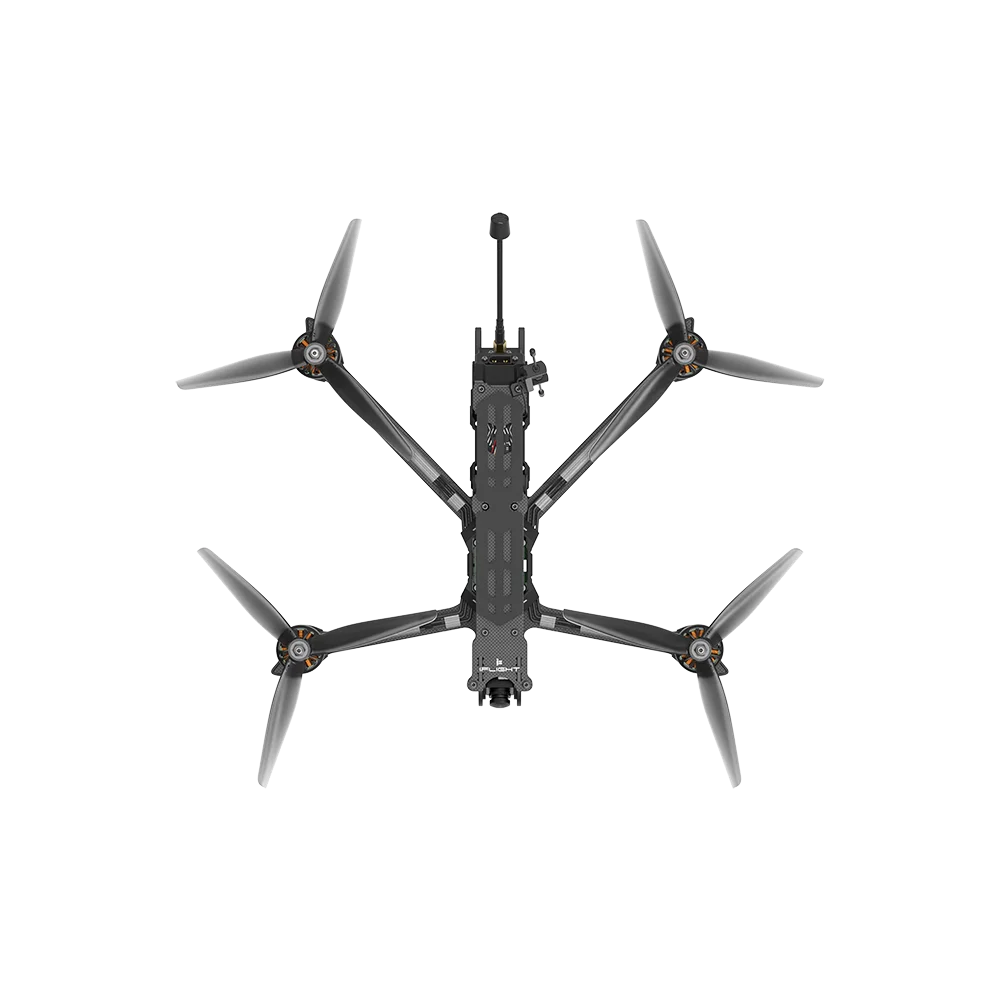

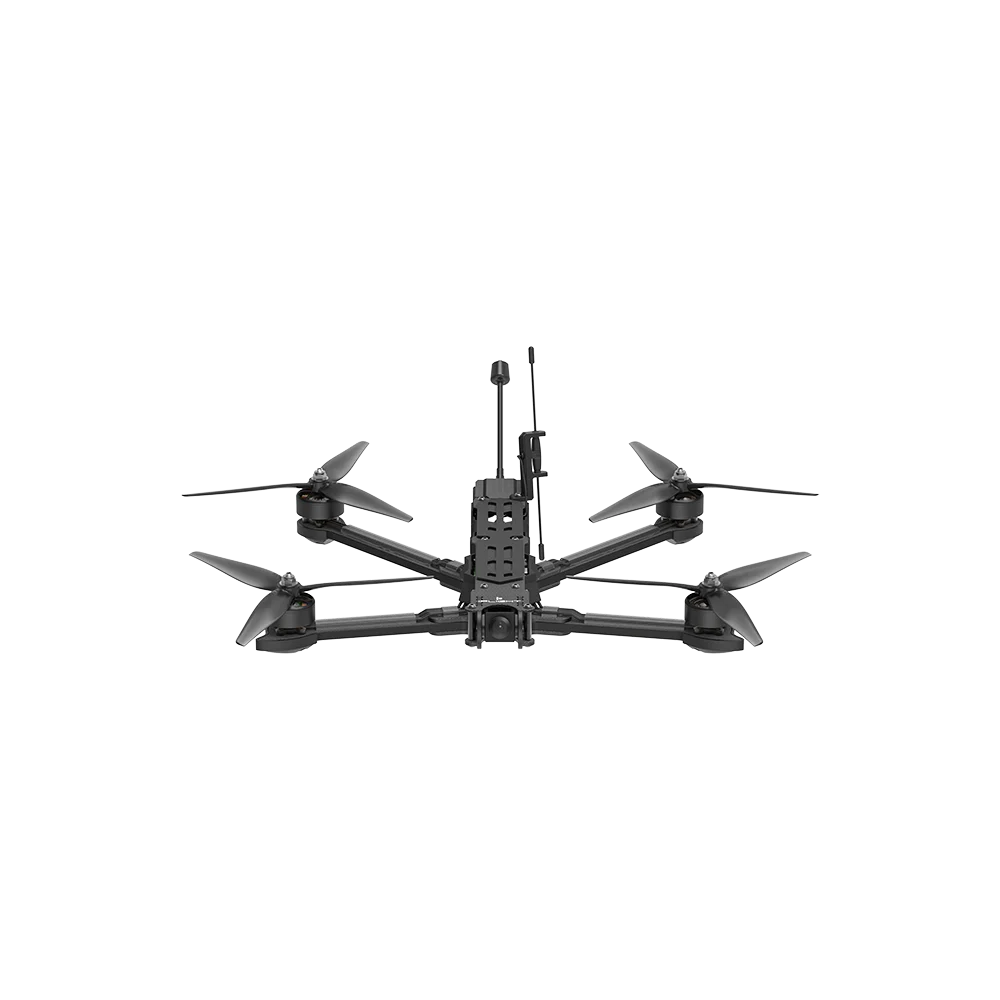

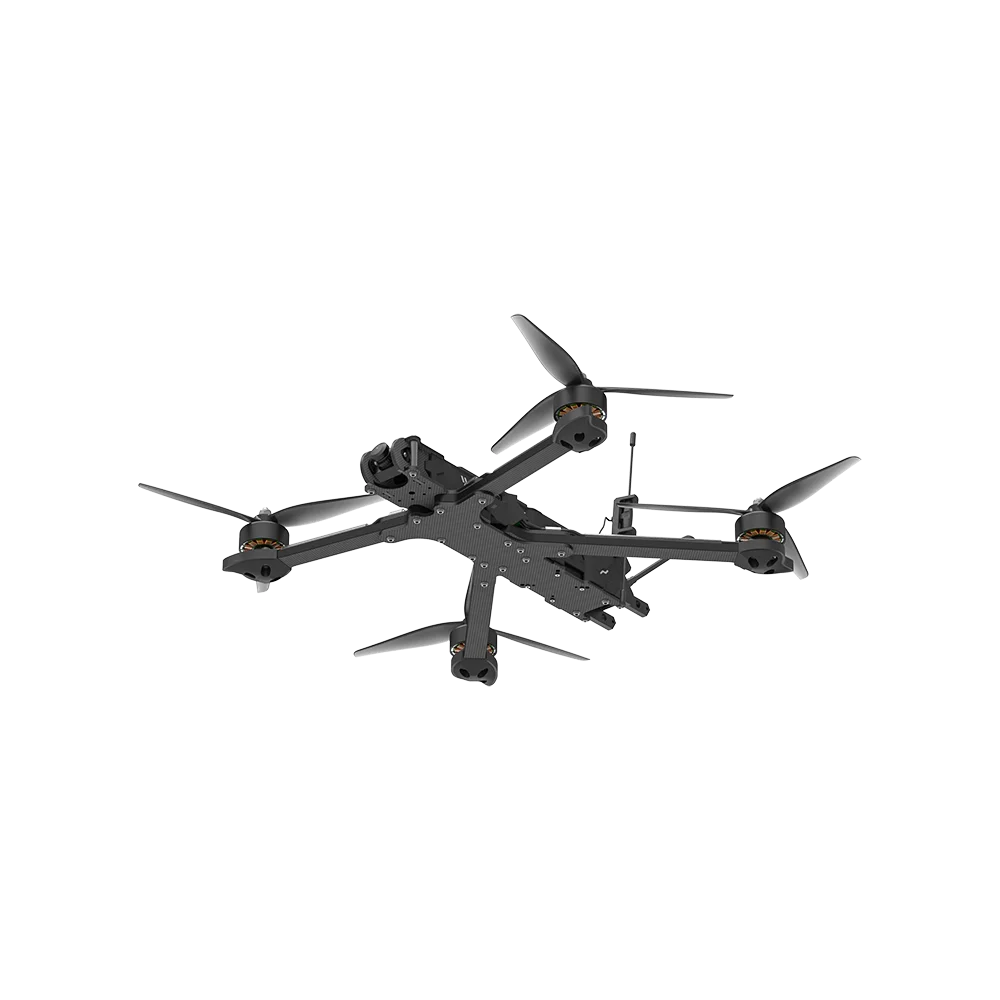

iFlight Chimera7 ECO Analog 6S FPV Long Range Drone

• The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING-E 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.

HIGHLIGHTS:

Latest Chimera7 ECO Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Specifications:

• Product Name: Chimera7 ECO 6S Analog

• FC: BLITZ ATF435 Flight Controller

• ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC

• Video Transmission: BLITZ Whoop 1.2G 1.6W VTX / BLITZ Whoop 1.6W VTX / BLITZ Whoop 2.5W VTX

• Frame: 327mm wheelbase

• Motor: XING-E 2809 motors

• Prop: 7.5X3.7X3 propellers

• Weight: 677g(Without Battery)

• Dimensions (L×W×H):270x199x34mm

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

• Antennas: Single Antennas

• GNSS: N/A

Video Transmission

BLITZ Whoop 1.2G 1.6W VTX

• Product Name: BLITZ Whoop 1.2G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 7-34V

• Working Current: ≤25mw@12V 410mA, ≤400mw@12V 470mA, ≤800mw@12V 490mA, ≤1600mw@12V 590mA

• Transmission fre: 8CH(1080-1360MHz)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 32g

• Dimensions: 50*30*16mm

BLITZ Whoop 5.8G 1.6W VTX

• Product Name: BLITZ Whoop 5.8G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 12V

• Working Current: ≤pit @40mA,≤25mw@150mA,≤400mw@330mA,≤800mw@460mA,≤1600mw@660mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: IPEX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 16.5g (Antenna not included)

• Dimensions: 37mm*31.5mm*10mm

BLITZ Whoop 5.8G 2.5W VTX

• Product Name: BLITZ Whoop 5.8G 2.5W VTX

• Output Power: 0-25-400-1000-2500mw

• Input Volts: 7-34V

• Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 32g

• Dimensions: 50mm*30mm*16mm

Packing List

• 1 x Chimera7 ECO 6S Analog BNF

• 1 x Battery pad

• 1 x Antennas

• 2 x Propellers(Pairs)

• 2 x Battery strap

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1)Any military combat purpose or military combat related use;

(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
