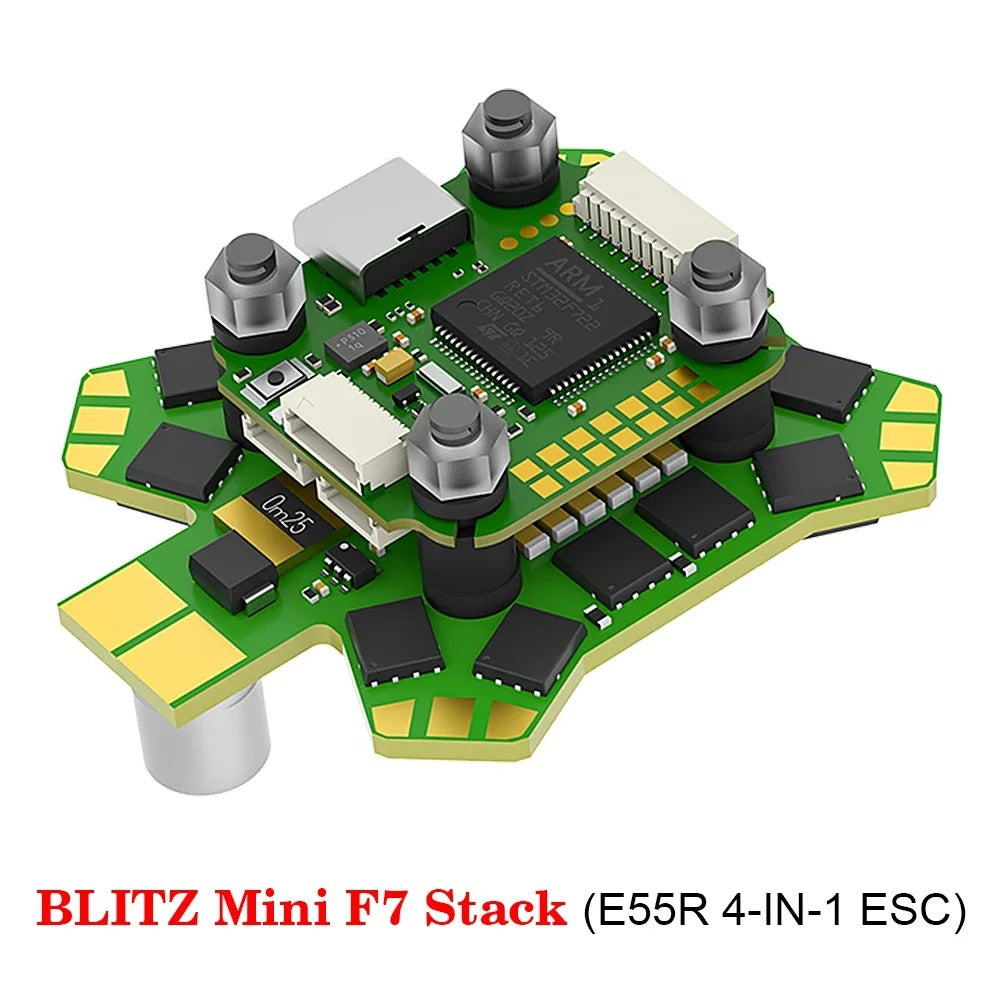

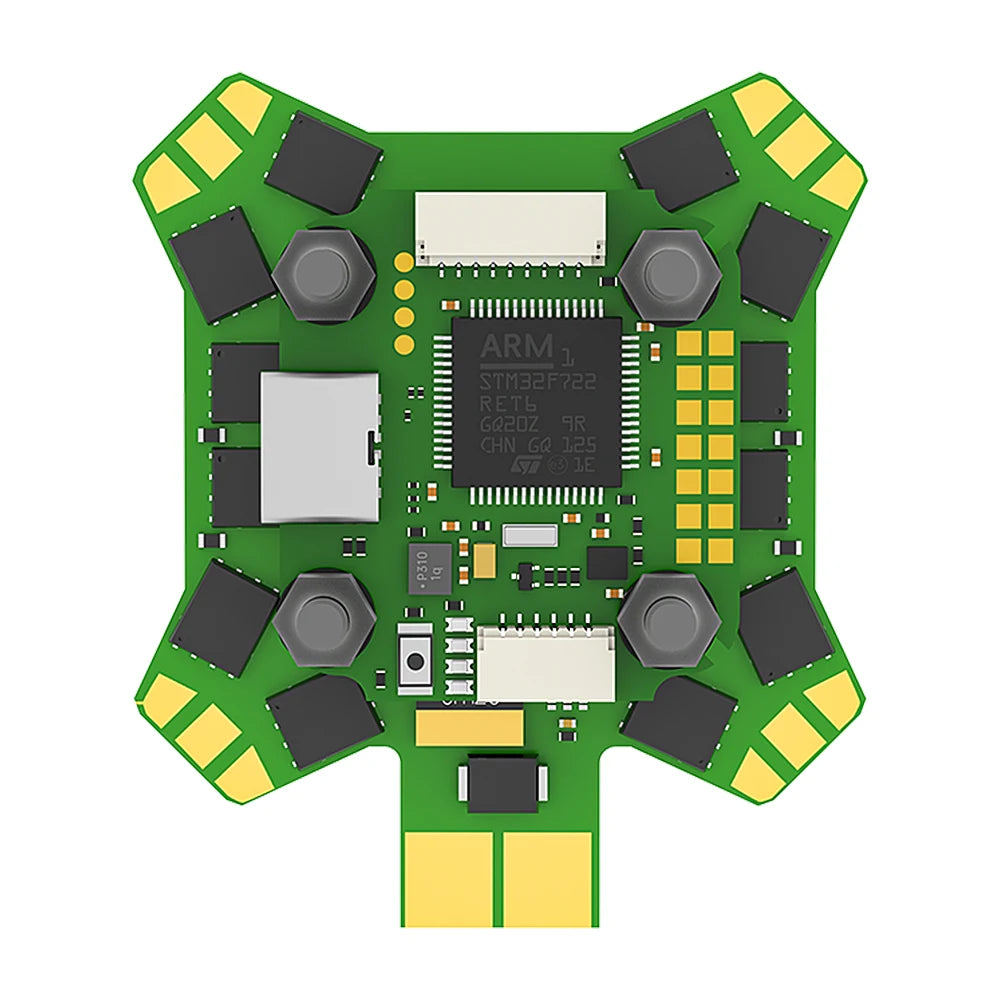

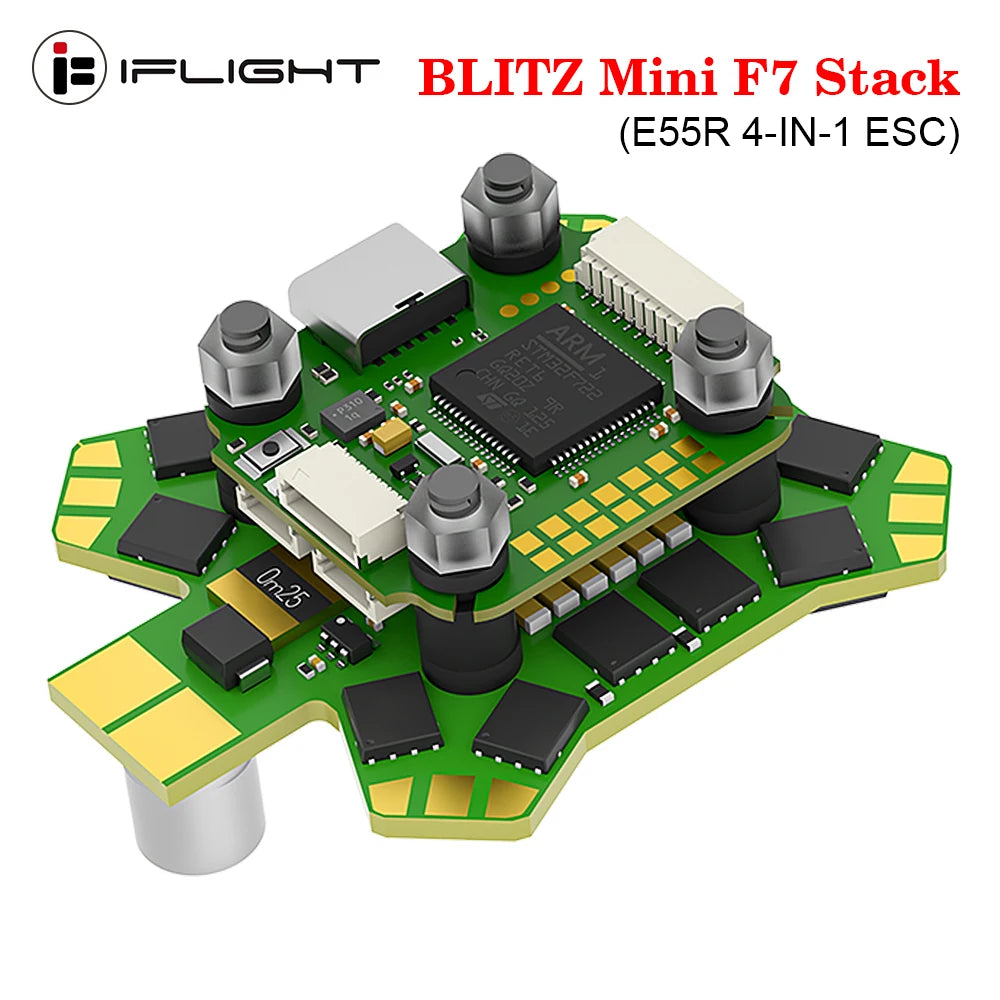

IFlight BLITZ Mini F7 Stack ICM42688 W BLITZ E55R 4in1 ESC
IFlight BLITZ Mini F7 Stack ICM42688 W BLITZ E55R 4in1 ESC
Regular price
$30.99
Regular price
Sale price
$30.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- The next generation of ESCs from iFlight has arrived. These new 55Amp BLHeli32 BLITZ 4in1 ESCs can handle even the most amp-hungry motors. Lager Mosfets and bigger PCB for maximum heat dissipation. Powerful 55A for 2-6S batteries and 20x20 mounting pattern. The perfect match for the BLITZ Flight Controller series.
Changelog
- July 31, 2024: Version updated. Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download "BLHeliSuite32Test" in the "Download" column of this page.
Features
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging

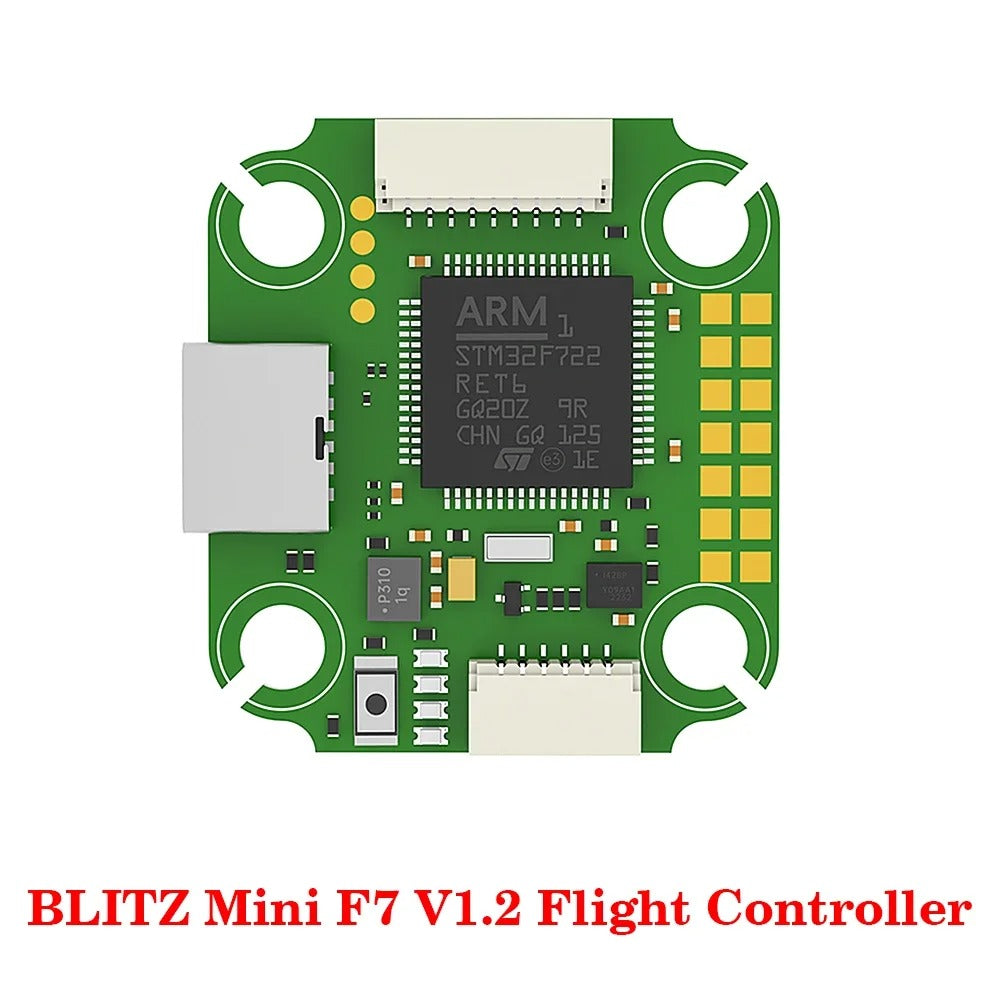

FC Specifications
- MCU: STM32 F722
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456
- Flash: 8MB (Blackbox flash)
- UARTS: 6
- I2C serial: SDA/SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722
- Mount pattern: 20x20 mm/φ4
- Dimensions: 30.5x27 mm
- Weight: 5g
Wiring Suggestion
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemetry

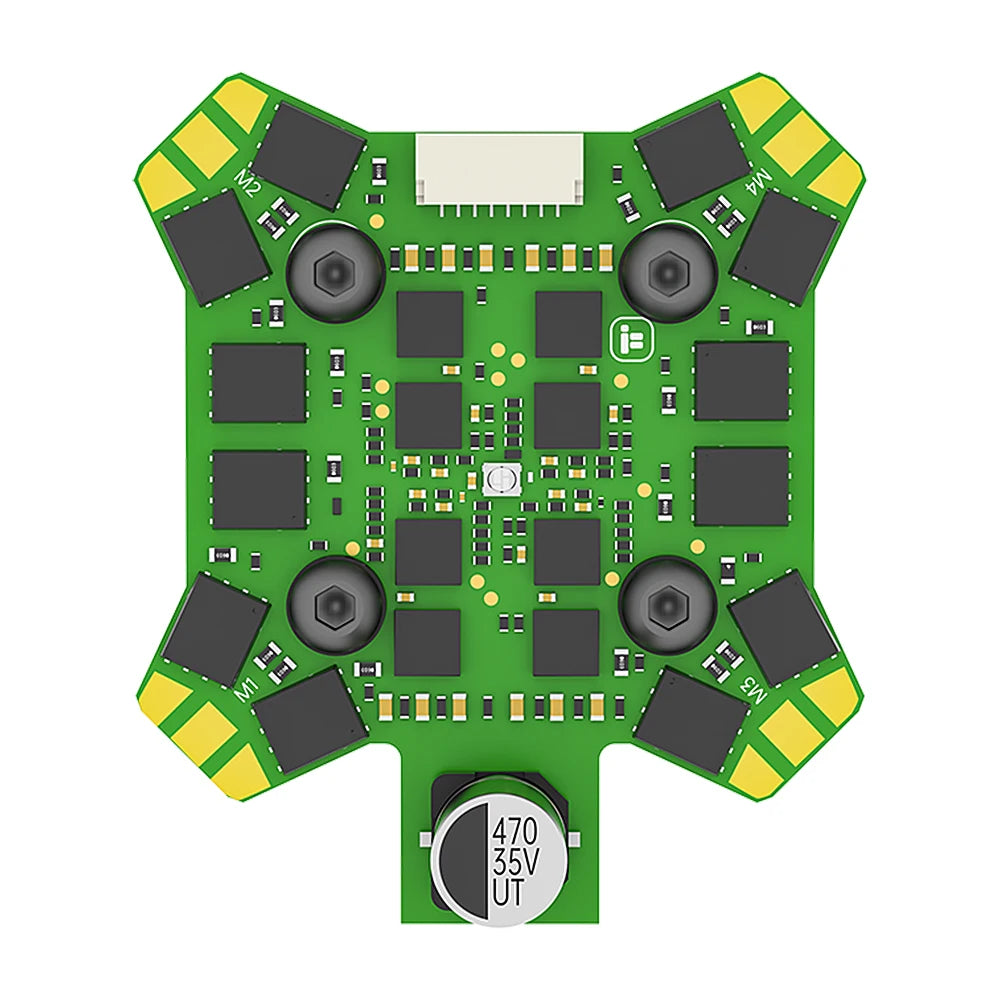

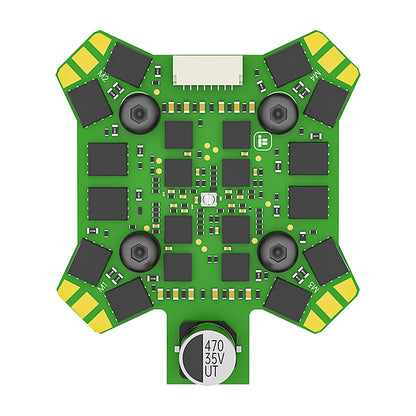

ESC Specifications
- Product Name: BLITZ E55R 4-IN-1 ESC (G3)
- Mounting Holes: 20*20mm/Φ4mm
- Weight: 15.3g
- Supports 2-6S Lipo input
- MCU: BB21
- Constant: 55 Amps
- Burst: 65 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/OneShot etc.
-
Target：IFLIGHT_BLITZ_G2 / IFLIGHT_BLITZ_G3 32.9 (blheli_32)
