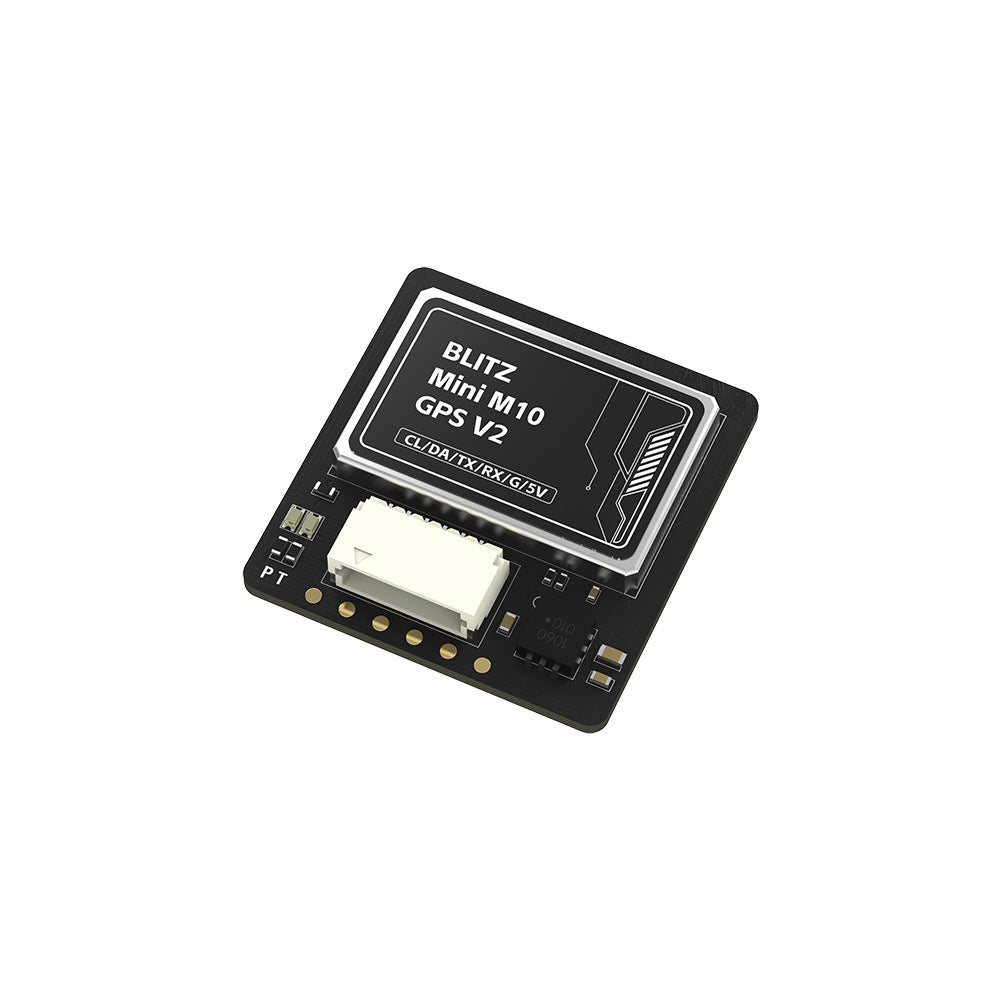

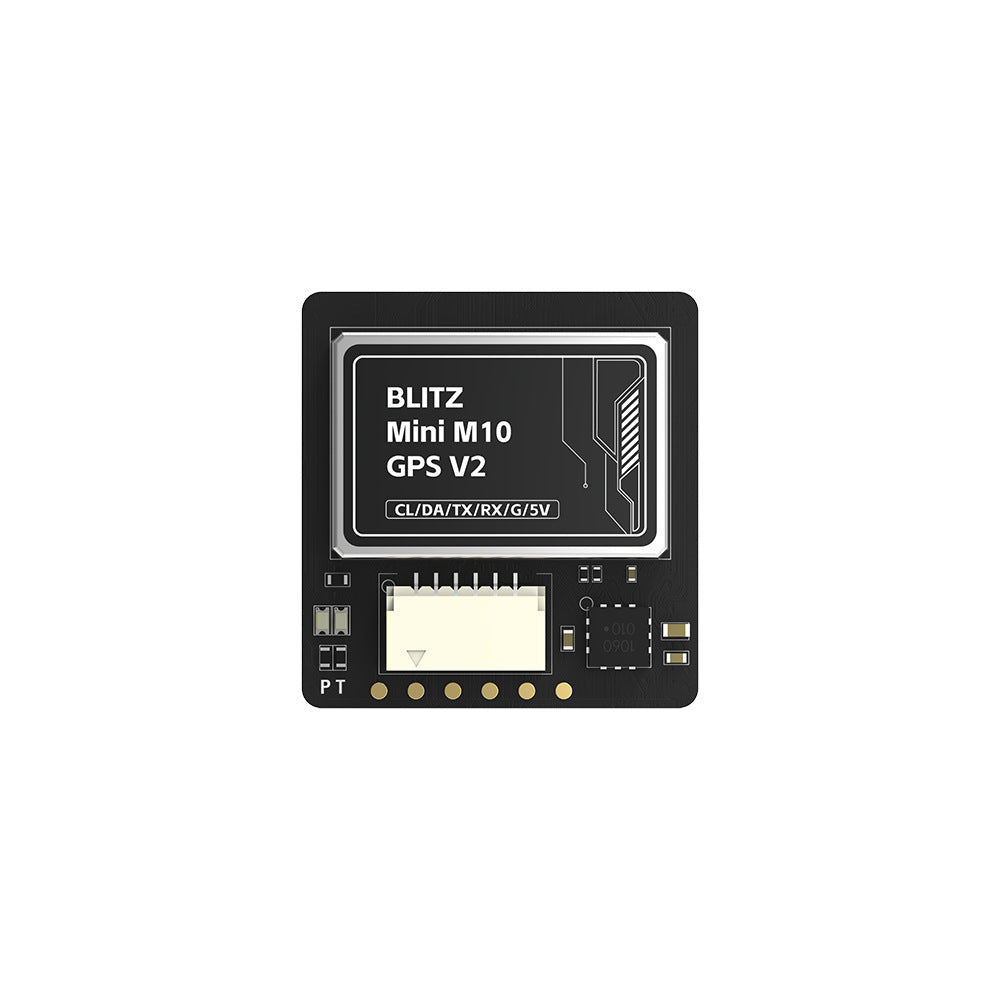

iFlight BLITZ M10 V2 mini GPS

Description

The newly upgraded BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satellite search. This advancement in technology provides users with a more reliable and efficient GPS experience.

Features

UBLOX M10 chip

Compass module QMC5883L integrated

Built-in farad capacitor for faster hot start

18.2x18.2mm GPS ceramic antenna, low power consumption, strong signal, lightweight.

Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)

10 Hz Refresh rate

Built-in Flash

Specifications

Compass module: QMC5883L

Baud Rate: 9600bps-460800bps (Default - 115200bps)

Sensitivity: Tracking: -167dBm

Cold start: 27s

Hot start: 1s

Maximum height: 80000m

Maximum speed: 500 m/s

Speed accuracy: 0.05 m/s

Maximum acceleration: ≦ 4G

Refresh Rate: 10 Hz

GPS patch antenna size: 18.2 x 18.2 x 4 mm

Total dimensions: 20 x 21 x 8 mm

Weight: 8 g

Input Voltage: 3.3-5.5 V

GPS pin definition: RX/TX UART

Compass pin definition: SDA/SLA

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Packing List

1 x BLITZ Mini M10 GPS V2

1 x Cable set
