iFlight BLITZ E55 Single 55A 2-6S ESC

Description：

Top Features:

• 8 layers double-sided PCB board

• 3oz 1.4mm thick power board

• 32bit F051 MCU, 48kHz maximum clock speed

• TDK MLCC Low ESR ceramic capacitors


Specification:

• Supports up to Dshot600, Proshot, Oneshot, Multishot

• Constant: 55A / Burst: 60A (10S)

• Up tp 48kHz PWM frequency

• Target: IFLIGHT_BLITZ_G3

• BlHeli32 telemetry: Yes

• Firmware Version: 32.9

• Dimensions: 35*13mm

• Current Sensor: Yes

• Input: 2-6S LIPO

• RGB LED: Yes

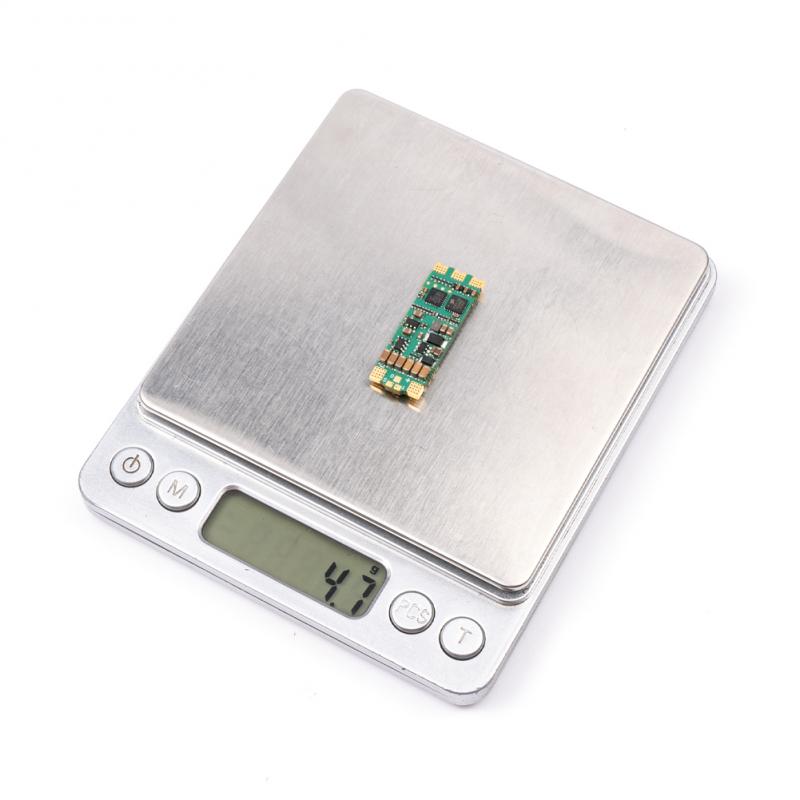

• Weight: 4.7g

• MCU: G071

• BEC: No


RECOMMENDATION:

• No additional capacitor needed up to 5S!

• But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!

Package Includes:

• BLITZ E55 55A Single ESC
