IFlight AOS 7 V5 Frame Kit

$119.00

Sale Sold out

Shipping calculated at checkout.

color AOS 7 V5 Frame

Description

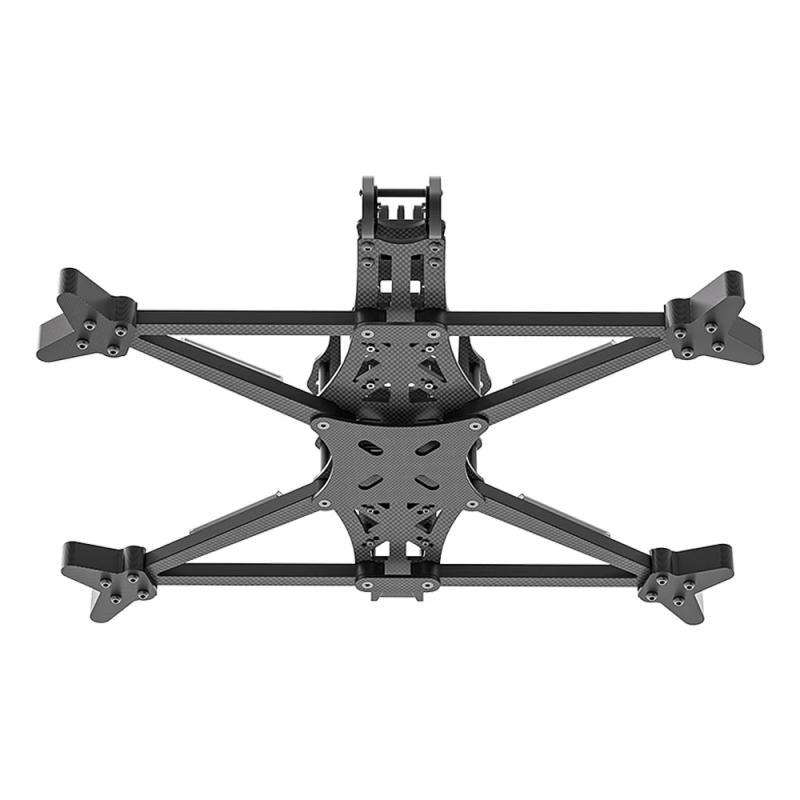

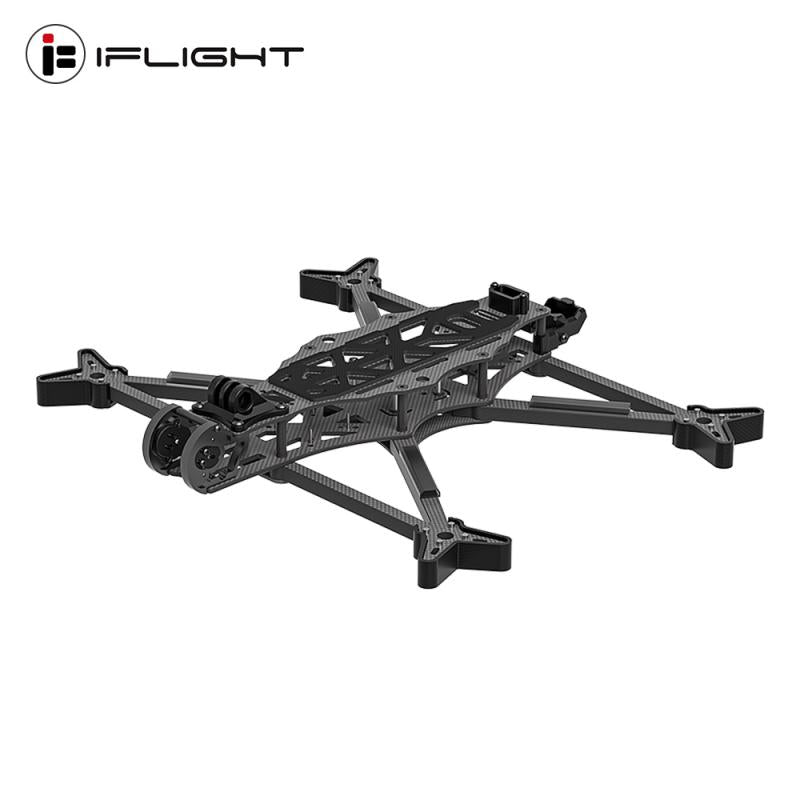

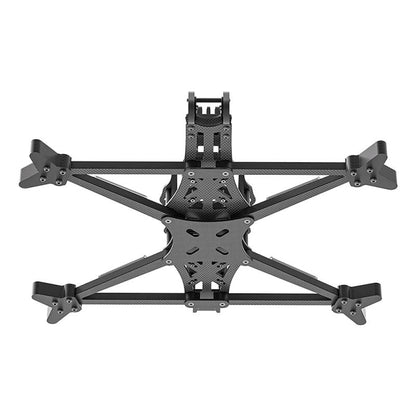

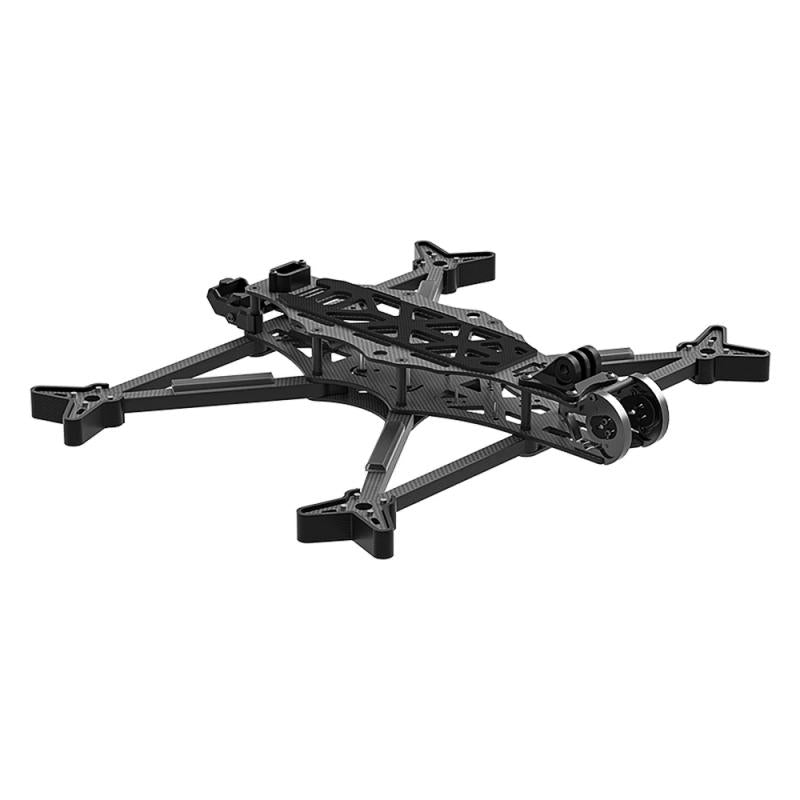

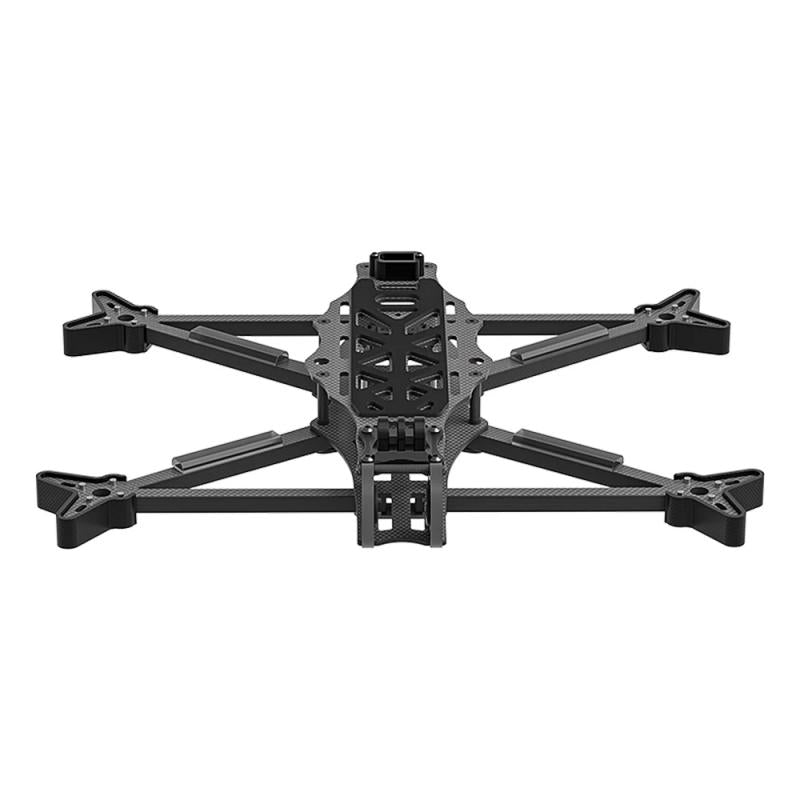

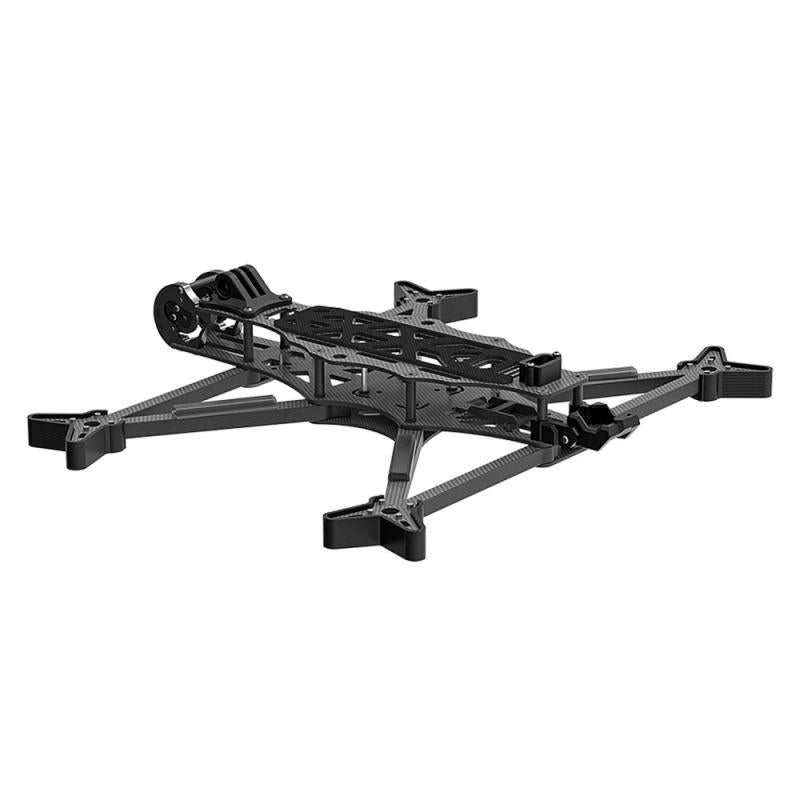

IFlight AOS 7 V5 Frame Kit 313mm Wheelbase 8mm Arm 325g for RC FPV Drone

Next generation of the hugely popular AOS 7, preserving the ultra stiff and durable geometry while adding new features including AOS X-Cell and a 7075 metal camera cage.

Features

Metal Camera Cage
The AOS 7 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and O4 camera, with full support for ND filters. If you use a different FPV system, the frame also allows for hard mounting of all popular camera systems including Analog, WS Avatar, HDZero and DJI. 14mm cameras are supported using a 3D printed mount (STL files linked below).
Vibration Isolation
Say goodbye to unwanted vibrations that can hinder your drone's performance. The AOS 7 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack. This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.
Stack and VTX Compatibility
With three stack positions, each supporting 30.5x30.5mm, 25.5x25.5mm, and 20x20mm mounting the AOS 7 V5 ensures complete compatibility with a huge range of flight controllers, ESCs, and other electronics (including DJI V1 Air Unit and HDZero Freestyle V1 VTX).
Easy to build
The AOS 7 V5 is designed to be the easiest and most user-friendly 7” FPV frame to build. It's perfect for beginners with plenty of space, easy access to every stack screw and even fewer parts than the user-friendly AOS 7 EVO!

Specificaitons

Product Name: AOS 7 V5 Frame Kit
Frame wheelbase: 313mm
Frame Dimension: L254*W184*H36 mm
Arm Thickness: 8mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2.5mm
Upper Plate Thickness: 2mm
Flight Stack Mounting: 20*20 Φ3mm / 30*30 Φ3mm
VTX Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm / 30*30 Φ3mm
Motor Mounting: 19x19mm -φ3
Weight: 325g
Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX

Packing List

Note

If you install the ESC in this Frame kit and it does not fit properly due to the capacitor, please remove the capacitor on the ESC for normal installation and connect extra capacitors (2pcs 50V 470uf 10*20 capacitor is recommended).

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
