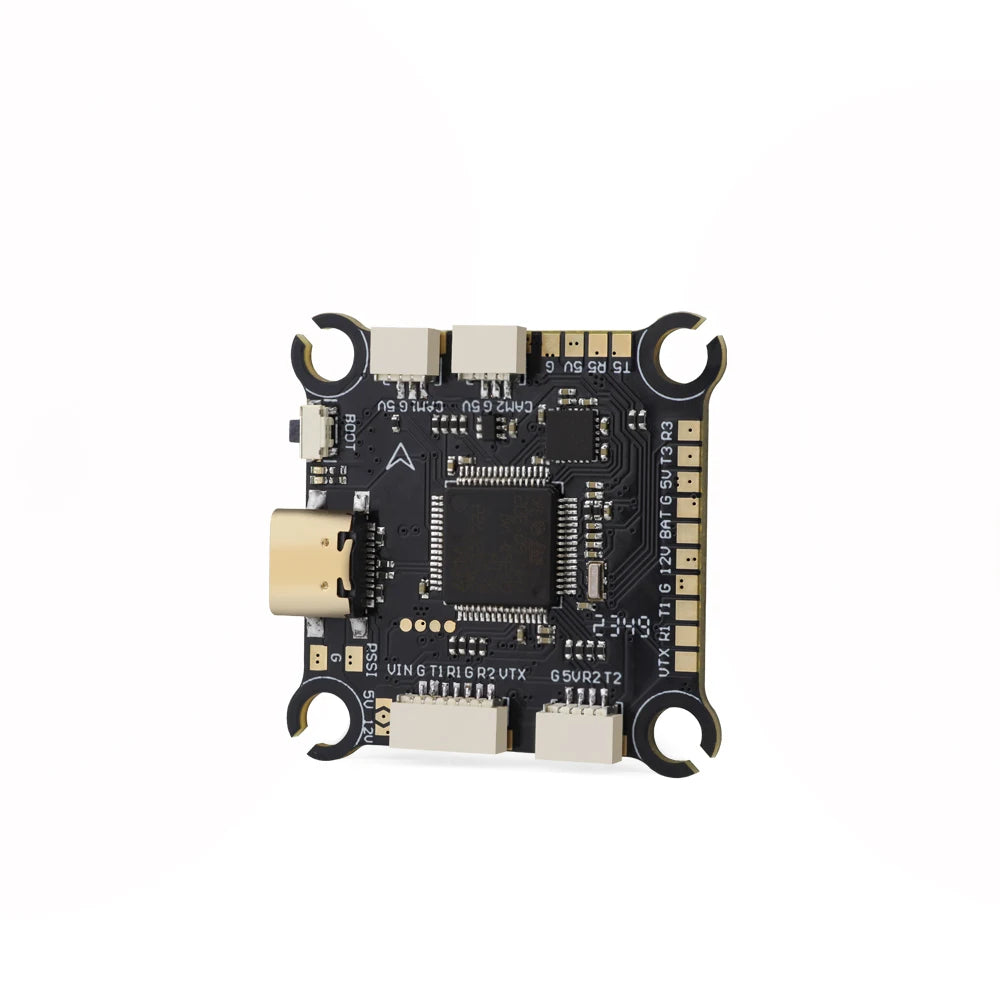

HGLRC SPECTER F722 Pro MPU6000

Hello everyone, after more than a year of technology accumulation, in 2024 we accelerated the development and upgrade of this SPECTER F722 PRO FC, optimized the ZEUS series layout, and improved the circuit design in a targeted manner，
The flight control uses the super-performance STM32 F722 main control + MPU6000 gyroscope, thus having For a more delicate flying feel, all external devices of the flight control support direct plug-in connection, plug and play.

Flight control features:
1. The main control adopts STM32F722 high-performance processor, with a computing speed of up to 216 MHz, providing smoother control, better hand feel, and faster response speed.
2. The flight control gyroscope uses high-performance MPU6000 to improve the stability of use
3. Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity.
4. 16MB large-capacity black box to ensure adequate recording of flight data.
5. Equipped with two sets of camera signal outputs, the front and rear cameras can be switched through the Betaflightsetting mode.

Flight controller : HGLRC-SPECTER F722 PRO flight controller
Flight control firmware: HGLRCF722 MINI
MCU: STM32F722
GYRO：MPU6000
OSD:AT7456E
Barometer: DPS310
Black box: 16MB
UARTS: 5
BEC: 10V2A/5V2.5A
Flight control size: 37mmx34mmx9.8mm
Installation hole position: 30.5x30.5mm, M3
Weight：8.5g

Shipping list:
1x HGLRC SPECTER F722 PRO flight controller
1x 30AWG 25mm double-ended SH1.0-8P cable
1x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable
1x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable
2x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable
1x 30AWG 100mm single-head SH1.0-4P receiver cable
4x M3*22 hexagon socket screws
