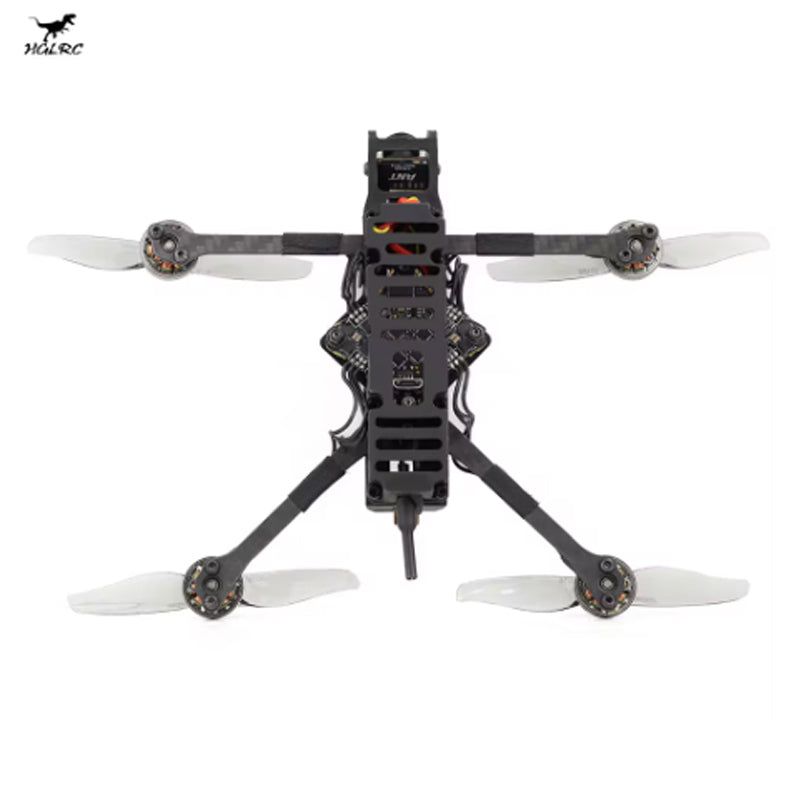

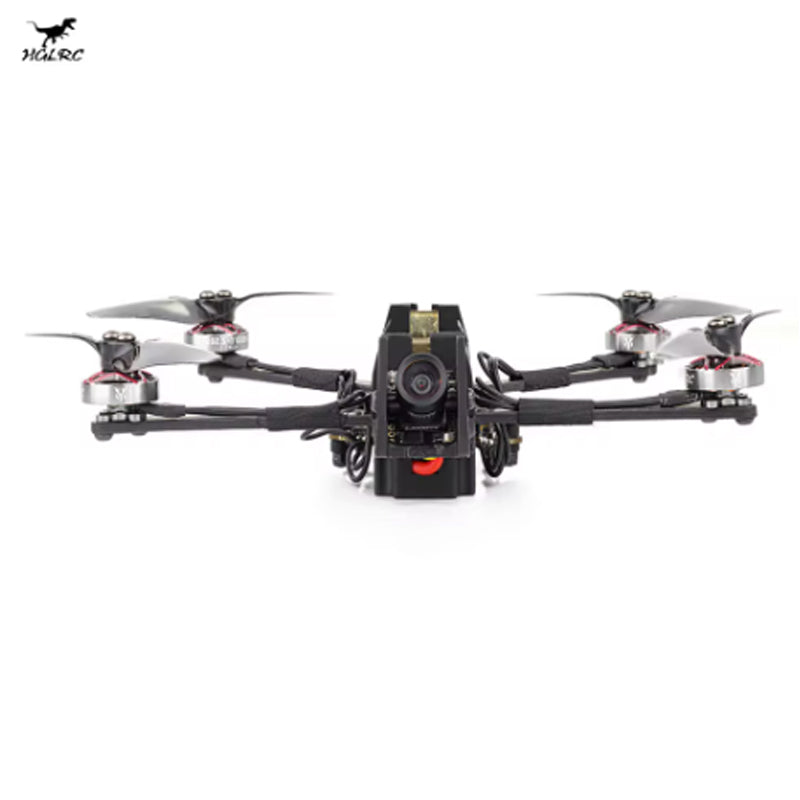

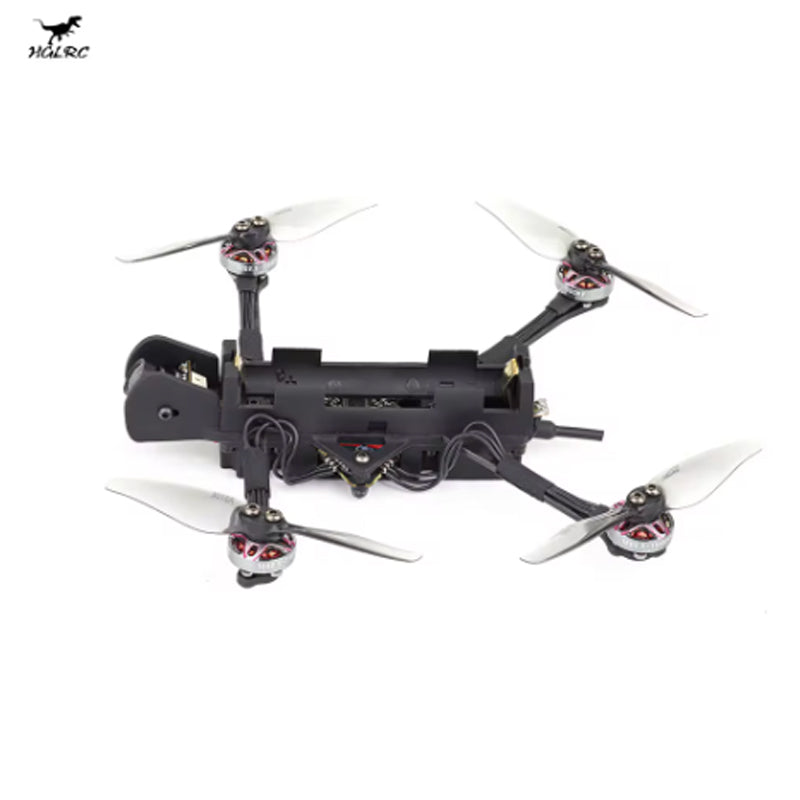

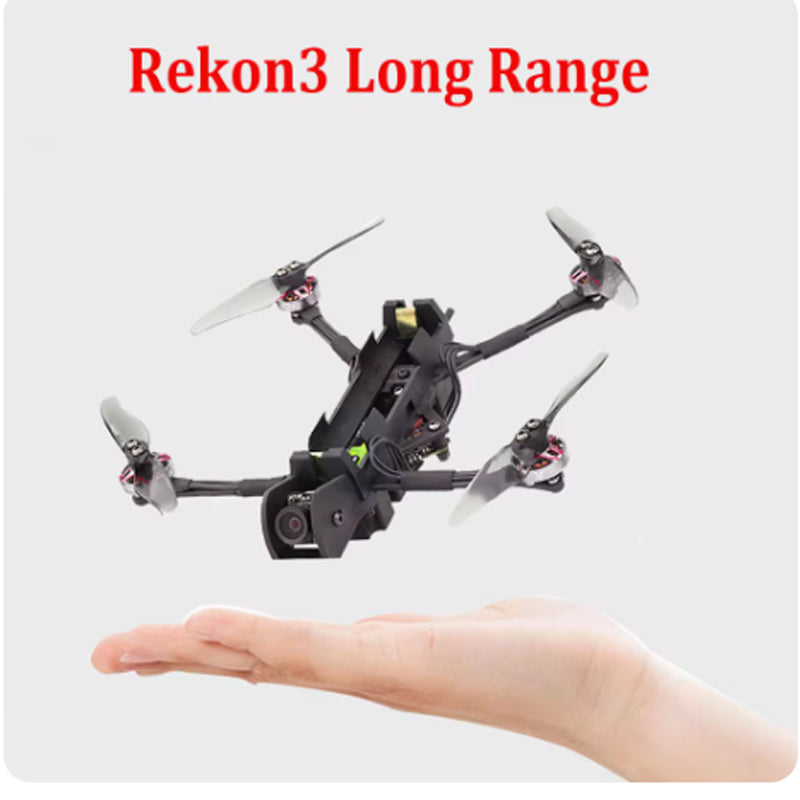

Hglrc Rekon3 1s 3inch Long Range Fpv Drone

Specifications

Is electrical

No battery

Quantity

1

Wheelbase

Floor plate

Size

ON

Technical parameters

KV1100

Model number

HGLRC Rekon3 Long Range Drone

For vehicle type

Aircraft

Tool supplies

Assembly category

Four-wheel drive attributes

Assembly

Remote control peripherals/devices

Remote Control Console

Ascent parts/additions

FPV Drone

RC parts & accessories

FPV Drone

Composite Material

Composite material

Origin

CN (Origin)

Recommend age

14 + y

Usage

Carriages&Remote-controlled toys





Overview

Report point

Drone parameters:

Frame: rekon3 long range frame

Flight controller: ghost 10a aio mcu: stm32f411 gyro: icm42688

Built-in receiver: spi expresslrs 2.4g

Built-in image transmission: 0-rce-25-100-400mw (adjustable)

Onboard esc: Continuous current: 10a Peak current: 13a (10s)

Esc protocol: dshot600, oneshot, multishot;

Esc firmware: z_h_30/(bluejay)

Flight control firmware: hglrcf411sx1280 v2

Flight control input voltage: 1ss 3.7 V-4.2 V (Lipo)

Mounting hole: 25.5x25.5mm. m2

Motor: Ghost 0.5-11000kv motor

Propeller: Gemfan 3018 two blade propeller

Optional receiver version: spi elrs 2,4g/tbs nano rx

Weight: 57.87g (weight without receiver)

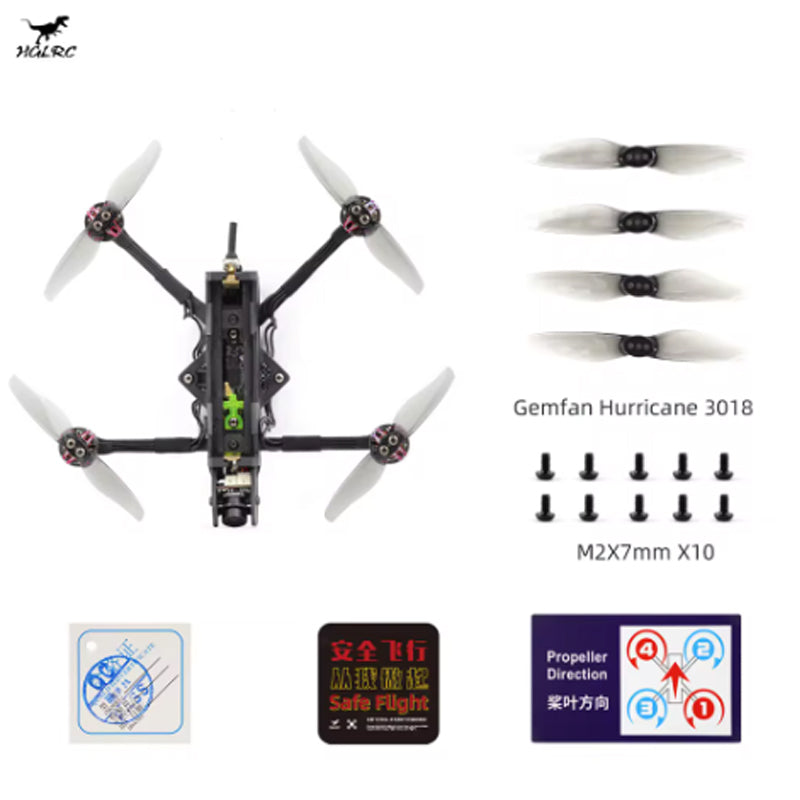

Shipping list:

1x rekon3 long range drone

8x gemfan 3018 3-inch 2-blade propellers

1x screw kit

Recommended battery:

1s: 18650-3000ma
