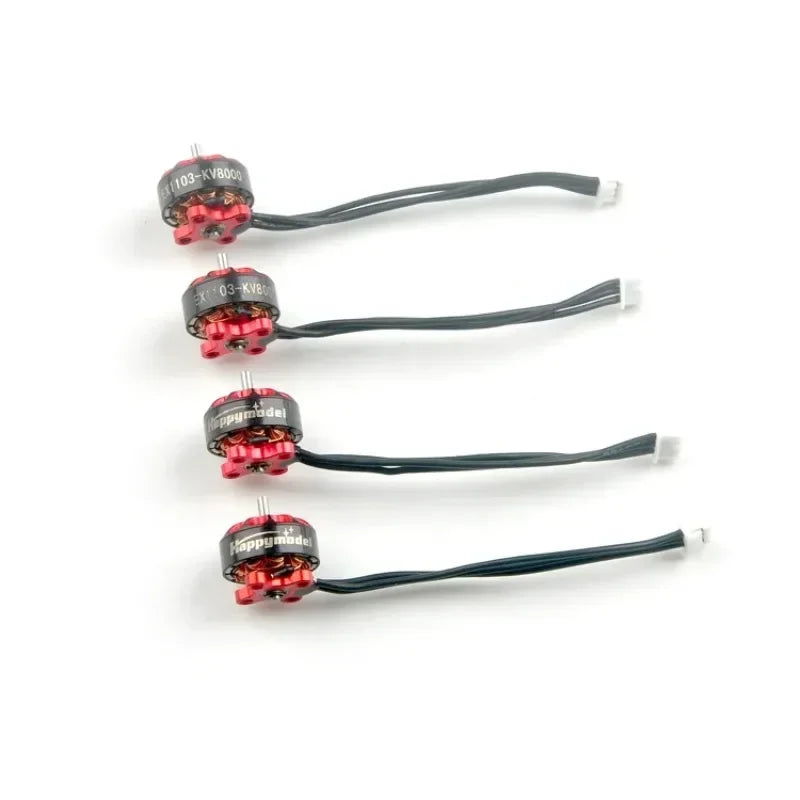

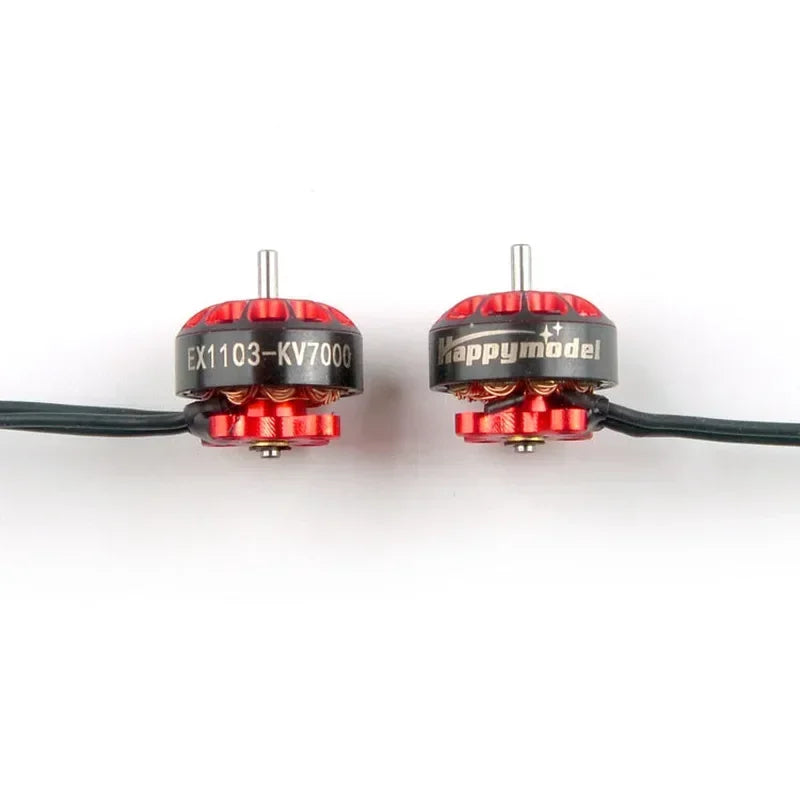

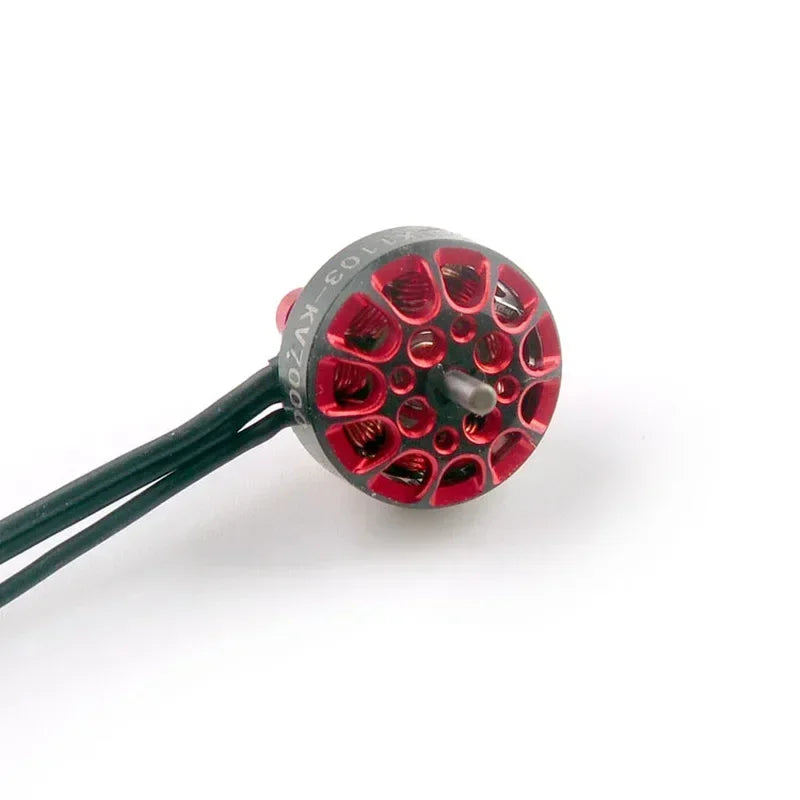

HappyModel EX1103S 7000KV 8000KV 2-4S Brushless Motor

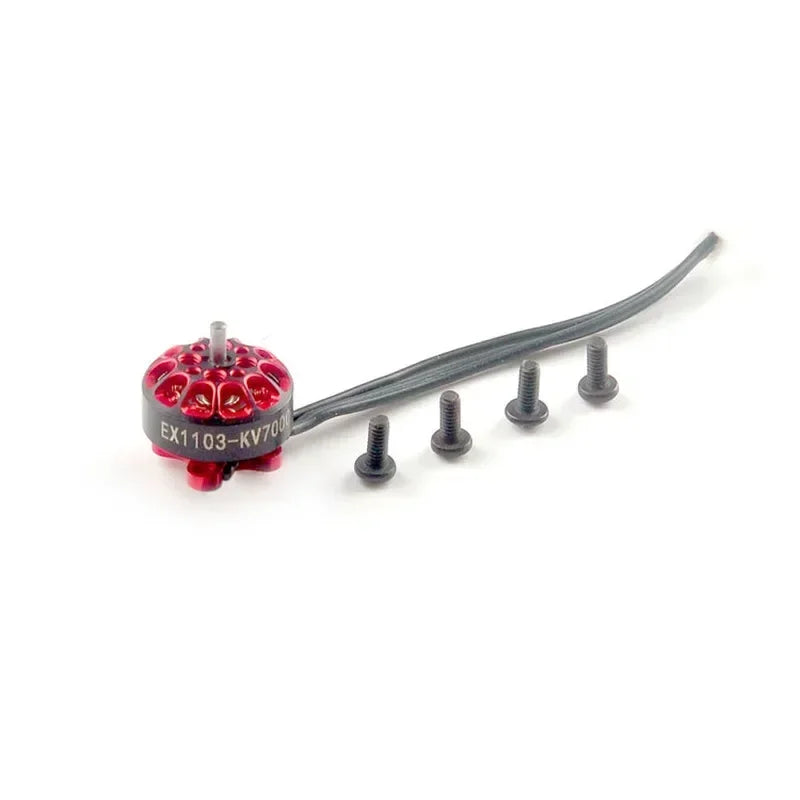

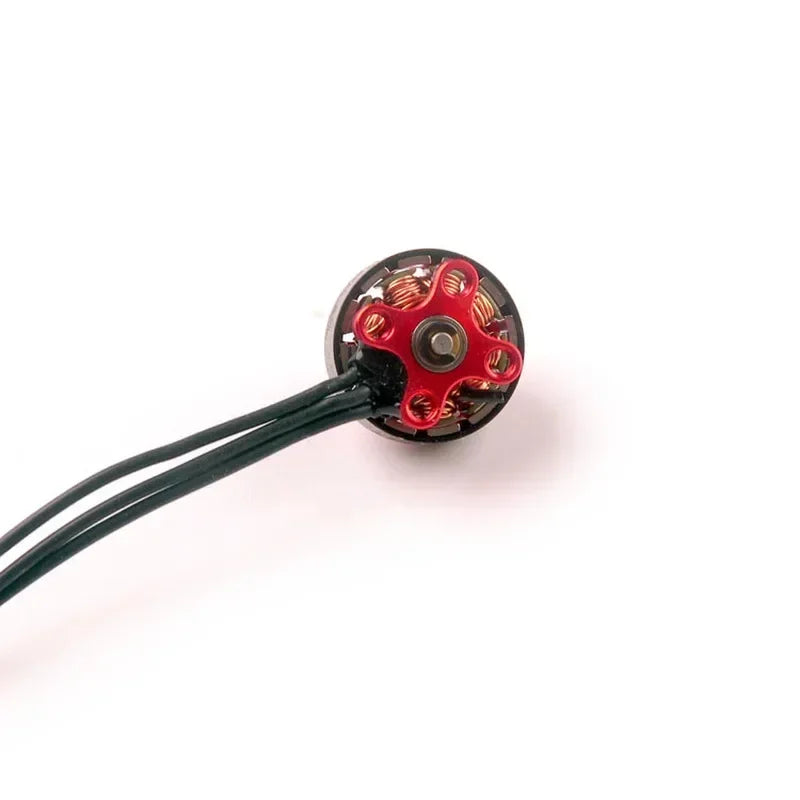

Happymodel improved model EX1103S KV7000 brushless motor, weighing only 3.8 grams, line length 5CM, cool design, imported NMB double bearing, double circlip, efficient and durable smooth. The mounting screw holes of the base are changed from three holes to standard four holes, which are fixed by M2 screws and are more reliable.
Suitable for assembling 105mm-110mm Toothpick grade Micro drone, 40mm-75mm propeller for shaft 1.5mm

Specification:
Brand Name: Happymodel
Mode: EX1103S/1103
KV options: 7000KV/8000KV/11000KV 3holes
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No. of Cells(Lipo): 2-3S

Features:
High efficiency and smooth
Dual bearing design and more balance
Better for Toothpick building
Compatible with 40mm-75mm propellers
Upgrade motor for Larva X
