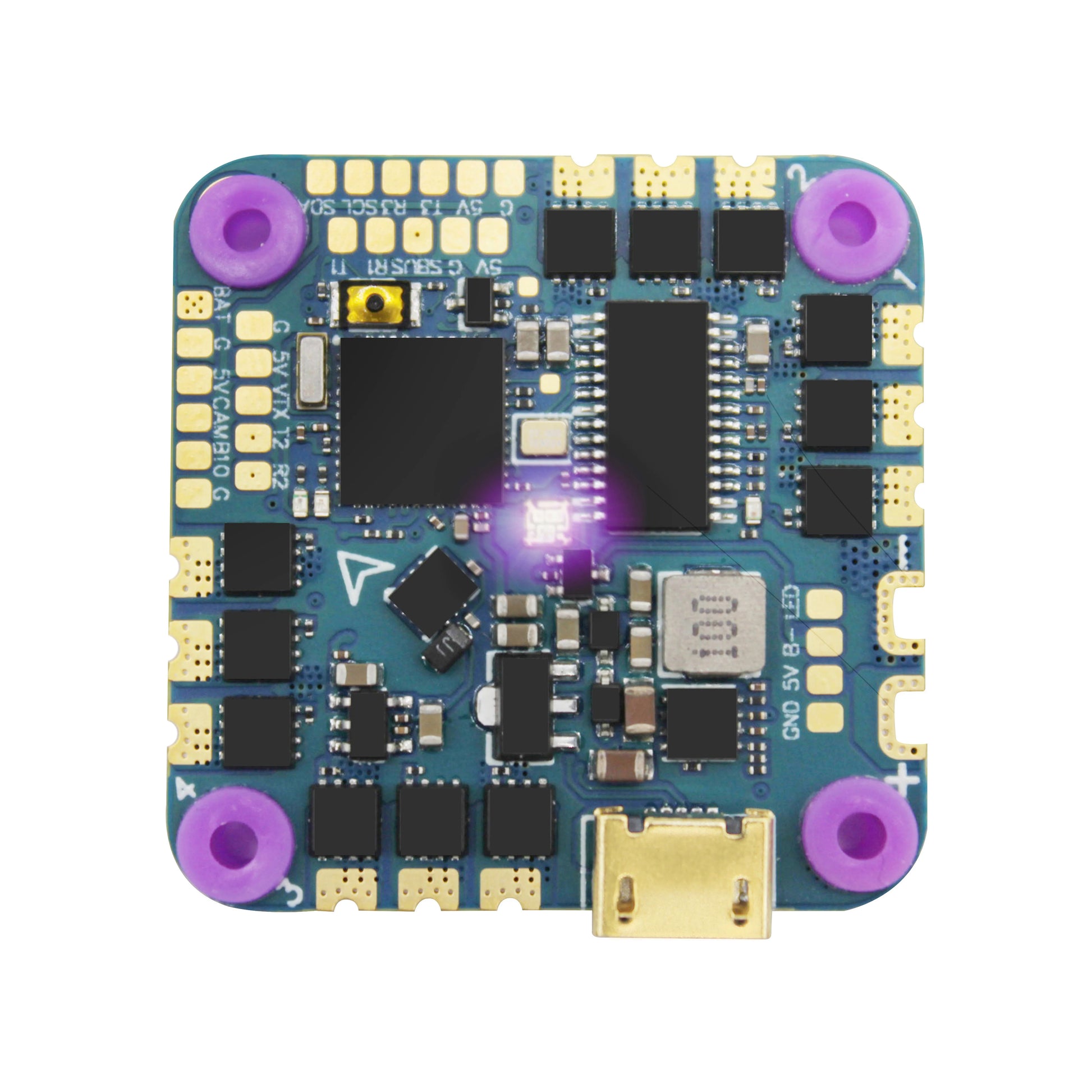

HAKRC F411 AIO F4126 Flight Controller BLHELI_S 20A 40A ESC

Product Features:

1. The PCB adopts high-end 8-layer 2oZ thick copper sheet, which has stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 30V high current resistance mos, which has long life and strong load capacity.

3. The use of industrial-grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance

Size: 33* 33mm (25.5mm-26.5mm mounting holes)

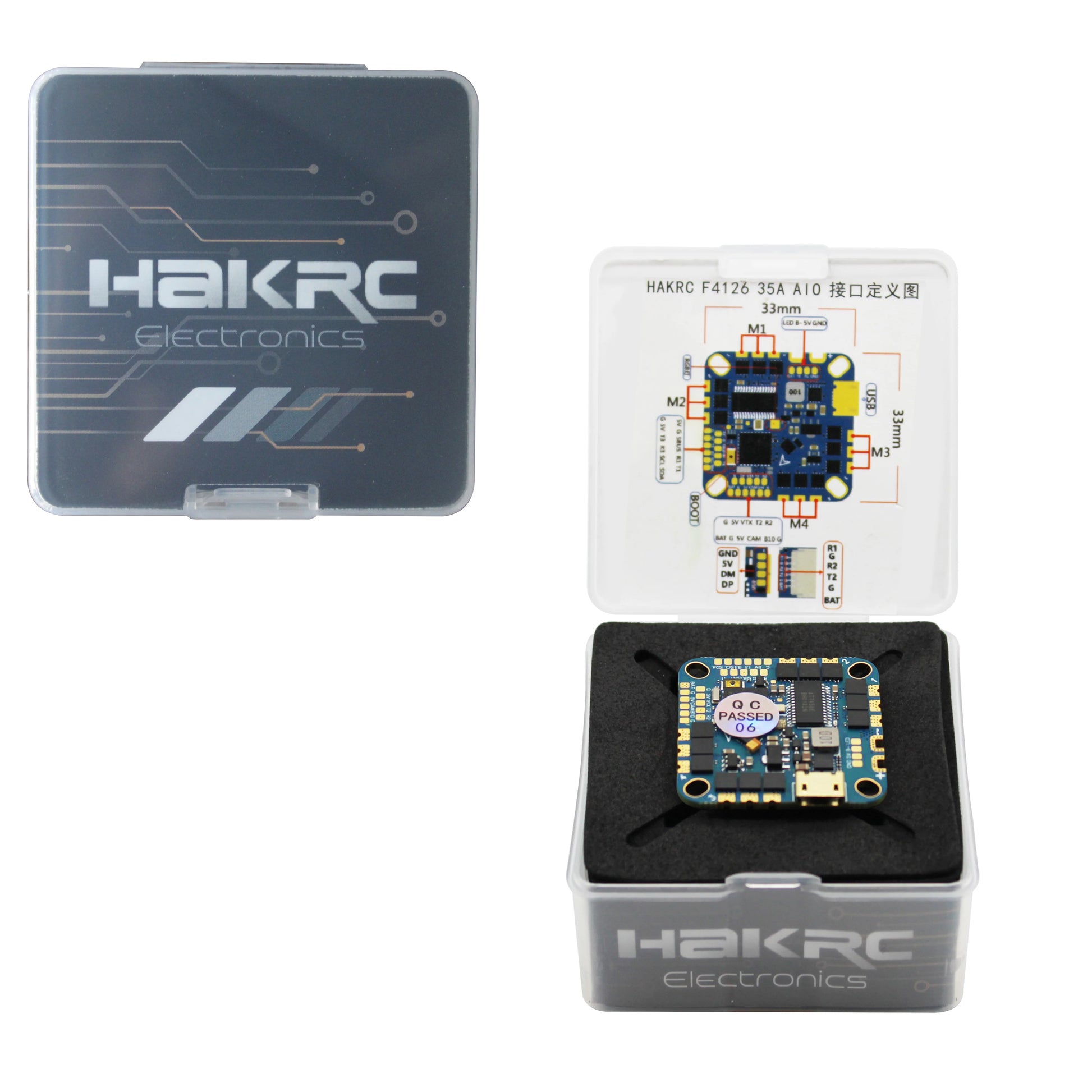

Packing size: ø63*32mm

Product net weight: 7g

Packing weight: 25g

Flight control parameters:

CPU: STM32F411CEU6

IMU: ICM42688

OSD: AT7456E

HAKRC F4126 20A AIO Specifications

 Product Features:

1. The PCB adopts high-end 8-layer 2oZ thick copper sheet, which has stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 30V high current resistance mos, which has long life and strong load capacity.

3. The use of industrial-grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance

Size: 33* 33mm (25.5mm-26.5mm mounting holes)

Packing size: ø63*32mm

Product net weight: 7g

Packing weight: 25g

Flight control parameters:

CPU: STM32F411CEU6

IMU: ICM42688

OSD: AT7456E

Barometer: Integrated

Black Box: 16M

BEC: 5V/3A

LED: Adjustable LED light

Sensor: Built-in current sensor

Firmware version: HAKRCF411D

Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX: DSM2 receiver

ESC parameters:

Firmware Version: BLHELI _S (G-H-20)

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-4S Lipo

Continuous current: 20A

Peak current: 25A
