GEPRC SPEEDX2 2207 1960KV2050KV Brushless Motor

$23.99

Sale Sold out

Shipping calculated at checkout.

kv 1960kv 2050kv

Summary

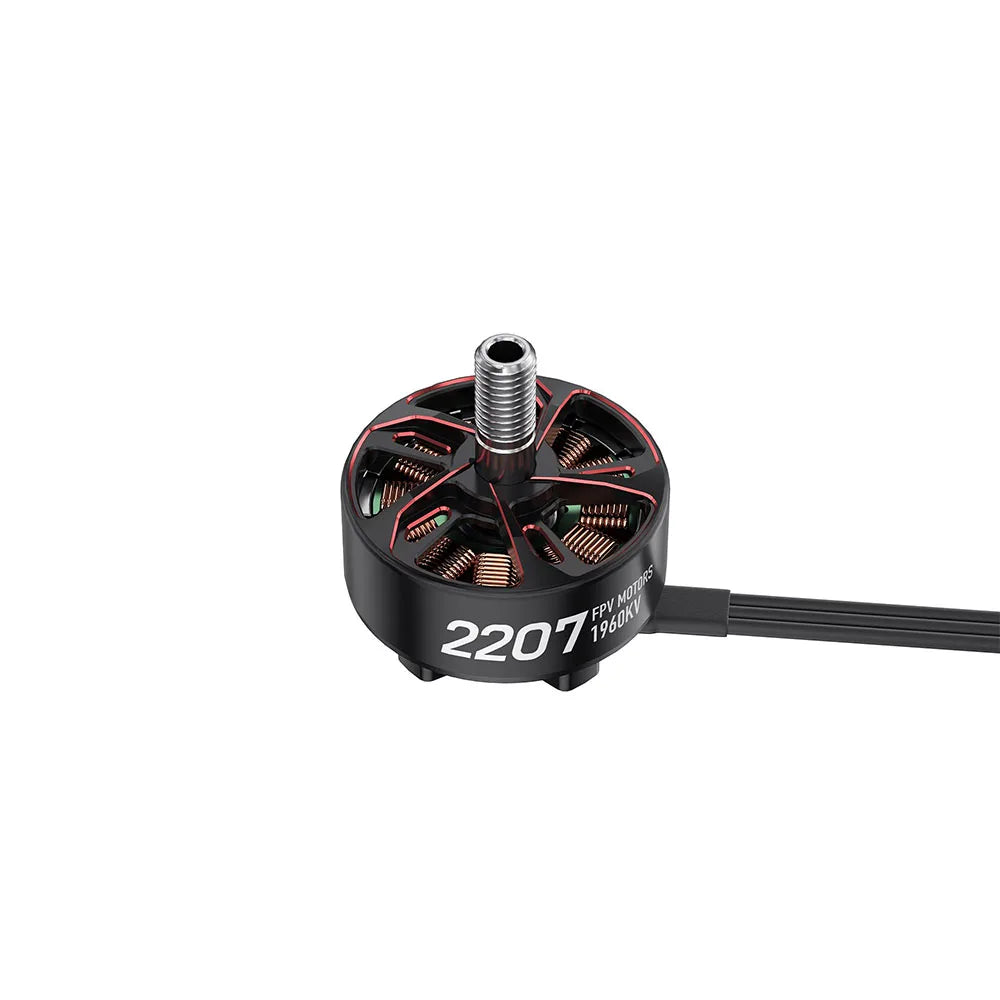

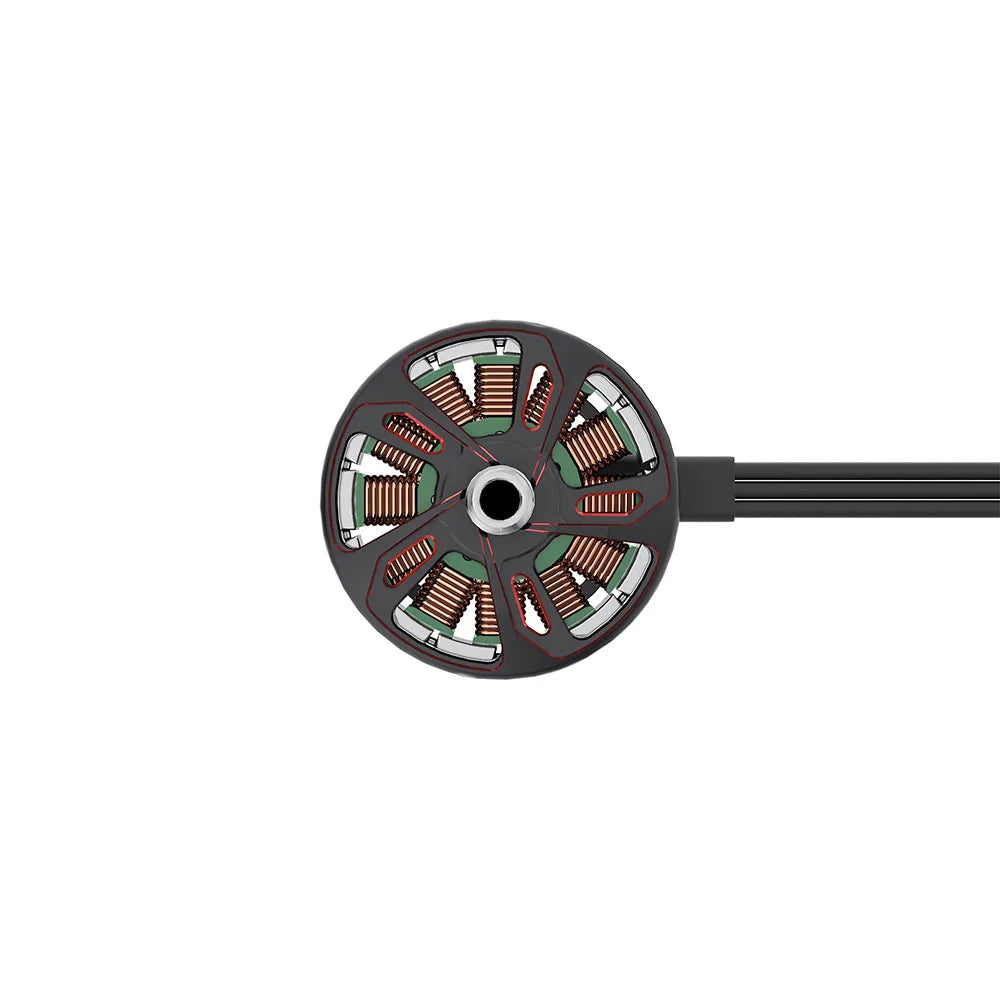

The SPEEDX2 2207 motor is specially designed for FPV competitions. This motor focuses on violent high performance and high-response design ideas. The material used is enameled wire with a temperature resistance of 360°C. Even if the motor temperature is high, it can avoid burning the motor. The gap between the motor magnet and the stator is controlled to a precise width of 0.13mm, which can achieve higher response speed.

The KV values of the SPEEDX2 2207 racing motor are: 1960KV suitable for novice racing pilots, and 2050KV suitable for professional racing pilots.

Feature

1. The enameled wire has a temperature resistance of up to 360°C, a smaller gap between the rotor and the stator, and a faster response.

2. The appearance of SPEEDX2 2207 is black and red, highlighting the exquisite details.

3. In terms of motor magnetic circuit design, choose a solution with high explosive force and high response.

4. The surface of the motor is treated with fine CD texture, which can effectively prevent scratches from affecting the appearance.

5. Made of 7075 aviation aluminum alloy, high-precision CNC integrated molding, lighter weight.

Specifications

SPEEDX2 2207 1960KV Motor

KV: 1960KV

Configuration: 12N14P

Magnet: N52H ARC

Rotor material: 7075-T6 aviation aluminum alloy

Stator diameter: 22mm

Stator height: 7mm

Output shaft diameter: Φ5mm

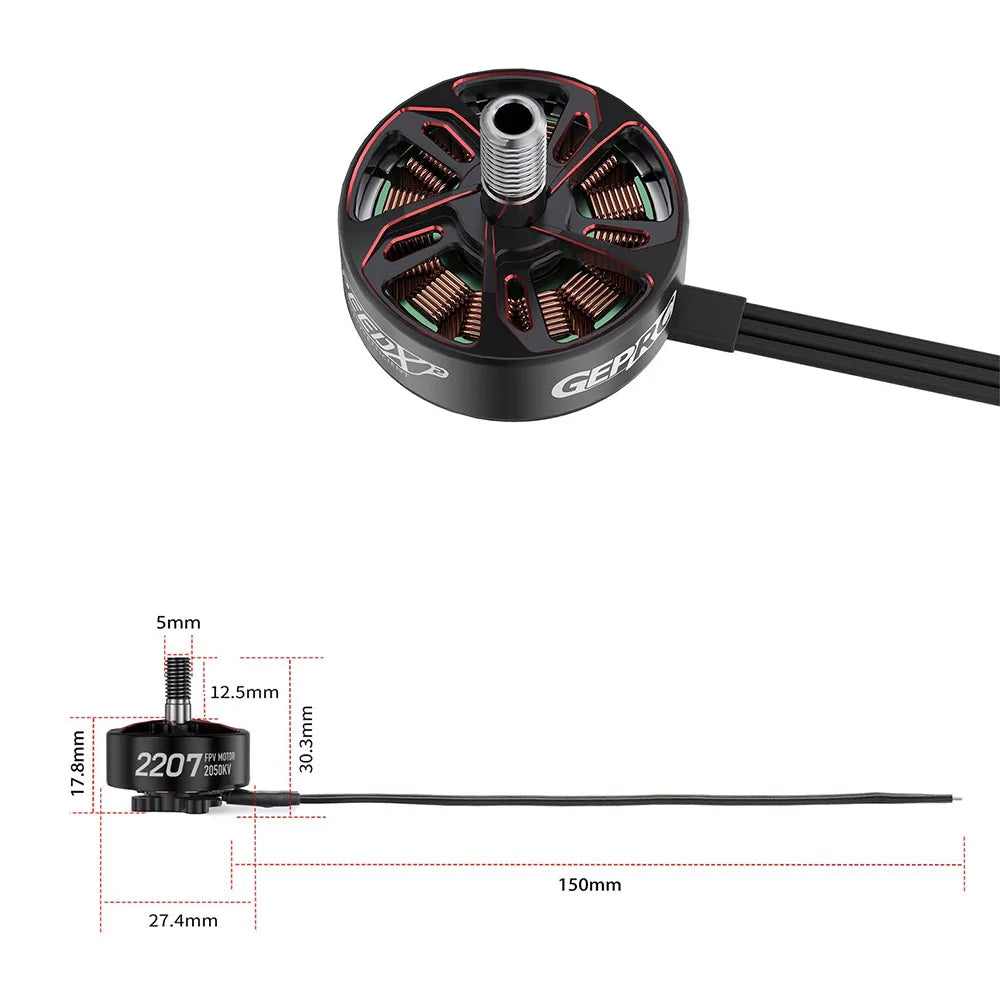

Dimensions: Φ30.3mm *27.40mm

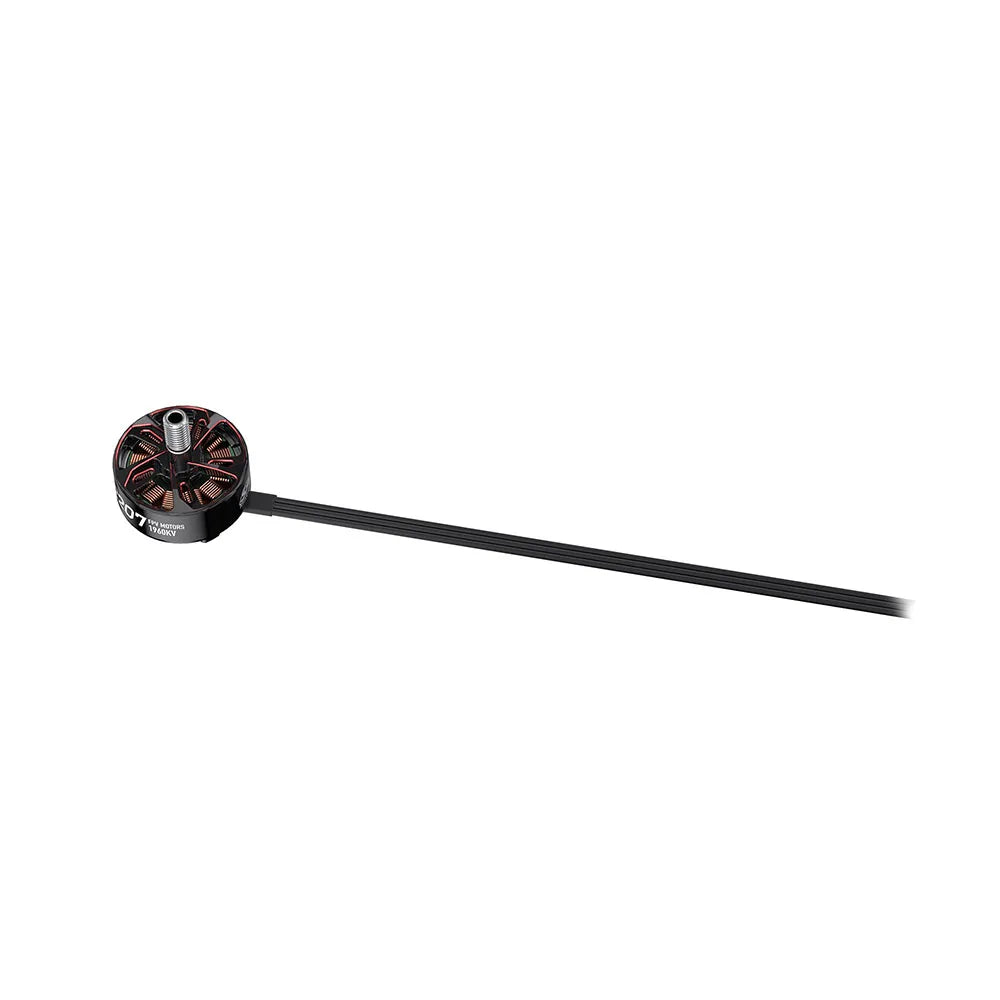

Outlet specification: 20AWG 150mm

Rated voltage: 25.2V 6S LiPo

Maximum power: 1315.4W

Maximum current: 52.2A

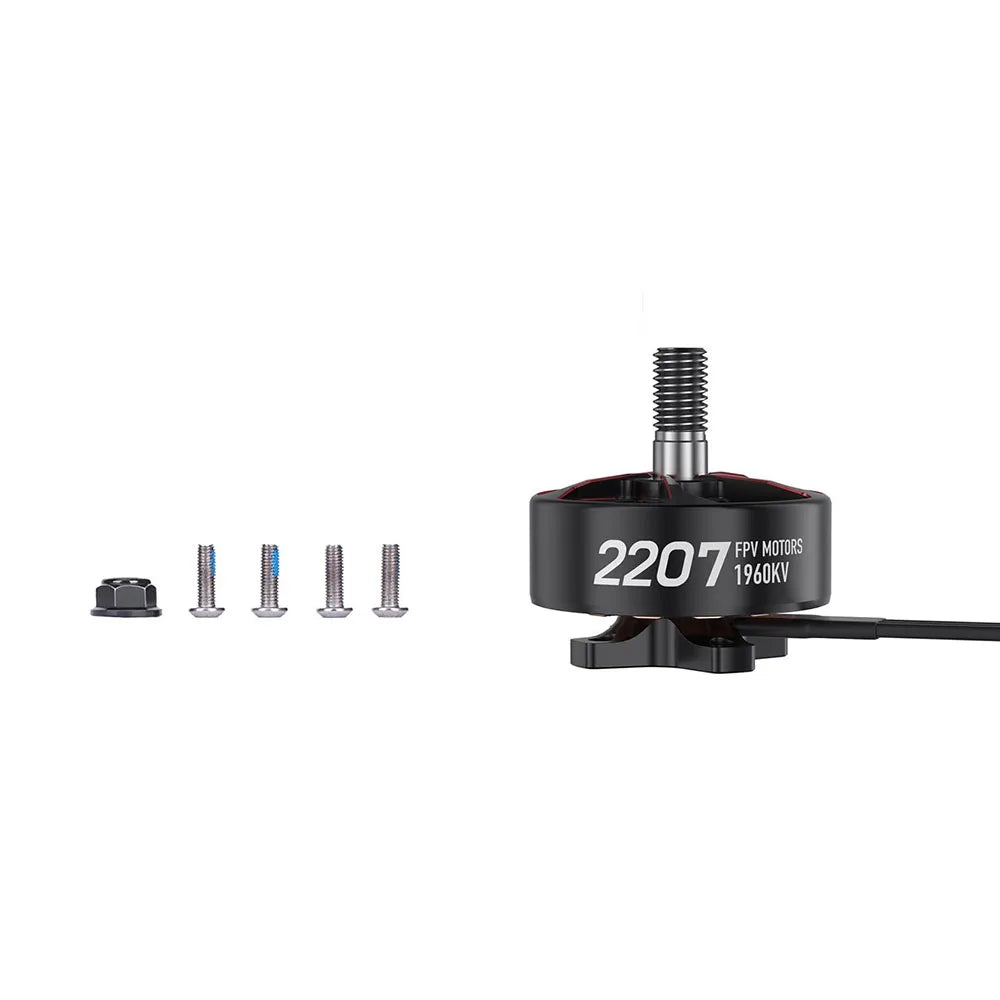

Mounting hole: 16x16mm (M3)

Color: black with red

Weight: 32.4g (including wire)

Applicable models: Suitable for 4inch-5inch racing FPV quads

SPEEDX2 2207 2050KV Motor

KV: 2050KV
