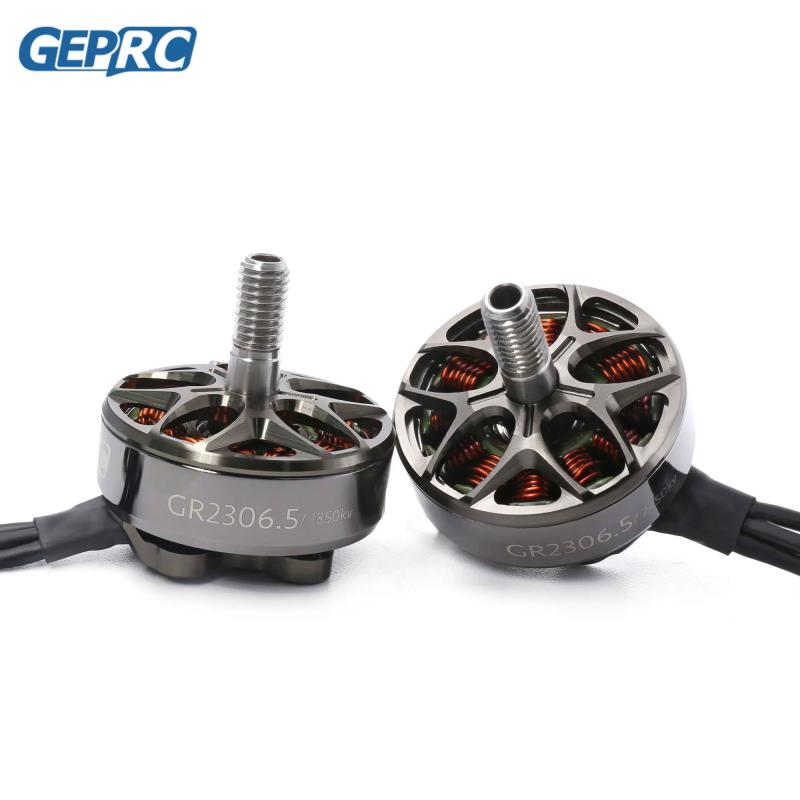

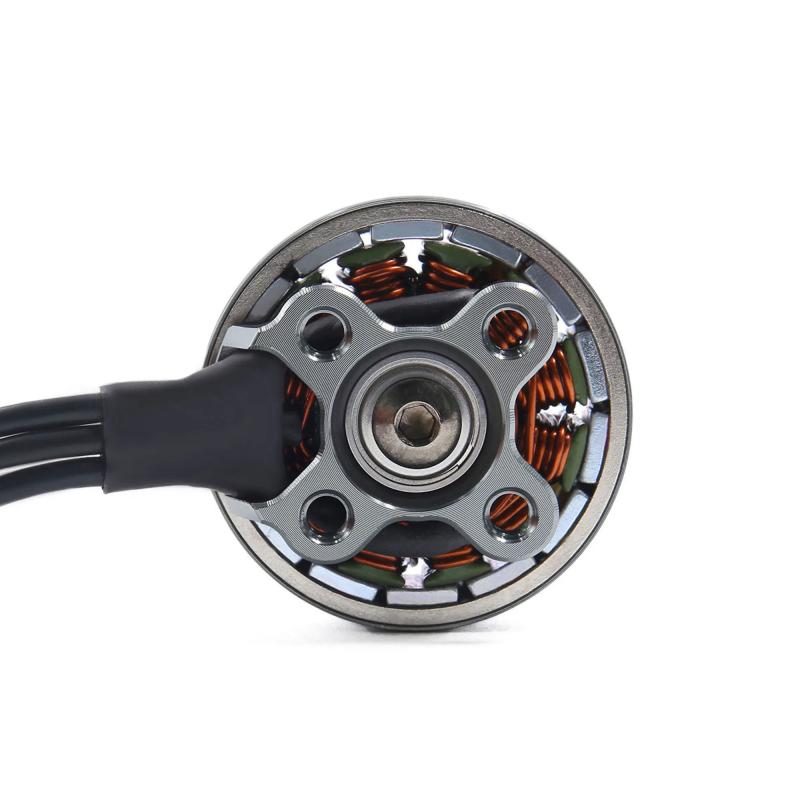

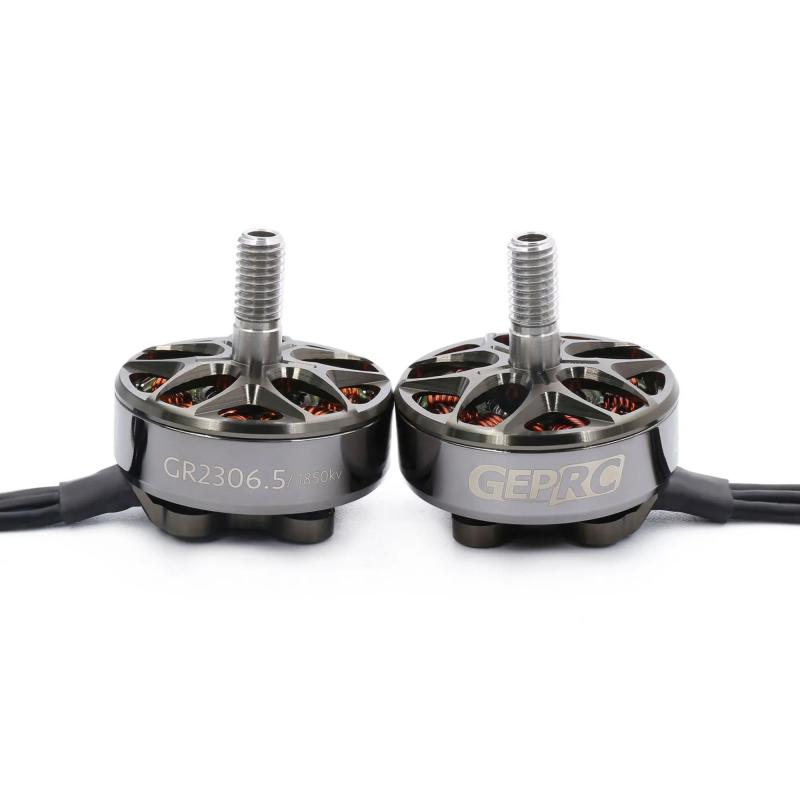

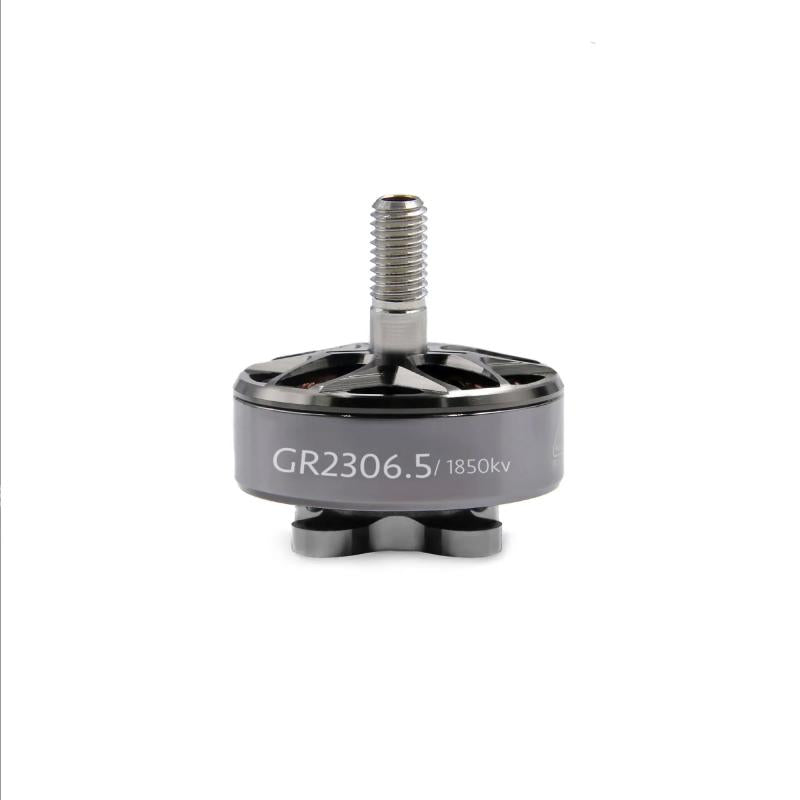

GEPRC GR2306.5 2306.5 2450KV Brushless Motor

Specifications:

• Item name:GR2306.5 Motors
• KV:1350KV / 1850KV / 2450KV (Optional)

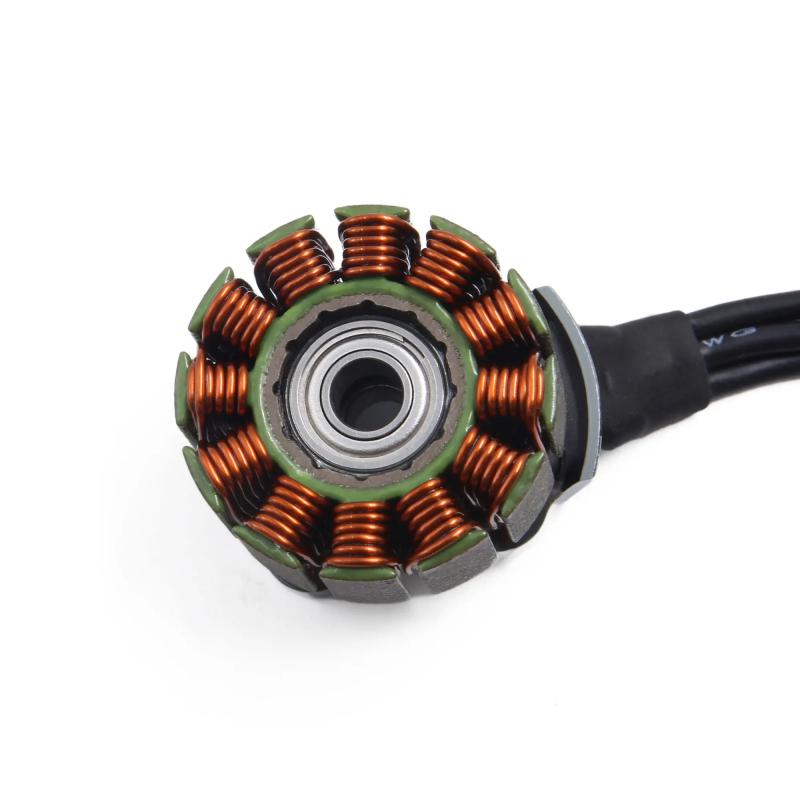

• Configuration:12N14P
• Stator Diamter:23mm
• Stator Length:6.5mm
• Shaft Diameter:4mm(Hollow)
• Motor (Dimension(Dia.*Len)): Φ28.2*29.2mm
• Idle current(10)@10V(A):1.95
• of Cells(Lipo):4~5S
• Max Continuous (Power(W)15S):1000
• Internal Resistance:38mΩ
• Max Current(15S):49A
• Effciency Current:(3-7A)>85%
• Rotor: N52H arc magnets
• Bearings:JAPAN ISC
• Base casing: Al 7075
• Wire AWG: 20AWG
• Weight(g):31g (not include wire)
