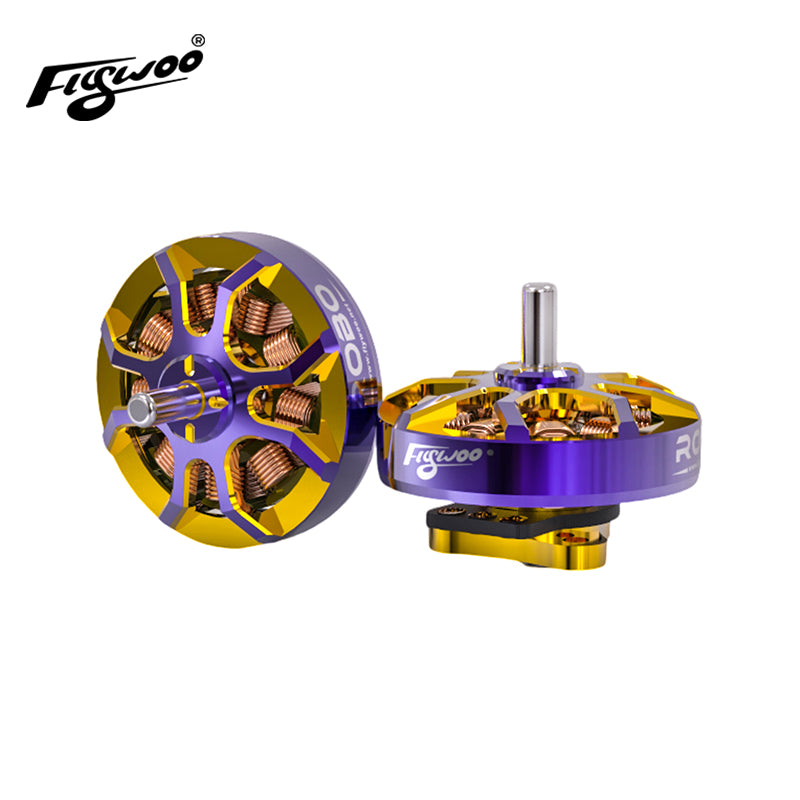

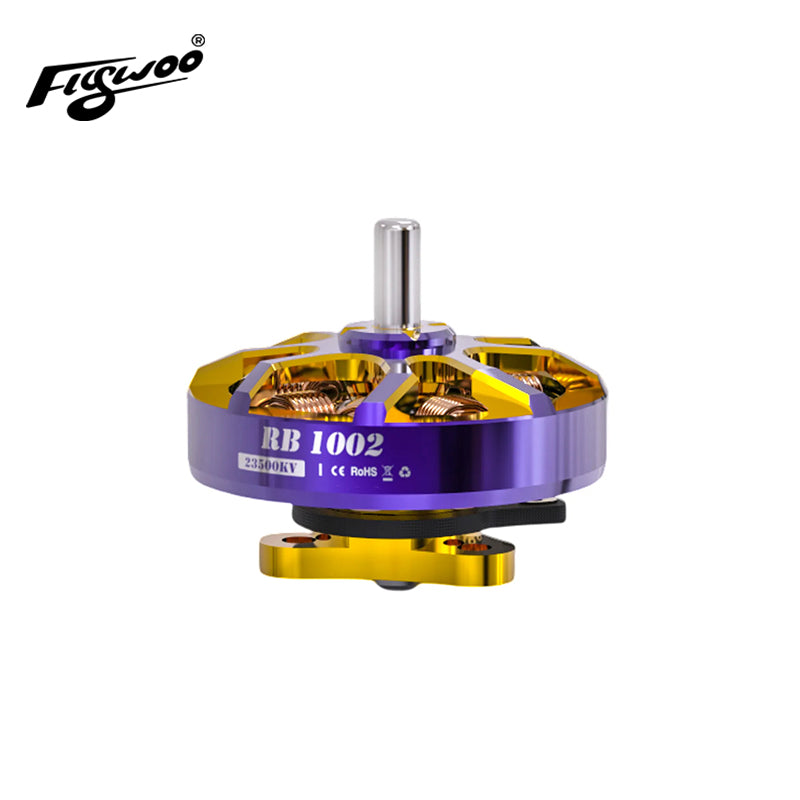

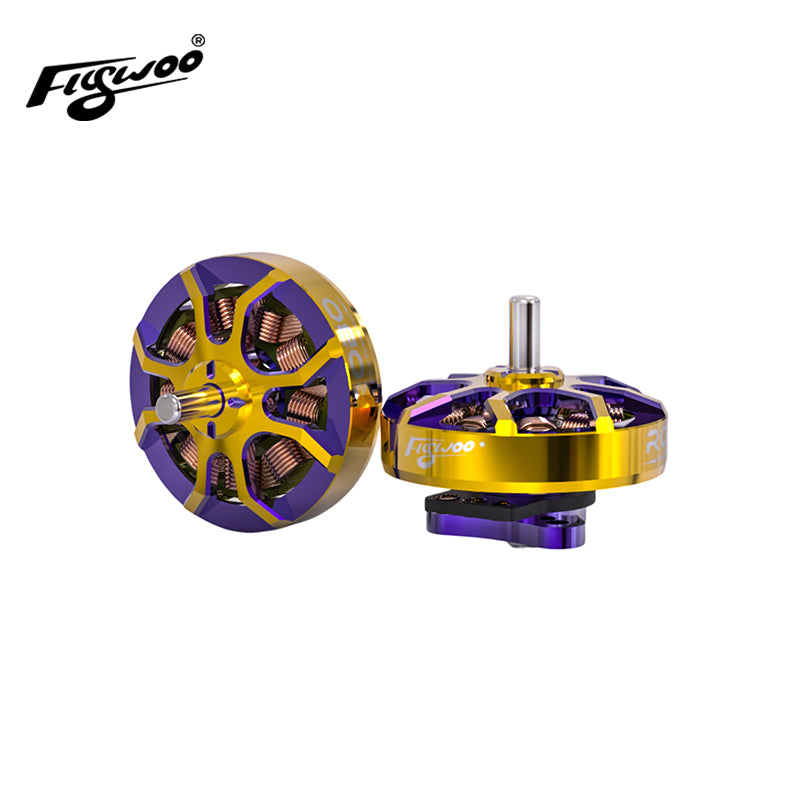

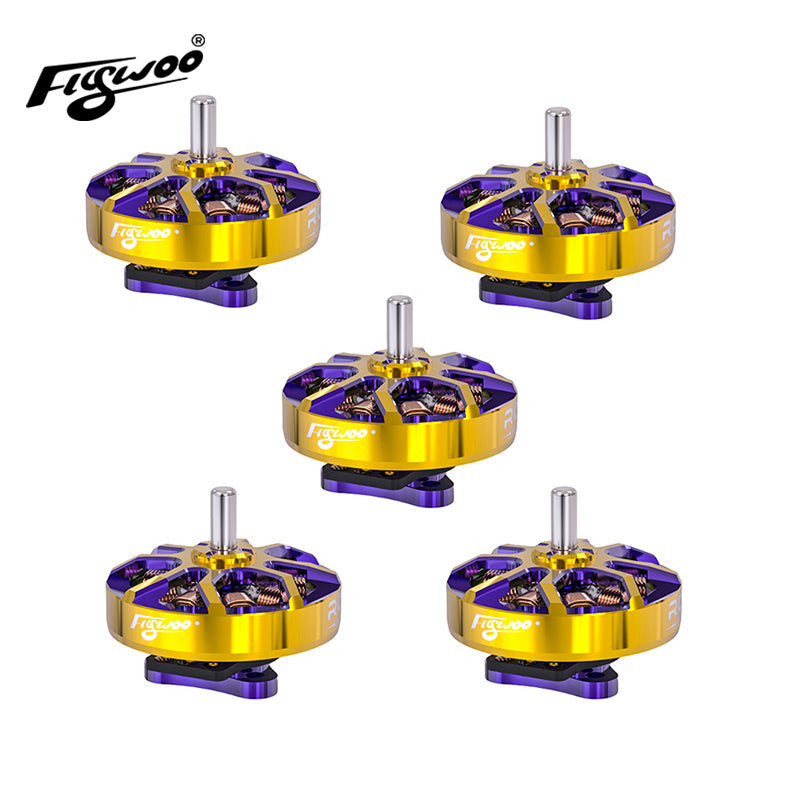

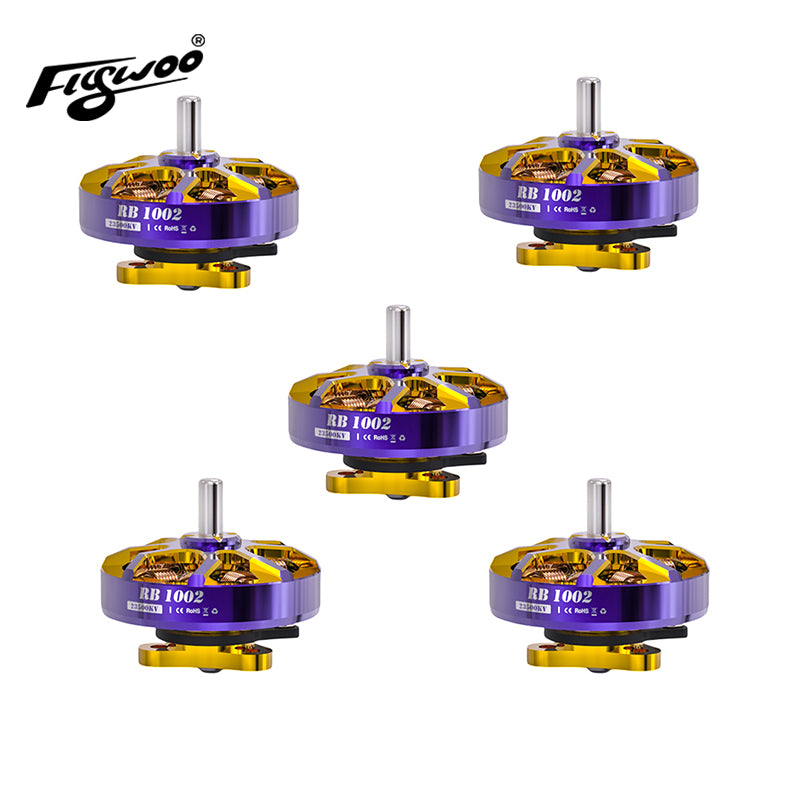

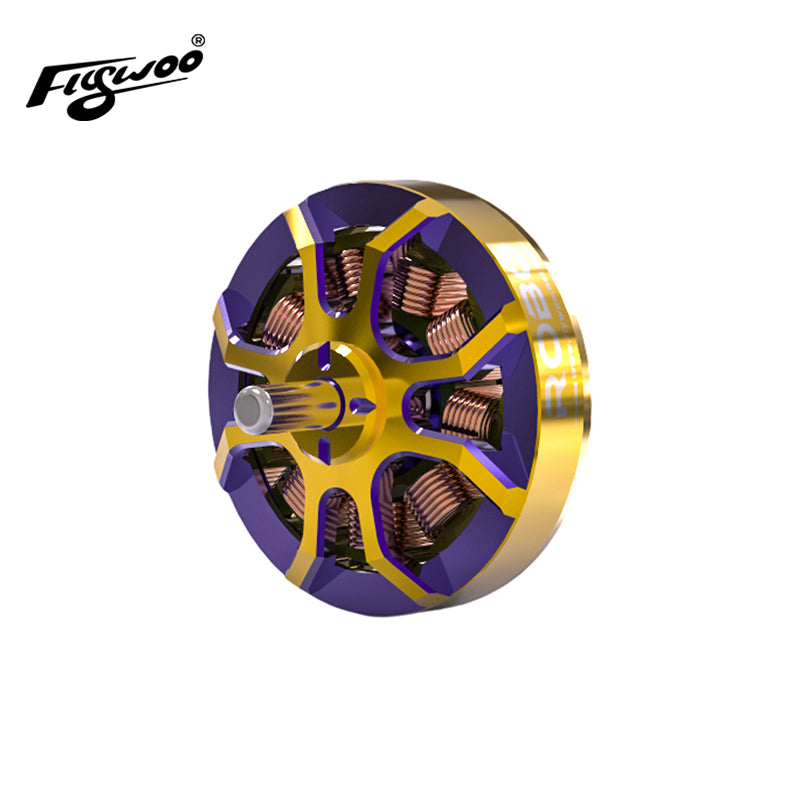

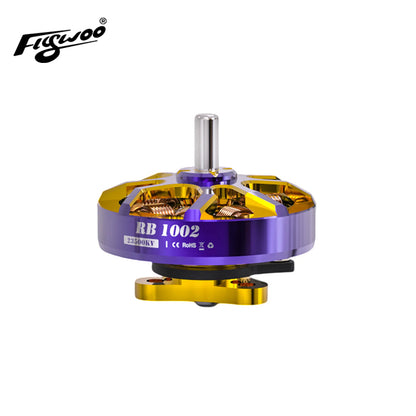

Flywoo ROBO 1002 19800KV / 23500KV Fpv Motor

Specification
Flywoo ROBO 1002 19800KV Fpv Motor:

Configuration: 9N12P

Stator Diamter: 10mm

Stator Length: 2mm

Shaft Diameter: 1.5mm

Motor Dimension(Dia.*Len): Φ13.5*7.75mm

Weight(g): 2.5(5cm wire)

Idle current(5)@5V(A): 1.3

No.of Cells(Lipo): 1S

Max Continuous Power(W)3S: 44

Internal Resistance: 89mΩ

Max Current(3S): 11.8A

Max Efficiency Current: (2-4A)>84%

Flywoo ROBO 1002 23500KV Fpv Motor:
Configuration: 9N12P

Stator Diamter: 10mm

Stator Length: 2mm

Shaft Diameter: 1.5mm

Motor Dimension(Dia.*Len): Φ13.5*7.75mm

Weight(g): 2.5(5cm wire)

Idle current(5)@5V(A): 1.5

No.of Cells(Lipo): 1S

Max Continuous Power(W)3S: 52

Internal Resistance: 75mΩ

Max Current(3S): 14A

Max Efficiency Current: (2-4A)>84%
