FLIPSKY Mini FSESC6.7 PRO 70A base on VESC6.6 With Aluminum Anodized

FLIPSKY Mini FSESC6.7 PRO 70A base on VESC6.6 With Aluminum Anodized

$74.00
$74.00
Sale Sold out
Shipping calculated at checkout.
color

Specs:

  • Firmware: Latest Version

  • Continuous current: 70A; instantaneous current: 200A

  • Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )

  • Control Interface Ports:USB,CAN,UART, SPI, IIC

  • Supported Sensors:ABI，HALL，AS5047，AS5048A

  • Input Set Support:PPM, ADC, NRF, UART

  • Modes:DC, BLDC, FOC (sinusoidal)

  • Regenerative capacity: Yes

  • BEC: 5V@1A

  • ERPM: 150000

  • Programmable: Yes

  • Motor wire: 12AWG

  • Power cable:12AWG

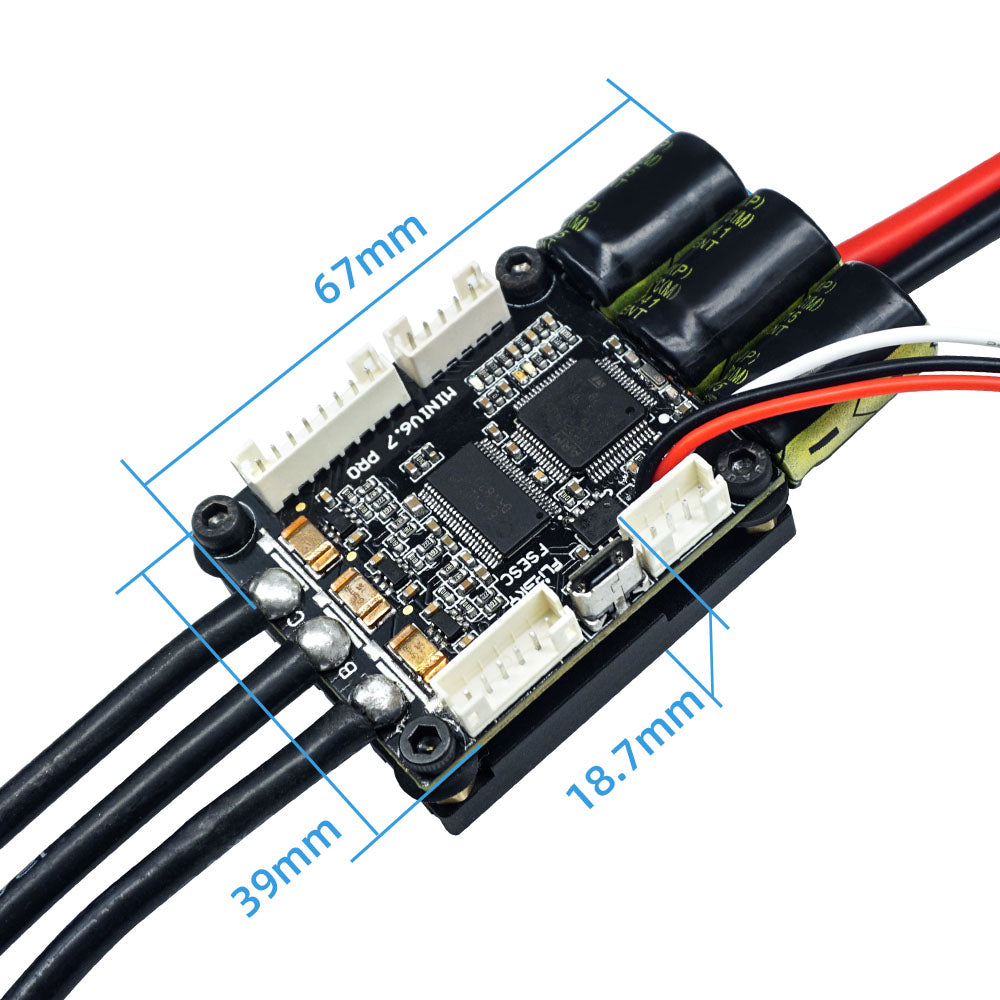

  • Size:67x39x18.7mm(Including heatsink)

  • Weight: 130g

Feature:

  1. Support four control modes: Current/Dutycycle/Speed /Position control mode.

  2. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.

  3. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.

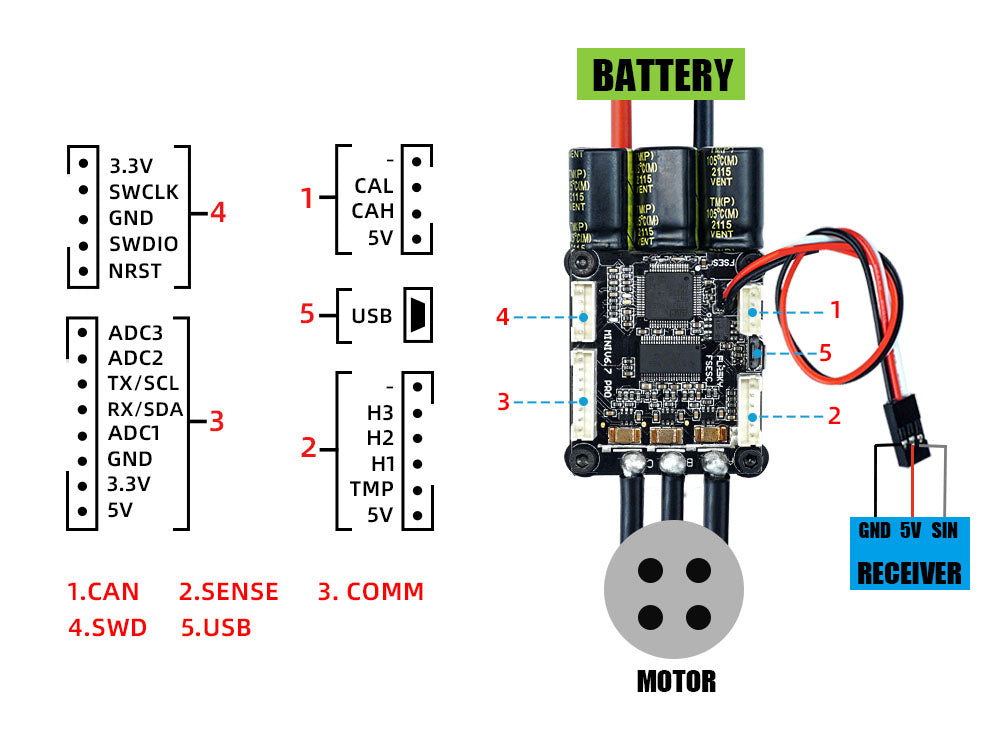

Wiring diagram:
