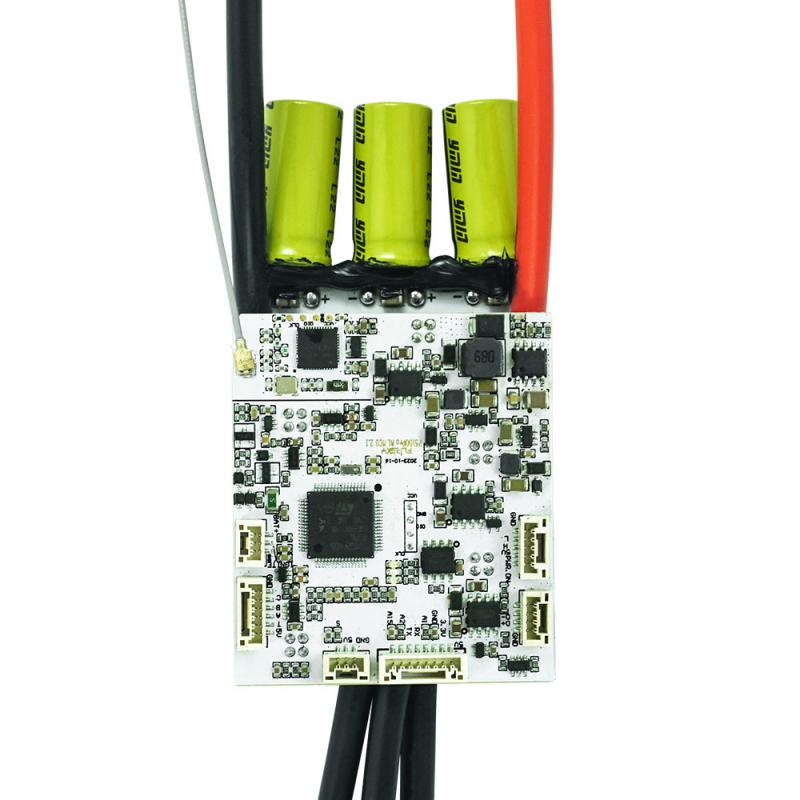

Flipsky 75100 Pro V2.0 Aluminum PCB With Power Key

Spec:
Firmware: 6.02 (firmware update supported)

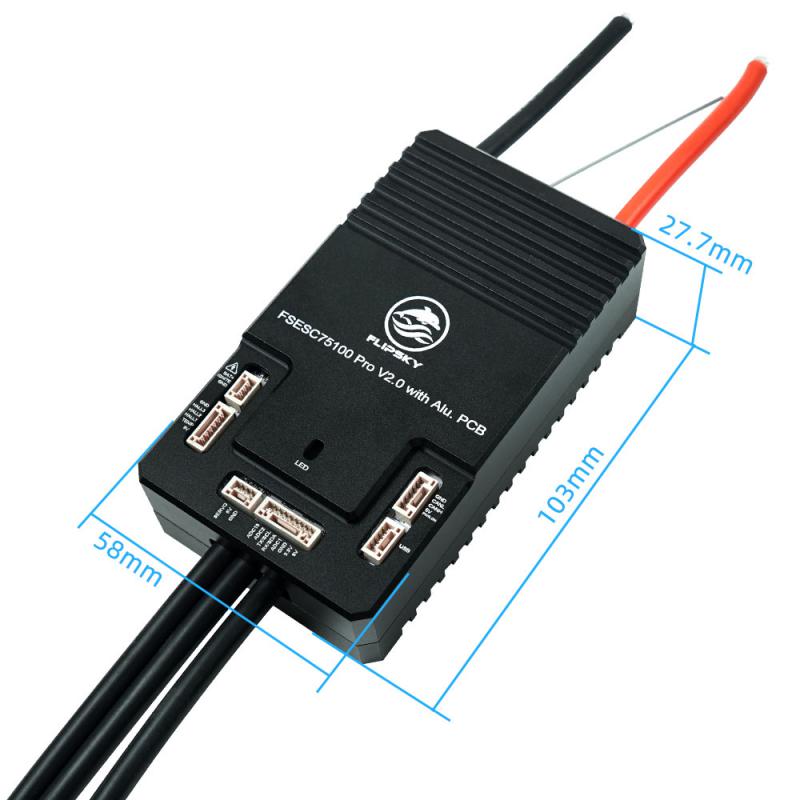

Size: L103mm*W58mm*H27.7mm

Voltage:14-84V (4-20S)

Current:100A Continuous

BEC:5V@1.5A

Support BLDC square wave mode control and FOC sine wave mode

ERPM:150000

Control Interface Ports:USB,CAN,UART

Supported Sensors:ABI，HALL，AS5047，AS5048A

Input Set Support:PPM，ADC，NRF,UART

Wire Size: 10AWG(75100 Pro)

Programmable: Yes

Regenerative Capacity: Yes

Phase Filter: Yes

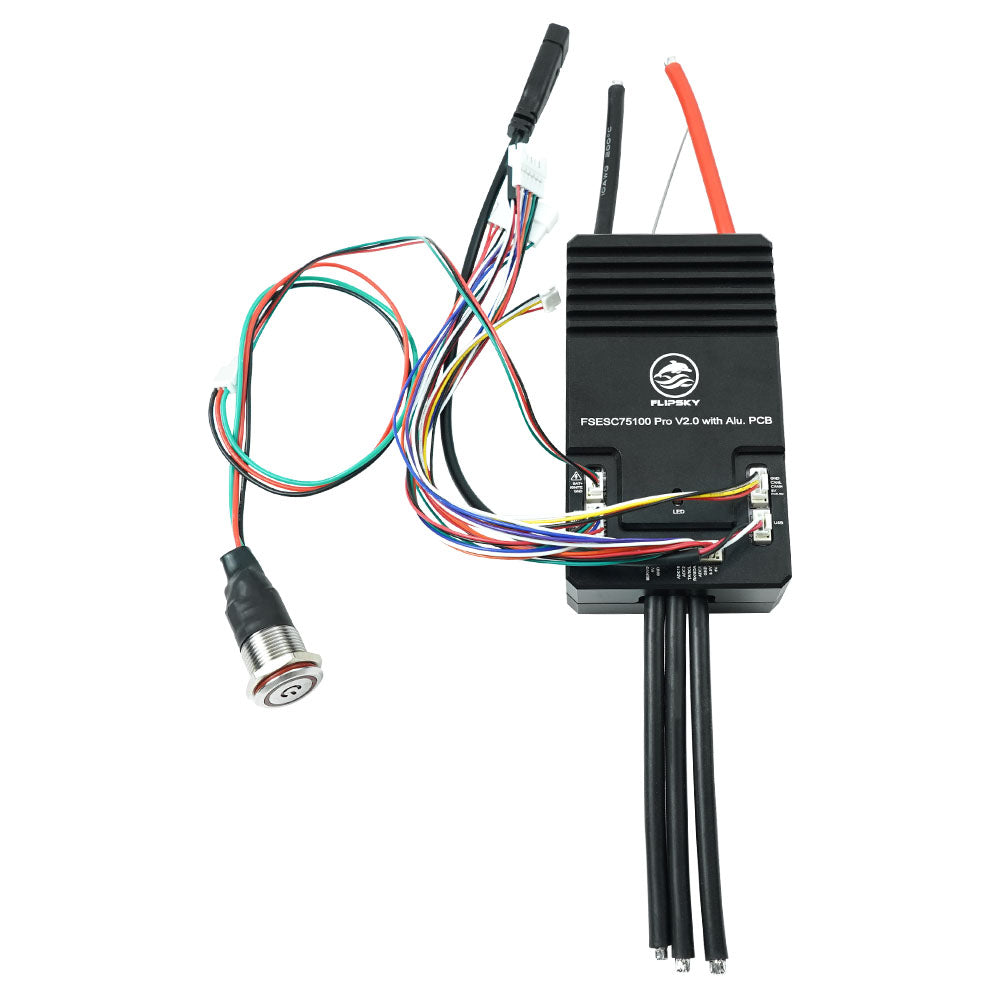

Power Switch Button: Red

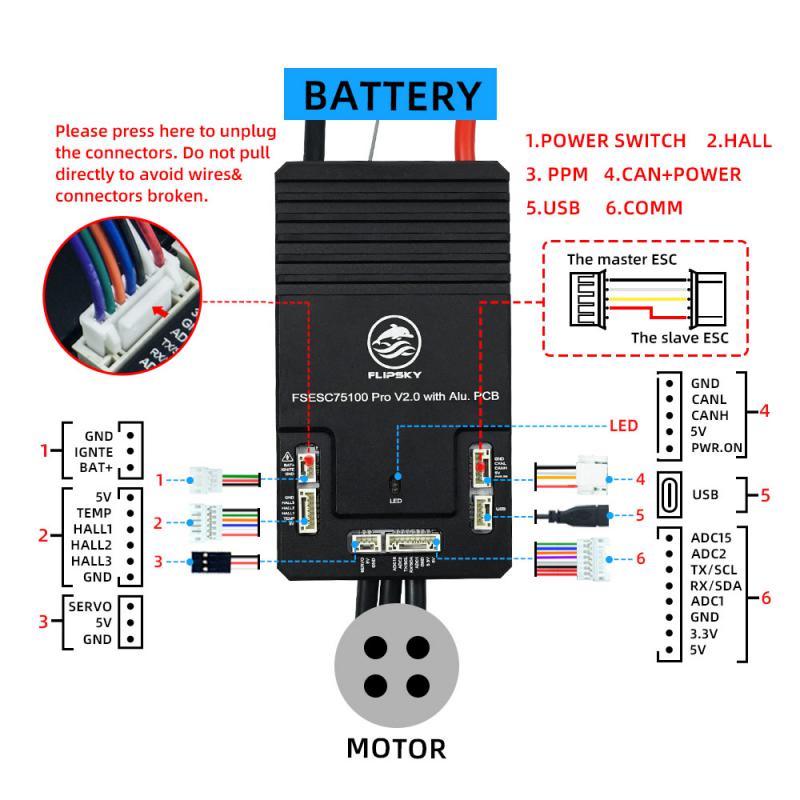

Wiring diagram:
