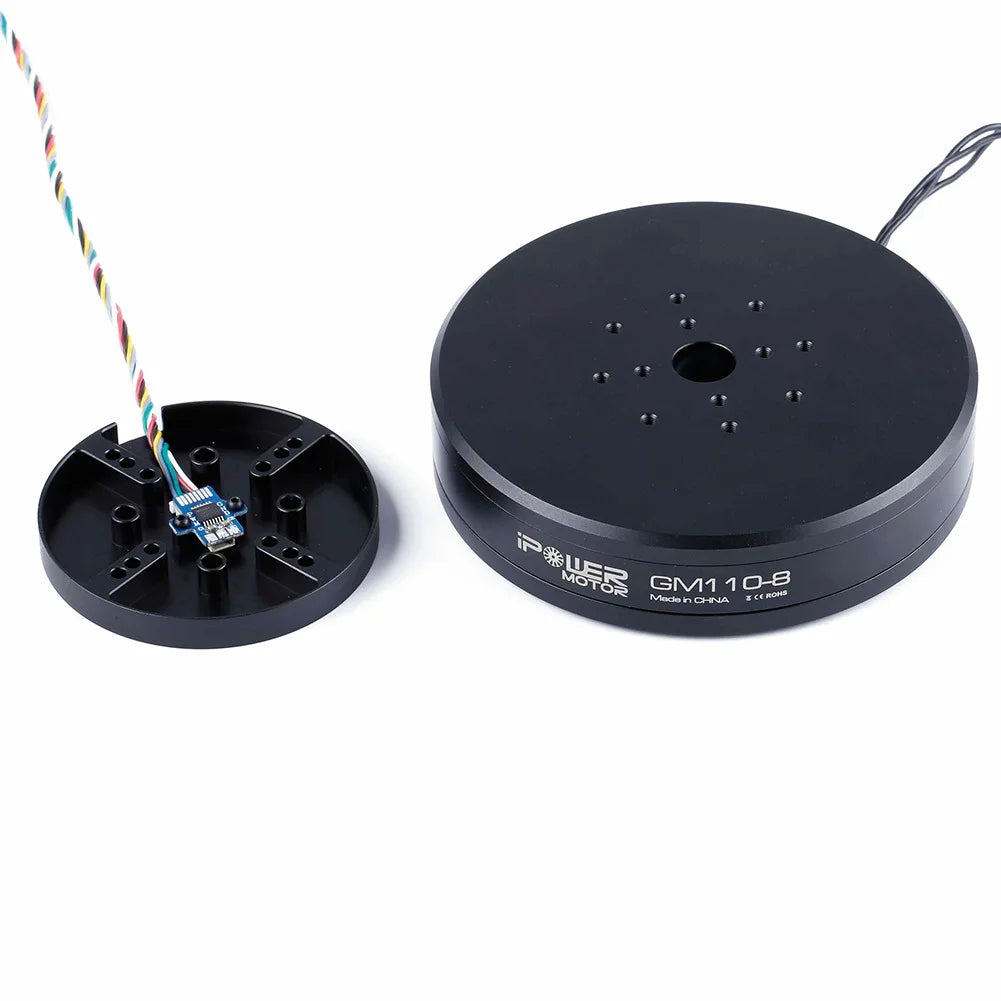

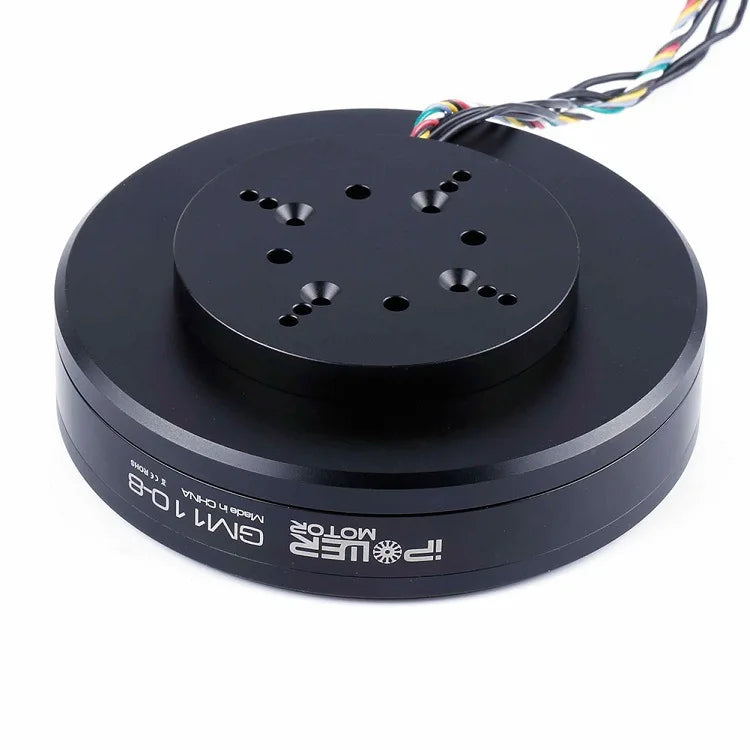

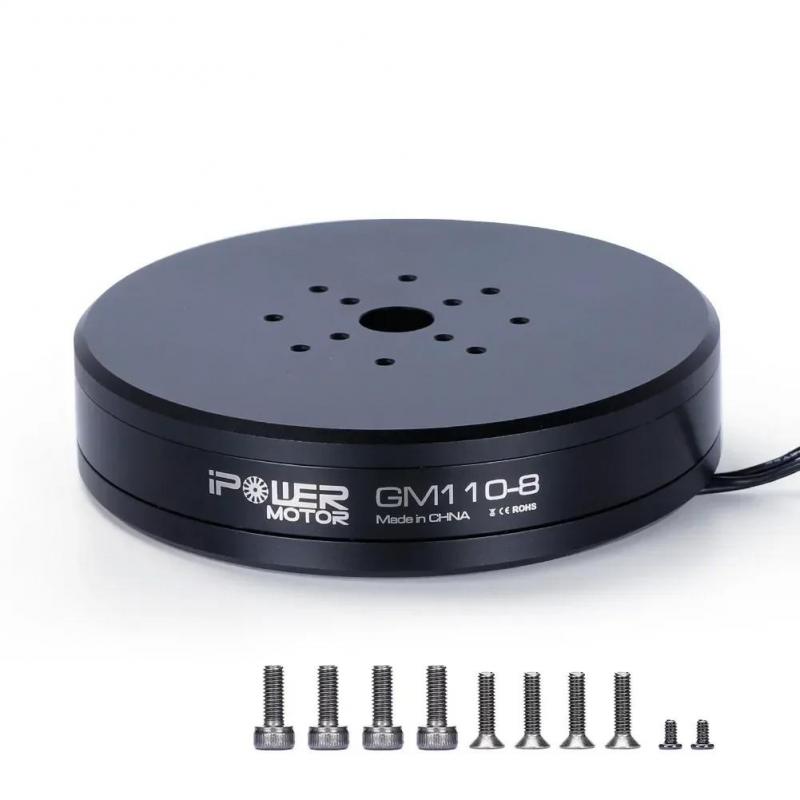

FLIGHT GM110-8 brushless gimbal motor with AS5048A suitable

Description

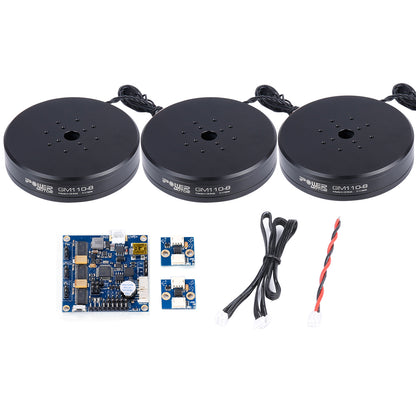

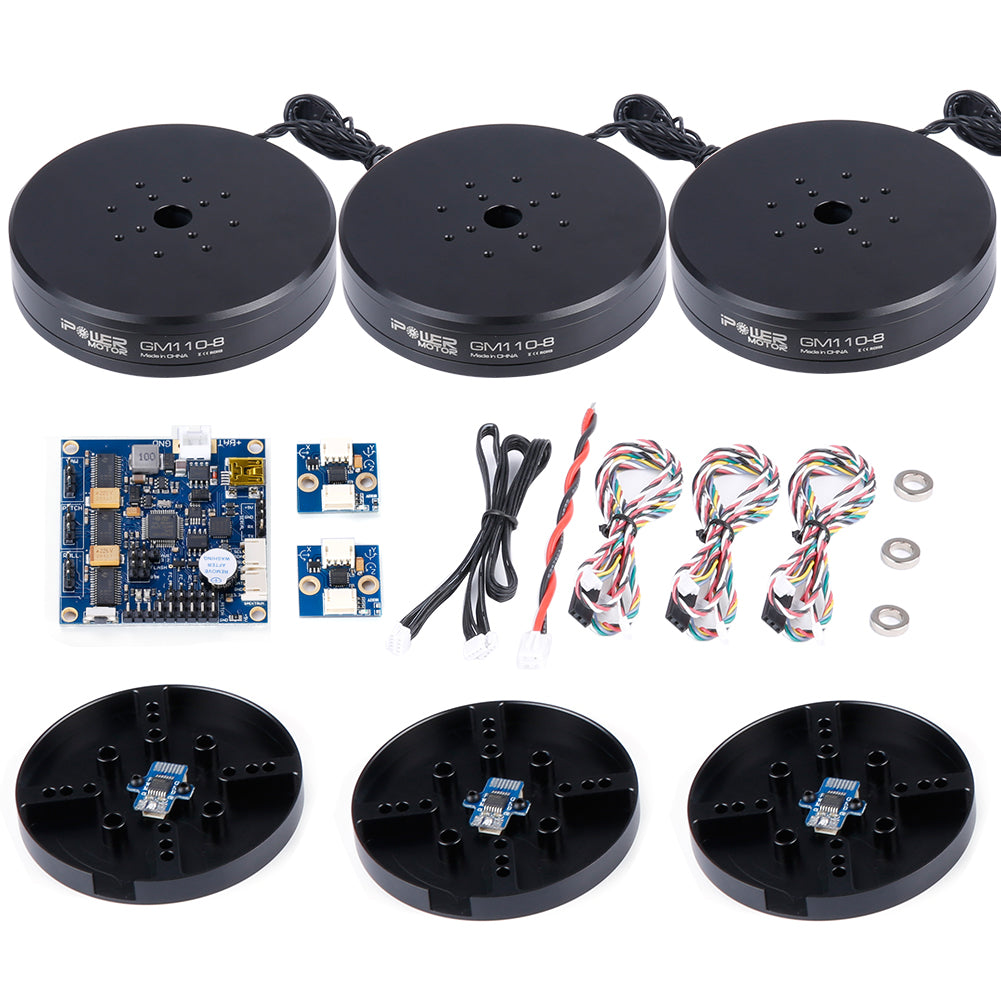

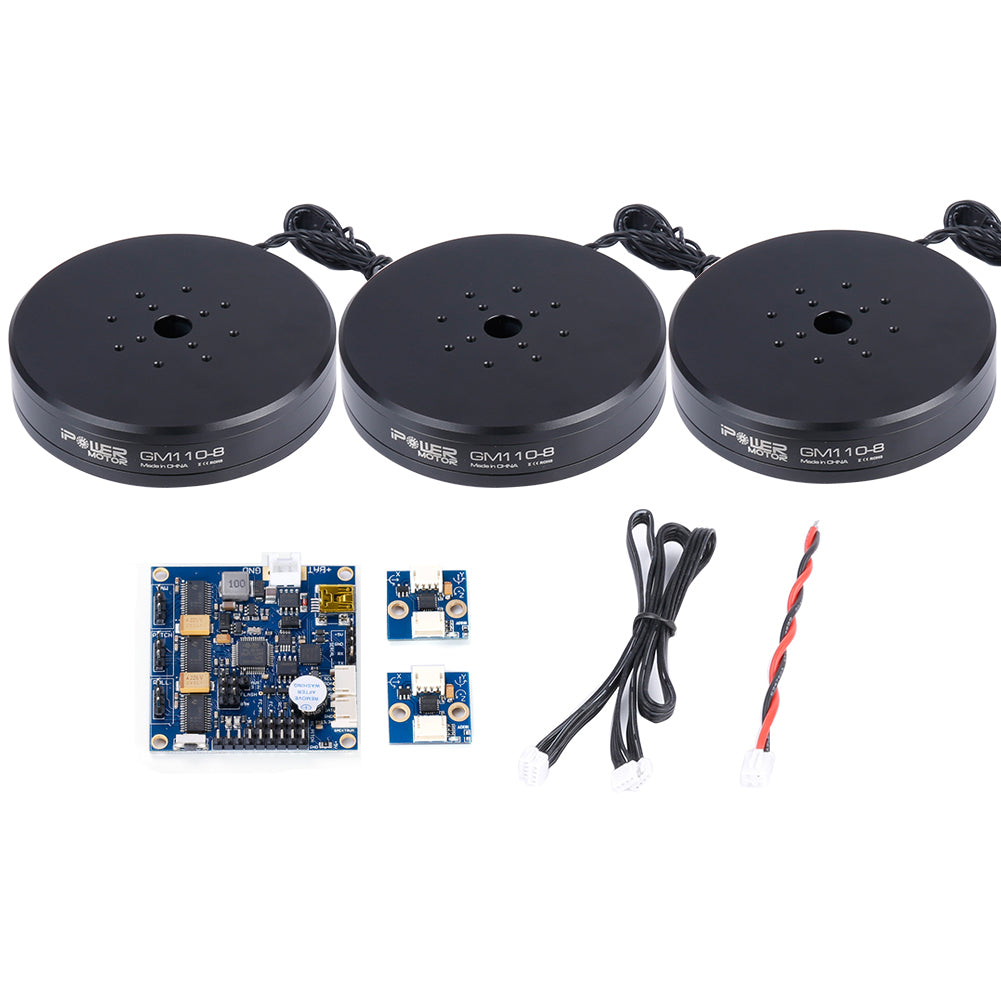

The controller can be used for building high-quality 3-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers.

This version of the controller is our new direction in the development of stabilizing solutions. It will replace the previous 8-bit version of the SimpleBGC controller, keeping 100% back-compatibility, but adding the new functionality.

Features

Size of the board: 50×50 mm

The distance between the mounting holes: 45 mm

The diameter of the mounting holes: 3 mm

Power supply voltage: 3S to 6S

Maximum motor current: 1,5 A

5V output current to power external devices: up to 1 A

Specifications

Model: GM110-8

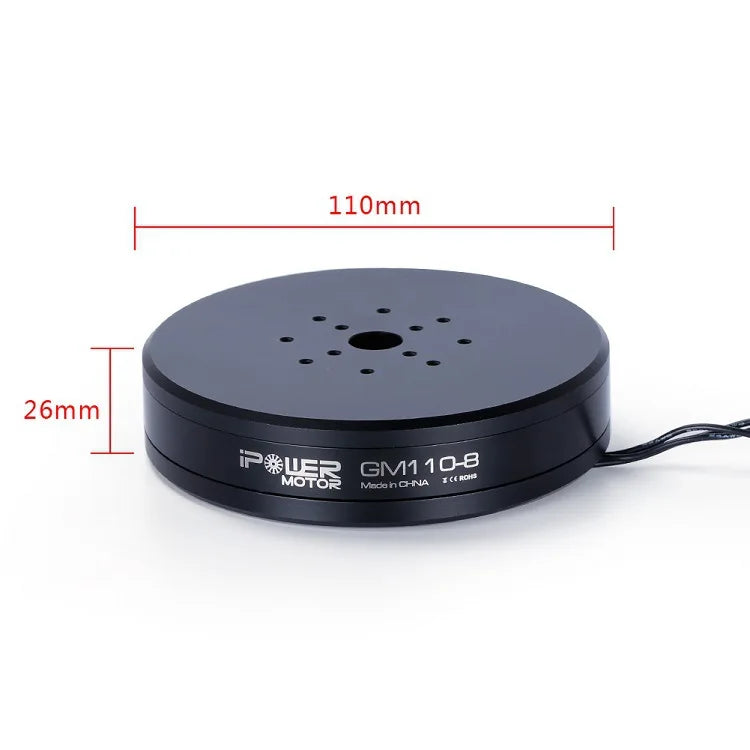

Motor Out Diameter: 110±0.05mm

Configuration: 24N/28P

Motor Height: 26±0.2mm (Included with Encoder housing)

Hollow Shaft(OD): N/A

Hollow Shaft(ID): N/A

Wire Length: 610±3mm

Cable AWG: #24

Motor Weight: 534±1g

Wire plug: 2.5mm dupont connector

No-load current: 0.09±0.1 A

No-load volts: 20 V

No-load Rpm: 125~139 RPM

Load current: 2 A

Load volts: 20 V

Load torque(g): 8000-12000

Motor internal resistance: 20.19Ω±5%Resistance varies with temperature

High voltage test: DC500V 1mA @2sec

Rotor housing runout: ≤0.1mm

Steering (axle extension): clockwise

High-low temperature test:

High temperature: Keep at 60 for 100 hours, and the motor can work normally after 24 hours at room temperature

Low temperature: Keep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature

Maximum power: ≤60W

Working current: 4-6S

Working temperature: -20~60;10~90%RH
